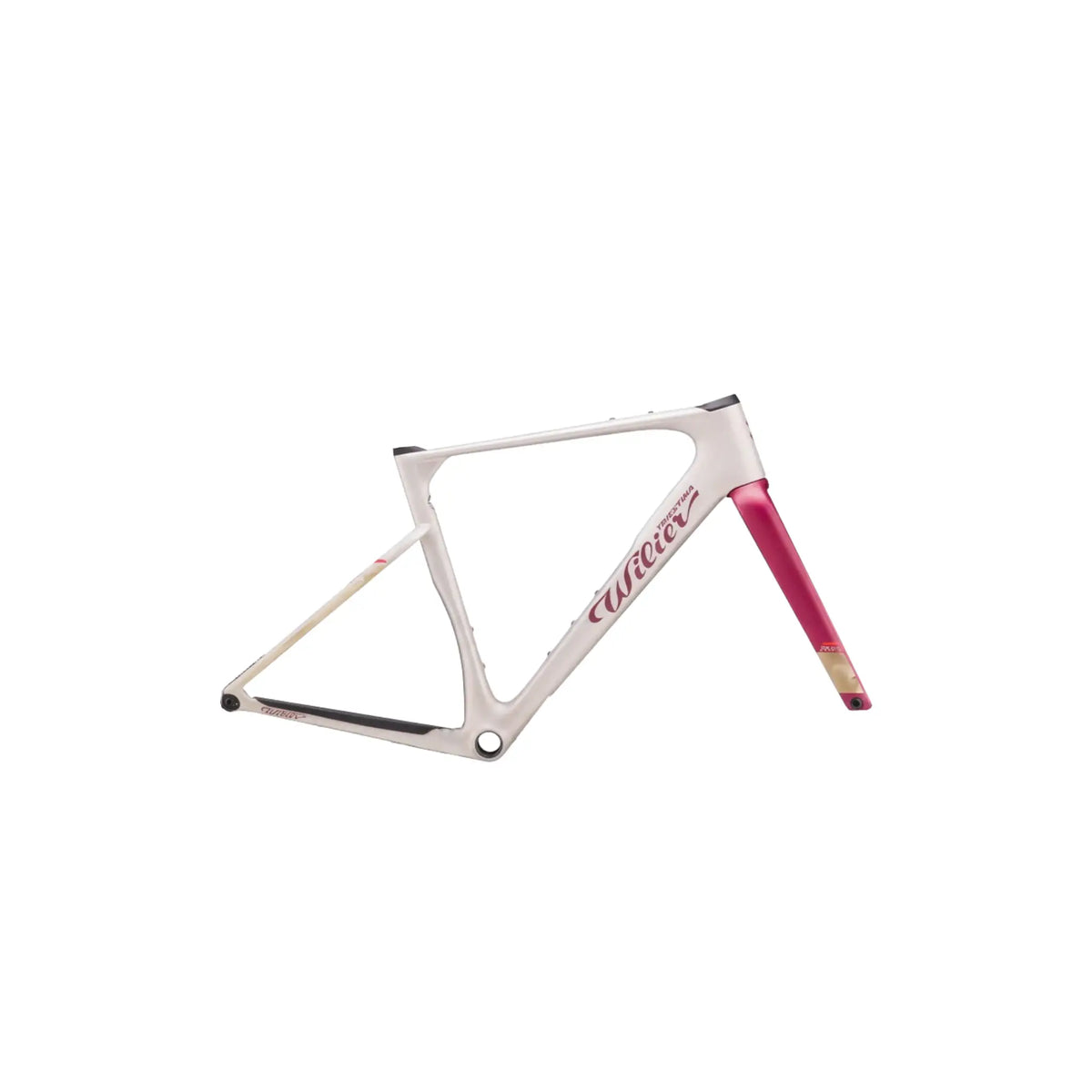

High-Modulus SLR Carbon Construction

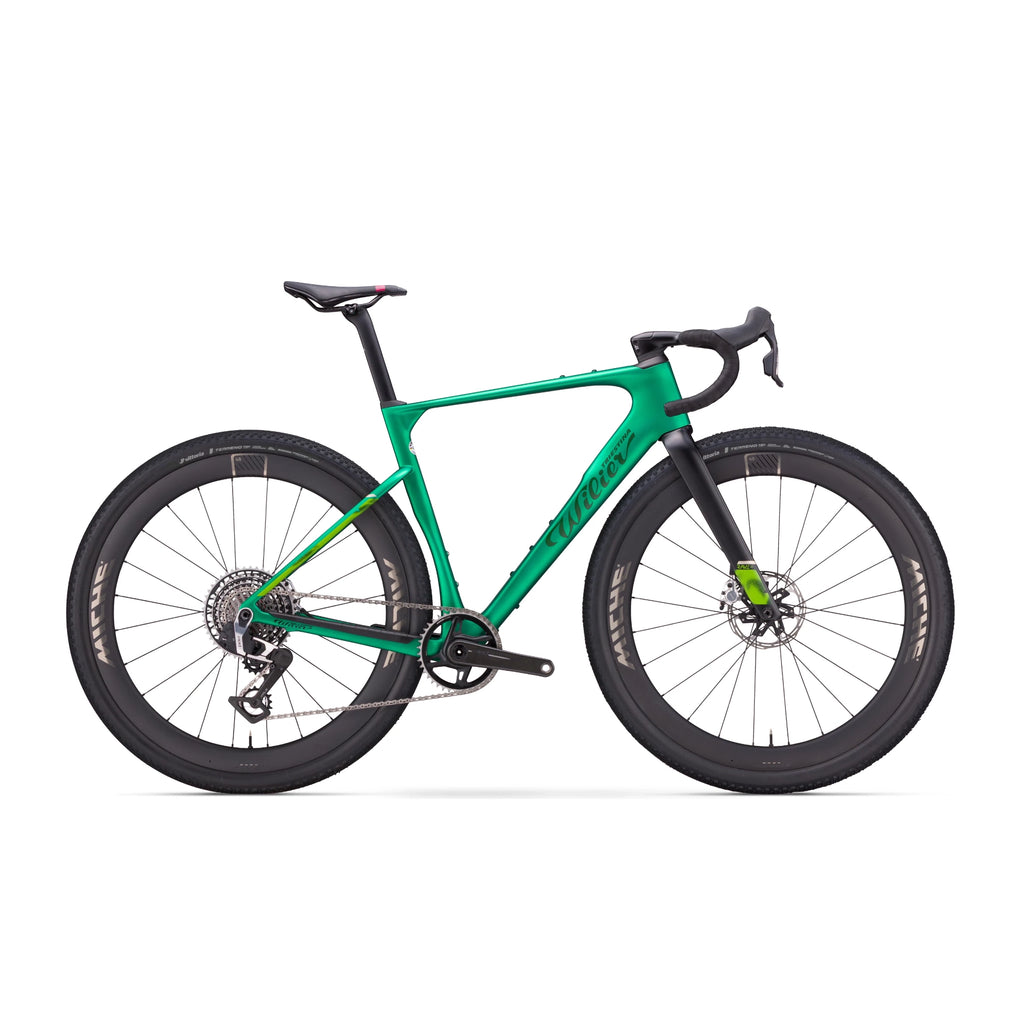

The Wilier Rave SLR ID2 uses the same broad family of high-performance carbon technologies developed for Wilier’s premium road-racing platforms.

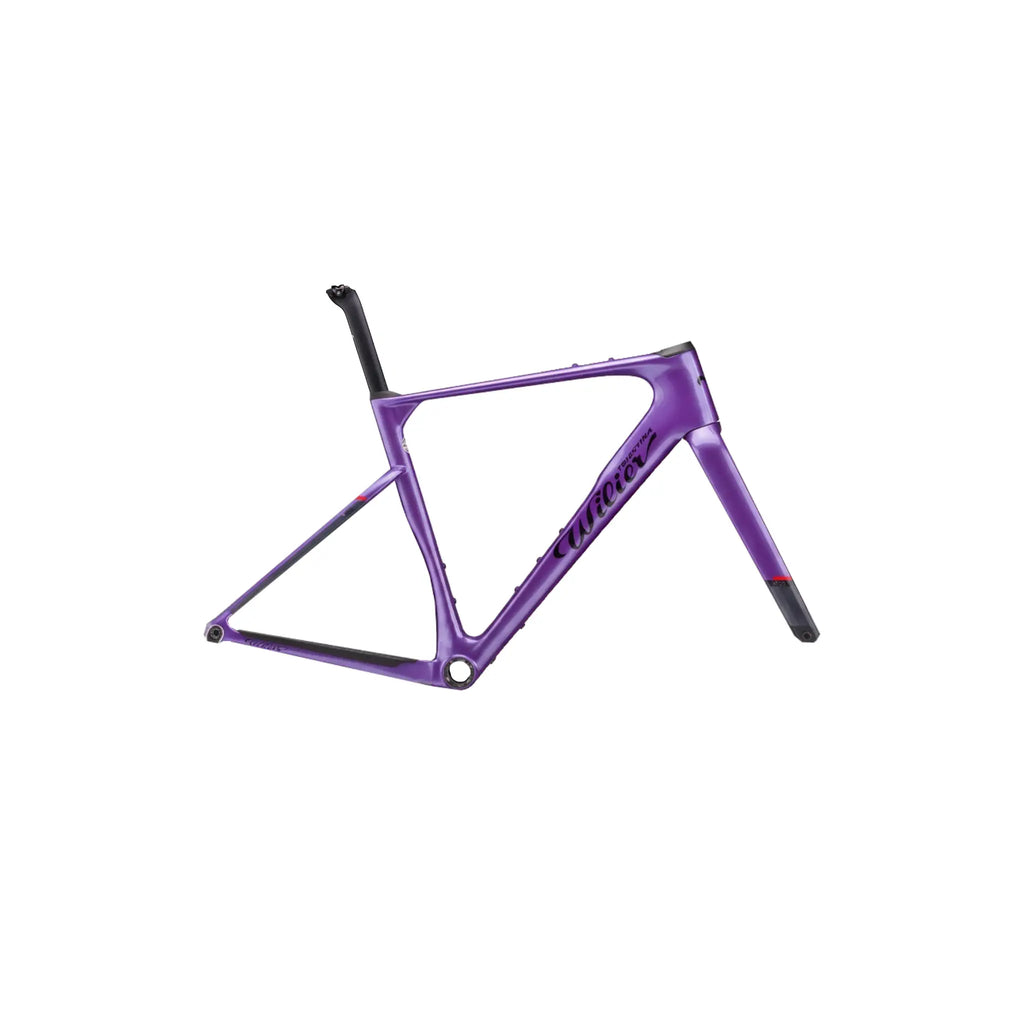

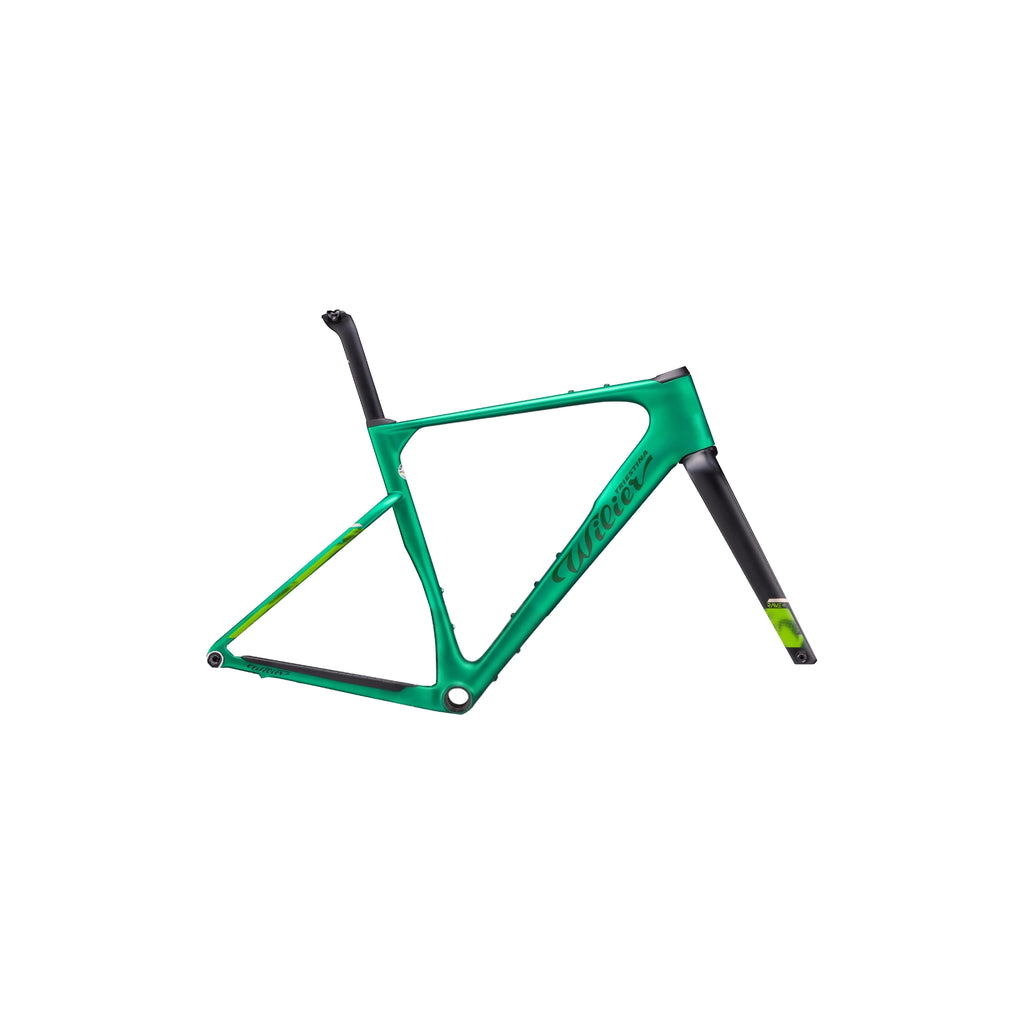

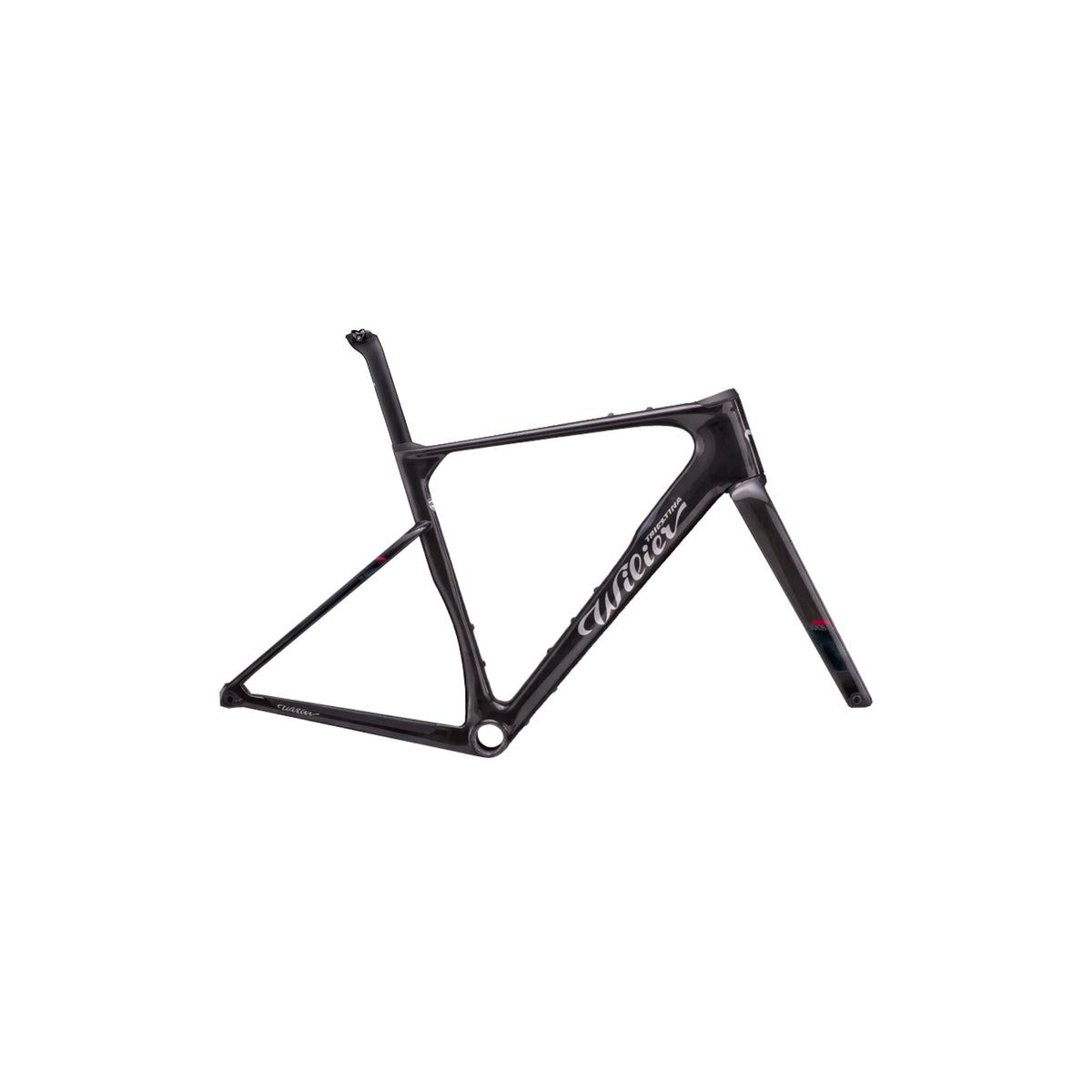

The monocoque structure combines high-modulus carbon with Liquid Crystal Polymer fibres. These viscoelastic reinforcement fibres are intended to improve vibration control and impact behaviour without making the frame feel soft under pedalling loads.
Wilier reinforced the chainstay area to maintain sharp power transfer despite the longer stays required by a large-clearance gravel frame.
The result is a frame that feels firm, immediate and highly responsive. It is designed to convert hard accelerations into forward movement rather than isolate the rider from every surface impact. Riders seeking maximum comfort should therefore pay close attention to tyre selection and pressure.
Aerodynamic Gravel Design
The Wilier Rave SLR ID2 applies road-racing aerodynamic development to a modern gravel platform.
Distinctive frame elements include:
- Narrow frontal profile near the head tube

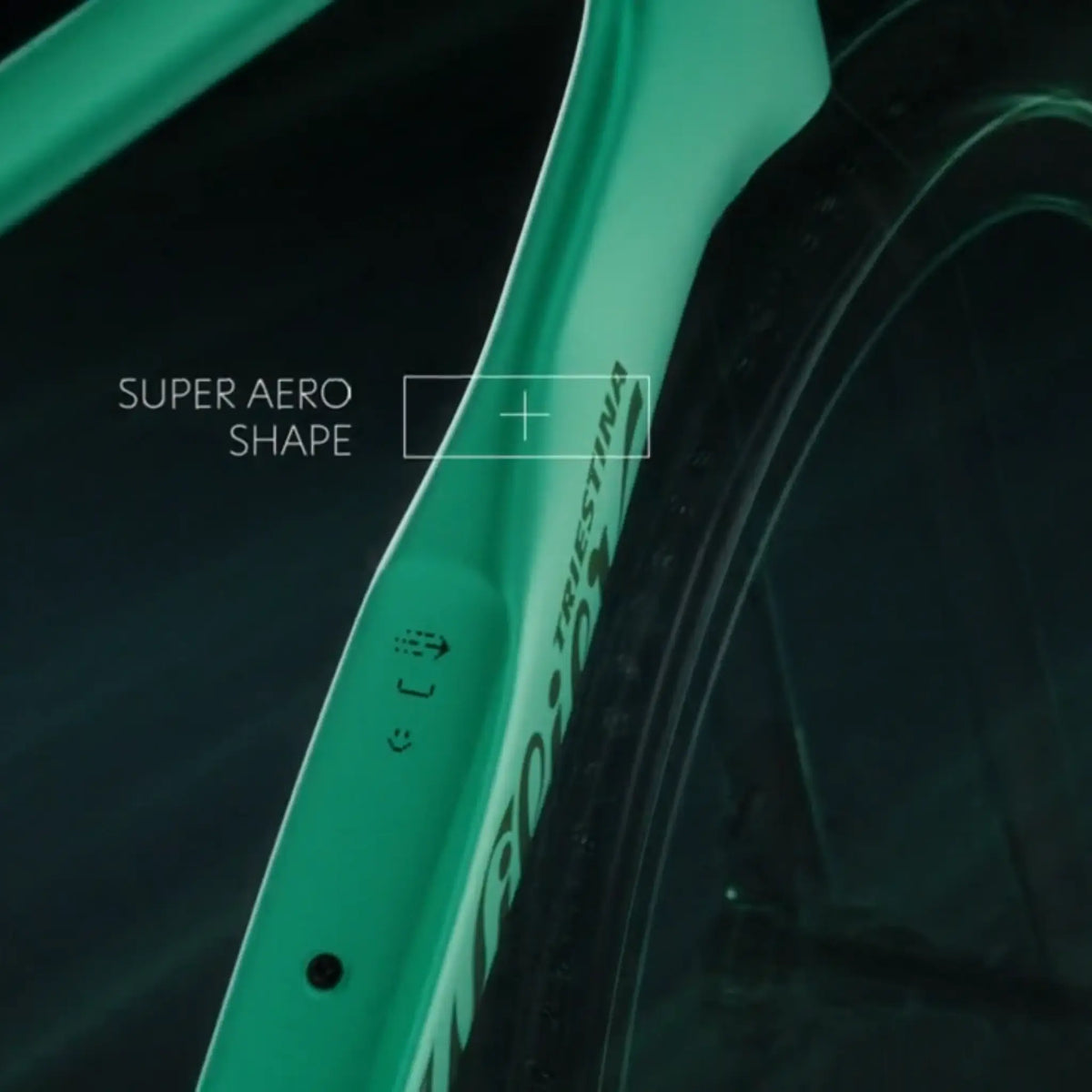

- Broad, shaped down tube designed to manage airflow around bottles

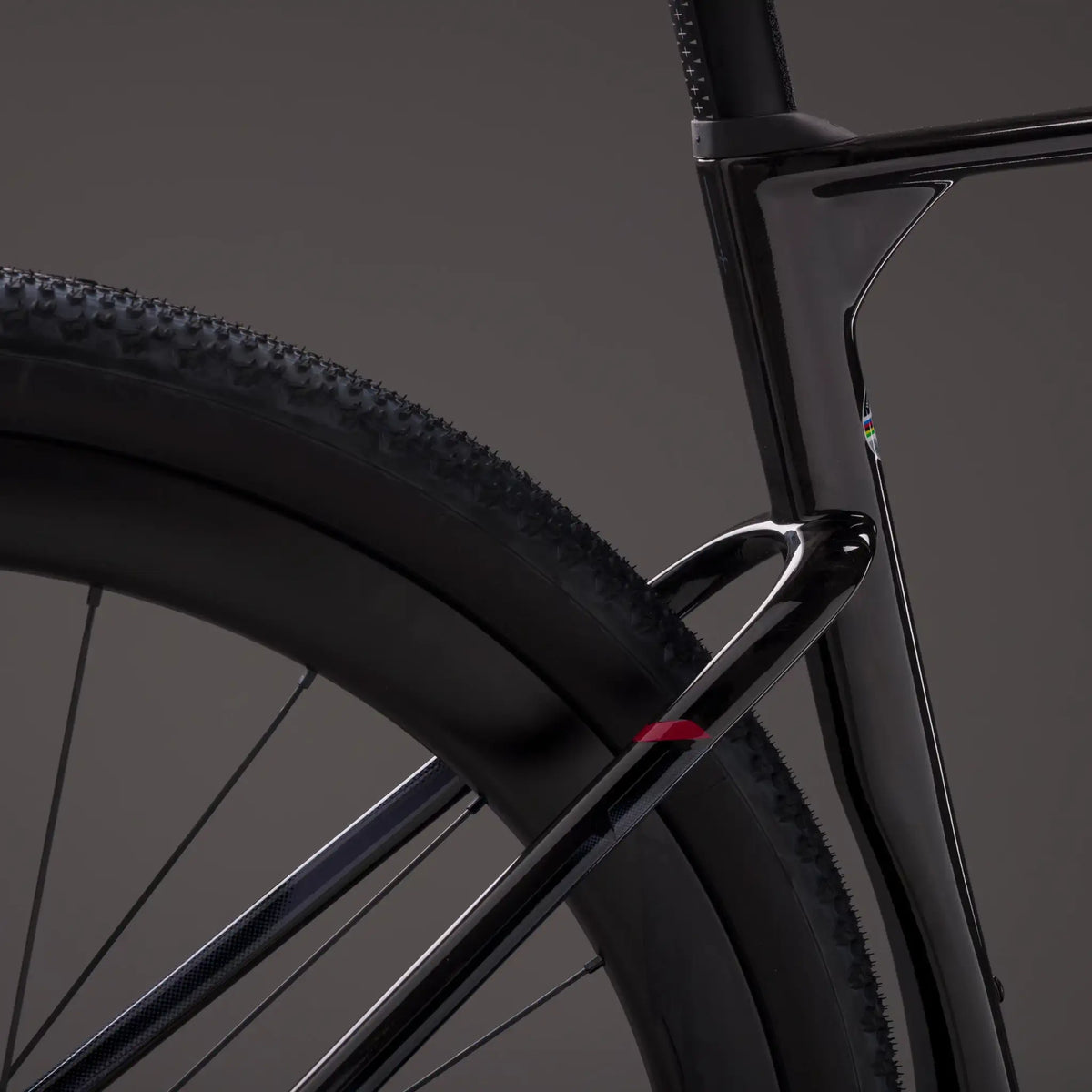

- Dropped rear stays
- Sculpted top-tube and seat-tube junction
- Fully concealed cockpit routing

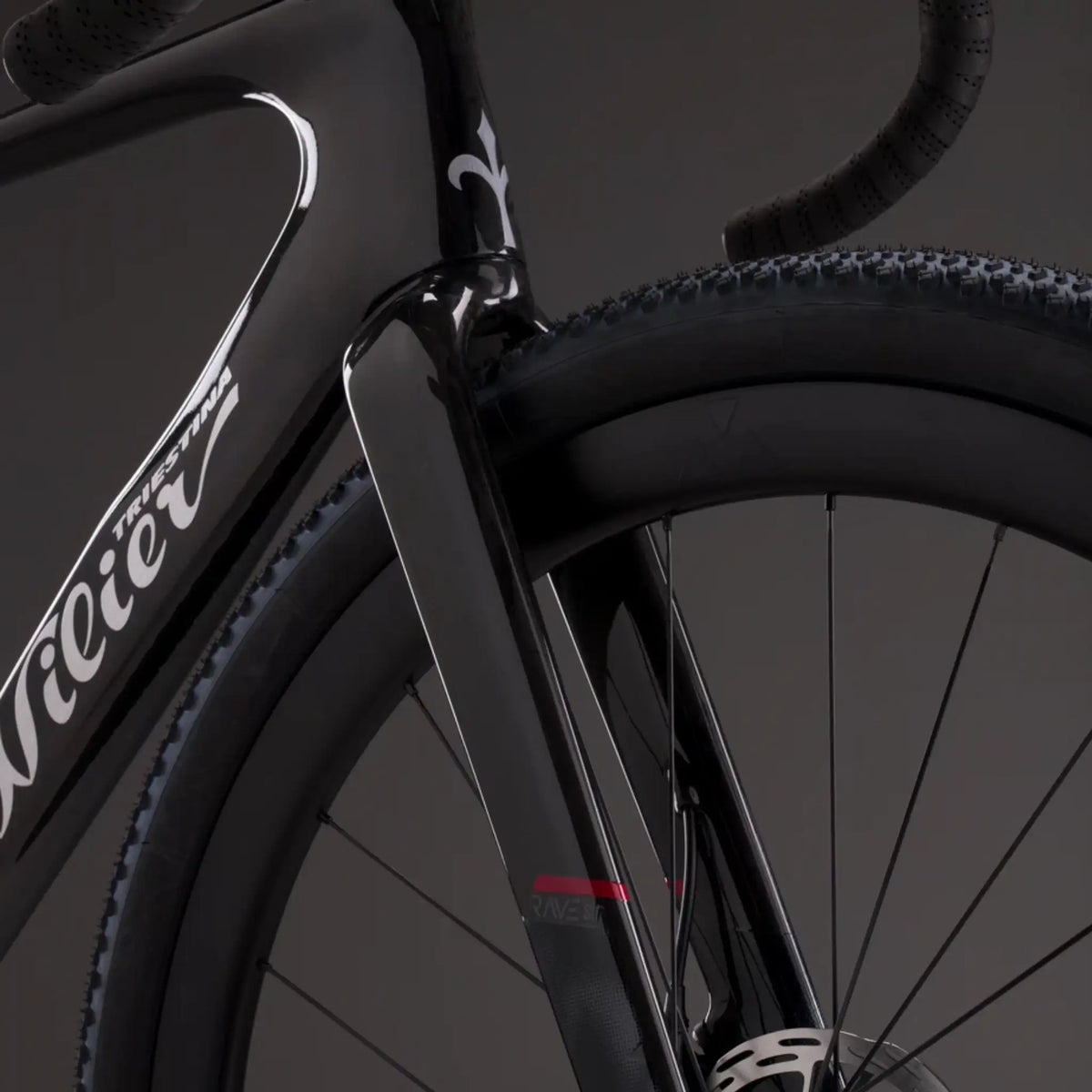

- Aerodynamically developed fork profile
- Optional integrated Aerokit hydration system
- Deep-section gravel wheel compatibility
The bicycle is designed for events where riders spend substantial time above 30km/h on open gravel, hardpack and sealed-road transitions. Aerodynamics matter less during slow technical climbing but become increasingly significant during fast racing over long distances.
Wilier’s claimed 5.3-watt saving at 35km/h should be treated as a controlled comparison rather than a guaranteed result for every cyclist.

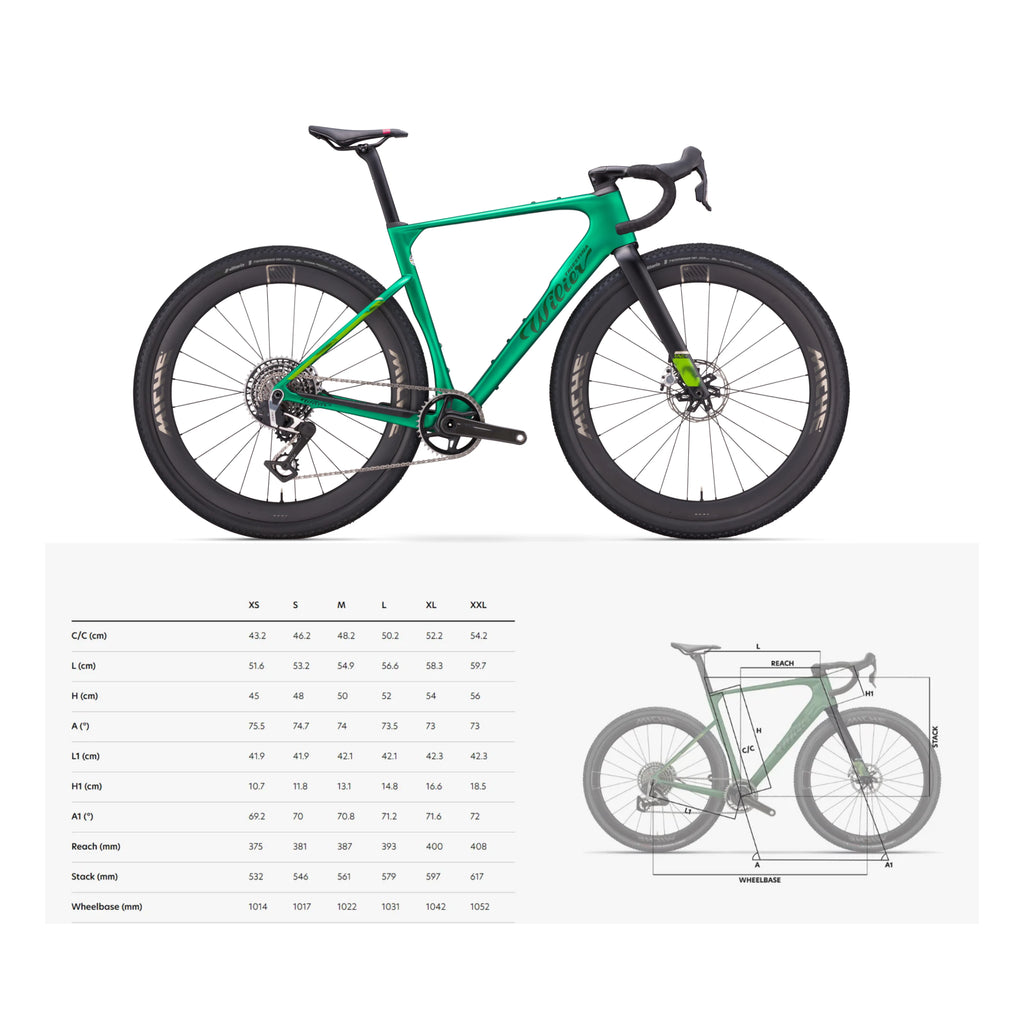

Fast, Direct Gravel-Racing Geometry
The Wilier Rave SLR ID2 combines road-racing responsiveness with dimensions adapted for large tyres and loose terrain.
Its short rear triangle creates rapid acceleration, while the front end becomes progressively steeper across larger sizes. The bike changes direction quickly and rewards confident rider input.
This creates an engaging feel on maintained gravel, fast corners and rolling terrain. The trade-off is that the bicycle feels firmer and more active than a relaxed adventure-gravel platform.
Professional testing generally characterises the ride as sharp, sporty and race focused rather than plush. The 50mm tyres are therefore not excessive. Their volume gives riders useful control over comfort, grip and stability.

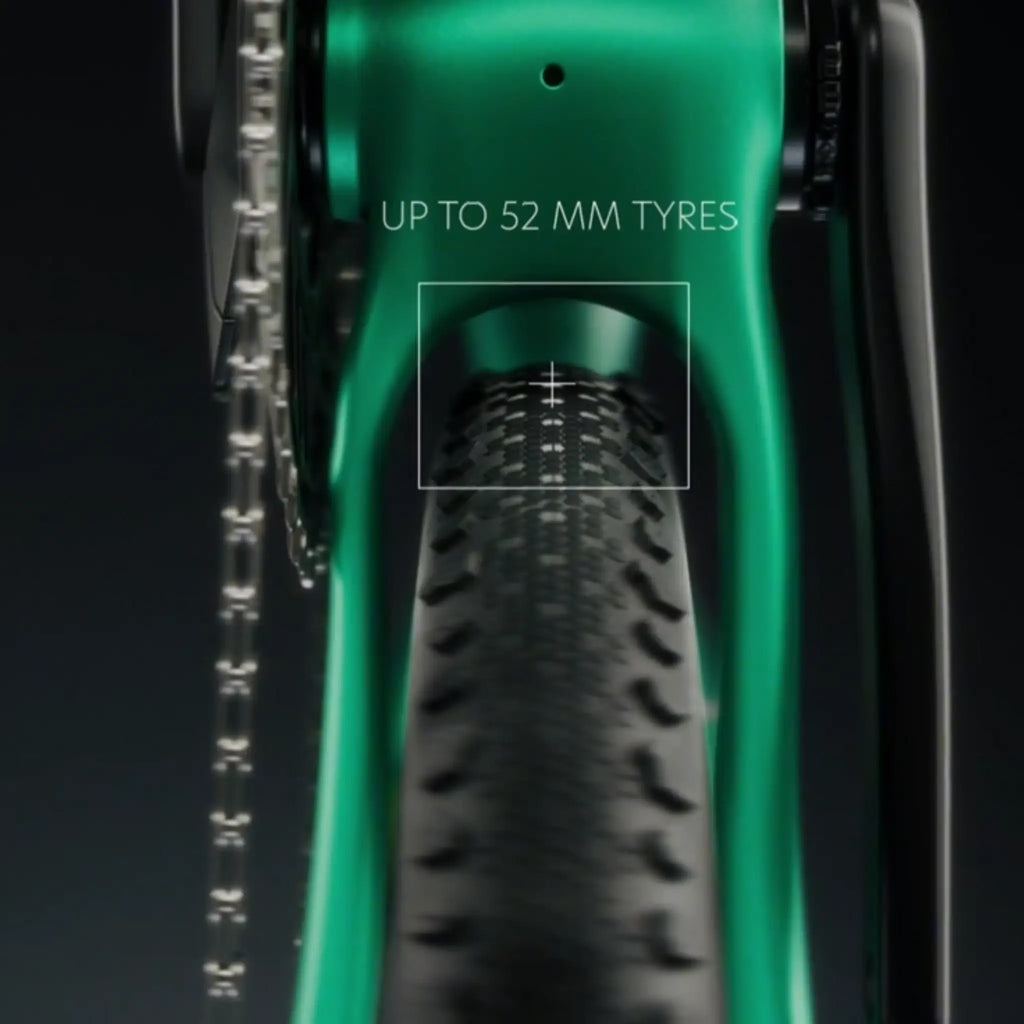

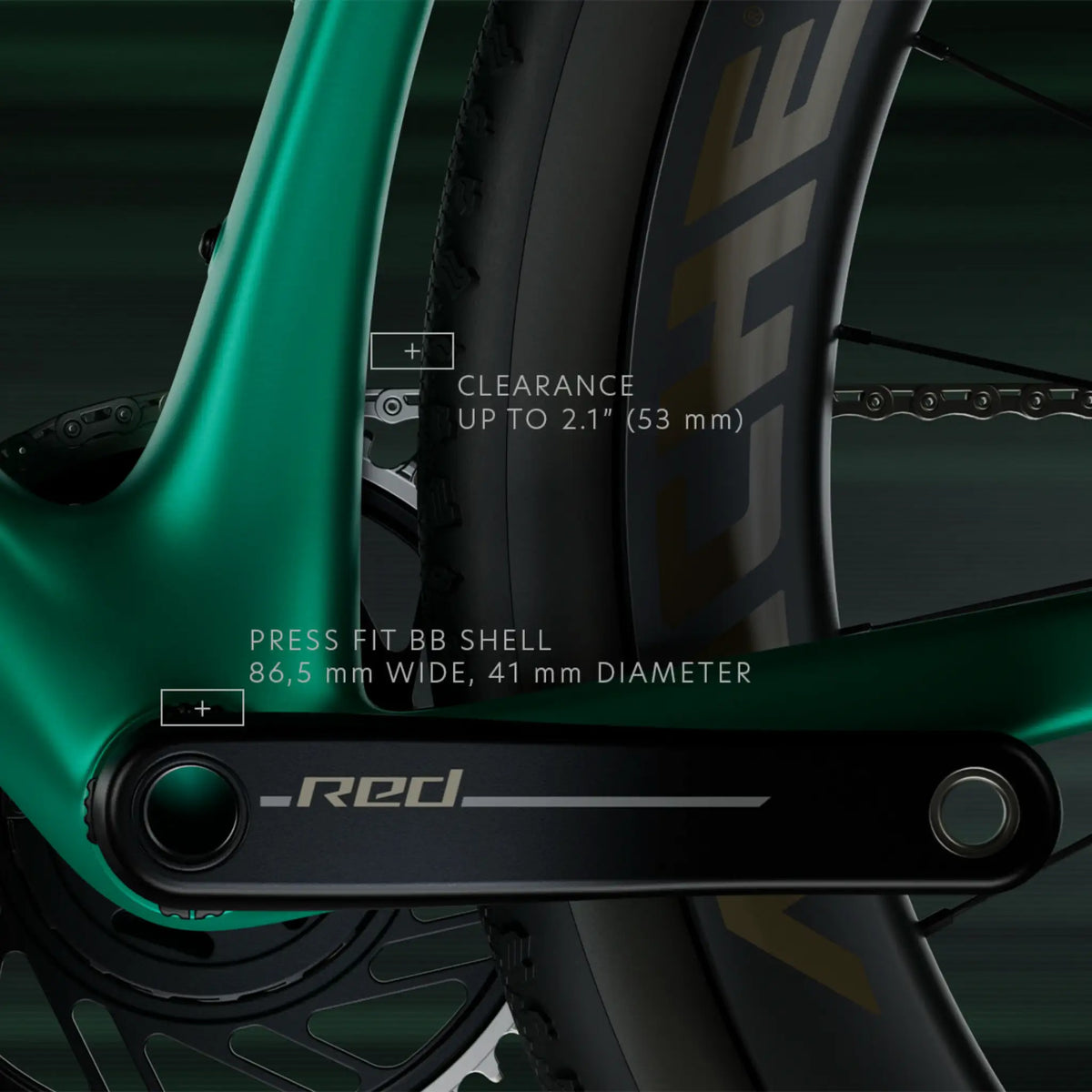

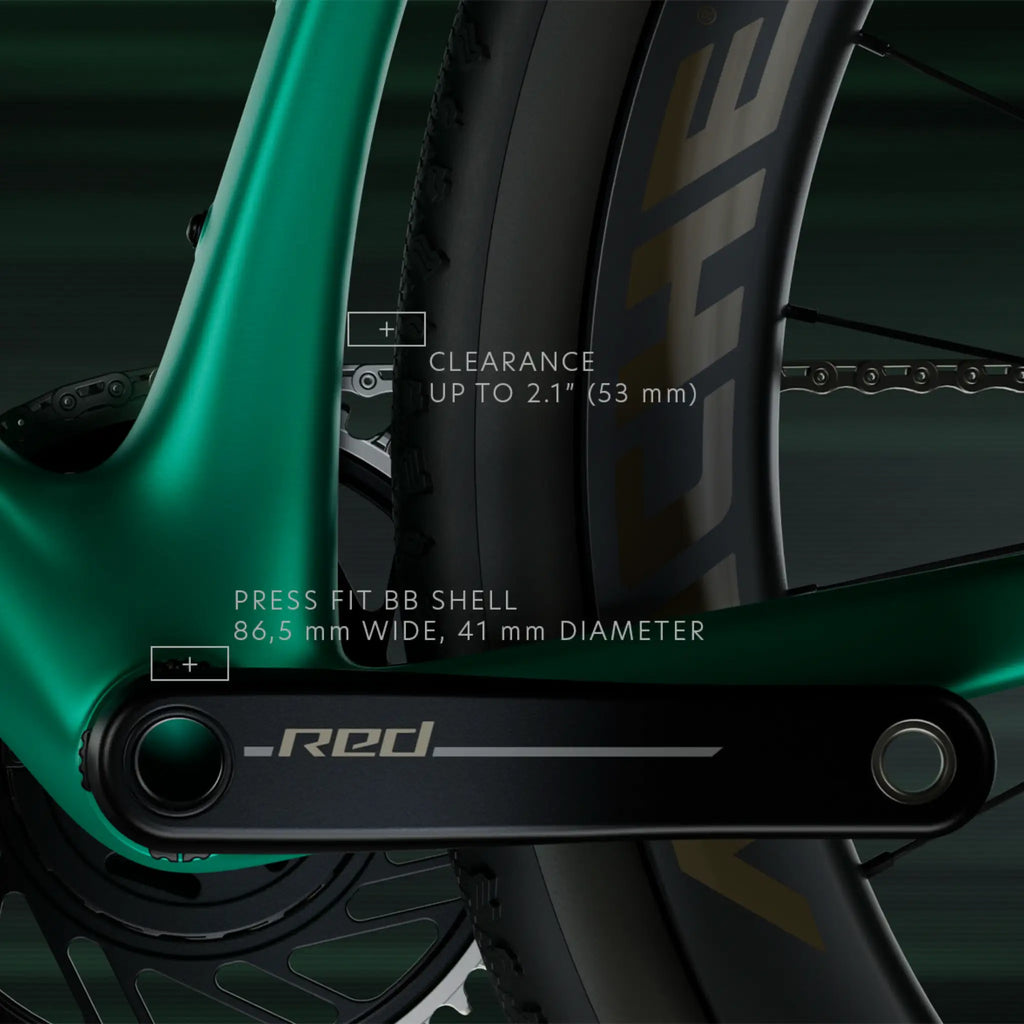

52mm Tyre Clearance
The increase to 52mm clearance is one of the most important improvements over the previous Wilier Rave SLR.
Wider tyres allow riders to choose:
- Fast 40mm file treads for smooth gravel races
- 42mm to 45mm tyres for mixed hardpack and rough roads
- 48mm to 50mm tyres for corrugations and loose descents
- More aggressive tread for sand and broken surfaces
- Reinforced casings for rocky or remote events
Actual tyre width varies considerably with rim width, casing construction and pressure. A nominally 50mm tyre may measure wider once installed.
Safe surrounding clearance should be checked on the completed wheel and tyre combination. A tyre that fits in clean, dry conditions may become unsuitable when mud and embedded stones accumulate.
Universal Derailleur Hanger and Full-Mount Compatibility
The Universal Derailleur Hanger supports current replacement standards and allows appropriate SRAM Full-Mount XPLR derailleurs to attach directly around the rear axle.
A Full-Mount derailleur can improve stiffness and shifting consistency by creating a direct relationship between the derailleur and cassette.
The interface also removes a conventional hanger from compatible drivetrain configurations. Riders using another shifting system can fit the correct conventional Universal Derailleur Hanger arrangement.
Full-Mount compatibility does not make every derailleur or cassette automatically suitable. Shifters, chain, cassette, chainline and freehub must be assessed as one complete drivetrain.
Fully Internal Cable Routing
Brake hoses and compatible control lines are concealed through the handlebar, stem and frame.
Benefits include:
- Cleaner appearance
- Reduced frontal clutter
- Improved aerodynamic integration
- Less exposed housing
- Strong visual continuity with Wilier road-racing models
The compromise is servicing complexity. Replacing headset bearings, changing cockpit dimensions or preparing the bicycle for travel may require brake-hose disconnection and bleeding.
A professional fit is especially valuable before the final cockpit and hose lengths are established.
Wilier F-Bar Carbon Cockpit
The monocoque carbon Wilier F-Bar weighs approximately 380g and integrates the handlebar and stem into one structure.
Its shape is intended to reduce turbulence while creating a clean transition into the frame. The one-piece design also reduces separate clamps and hardware.
The drawback is limited adjustment. Changing stem length normally means replacing the complete cockpit. Riders uncertain about reach or handlebar width may prefer a build with the separate Wilier Stemma S and Wilier Barra cockpit.
Miche Graff Aero 48 Wheels
The Miche Graff Aero 48 wheelset was developed for competitive gravel use.
The 48mm carbon rims seek to combine:
- Aerodynamic efficiency
- Stable tyre support
- Gravel-racing durability
- Responsive acceleration
- Predictable control
- Tubeless compatibility
Deep rims can save energy on fast courses, but riders should still consider crosswind exposure, body mass and handling experience.
Aerokit Hydration System
The optional Wilier Aerokit integrates two bottles into a shaped aerodynamic system with a combined 1,100ml capacity.
The system is designed to stabilise airflow around the frame and reduce turbulence compared with ordinary round bottles.
A conventional bottle can still be used where practical replacement, aid-station availability or additional capacity matters more than aerodynamic integration.
