ENVE SES AR IN-Route Carbon Handlebar Australia

Name: ENVE SES AR IN-Route Carbon Handlebar Australia
SKU: ENVE-ENVE-SES-AR-IN-38385CM432CM
Price: 562.95 AUD
Availability: InStock

€562,95 EUR

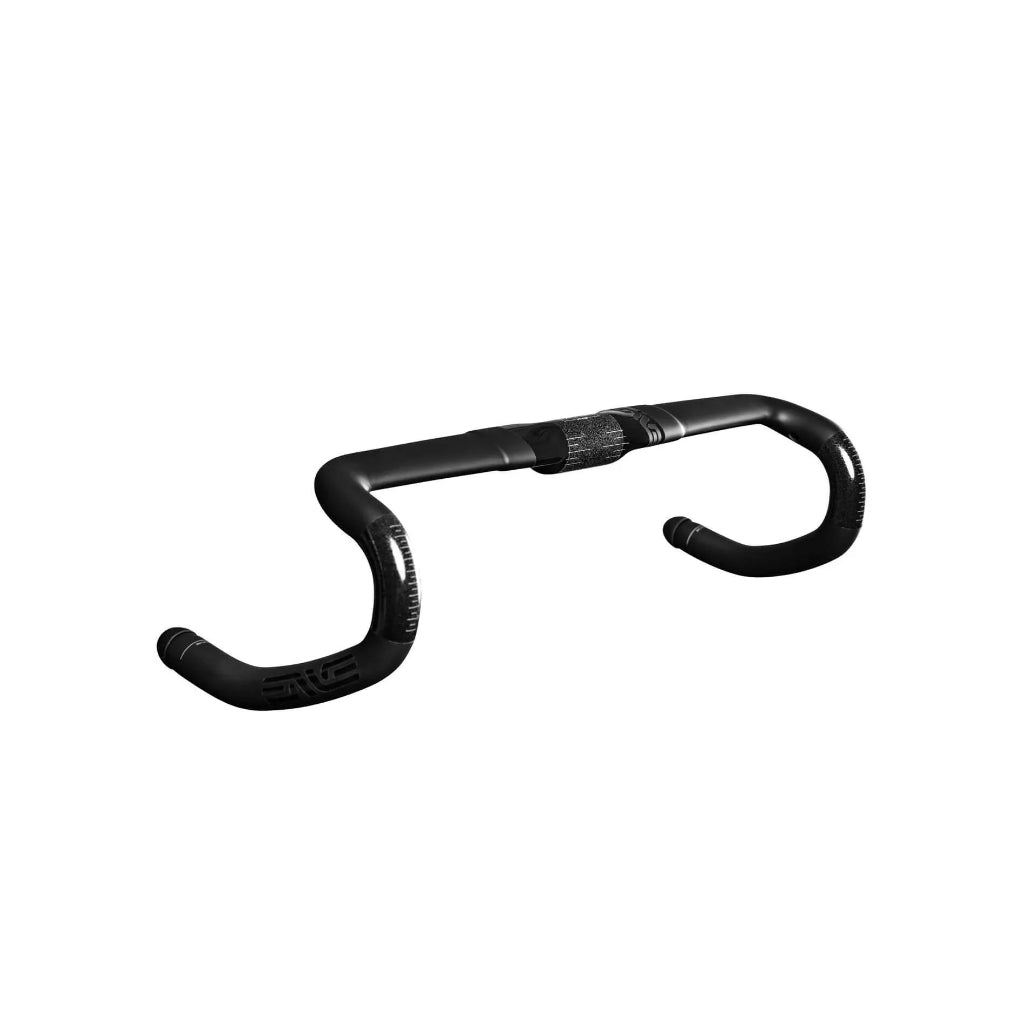

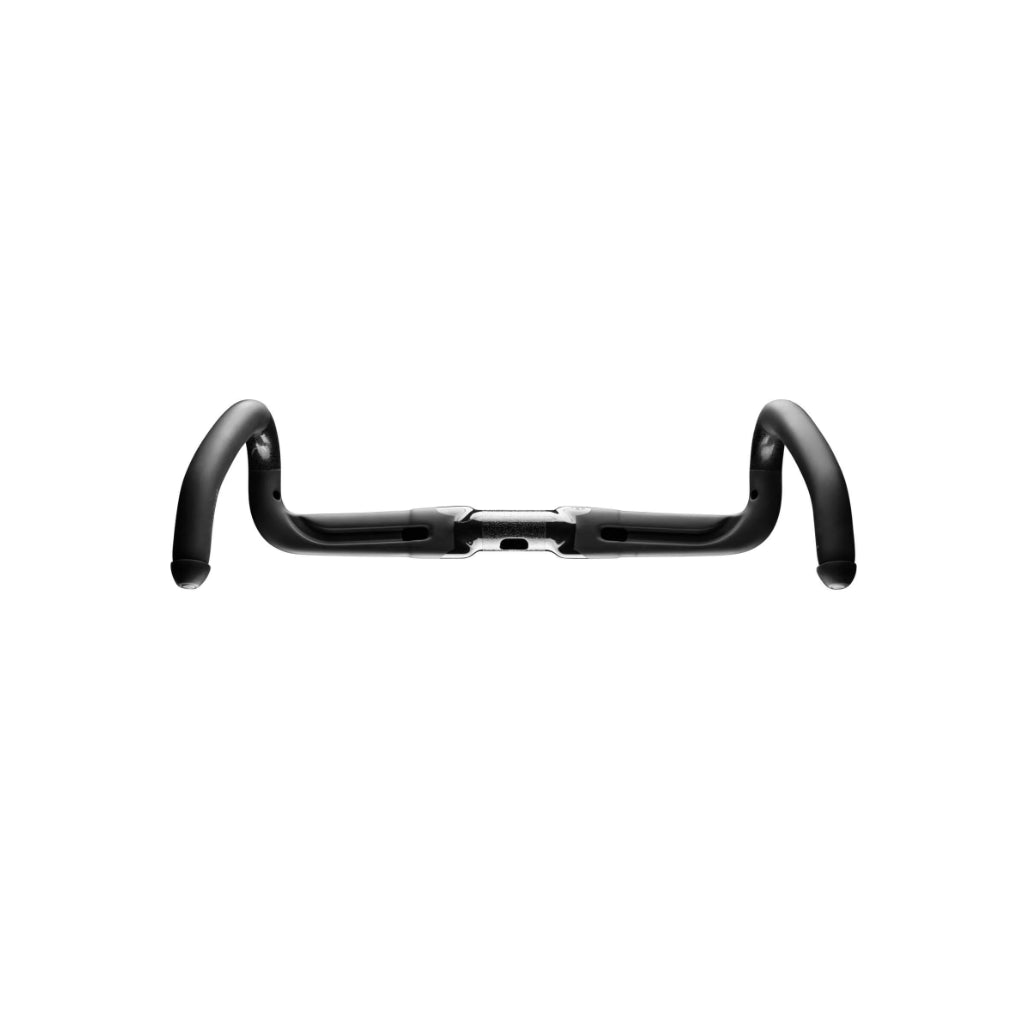

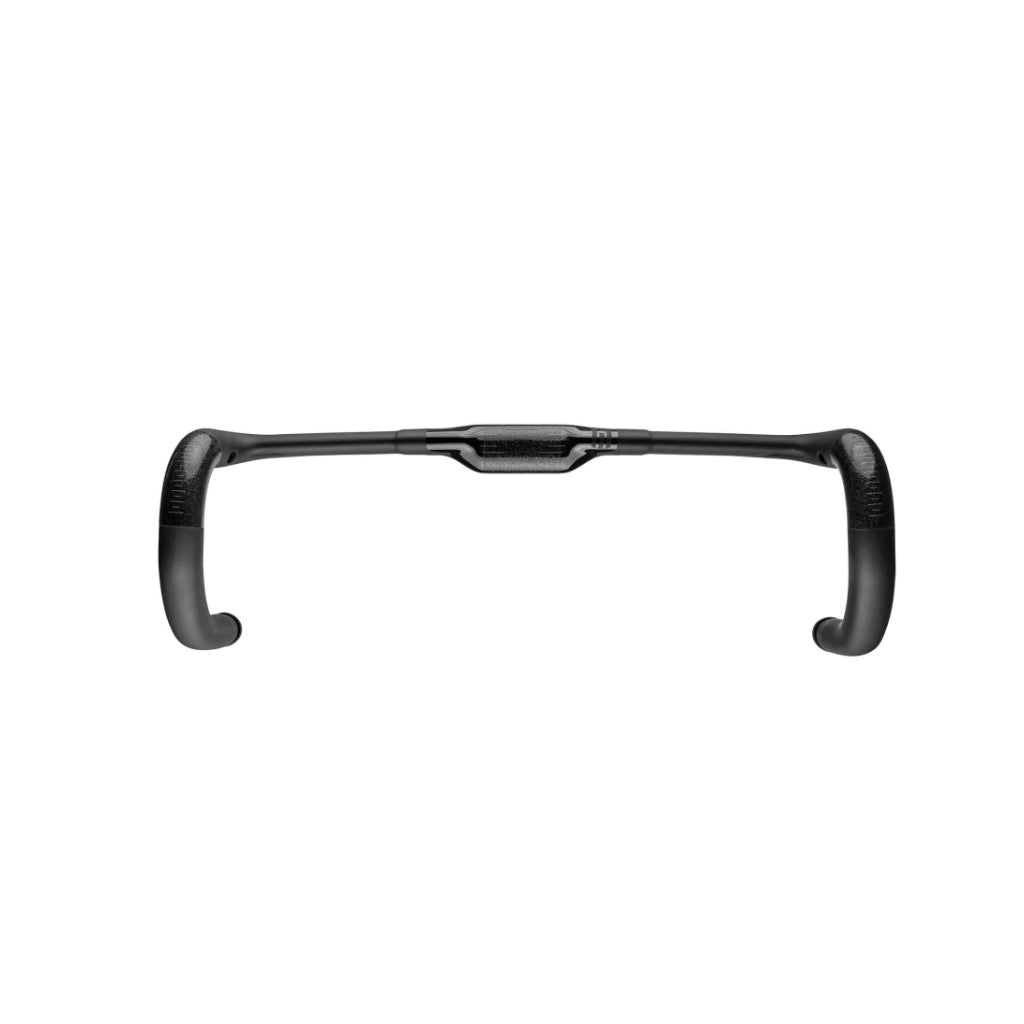

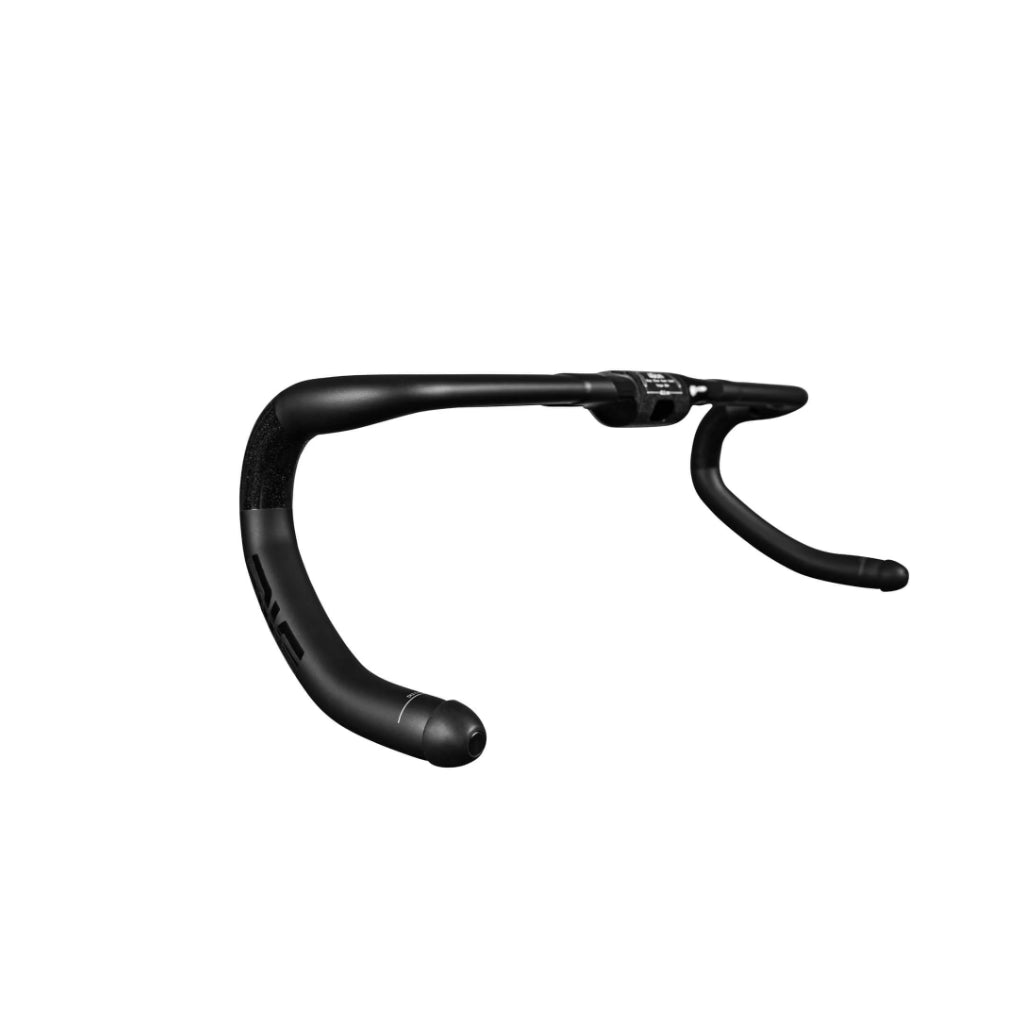

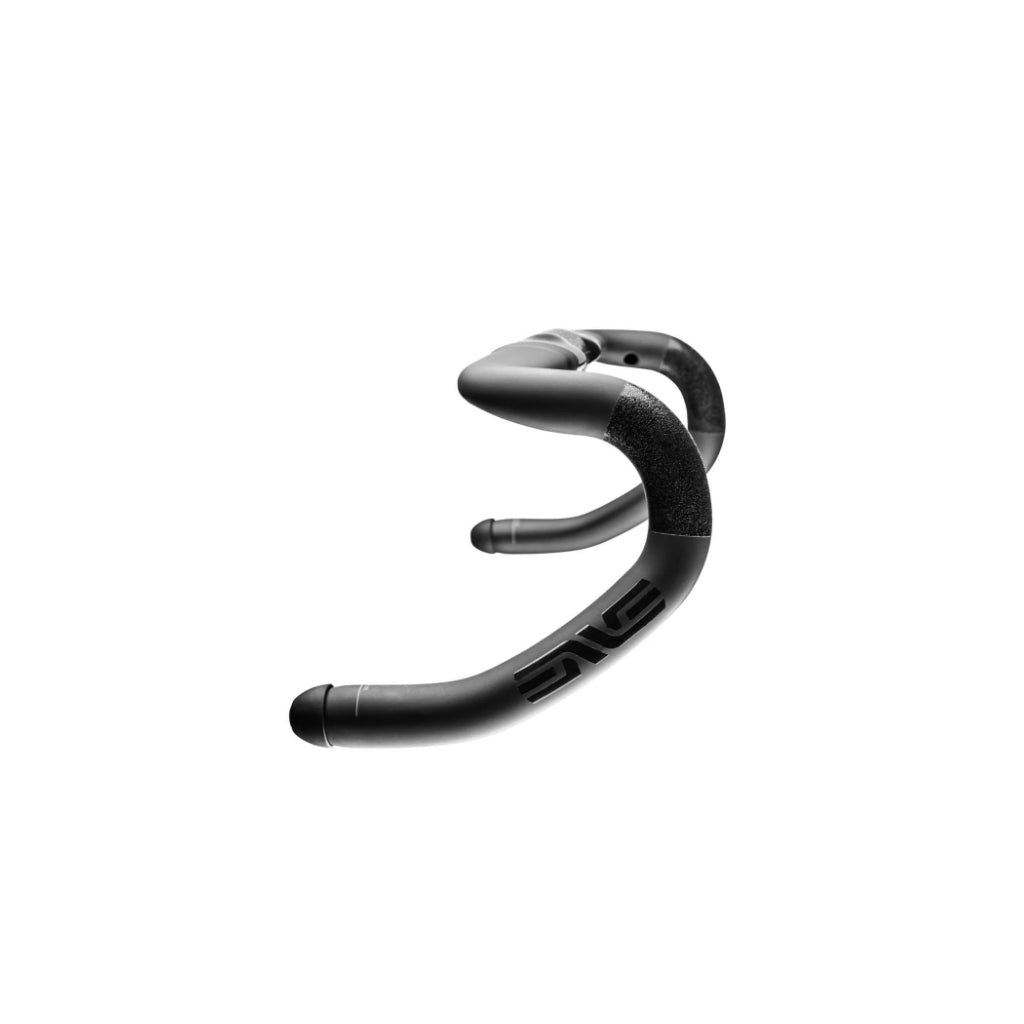

The ENVE SES AR IN-Route Carbon Handlebar is a premium aerodynamic road and all-road upgrade that combines compact geometry, vibration-damping carbon and wider flared drops for greater comfort, speed and control on Australian tarmac, chip-seal and maintained gravel roads.

ENVE SES AR IN-Route Carbon Handlebar Features

Wind-tunnel-validated aero tops help reduce frontal drag while providing a broad, supportive position for climbing and endurance riding.
Compound-flared drops provide approximately 47 mm more overall width than the hoods for added descending and rough-road control.
Tuned carbon construction balances steering precision with effective vibration absorption.
Internal or external cable routing supports clean custom bike builds and a wide range of modern road frames.
Five width options from 380 to 460 mm accommodate different rider dimensions and professional bike-fit requirements.

(more product details...)

loading inventory data..

Ride Now, Pay Later? Yes it's Possible!

We want You to fuel your cycling passion now, not later, so with the help of our partners, we offer flexible payments terms including 4 interest-free installments (Afterpay or Paypal) or over 6, 12 or even up to 24 month repayments (Afterpay, Shop Instalments or ZIP).
Eligibility, T&Cs and minimum order value conditions may apply.

Earn 0 points on this purchase.

Learn more

More Product Details:

The ENVE SES AR IN-Route Carbon Handlebar is a separate carbon road handlebar developed for cyclists who want the aerodynamic and ergonomic benefits of an advanced cockpit without losing the adjustability of a conventional stem.

Technical specifications

Intended use: Performance road, all-road, endurance road and light gravel
Material: Carbon fibre
Handlebar type: Compact aerodynamic drop handlebar
Width options: 380, 400, 420, 440 and 460 mm nominal
Actual hood widths: 385, 405, 425, 445 and 465 mm
Actual drop widths: 432, 452, 472, 492 and 512 mm
Width measurement: Centre-to-centre
Reach: 76 mm
Drop: 127 mm
Drop flare: 23.5 mm per side
Difference between hood and drop width: Approximately 47 mm overall
Stem clamp diameter: 31.8 mm
Standard road-control mounting diameter: Approximately 23.8 mm
Cable routing: Internal or external
Fully concealed routing: Requires a compatible stem, headset and frame
ENVE integration: Compatible with the ENVE IN-Route Aero Road Stem
Shimano Di2 compatibility: Yes
SRAM AXS compatibility: Wireless shifting does not require shift-wire routing; hydraulic hose compatibility depends on the remaining cockpit components
Mechanical shifting compatibility: Possible with an appropriate external or compatible semi-internal routing arrangement
Clip-on aerobar compatibility: No
Maximum stem-faceplate torque: 5.5 Nm
Brake and shift control torque: 6 to 8 Nm, subject to the control manufacturer’s lower limit
Colour: Black
Finish: Stealth carbon appearance
Claimed weight range: 243 to 280 g, depending on width

Manufacturer-claimed weights

380 mm: 243 g
400 mm: 245 g
420 mm: 248 g
440 mm: 262 g
460 mm: 280 g

SES aerodynamic development

The SES name identifies ENVE’s Smart ENVE System aerodynamic product family. The upper section of the ENVE SES AR IN-Route Carbon Handlebar was developed using computational fluid dynamics and validated through wind-tunnel testing.

Its wing-shaped profile presents a cleaner leading edge to the airflow than a conventional round road handlebar. Concealed brake hoses and electronic-shifting wires can further reduce cockpit clutter when the bar is paired with a compatible stem and headset system. ENVE does not publish a universal watt-saving claim because the result depends on the bicycle, control position, rider and complete routing configuration. [enve.com], [theproscloset.com]

Compound-flared drops

Instead of rotating the entire drop outward, ENVE uses a compound shape that keeps the brake hoods in a relatively conventional road position before widening the lower section. This allows the rider to maintain a compact position on the hoods while gaining extra leverage in the drops.

The difference between the actual hood and drop measurements is approximately 47 mm. This provides a more stable base for descending, cornering and rough-surface riding without creating the extremely wide everyday position associated with some dedicated gravel handlebars.

Tuned carbon construction

The carbon laminate is designed to provide responsive steering and dependable support during sprinting while filtering some of the high-frequency vibration transmitted through the fork and stem.

This controlled compliance is particularly relevant on coarse Australian chip-seal and weathered country roads. It cannot compensate for unsuitable tyre pressure or an incorrect bike fit, but it can contribute to a less fatiguing cockpit during long rides.

Compact geometry

The 76 mm reach brings the controls relatively close to the tops, while the 127 mm drop makes the lower position more accessible than a traditional deep-drop race handlebar. Riders can therefore use the drops more frequently during fast bunch rides, headwinds and descending without adopting an unnecessarily extreme position.

IN-Route integration

Internal ports allow hoses and compatible wires to pass through the handlebar and into an approved stem and headset arrangement. The ENVE IN-Route Aero Road Stem provides the most direct integration, although the handlebar may also work with selected integrated systems from other manufacturers.

Available dimensions

Nominal 380 mm: 385 mm at the hoods and 432 mm at the drops
Nominal 400 mm: 405 mm at the hoods and 452 mm at the drops
Nominal 420 mm: 425 mm at the hoods and 472 mm at the drops
Nominal 440 mm: 445 mm at the hoods and 492 mm at the drops
Nominal 460 mm: 465 mm at the hoods and 512 mm at the drops

All versions use a 76 mm reach, 127 mm drop, 23.5 mm drop flare and 31.8 mm centre clamp.

The ENVE SES AR IN-Route Carbon Handlebar is best suited to cyclists who want one premium cockpit for road racing, endurance events and fast all-road exploration.

The Pro’s Closet Magazine, 15 October 2020

The Pro’s Closet described the SES AR as sitting between ENVE’s conventional road handlebars and its more aggressively flared G-Series gravel products. Its review valued the shallow, approachable drop and wider lower stance for riders who regularly combine sealed-road kilometres with unsealed sectors.

ENVE Compact Road IN-Route Carbon Handlebar

The ENVE Compact Road uses a 79 mm reach, 127 mm drop and a much smaller difference between hood and drop width.

Compared with the SES AR:

Pros: More conventional road shape, lighter in equivalent sizes and easier for riders who do not want pronounced flare.
Cons: Less aerodynamic shaping and less leverage in the drops on rough surfaces.
Best suited to: Traditional road, endurance and gran fondo riders who prioritise compact ergonomics over all-road control.

The SES AR is the more versatile choice for mixed surfaces, while the Compact Road is better for riders wanting familiar road handling.

Zipp SL-70 XPLR Carbon Handlebar

The Zipp SL-70 XPLR uses a short 70 mm reach, compact drop and pronounced flare designed for gravel and all-road riding.

Compared with the SES AR:

Pros: Shorter reach, gravel-specific ergonomics and a broad upper section designed for long off-road rides.
Cons: More gravel focused and less aerodynamically refined for fast road use.
Best suited to: Riders who spend a larger percentage of their time on gravel and prioritise control over road-racing aerodynamics.

The ENVE offers a more road-like hood position and stronger aerodynamic emphasis.

Roval Rapide Carbon Handlebar

The Roval Rapide uses high-modulus carbon, a 75 mm reach, 125 mm drop and a dedicated aerodynamic upper section. Its claimed weight is approximately 225 g in the 420 mm size.

Compared with the SES AR:

Pros: Lower claimed weight and more focused road-racing aerodynamics.
Cons: Considerably less expansion at the drops and reduced rough-road leverage.
Best suited to: Road racers and fast bunch riders who remain predominantly on sealed surfaces.

The SES AR offers greater all-road control, while the Roval is the more specialised aero race option.

PRO Vibe Superlight Handlebar

The PRO Vibe Superlight uses T1100 carbon with Innegra reinforcement and weighs from approximately 154 g. It has an 80 mm reach, 130 mm drop and no flare.

Compared with the SES AR:

Pros: Significantly lighter and well suited to minimum-weight road builds.
Cons: Fewer width choices, no added drop leverage and less all-road-oriented geometry.
Best suited to: Weight-conscious racers and climbing-bike builds.

The ENVE carries a moderate weight penalty but provides aero shaping, much wider drops and greater mixed-surface versatility.
