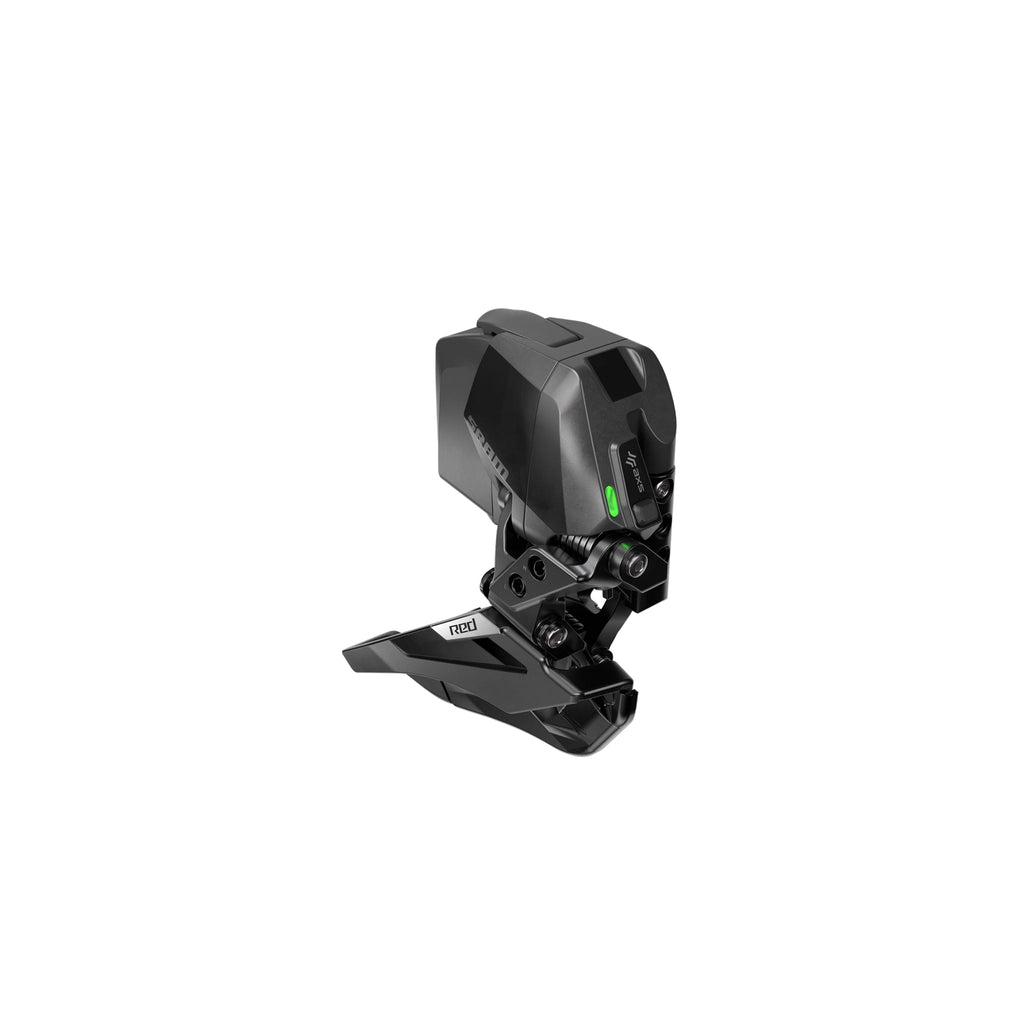

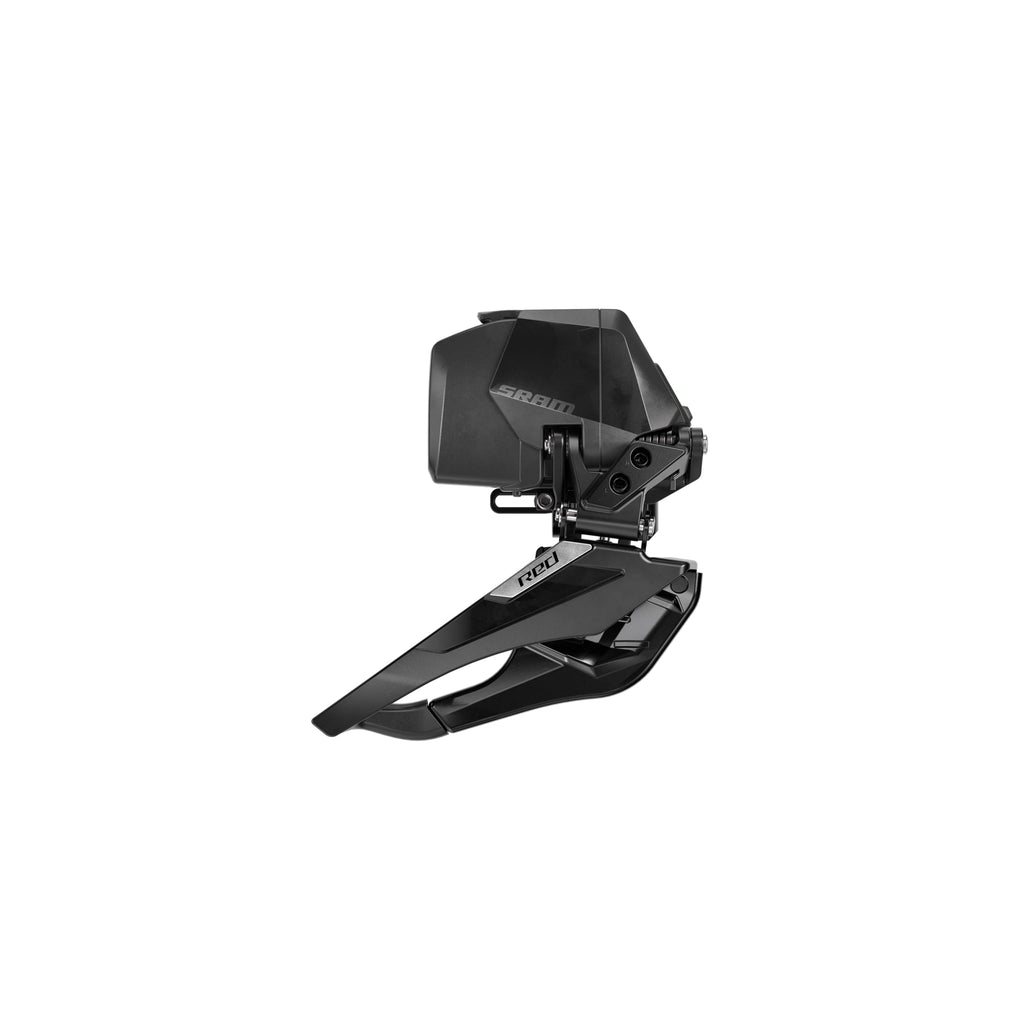

SRAM RED AXS E1 Wireless Front Derailleur

Name: SRAM RED AXS E1 Wireless Front Derailleur
Brand: SRAM
SKU: FD-RED-E-E1
Price: 488.95 EUR
Availability: InStock

€488,95 EUR

Taxes included. Shipping calculated at checkout.

A flagship wireless road bike upgrade that delivers fast, accurate front shifting, automatic chain-rub correction and easier setup for Australian racing, climbing and high-performance road riding.

Key SRAM RED AXS E1 Front Derailleur Features

Refined derailleur cage initiates faster and more accurate shifts between SRAM X-Range chainrings.
SRAM Yaw movement and electronic auto trim help deliver quiet, rub-free running across the cassette.
Wireless AXS connectivity supports simple component pairing, battery monitoring, firmware updates and system customisation.
Broad compatibility covers X-Range chainring combinations from 46/33T to race-focused 56/43T gearing.

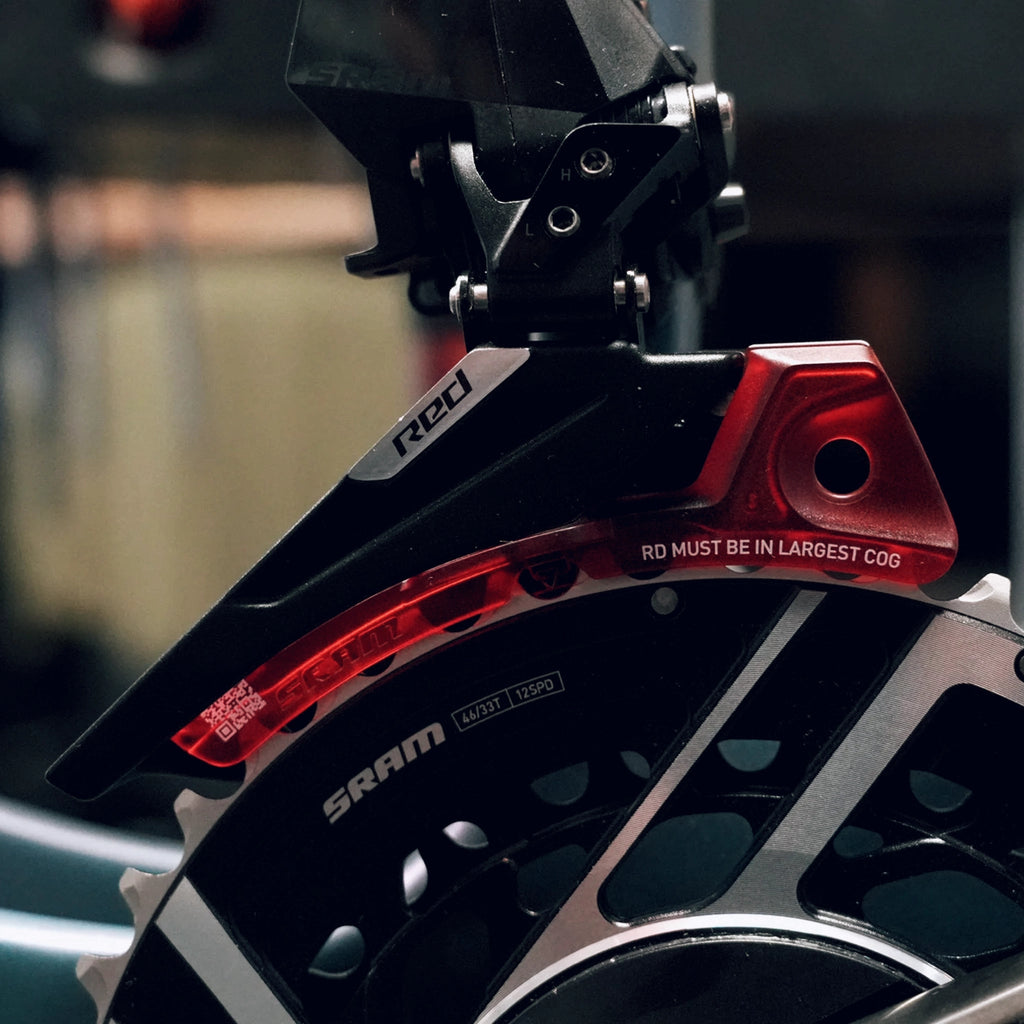

Included alignment tool simplifies derailleur height and angle setup on compatible road bikes.

(more product details...)

SKU: FD-RED-E-E1
Barcode: 58418603

loading inventory data..

Earn 0 points on this purchase.

Learn more

The SRAM RED AXS E1 Front Derailleur is a premium electronic front derailleur developed for SRAM 2x12-speed AXS road drivetrains. It communicates wirelessly with compatible shift controls and is powered by a removable SRAM AXS battery.

Product type: Wireless electronic road front derailleur
Product name: SRAM RED AXS E1 Front Derailleur
Manufacturer model ID: FD-RED-E-E1
Drivetrain configuration: 2x
Speed compatibility: SRAM AXS 12-speed road
Standard mounting system: Braze-on
Optional clamp compatibility: 31.8mm and 34.9mm with an approved adapter
Cable routing: Wireless
Wireless platform: SRAM AXS
Shift technology: SRAM Road Yaw
Electronic auto trim: Yes
Chainline: 45mm
Compatible chainstay angle: 61 to 66 degrees
Compatible chains: SRAM Road Flattop D1 and Road Flattop E1
Compatible chainrings: SRAM X-Range road chainrings
Power source: Removable SRAM AXS rechargeable battery
Battery included: No
AXS app compatibility: Yes
Firmware updates: Supported
Wireless micro-adjustment: Supported through compatible AXS controls
Colour: Black
Independently measured weight: Approximately 147 to 150 grams without battery
Intended use: Road racing, triathlon, gran fondo, endurance road and compatible all-road bicycles

Compatible chainring combinations

46/33T
48/35T
50/37T
52/39T
54/41T
56/43T

The included setup tool generally covers the common 46/33T, 48/35T and 50/37T road combinations. Larger race chainrings may require the appropriate separately available SRAM alignment tool.

Refined cage architecture

The SRAM RED AXS E1 Front Derailleur uses a revised cage profile designed to initiate shifts more quickly than the previous generation. The narrower cage begins guiding the chain earlier, helping it move between the inner and outer chainrings with less hesitation.

This cage is optimised around SRAM X-Range chainrings. SRAM’s matching chainring ramps, pins and tooth profiles work with the derailleur to produce more reliable shifts under realistic pedalling loads.

SRAM Road Yaw technology

SRAM Yaw technology changes the angle of the derailleur cage as it travels between the chainrings. Instead of moving only sideways, the cage follows a controlled path that keeps it better aligned with the chain as the rear derailleur moves across the cassette.

This design helps improve front-shift precision while reducing unwanted cage contact and drivetrain noise.

Electronic auto trim

The derailleur automatically makes small positional adjustments as the rider changes gears at the rear. This electronic auto-trim function helps maintain clearance between the chain and derailleur cage throughout the cassette.

The rider does not need to make manual trim corrections, which is particularly useful during racing, fast bunch rides and climbing efforts.

SRAM AXS wireless operation

The front derailleur receives shift commands wirelessly from compatible SRAM AXS controls. With SRAM’s standard eTap configuration, pressing both primary shift paddles together moves the chain between the front chainrings.

Mounting specifications

Primary mounting type: Braze-on
Optional clamp-adapter sizes: 31.8mm and 34.9mm
Required chainline: 45mm
Compatible chainstay angle: 61 to 66 degrees
Drivetrain configuration: 2x12-speed road
Smallest listed outer chainring: 46T
Largest listed outer chainring: 56T
Chain technology: SRAM Road Flattop
Standard Road Wide compatibility: No

Frame compatibility checks

Before purchasing or installing the SRAM RED AXS E1 Front Derailleur, confirm that:

The frame supports a front derailleur and 2x drivetrain.
The frame has a compatible braze-on mount or can safely accept an approved clamp adapter.
The braze-on slot provides enough vertical adjustment for the selected chainrings.
The crankset has a 45mm chainline.
The chainring combination is listed as compatible.
The frame provides sufficient clearance around the derailleur body and battery.
The rear tyre does not contact the derailleur or battery.
The support wedge can contact the frame correctly.
The frame’s chainstay angle falls within the approved range.
The correct alignment tool is available for the chainring combination.

Standard Road versus Road Wide

The SRAM RED AXS E1 Front Derailleur is designed for a standard 45mm road chainline. SRAM Road Wide cranksets position the chainrings further outboard and require a compatible Wide front derailleur.

The SRAM RED AXS E1 Front Derailleur is ideal for road racers, triathletes, gran fondo riders and performance-focused cyclists who want the range of a 2x drivetrain without mechanical cables or manual trimming.

Slowtwitch published a technical assessment of the SRAM RED AXS E1 Front Derailleur on 2 July 2024. The review concluded that SRAM had made a substantial improvement to its front-shifting performance, identifying the narrower derailleur cage and electronic auto trim as the most important developments. The reviewer regarded front shifting as one of the standout features of the new RED groupset and found that the derailleur moved the chain quickly and confidently between rings.

Road.cc reviewed the complete SRAM RED AXS E1 groupset on 15 May 2024 and awarded it 9/10. Reviewer Stu Kerton praised the system’s shifting, ergonomics, braking and finish, describing the complete group as one of the strongest premium electronic road drivetrains available.

GRAN FONDO Cycling Magazine tested the new SRAM RED AXS groupset on 15 May 2024. Its review found that SRAM had focused on making the groupset easier to install, operate and personalise. The test highlighted the system’s refined functionality rather than treating the update as a simple weight-saving exercise.

Bikerumor published a long-term SRAM RED AXS E1 review on 27 January 2025 after approximately eight months of use. The reviewer praised the complete system’s refined performance, easier setup and compatibility with existing SRAM 12-speed AXS drivetrain components.

Rider and community sentiment

The strongest positive feedback from riders relates to shift reliability. Owners upgrading from previous-generation SRAM RED or Force AXS front derailleurs frequently report that the E1 system changes chainrings more quickly and with less hesitation.

Routine cleaning

Clean the derailleur with mild bicycle cleaner, water and a soft brush.
Remove accumulated chain lubricant from the cage using a clean cloth.
Avoid directing high-pressure water at the motor housing, battery interface or pivots.
Do not use aggressive solvents around the seals or electronic housing.
Dry the derailleur and battery contacts after wet rides.
Keep the drivetrain clean to reduce abrasive contamination around the cage.

Battery care

Charge the AXS battery with an approved SRAM charger.
Check the battery level before long rides and cycling events.
Carry a charged spare battery on remote or multi-day rides.
Keep the battery contacts clean and dry.
Fit a protective cover when the battery is removed for transport.
Do not store the battery in a completely discharged state.
Inspect the battery latch after a crash or transport impact.
Replace damaged, swollen or cracked batteries immediately.

Electronic maintenance

Use the SRAM AXS app to check component status.
Install firmware updates when recommended.
Confirm that the derailleur remains paired with the correct controls.
Check control assignments after changing components.
Use electronic micro-adjustment only after confirming the mechanical alignment is correct.

Mechanical inspection

Check the braze-on mounting bolt during scheduled bicycle servicing.
Make sure the frame-support wedge remains correctly positioned.
Inspect the cage for bending, cracking or impact damage.
Check that the derailleur clears the crankarm and chainrings.
Inspect the chain for wear.
Inspect the chainring teeth, shift ramps and pickup points.
Stop riding if the derailleur contacts the crank, chainring, frame or rear tyre.

Professional servicing

Professional installation and drivetrain tuning are recommended. A complete setup should include:

Frame compatibility inspection
Chainline confirmation
Cage height and angle adjustment
Support-wedge installation
Chain-length check
Chainring compatibility check
Firmware update
AXS pairing
Electronic micro-adjustment
Test shifting under controlled load

Incorrect installation can cause poor shifting, dropped chains, frame damage or contact between the derailleur and crankset.

Warranty

SRAM generally warrants bicycle components to the original owner against qualifying defects in materials or workmanship for two years from the original purchase date.
