Evolve CIMA Frameset (Tropical Yellow)

Name: Evolve CIMA Frameset (Tropical Yellow)
SKU: EV-CIMA-TROPICAL
Price: 19688.0 AUD
Availability: OutOfStock

HK$19,688.00 HKD

The Evolve CIMA Tropical Yellow Performance Road Frame is a lightweight, aero-optimised carbon disc frameset designed for riders who want a fast, responsive and visually striking custom road bike that delivers excellent climbing efficiency, race-ready handling and strong value for Brisbane and Australian road conditions.

CIMA Tropical Yellow Features

Premium carbon performance road frameset supplied with frame, fork, seatpost and essential hardware
Wind tunnel-tested CIMA platform designed for improved aerodynamic performance
Fully internal cable routing for a clean, modern electronic drivetrain build
Compatible with Shimano, SRAM and Campagnolo WRL electronic systems
Bold Tropical Yellow finish for riders wanting a standout custom road bike

Pedal Passion is an authorised Evolve dealer, providing local service, support, and warranty for complete peace of mind.

(more product details...)

Size

Seatpost

loading inventory data..

Ride Now, Pay Later? Yes it's Possible!

We want You to fuel your cycling passion now, not later, so with the help of our partners, we offer flexible payments terms including 4 interest-free installments (Afterpay or Paypal) or over 6, 12 or even up to 24 month repayments (Afterpay, Shop Instalments or ZIP).
Eligibility, T&Cs and minimum order value conditions may apply.

Earn 0 points on this purchase.

Learn more

More Product Details:

Technical Specifications

Product Name: Evolve CIMA Tropical Yellow Performance Road Frame
Frame Type: Performance carbon road frameset
Frame Material: High-performance carbon fibre construction
Colour / Finish: Tropical Yellow

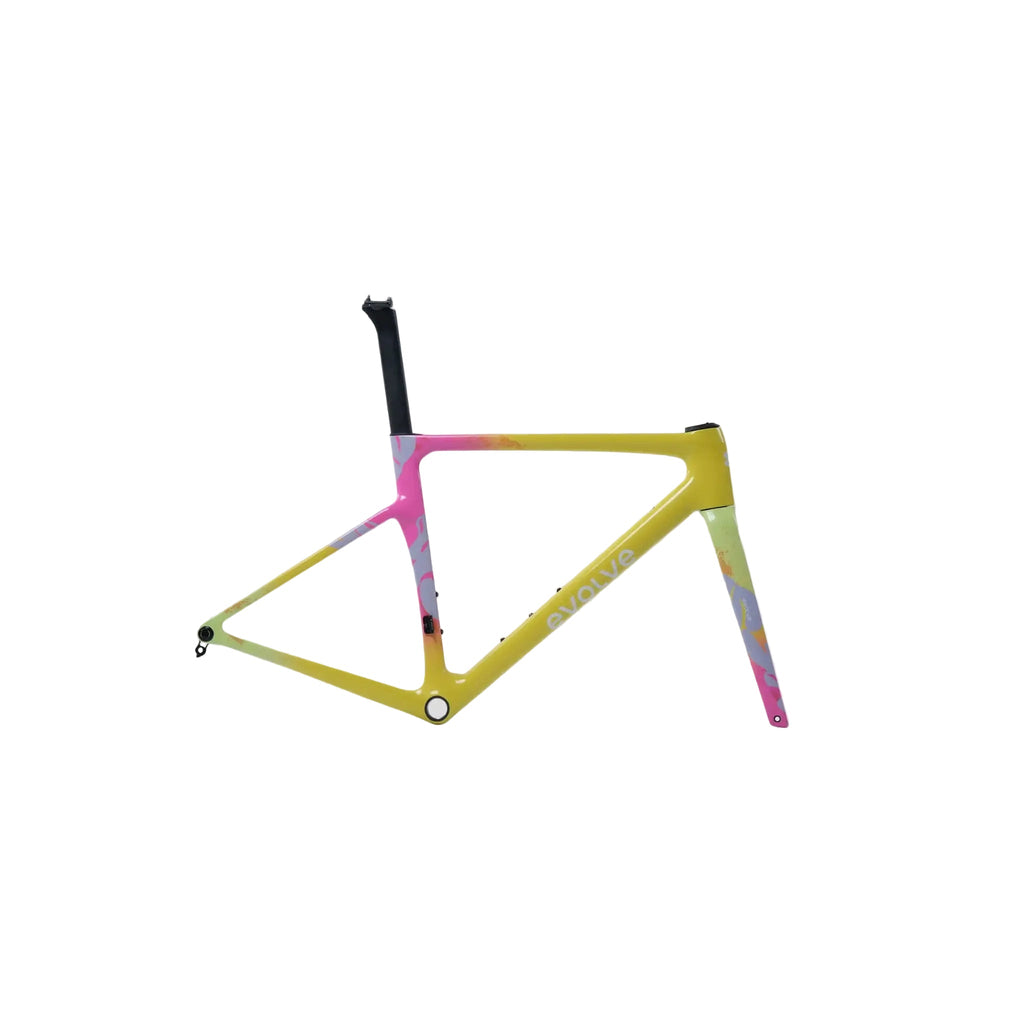

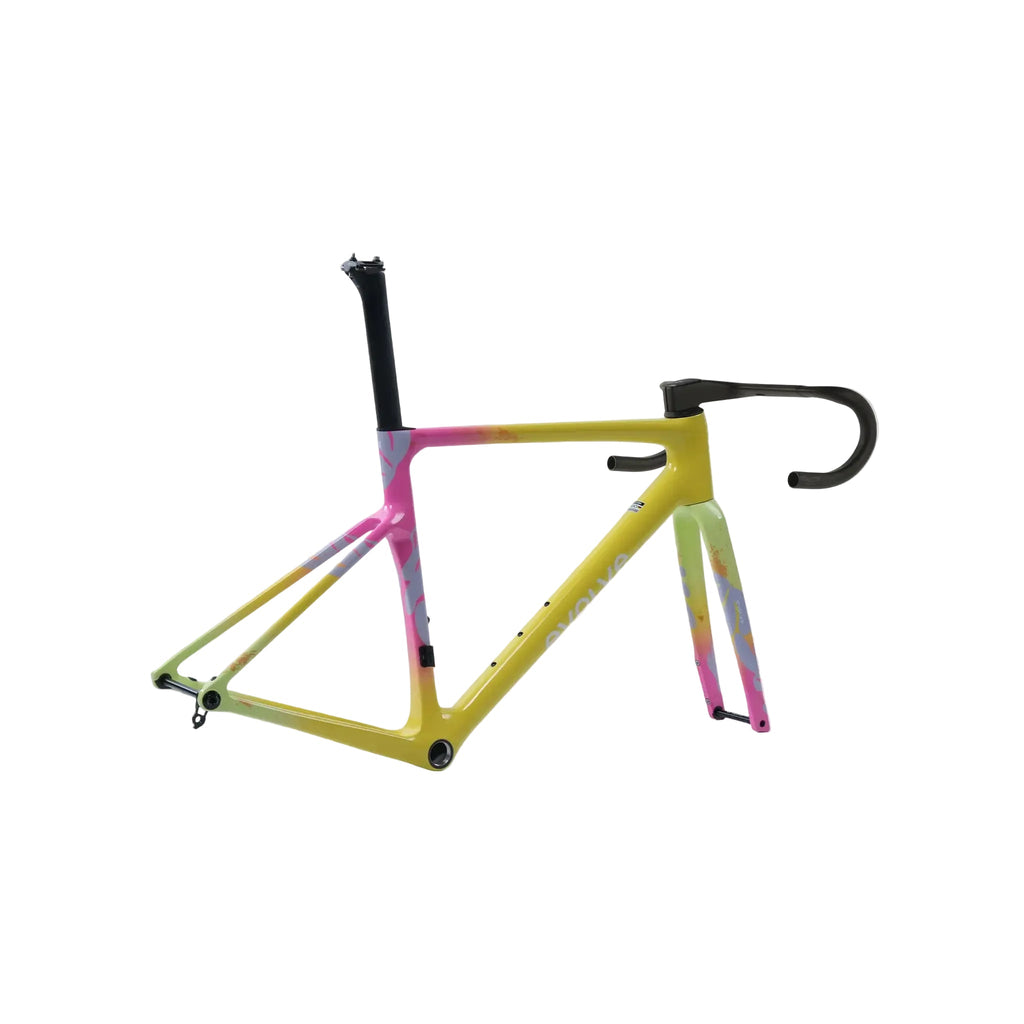

Included Components: Frame, fork, seatpost and essential frame hardware
Optional Upgrade: Kreuza Apex one-piece handlebar combo option

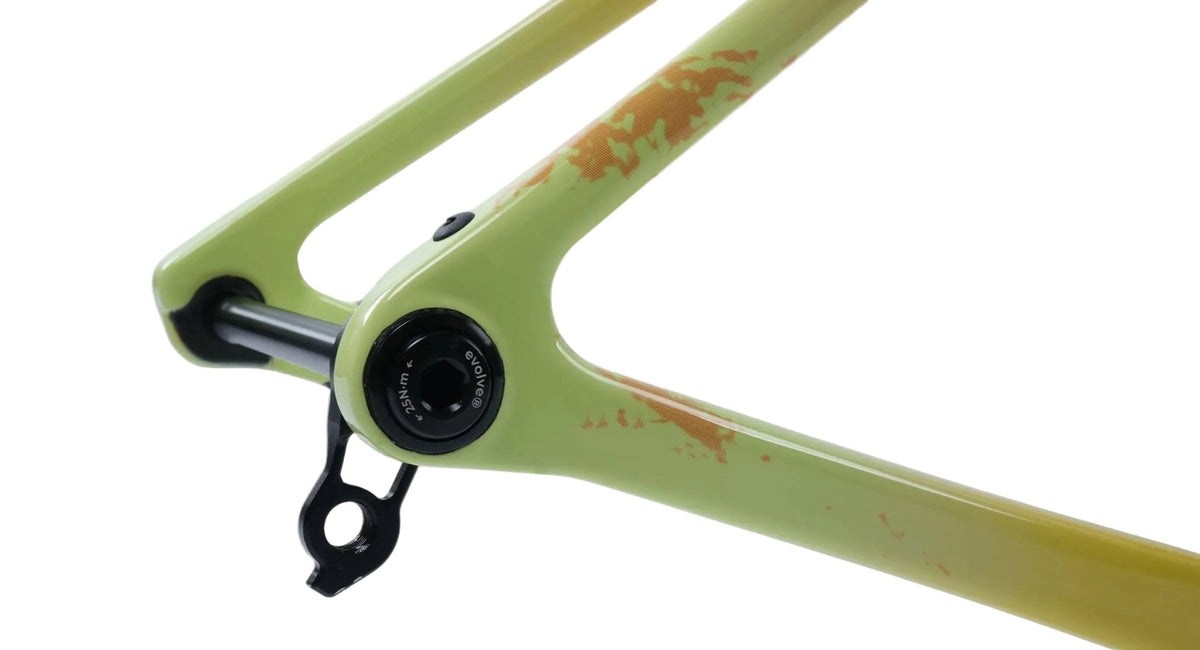

Optional Upgrade: Evolve UDH Direct Mount Derailleur Hanger
Wheel Size: 700C
Brake Type: Disc brake
Brake Mount: Flat mount road disc
Cable Routing: Fully internal cable routing
Drivetrain Compatibility: Electronic shifting systems
Compatible Groupsets: Shimano electronic shifting, SRAM electronic shifting and Campagnolo WRL
Campagnolo EPS Compatibility: Not compatible due to internal battery diameter limitations
Fork Offset:XS, S, M: 44.0mmML, L, XL: 40.2mm
Frame Sizes: XS, S, M, ML, L, XL
Suggested Rider Height Range:XS: under 163cmS: 161–170cmM: 168–177cmML: 175–184cmL: 182–192cmXL: over 190cm
Seatpost Options:310mm length / 25mm offset380mm length / 25mm offset310mm length / -5mm offset380mm length / -5mm offset310mm length / 10mm offset380mm length / 10mm offset
Testing: Frame and fork tested across 21 reliability and safety items
Aerodynamic Validation: Wind tunnel tested at Silverstone Sports Engineering Hub
Compatible Bike Type: Road bike, aero road bike, lightweight race bike, endurance road bike and premium custom road bike

Lightweight Carbon Performance Platform

The Evolve CIMA Tropical Yellow is designed as a fast, responsive carbon road platform for riders who want a premium custom-build frameset without moving into ultra-premium mainstream pricing.

Aero-Optimised Frame Design

The CIMA platform uses modern aerodynamic tube shaping to improve efficiency at speed while maintaining the climbing response and ride quality expected from a lightweight performance road frame.

Wind Tunnel Tested Development

The frame platform has been validated through wind tunnel testing, supporting its performance credentials for riders who want more than aesthetic aero styling.

Fully Internal Cable Routing

Internal cable routing gives the bike a clean, high-end appearance while reducing exposed cables around the cockpit. This makes it ideal for Shimano Di2, SRAM AXS or Campagnolo WRL builds.

Electronic Groupset Focus

The frame is designed around modern electronic drivetrains, helping reduce mechanical cable maintenance while delivering a clean and precise shifting setup.

Multiple Seatpost Offset Options

The wide range of seatpost offsets gives riders and bike fitters more flexibility when adjusting saddle setback, rider position and pedalling biomechanics.

Disc Brake Control

Flat mount disc brake compatibility provides consistent braking power for fast descents, wet-weather rides, racing and long-distance Australian road riding.

Available Frame Sizes

XS
S
M
ML
L
XL

Suggested Rider Height Guide

XS

Recommended for riders under 163cm

S

Recommended for riders approximately 161–170cm

M

Recommended for riders approximately 168–177cm

ML

Recommended for riders approximately 175–184cm

L

Recommended for riders approximately 182–192cm

XL

Recommended for riders over 190cm

Seatpost Length and Offset Options

Seatpost Lengths

310mm
380mm

Offset Options

-5mm
10mm
25mm

Fork Offset

XS, S and M: 44.0mm
ML, L and XL: 40.2mm

The Evolve CIMA Tropical Yellow is ideal for cyclists wanting a fast, distinctive and performance-focused carbon road frameset for a premium custom build.

Best Suited For

Road racers
Competitive club cyclists
Fast bunch ride cyclists
Climbing-focused riders
Gran Fondo riders
Endurance road cyclists
Riders upgrading from alloy or entry-level carbon frames
Cyclists building a Shimano Di2 or SRAM AXS custom road bike
Australian riders wanting a unique alternative to mainstream premium framesets

Product Care

Clean with mild bike-safe cleaner and water.
Avoid high-pressure washing around the headset, bottom bracket and bearings.
Use a calibrated torque wrench on all frame, cockpit, seatpost and bottle cage bolts.
Apply carbon assembly paste where recommended.
Inspect the frame regularly for cracks, impact marks or paint damage.
Check headset preload and bottom bracket condition during regular servicing.
Inspect the fork and steerer after any crash or major impact.
Ensure internal hoses and electronic wires are routed by an experienced mechanic.
Keep Shimano Di2, SRAM AXS or Campagnolo firmware updated where applicable.
Have the frame inspected after travel, transport damage or racing incidents.

Warranty Information

Warranty coverage is subject to Evolve manufacturer terms and conditions.
Warranty generally applies to defects in materials and workmanship.
Crash damage, incorrect assembly, over-torquing, misuse, modification and normal wear are typically not covered.
Professional assembly is recommended to protect warranty eligibility and ensure safe long-term performance.
Regular servicing is recommended for riders using the bike for racing, high-mileage training or frequent climbing and descending.

Retailer and industry commentary around the CIMA platform has also been positive, especially regarding its clean internal routing, electronic drivetrain focus, custom-build potential, distinctive finishes and value compared with major premium race framesets.

Rider Feedback & Community Sentiment

As the CIMA Tropical Yellow is part of a newer frame platform, long-term rider feedback is still developing. Early discussion from road cyclists and custom bike builders has been positive, especially around:

Lightweight race-oriented frame concept
Bright and distinctive Tropical Yellow finish
Clean fully integrated appearance
Electronic drivetrain compatibility
Premium custom build potential
Strong value compared with mainstream flagship frames
Modern aero-road styling
Multiple seatpost offset options for fit flexibility

Many riders are drawn to the CIMA because it offers a unique high-end build option that stands apart from the common premium road bikes seen in bunch rides.

Why We Love It at Pedal Passion

We love the Evolve CIMA Tropical Yellow because cyclists wanting something premium, distinctive and performance-driven, the CIMA Tropical Yellow is a very exciting frameset.

Specialized S-Works Tarmac SL8

Highly developed all-round race frame
Very light and aerodynamic
Significantly higher price point
Strong global brand recognition

Factor O2 VAM

Lightweight premium climbing frame
Strong race-focused positioning
Higher price category
Best for riders prioritising climbing performance

Cervelo R5

Lightweight race and climbing platform
Excellent handling reputation
Premium pricing
Popular among serious road cyclists

Trek Emonda SLR

Performance climbing-focused frameset
Established dealer support
Higher retail cost
More mainstream premium option

Giant TCR Advanced SL

Proven lightweight race platform
Strong value among major brands
More common on Australian roads
Excellent complete-bike availability

Winspace SLC Series

Lightweight direct-to-consumer carbon frame option
Strong value proposition
Popular among custom-build riders
Similar appeal for riders looking beyond traditional big brands

Where the Evolve CIMA Tropical Yellow Stands Out

Bold Tropical Yellow finish with strong visual impact
Strong value compared with major flagship framesets
Electronic drivetrain-focused design
Fully internal cable routing for a clean modern build
Multiple seatpost offset options for fit flexibility
Wind tunnel validated platform
