Evolve CIMA Special Edition (Billow)

Name: Evolve CIMA Special Edition (Billow)
SKU: EV-CIMA-BILLOW
Price: 19688.0 AUD
Availability: OutOfStock

HK$19,688.00 HKD

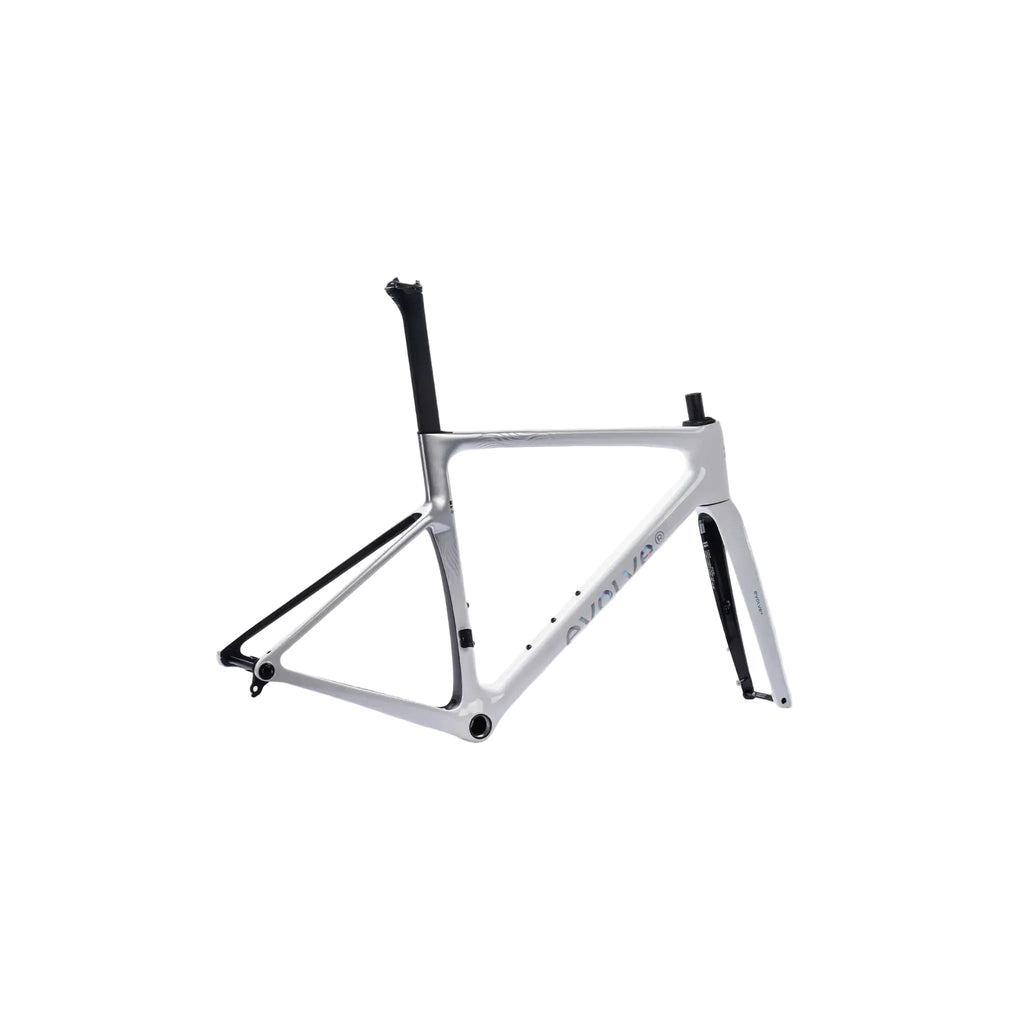

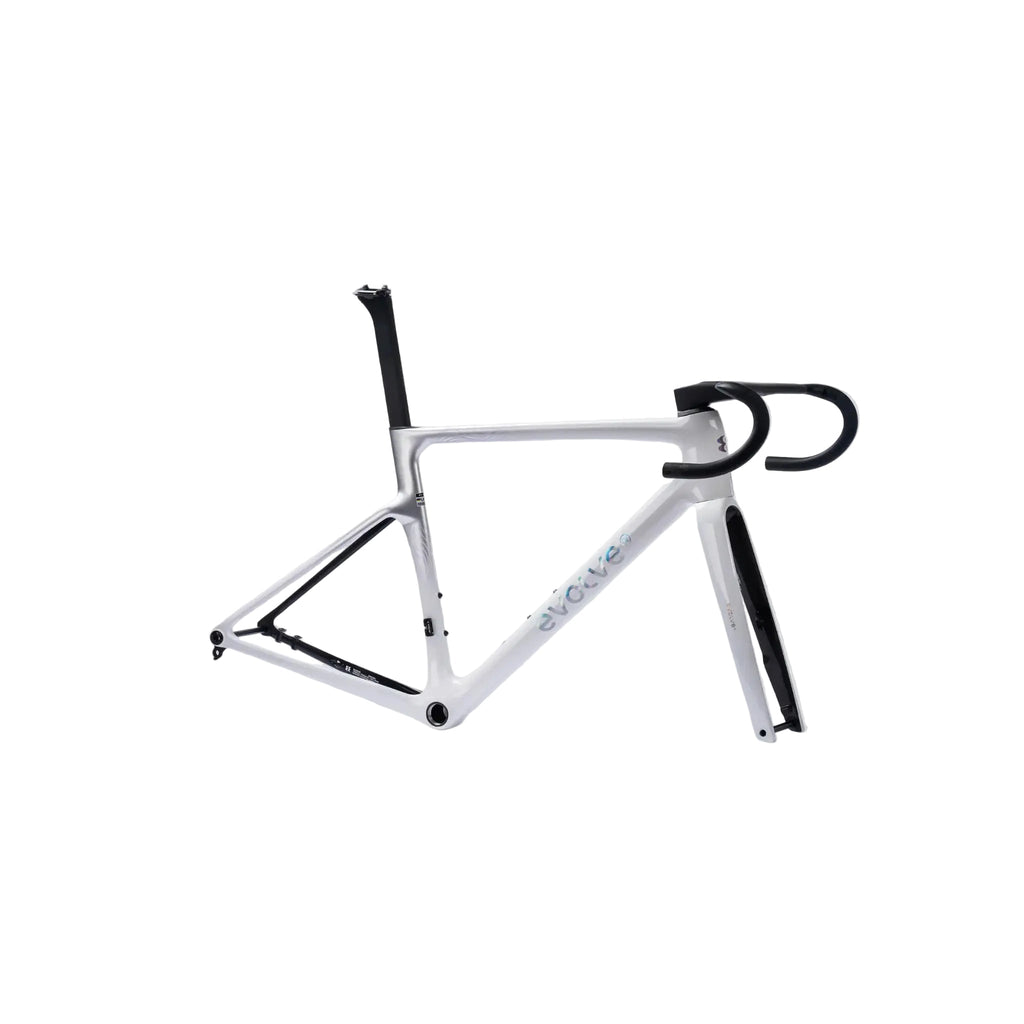

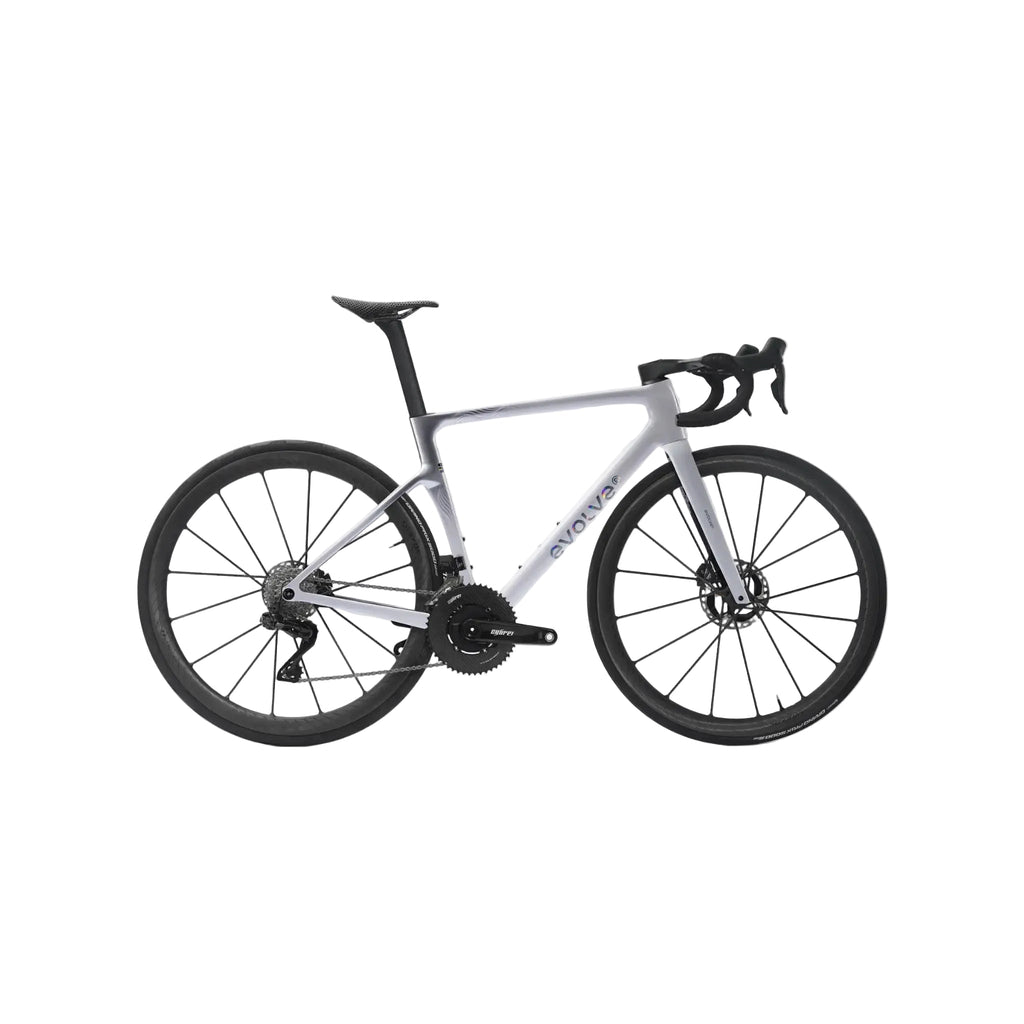

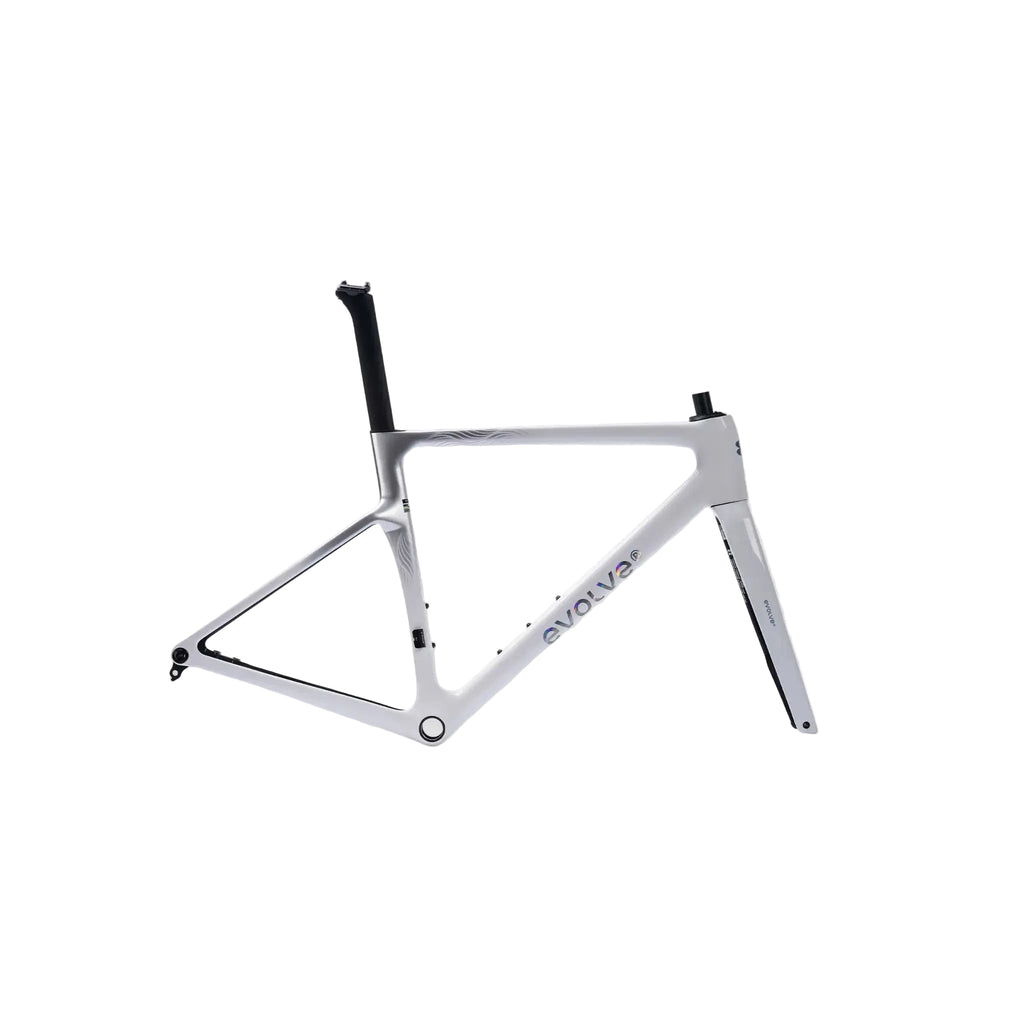

The Evolve CIMA Special Edition Billow is a refined lightweight aero carbon road frameset created for riders who want a fast, elegant and highly individual custom bike that blends climbing responsiveness, modern aerodynamics, clean electronic integration and confident disc-brake control for Australian road riding.

CIMA Billow Features

Lightweight carbon road frameset designed for climbing, racing and high-speed endurance riding
Special Edition Billow finish with a soft, flowing visual style that stands apart from mainstream race bikes
Fully internal cable routing for a clean premium cockpit and modern electronic drivetrain setup
Disc brake platform built for confident descending, wet-weather control and fast road riding
Multiple size and seatpost options to support precise bike fit and custom build flexibility

Pedal Passion is an authorised Evolve dealer, providing local service, support, and warranty for complete peace of mind.

(more product details...)

Size

Seatpost

loading inventory data..

Ride Now, Pay Later? Yes it's Possible!

We want You to fuel your cycling passion now, not later, so with the help of our partners, we offer flexible payments terms including 4 interest-free installments (Afterpay or Paypal) or over 6, 12 or even up to 24 month repayments (Afterpay, Shop Instalments or ZIP).
Eligibility, T&Cs and minimum order value conditions may apply.

Earn 0 points on this purchase.

Learn more

More Product Details:

Technical Specifications

Product Name: Evolve CIMA Special Edition Billow Performance Road Frame
Frame Type: Lightweight aero carbon road frameset
Frame Material: High-performance carbon fibre construction
Colour / Finish: Special Edition Billow
Included Components: Frame, fork, seatpost and essential frame hardware
Optional Cockpit Compatibility: Kreuza Apex one-piece handlebar option
Optional Hanger Upgrade: Evolve UDH Direct Mount Derailleur Hanger
Wheel Size: 700C
Brake Type: Disc brake
Brake Mount: Flat mount road disc
Cable Routing: Fully internal cable routing
Drivetrain Compatibility: Electronic shifting systems
Compatible Groupsets: Shimano Di2, SRAM AXS and Campagnolo WRL electronic systems
Campagnolo EPS Compatibility: Not compatible due to internal battery fit limitations
Frame Sizes: XS, S, M, ML, L, XL
Suggested Rider Height Range:XS: under 163cmS: 161–170cmM: 168–177cmML: 175–184cmL: 182–192cmXL: over 190cm
Seatpost Options:310mm length / 25mm offset380mm length / 25mm offset310mm length / -5mm offset380mm length / -5mm offset310mm length / 10mm offset380mm length / 10mm offset
Fork Offset:XS, S, M: 44.0mmML, L, XL: 40.2mm
Testing: Frame and fork tested across multiple reliability and safety standards
Aerodynamic Development: Wind tunnel validated CIMA platform
Compatible Bike Type: Road bike, aero road bike, lightweight race bike, endurance road bike and premium custom road build
Recommended Use: Road racing, fast bunch rides, climbing, endurance rides, Gran Fondo events and custom performance bike builds
Rider Weight Limit: Not clearly specified by manufacturer

Additional Notes

Best suited to modern electronic drivetrain builds.
Professional assembly is recommended due to fully internal routing, hydraulic disc brakes and integrated cockpit compatibility.

ightweight Carbon Performance Platform

The CIMA Special Edition Billow is built around a responsive carbon frameset platform intended to feel sharp under acceleration, efficient on climbs and composed during fast road riding. It is designed for riders who want a frame that feels lively without sacrificing stability.

Aero-Influenced Road Design

Rather than being a pure climbing frame or a heavy aero frame, the CIMA sits in the modern all-round performance category. Its tube shapes are designed to support speed on rolling terrain while keeping the frame light and responsive for climbing.

Fully Internal Cable Routing

The fully internal routing system gives the bike a clean, premium appearance by hiding brake hoses and electronic wires through the cockpit and frame. This improves the overall aesthetic and supports a modern high-end build with Shimano Di2, SRAM AXS or Campagnolo WRL.

Electronic Drivetrain Focus

The CIMA Billow is designed for electronic shifting, making it ideal for riders who want reliable gear changes, reduced cable maintenance and a clean cockpit layout. It is particularly well matched to premium 12-speed road groupsets.

Disc Brake Confidence

Flat mount disc brake compatibility gives the frame modern stopping power and improved modulation, especially useful on long descents, technical corners, wet roads and fast bunch rides.

Fit-Focused Seatpost Options

The availability of multiple seatpost lengths and offsets gives riders more ability to fine-tune saddle position. This is valuable for performance bike fitting, especially for riders chasing comfort, efficiency and correct pedalling mechanics.

Custom Build Potential

As a frameset, the Billow gives riders full control over the final build. It can be configured as a lightweight climbing bike, a fast aero-inspired race bike or a refined endurance machine depending on component choice.

Available Frame Sizes

XS
S
M
ML
L
XL

Suggested Rider Height Guide

XS

Recommended for riders under 163cm

S

Recommended for riders approximately 161–170cm

M

Recommended for riders approximately 168–177cm

ML

Recommended for riders approximately 175–184cm

L

Recommended for riders approximately 182–192cm

XL

Recommended for riders over 190cm

Seatpost Length and Offset Options

Seatpost Lengths

310mm
380mm

Offset Options

-5mm
10mm
25mm

Fork Offset

XS, S and M: 44.0mm
ML, L and XL: 40.2mm

Fit Recommendation

A professional bike fit is strongly recommended before choosing frame size, cockpit dimensions and seatpost offset.

Tyre clearance for modern Australian road conditions

The CIMA Billow supports tyre widths from 24c up to 32c, allowing riders to tune their bike for speed, comfort or versatility.

25c–28c for race-day performance
28c–30c for everyday riding balance
30c–32c for long-distance comfort and rough road surfaces

For Brisbane riders dealing with mixed road surfaces and long training distances, wider tyres can significantly improve comfort and control.

Built for racing and long-term durability

The CIMA Special Edition is designed to meet global performance and safety standards:

UCI approved for racing
CE certified for safety
Rider weight limit up to 109kg
Limited lifetime warranty

This ensures confidence for both competitive racing and everyday high-performance riding.

Product Care

Clean with mild bike-safe cleaner and water.
Avoid high-pressure washing around the headset, bottom bracket and bearings.
Use a calibrated torque wrench on all frame, cockpit, seatpost and bottle cage bolts.
Apply carbon assembly paste where recommended.
Inspect the frame regularly for cracks, impact marks or paint damage.
Check headset preload and bottom bracket condition during regular servicing.
Inspect the fork and steerer after any crash or major impact.
Ensure internal brake hoses and electronic wires are routed by an experienced mechanic.
Keep Shimano Di2, SRAM AXS or Campagnolo firmware updated where applicable.
Have the frame inspected after travel, transport damage or racing incidents.

Warranty Information

Warranty coverage is subject to Evolve manufacturer terms and conditions.
Warranty generally applies to defects in materials and workmanship.
Crash damage, incorrect assembly, over-torquing, misuse, modification and normal wear are typically not covered.
Professional assembly is recommended to protect warranty eligibility and ensure safe long-term performance.
Regular servicing is recommended for riders using the bike for racing, high-mileage training or frequent climbing and descending.

Early professional coverage of the Evolve CIMA platform has highlighted its lightweight race focus, aero development and positioning as a strong alternative to premium all-round race frames. The CIMA has been discussed as a frame aimed at riders who want low weight with aerodynamic refinement rather than a traditional climbing-only design.

Industry commentary has also been positive around the CIMA’s clean internal routing, electronic drivetrain focus, modern fit options, distinctive paint finishes and strong value when compared with major premium framesets.

Rider Feedback & Community Sentiment

Early rider feedback around the CIMA Billow and wider CIMA platform has been encouraging, particularly from cyclists interested in unique custom builds.

Common positive rider comments include:

Beautiful paint finish with a premium custom look
Clean internal routing and modern frame presentation
Responsive ride feel under acceleration
Good stiffness for climbing and sprinting
Comfortable ride quality for a performance road frame
Strong value compared with mainstream flagship frames
Appealing alternative to common premium road bikes
Flexible fit options with different seatpost offsets

Many riders are drawn to the Billow because it offers something more personal than a standard catalogue race bike. It gives the rider the opportunity to build a bike that is fast, refined and visually memorable.

Why We Love It at Pedal Passion

We love the Evolve CIMA Special Edition Billow because it has personality without losing performance focus. It is light, clean, modern and beautifully suited to a custom build.

Specialized S-Works Tarmac SL8

Highly developed all-round race frame
Very light and aerodynamic
Significantly higher price point
Strong global brand recognition

Factor O2 VAM

Lightweight premium climbing frame
Strong race-focused reputation
Higher price category
Best for riders prioritising climbing performance

Cervelo R5

Lightweight race and climbing platform
Excellent handling reputation
Premium pricing
Popular among serious road cyclists

Trek Emonda SLR

Performance climbing-focused frameset
Established dealer support
Higher retail cost
More mainstream premium choice

Giant TCR Advanced SL

Proven lightweight race platform
Strong value among major global brands
More common on Australian roads
Excellent complete-bike availability

Winspace SLC Series

Lightweight direct-to-consumer carbon frame option
Popular with custom-build riders
Strong value proposition
Similar appeal for cyclists looking beyond traditional big brands

Where the Evolve CIMA Special Edition Billow Stands Out

More distinctive visual identity than many mainstream race frames
Strong value compared with major flagship framesets
Clean electronic drivetrain-focused design
Fully internal cable routing for a modern premium build
Multiple seatpost offset options for fit flexibility
Aero-tested platform with lightweight road performance

Evolve

Evolve CIMA: Lightweight Climbing Frame Arrives With Intent

Evolve’s CIMA frameset is a 650–680 g road platform from a young Chinese brand linked to Elitewheels and Cybrei. Early reviews suggest this is not just another open-mould curiosity.
