SmartForm C1 Aluminium Frame
The Cannondale Topstone CAAD 1 GRX 1x is built around a premium SmartForm C1 aluminium frame rather than an entry-level alloy chassis. Cannondale uses carefully shaped and custom-butted tubes to place material around high-load areas while reducing unnecessary thickness elsewhere.
This creates a frame that feels eager when accelerating but remains suitable for long days over changing surfaces. The carefully finished welds and clean tube transitions also give the bike a refined appearance that sets it apart from more basic aluminium gravel bikes.
Cannondale has decades of experience developing high-performance aluminium bicycles. That expertise matters because aluminium frame quality depends on much more than the name of the alloy. Tube profiles, wall thicknesses, heat treatment, weld placement and overall geometry all contribute to the final ride.
The result is an aluminium gravel bike that should not be viewed simply as a cheaper substitute for carbon. The Topstone CAAD is a purposeful choice for riders who value responsive handling, practical durability and straightforward long-term ownership.
Full Carbon Fork
The full carbon fork helps reduce front-end weight while moderating the constant high-frequency vibration produced by coarse bitumen, compacted gravel and corrugated roads.
Its tapered steerer supports accurate steering during fast descents and through loose corners. The fork also includes mounting points for cargo cages, extra bottles or lightweight adventure equipment, giving riders more packing flexibility without covering the entire frame in straps.
Internal dynamo routing supports a clean permanent lighting installation. This is a particularly useful feature for commuters, ultra-distance riders and bikepackers who do not want to depend entirely on rechargeable lights during longer trips.
OutFront Steering Geometry
Cannondale’s OutFront Steering Geometry is designed to make the Topstone stable without making it slow or difficult to steer. The relatively relaxed front-end geometry works with a 55mm fork offset to provide composed handling at speed while retaining responsive steering through tighter corners.
This balance is one of the Cannondale Topstone CAAD 1 GRX 1x’s strongest qualities. It is confidence-inspiring on loose descents but does not feel like an oversized touring bike when the route returns to smooth bitumen or a fast bike path.
Shimano GRX 1x12 Drivetrain

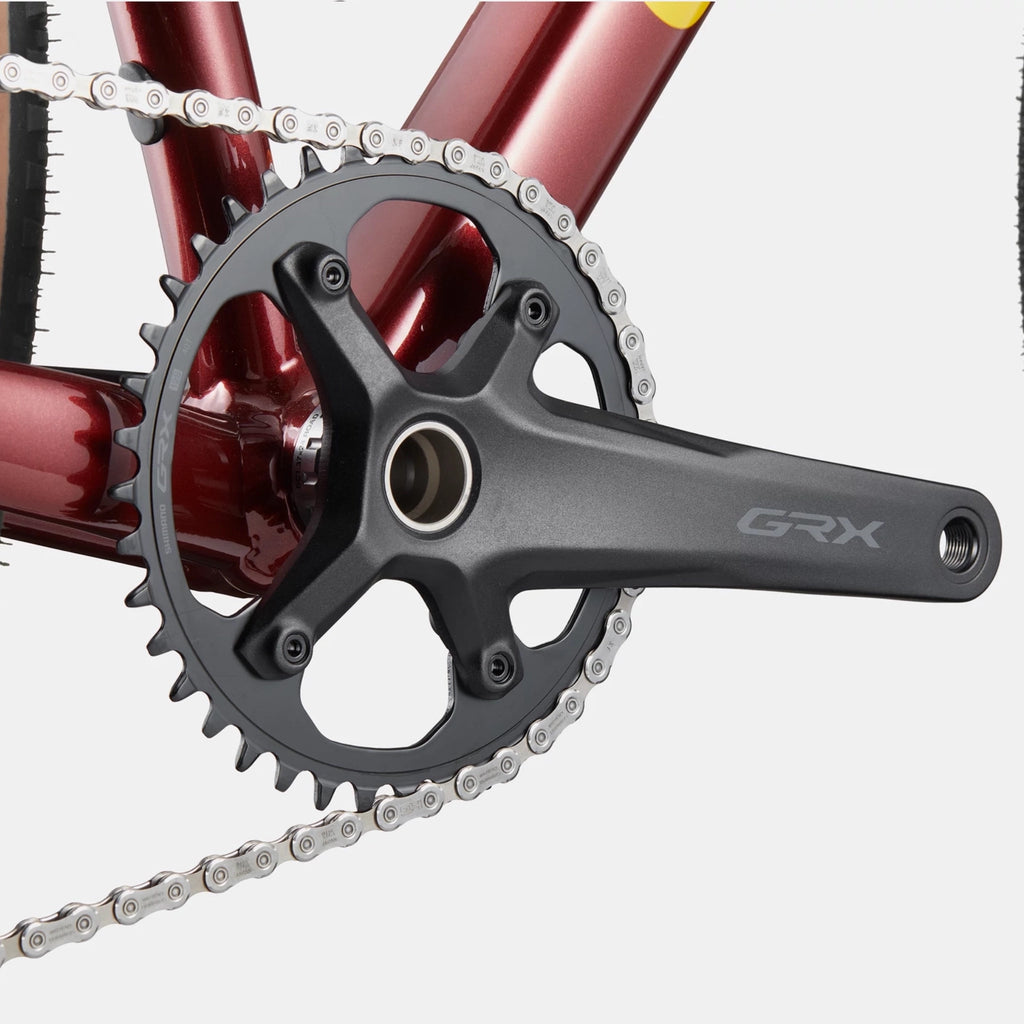

The Shimano GRX RX610 crankset uses a single 40T chainring, removing the front derailleur, second chainring and additional shift cable found on a 2x drivetrain.
This makes shifting easier to understand and reduces the number of components requiring adjustment. The rider only needs to select a harder or easier gear at the rear, which is particularly welcome when the trail becomes steep, loose or technical.

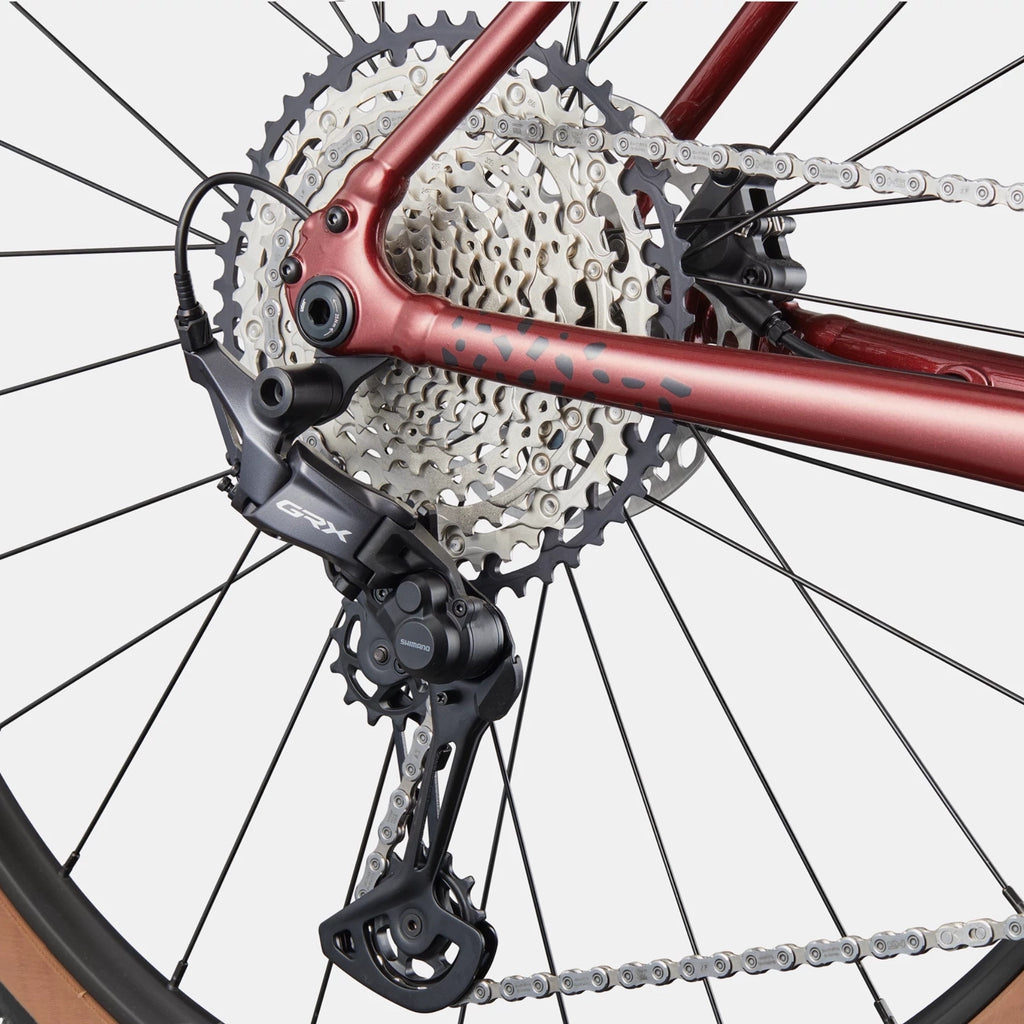

At the back, a Shimano GRX RX822 SGS derailleur manages the wide-range 10-51T cassette. Its Shadow RD+ clutch helps control chain movement across rough ground, reducing drivetrain noise and improving chain security over corrugations, potholes and rocky sections.
The 510% cassette range is a major selling point. The 40x51T lowest gear is substantially easier than the climbing ratios found on many conventional road and gravel bikes, making it valuable on steep Australian fire roads and loaded bikepacking routes. At the opposite end, the 40x10T combination provides enough top-end gearing for quick gravel sections and most sealed-road riding.
The compromise is wider spacing between some gears than a 2x drivetrain. Riders who spend most of their time in fast road groups may prefer the smaller cadence changes of the Topstone CAAD 1 GRX 2x. For riders prioritising simplicity, climbing ability and off-road reliability, however, the 1x configuration is an excellent match.
Wide Tyre Clearance
The Topstone CAAD frame accommodates tyres measuring up to 52mm while maintaining the manufacturer’s required clearance. This gives the bike considerably more adaptability than gravel frames limited to conventional 40mm or 45mm tyres.
The fitted 700x45c WTB Vulpine tyres provide a versatile starting point. Their volume helps absorb vibration and adds confidence on loose gravel, but their tread remains suitable for fast hardpack and sealed-road connections.
Riders can later choose faster tyres for road-heavy riding, more aggressive tread for loose forestry trails or higher-volume rubber for rough backcountry routes. The generous clearance means the bike can change along with the rider rather than becoming limiting when their preferred terrain becomes more adventurous.
Suspension-Ready Design
The frame geometry is designed to accept a compatible gravel suspension fork, including the Cannondale Lefty Oliver.
This is an important long-term advantage. Riders can enjoy the simplicity and low weight of the standard carbon fork initially, then add suspension if their riding develops towards rocky fire roads, technical gravel or light singletrack.
Dropper-Post Compatibility
Internal routing for a compatible 27.2mm dropper post creates another valuable upgrade path. A dropper allows the saddle to be lowered from the handlebar, giving the rider more room to move on steep or technical descents.
Not every gravel rider needs one, but the option makes the Cannondale Topstone CAAD 1 GRX 1x more adaptable than a traditional rigid road-derived platform.
Practical Component Standards
A 68mm BSA threaded bottom bracket simplifies servicing and replacement. The frame also uses common 12mm thru-axles, a 27.2mm seatpost and a Universal Derailleur Hanger.
