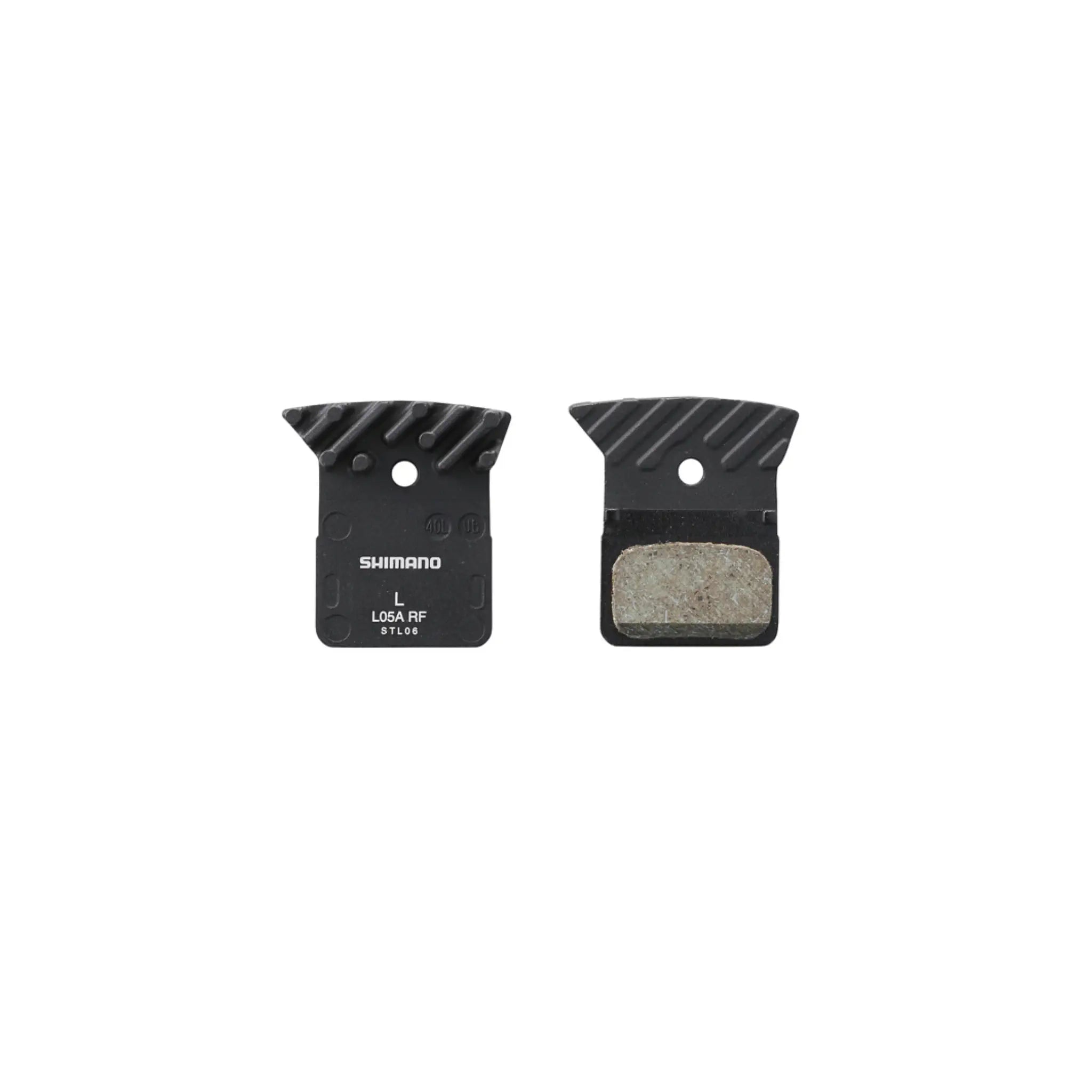

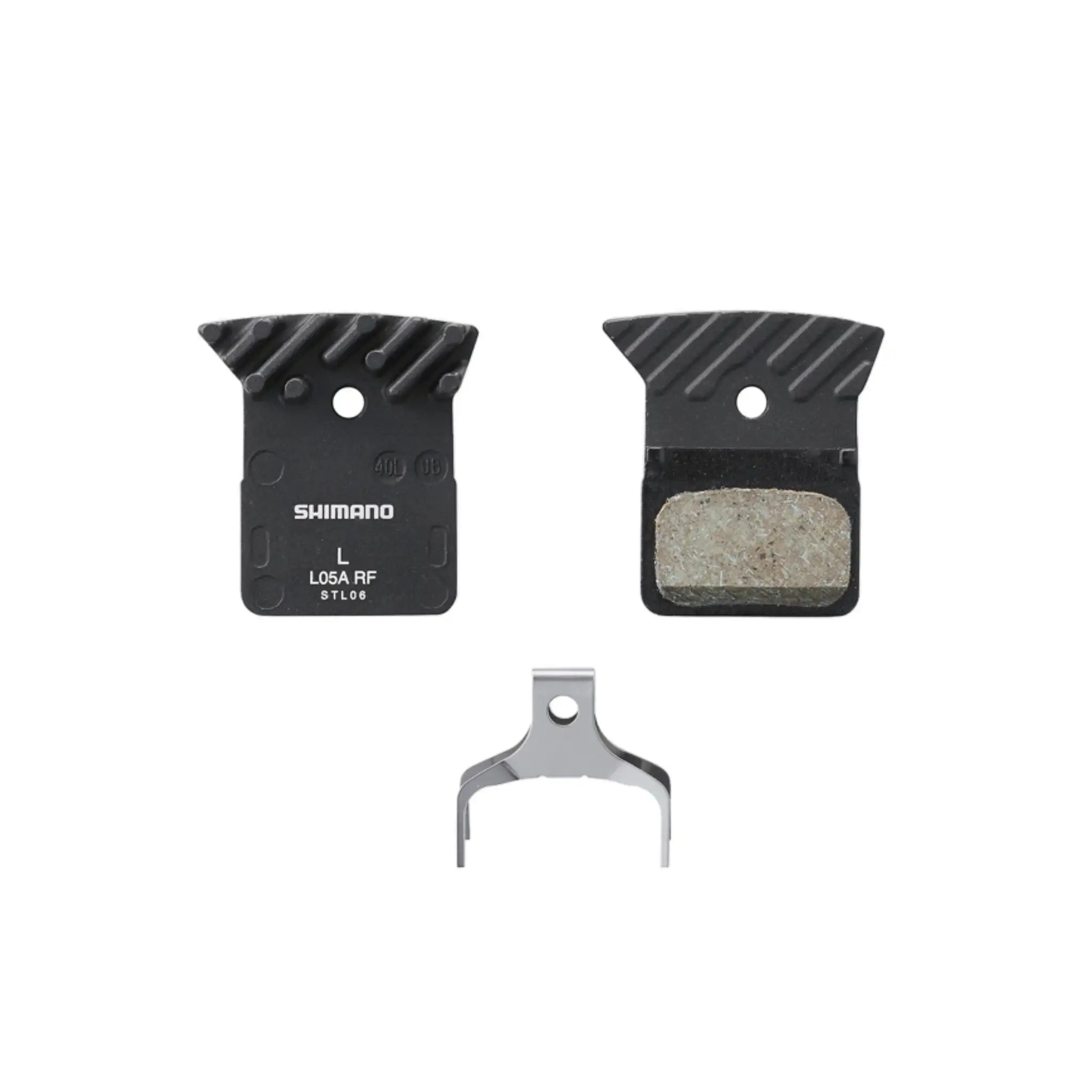

Shimano L05A-RF Resin Disc Brake Pads (with fin)

Shimano L05A-RF Resin Disc Brake Pads (with fin)

$32.00 NZD
Skip to product information
Shimano L05A-RF Resin Disc Brake Pads (with fin)
  • Shimano L05A-RF Resin Disc Brake Pads (with fin)
  • Shimano L05A-RF Resin Disc Brake Pads (with fin)
  • Shimano L05A-RF Resin Disc Brake Pads (with fin)
Shimano L05A-RF Resin Disc Brake Pads (with fin)

Shimano L05A-RF Resin Disc Brake Pads (with fin)

$32.00 NZD
Taxes included. Shipping calculated at checkout.

The Shimano L05A-RF Resin Disc Brake Pads are genuine finned road and gravel brake pads designed to restore quiet, controlled and fade-resistant braking for Shimano 2-piston hydraulic disc brakes, making them a smart service upgrade for Brisbane hills, Queensland heat and Australian road, gravel and commuter riding.

BP-L05A-RF Features

  • 5th-generation Shimano resin compound for quieter braking and smooth modulation
  • Cooling fin design helps reduce heat build-up and brake fade
  • 50% better wear resistance than Shimano L03A pads
  • 110% better wear resistance than Shimano L02A pads
  • Genuine Shimano fit for many Dura-Ace, Ultegra, 105, Tiagra, GRX, XTR and road disc calipers

(more product details...)

loading inventory data..

Ride Now, Pay Later? Yes it's Possible!

We want You to fueal that cycling passion now and with the help of our partners, offer flexible payments terms including 4 interest-free installments (with Afterpay) or over 6, 12 or even up to 24 month repayments (with ZIP). Eligibility, T&Cs and minimum order value conditions may apply.

Earn 0 points on this purchase.

Learn more
More Product Details:
Key Features & Technical Specifications

Technical Specifications

  • Product Name: Shimano L05A-RF Resin Disc Brake Pads
  • Shimano Model: BP-L05A-RF
  • Product Type: Disc brake pad set
  • Pad Compound: Resin, 5th generation
  • Backing Plate Material: Alloy
  • Cooling System: Integrated radiator cooling fin
  • Pad Shape: Narrow type, L shape
  • Caliper Type: Shimano 2-piston disc brake calipers
  • Performance Focus: Quiet braking, smooth modulation, longer pad life and reduced fade
  • Wear Resistance:50% better wear resistance than L03A110% better wear resistance than L02A
  • Recommended Use: Road cycling, gravel riding, endurance road, commuting, cyclocross, all-road riding, e-road and general disc brake servicing
  • Best Bike Type: Road bikes, gravel bikes, endurance bikes, commuter bikes, all-road bikes and selected flat-bar disc brake bikes using compatible Shimano calipers

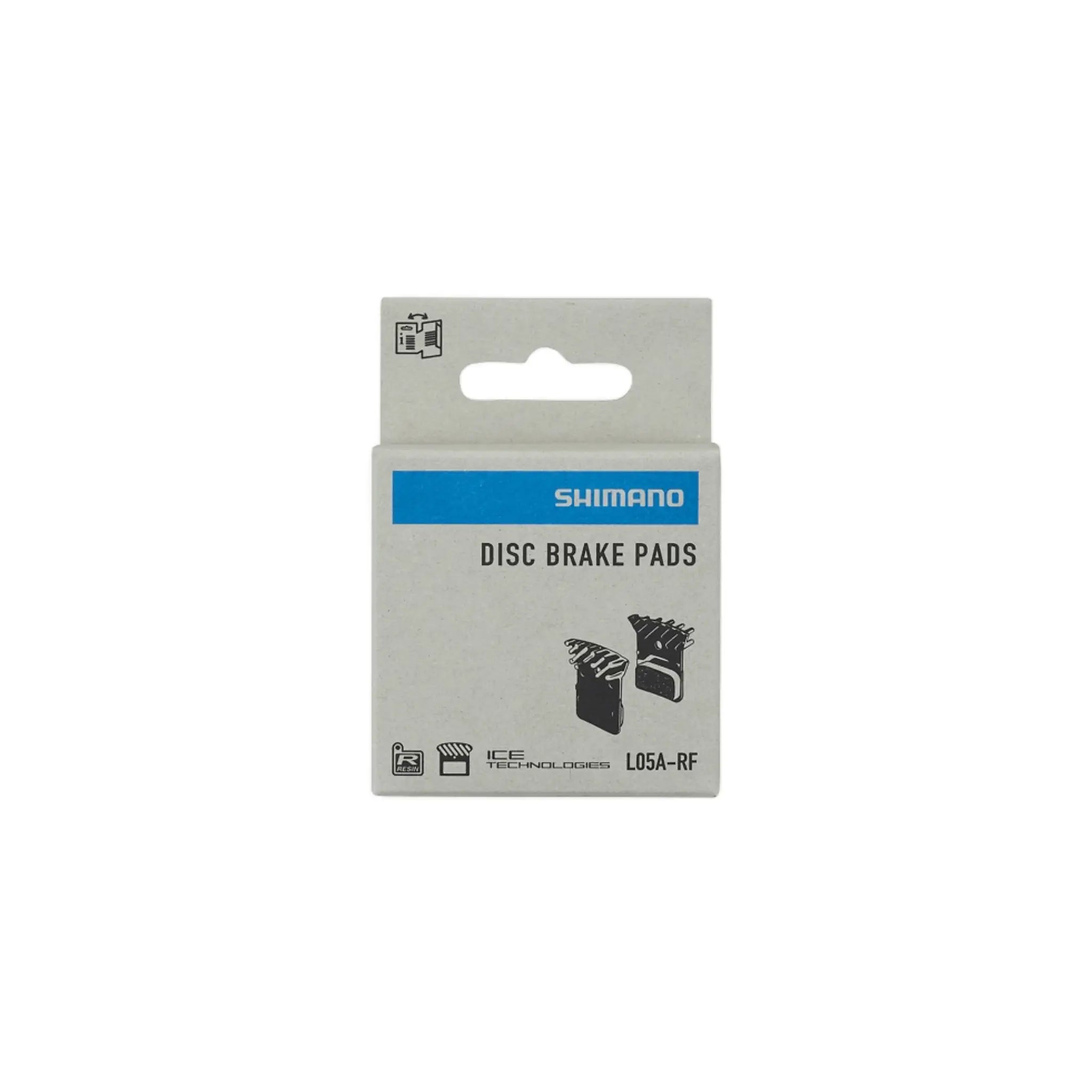

  • Typical Package Contents: One pair of brake pads with spring and retaining hardware, depending on retail packaging
  • Main Upgrade Purpose: Brake pad replacement, quieter braking, improved modulation, heat control and disc brake service refresh

Common Compatible Shimano Calipers

Compatibility must always be confirmed by caliper model, but L05A-RF pads are commonly compatible with selected Shimano 2-piston calipers including:

  • Shimano Dura-Ace BR-R9270, BR-R9170
  • Shimano Ultegra BR-R8170, BR-R8070
  • Shimano 105 BR-R7170, BR-R7070
  • Shimano Tiagra BR-4770
  • Shimano GRX BR-RX820, BR-RX810, BR-RX410, BR-RX400
  • Shimano XTR BR-M9100 series related road/gravel-compatible options
  • Shimano BR-RS805, BR-RS505, BR-RS405, BR-RS305
  • Shimano BR-U8010, BR-U5000
  • Shimano BR-M8110, BR-M7110, BR-MT805

Compatibility Notes

  • These are not universal brake pads.
  • Check your brake caliper model before purchase.
  • Designed for Shimano narrow-type L pad compatible 2-piston calipers.
  • Use with Shimano rotors that are compatible with resin pads.
  • If your current pads are contaminated, inspect and clean or replace the rotor as well.
  • Professional installation is recommended if brakes are noisy, rubbing, contaminated or due for a full service.
Notable Tech, Materials & Construction

5th-Generation Resin Compound

The L05A-RF uses Shimano’s newer resin friction material to deliver quieter braking, smoother control and improved wear life compared with earlier L-series resin pads. Resin pads are popular for road and gravel because they offer good initial bite and predictable modulation.

Radiator Cooling Fins

The integrated aluminium cooling fins help draw heat away from the braking surface. This reduces the chance of brake fade during long descents, repeated stopping or heavy braking sessions.

Alloy Back Plate

The alloy backing plate keeps weight low and works with the cooling fin design to improve heat dissipation. This makes the pad especially suitable for performance road and gravel riders who want a balance of braking feel and heat control.

Narrow L-Type Pad Shape

The narrow L pad shape is designed for Shimano’s modern road, gravel and selected MTB 2-piston calipers. Correct pad shape matters because brake pad fit directly affects braking power, rotor contact, noise and safety.

Quieter Braking Feel

Resin pads are generally quieter than metallic pads, especially when clean, correctly bedded in and paired with compatible rotors. This makes the L05A-RF a great option for riders who dislike brake squeal on road and gravel bikes.

Improved Wear Life

Shimano positions the L05A-RF as a longer-lasting replacement for earlier resin pads, with major wear resistance gains over L03A and L02A. For riders doing regular kilometres, this means fewer pad changes and better long-term value.
Size, Fit, Geometry & Measurements

Pad Fitment

  • Pad Shape: Narrow type, L
  • Compound: Resin
  • Backing Plate: Alloy
  • Cooling Fin: Yes
  • Brake Type: Shimano 2-piston disc brake caliper
  • Rotor Compatibility: Shimano resin-compatible disc rotors

Fit Checklist Before Purchase

Before ordering, confirm:

  • Your Shimano caliper accepts L-type narrow finned pads.
  • Your rotor is compatible with resin pads.
  • Your current brake pads are not contaminated with oil, degreaser or brake fluid.
  • Your rotor is not below Shimano’s minimum thickness.
  • Your pistons are moving evenly.
  • Your caliper is aligned correctly.
  • Your brake system does not need bleeding.

Installation Recommendation

For best results, fit pads into a clean caliper, inspect the rotor, align the caliper and complete a proper bed-in process before hard braking. If the old pads were contaminated, the rotor may also need cleaning or replacement.
Who it is best suited for and where it is best suited

The Shimano L05A-RF Resin Disc Brake Pads are best suited to riders who want quiet, controlled and heat-managed braking from compatible Shimano hydraulic disc brakes.

Best Suited For

  • Road cyclists replacing worn Shimano disc brake pads
  • Gravel riders using Shimano GRX brakes
  • Endurance road riders tackling long descents
  • Commuters wanting quieter, smoother braking
  • Riders replacing noisy, glazed or contaminated pads
  • Shimano Dura-Ace, Ultegra, 105, Tiagra and GRX users
Product Care & Warranty Info

Product Care

  • Bed in new brake pads properly before hard braking.
  • Avoid touching the pad surface with your fingers.
  • Keep chain lube, degreaser, polish and brake fluid away from pads and rotors.
  • Clean rotors only with disc brake-safe cleaner or isopropyl alcohol.
  • Replace pads if contaminated with oil or brake fluid.
  • Check pad thickness regularly.
  • Inspect rotors for wear, scoring, warping or contamination.
  • Replace pads before they wear down to the backing plate.
  • Check caliper alignment if brakes rub or squeal.
  • Have brakes serviced if lever feel changes or braking power drops.

Warranty Information

  • Warranty coverage is subject to Shimano or retailer terms and conditions.
  • Warranty generally applies to manufacturing defects in materials or workmanship.
  • Normal pad wear, contamination, glazing, incorrect installation, poor bedding-in, rotor incompatibility, crash damage and misuse are generally not covered.
  • Brake pad life depends on rider weight, terrain, weather, braking style, rotor condition and bike type.
  • Professional installation is recommended for correct pad fitment, caliper alignment, rotor inspection and safe brake performance.
Industry & Rider Feedback. A few Comparison Options

Rider feedback around Shimano L05A-RF pads is generally positive, especially from road and gravel riders who prefer quiet braking and smooth control.

Common positive rider comments include:

  • Quieter than many metallic brake pads
  • Smooth, predictable braking feel
  • Good stopping power for road and gravel use
  • Cooling fins help on longer descents
  • Genuine Shimano fit feels secure and reliable
  • Easy replacement during a brake service
  • Good match for Ultegra, 105 and GRX brakes
  • Improved wear life compared with older Shimano resin pads

Some riders note that resin pads can wear faster than metallic pads in muddy, gritty or very wet conditions. Riders doing aggressive gravel, heavy e-bike use or long alpine-style descents may consider metallic pads if their rotors and calipers allow it.

Why We Love It at Pedal Passion

We love Shimano L05A-RF pads because they deliver the braking feel most road and gravel riders actually want: quiet, smooth, controlled and confidence-inspiring.

Shimano L05A-RF Resin Pads

  • 5th-generation resin compound
  • Cooling fins for heat management
  • Quieter braking and smooth modulation
  • Best for road, gravel, endurance and general Shimano disc brake use

Shimano L03A Resin Pads

  • Previous-generation finned resin pad
  • Good braking feel
  • Lower wear resistance than L05A-RF
  • Often replaced by L05A-RF as the newer option

Shimano L02A Resin Pads

  • Older Shimano resin finned pad
  • Smooth and quiet braking
  • Significantly lower wear resistance than L05A-RF
  • Best replaced with L05A-RF where compatible

Shimano K05S-RX Resin Pads

  • Resin pad without cooling fins
  • Usually more affordable
  • Less heat management than L05A-RF
  • Good for flatter riding or lower-intensity braking

Shimano L04C Metallic Pads

  • Metallic compound with cooling fins
  • Better for heat, mud and long descents
  • Usually noisier than resin pads
  • Best for aggressive riding where rotor compatibility allows

SwissStop / Jagwire / Kool-Stop Aftermarket Pads

  • Available in multiple compounds
  • Can offer different bite, feel or durability
  • Compatibility must be checked carefully
  • Good for riders wanting specific braking feel tuning

Where Shimano L05A-RF Stands Out

  • Genuine Shimano fit and performance
  • Quieter resin braking feel
  • Cooling fins for reduced fade
  • Better wear life than previous Shimano resin L-series pads
  • Strong compatibility across road, gravel and selected Shimano 2-piston calipers
