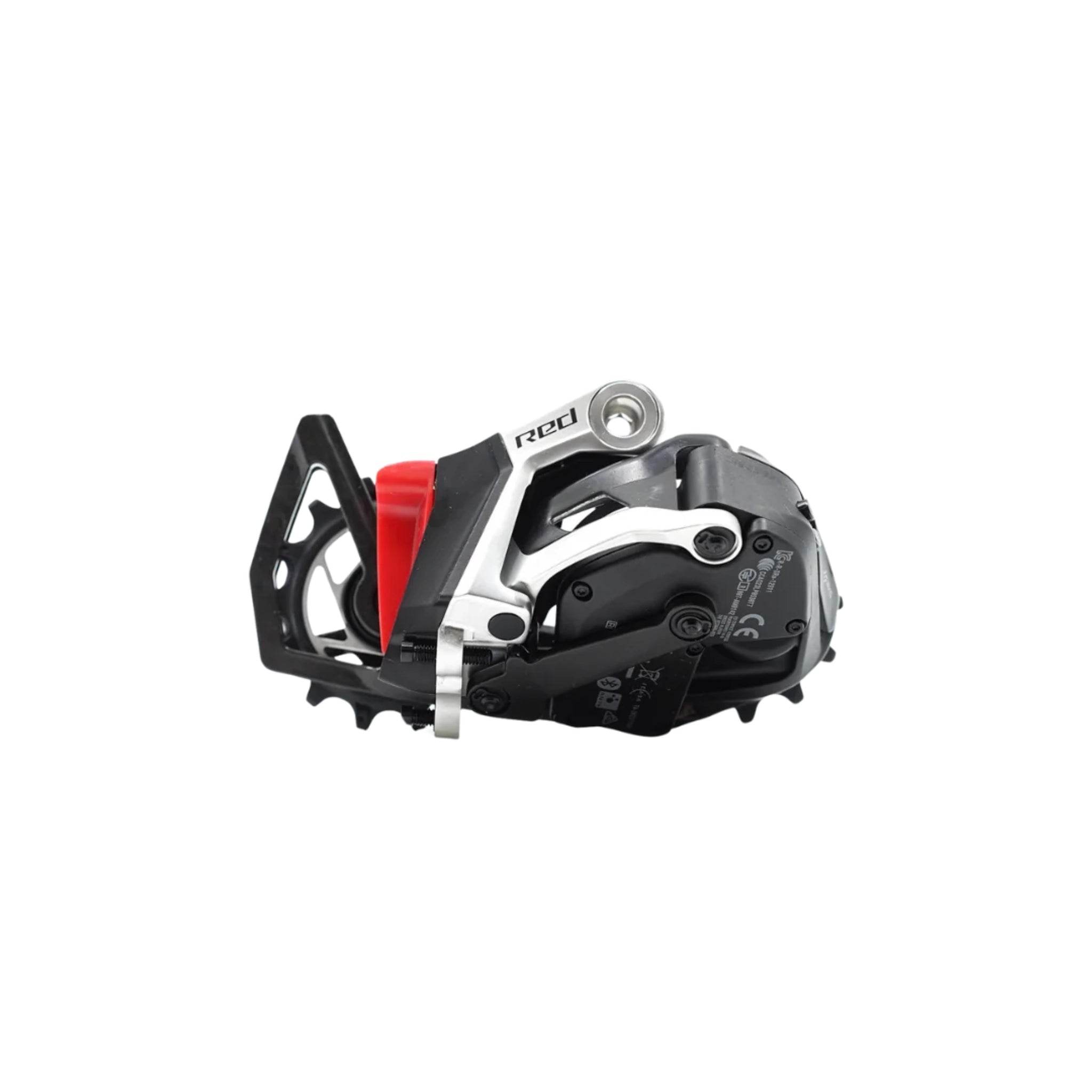

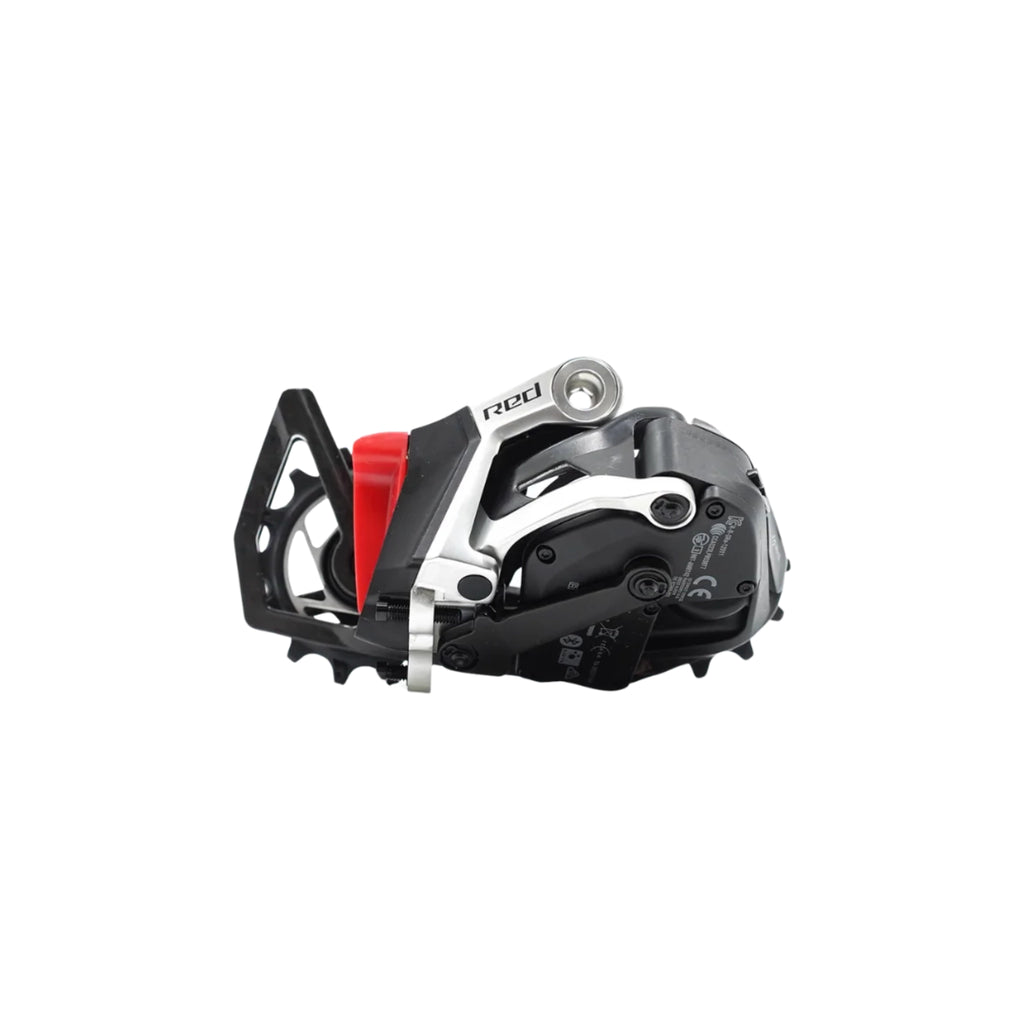

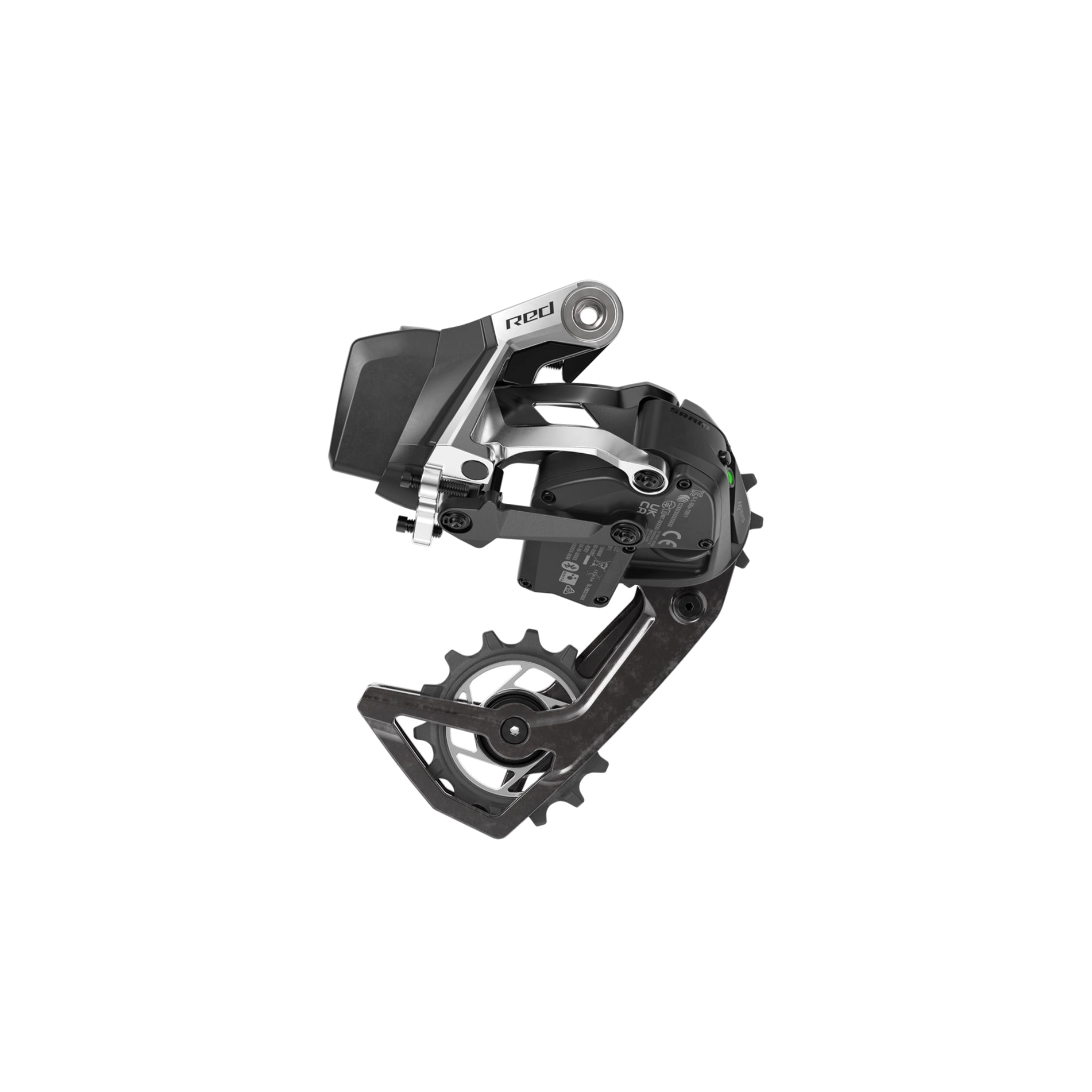

SRAM RED AXS E1 12-Speed Wireless Rear Derailleur

Name: SRAM RED AXS E1 12-Speed Wireless Rear Derailleur
Brand: SRAM
SKU: RD-RED-E-E1
Price: 1492.00 NZD
Availability: InStock

$1,492.00 NZD

Taxes included. Shipping calculated at checkout.

A lightweight flagship wireless upgrade that combines precise 12-speed shifting, quiet Orbit chain control and broad 10-28T to 10-36T cassette compatibility for fast Australian road riding, racing and light all-road use. Also, it looks amazing in real life!

Key SRAM RED AXS E1 Rear Derailleur Features

One derailleur supports compatible 1x and 2x SRAM AXS road drivetrains.
Compatible with SRAM 12-speed cassettes from 10-28T through to 10-36T.
Orbit fluid-damping technology controls chain movement across rough roads and maintained unsealed surfaces.
Larger X-SYNC pulley wheels with ceramic bearings reduce chain articulation and support efficient drivetrain operation.
Carbon cage construction helps make the derailleur 16 grams lighter than the previous generation.

(more product details...)

SKU: RD-RED-E-E1
Barcode: 710845899812

loading inventory data..

Earn 0 points on this purchase.

Learn more

The SRAM RED AXS E1 Rear Derailleur is the premium rear shifting unit for SRAM’s wireless 12-speed road ecosystem. It combines electronic shifting, a carbon cage, larger pulley wheels and an Orbit fluid damper in one derailleur suitable for several road gearing configurations.

Product type: Wireless electronic rear derailleur
Product name: SRAM RED AXS E1 Rear Derailleur
Manufacturer model ID: RD-RED-E-E1
Number of speeds: 12
Shift actuation: Electronic wireless
Communication protocol: SRAM AXS
Shifter compatibility: Compatible SRAM AXS controls
Drivetrain compatibility: 1x and 2x
Minimum supported cassette: 10-28T
Maximum supported cassette: 10-36T
Maximum rear cog: 36 teeth
Compatible chains: SRAM Road Flattop D1 and Road Flattop E1
Chain-management system: SRAM Orbit fluid damper
Pulley design: Larger X-SYNC pulley wheels
Pulley bearings: Ceramic
Cage material: Carbon
Rear derailleur mounting: Conventional road derailleur hanger
Mounting-thread specification: Standard M10 x 1 derailleur interface
Colour: Black with natural carbon and silver detailing
Claimed weight: 262 grams without battery
Independently measured examples: Approximately 262 to 263 grams without battery
Weight reduction: 16 grams compared with the preceding RED AXS generation
Battery type: Removable SRAM AXS rechargeable battery
Battery included: No
AXS app compatibility: Yes
Firmware updates: Supported
Electronic micro-adjustment: Supported
Mechanical shift cable required: No
Clutch lock or cage lock: No conventional mechanical lockout

RAM AXS allows the rear derailleur to communicate wirelessly with compatible shift-brake controls, Blips and other approved AXS controllers. Removing the mechanical shift cable eliminates cable stretch, contamination and housing friction, helping the system maintain consistent shift actuation between services.

The SRAM AXS app supports:

Wireless component pairing
Battery monitoring
Shift-control customisation
Sequential and compensating shift settings
Firmware updates
Electronic micro-adjustment
Maintenance reminders
Component status and diagnostic information

Electronic micro-adjustment enables the derailleur position to be fine-tuned without using a barrel adjuster. Mechanical alignment must still be correct before electronic adjustment is attempted.

Orbit fluid-damping technology

Orbit is a speed-sensitive hydraulic chain-management system. It uses silicone fluid to resist sudden, high-speed cage movement caused by bumps and chain bounce, while allowing the slower movement needed for normal gear changes and wheel removal.

Unlike a conventional friction clutch that continuously adds spring resistance, Orbit applies meaningful damping primarily when rapid cage movement occurs. This helps keep the chain controlled without making ordinary shifts unnecessarily heavy.

Larger X-SYNC pulley wheels

The E1 derailleur uses larger pulley wheels than the previous RED design. A larger pulley reduces the angle through which each chain link must articulate as it travels around the derailleur cage.

The potential benefits include:

Smoother chain movement
Reduced articulation through the pulley system
Lower drivetrain friction
Improved chain engagement
More efficient operation at high cadence
Lower pulley rotational speed for a given chain speed

The real-world efficiency difference is incremental, but it contributes to a refined drivetrain when combined with a clean Flattop chain, correctly lubricated cassette and accurately aligned derailleur hanger.

Ceramic pulley bearings

Ceramic pulley bearings reduce bearing friction and reinforce the premium specification of the SRAM RED AXS E1 Rear Derailleur. They are most effective when clean, correctly adjusted and protected from contamination.

Ceramic bearings are not maintenance-free. Australian road dust, wet-weather grit and overly aggressive pressure washing can shorten bearing life if contamination reaches the seals.

Carbon cage construction

The carbon derailleur cage lowers weight while maintaining the stiffness required to control the chain across a 12-speed cassette. Cage stiffness helps preserve the relationship between the upper pulley, chain and selected sprocket.

Carbon also contributes to the derailleur’s premium appearance, but it should be inspected carefully after a crash, transport incident or impact with roadside debris.

Electronic shifting motor

The derailleur’s motor responds to wireless shift commands and moves the chain across the cassette in controlled increments. Shift consistency depends on several factors beyond the motor itself:

Straight derailleur hanger
Correct chain length
Compatible cassette
Suitable Flattop chain
Accurate setup gap
Correct limit adjustment
Current firmware
Adequate battery charge
Clean drivetrain

A damaged hanger can cause poor shifting even when the derailleur’s electronic adjustment appears correct.

Interchangeable AXS battery

The derailleur uses SRAM’s removable AXS battery format, which is shared across numerous compatible SRAM derailleurs. Riders can remove the battery for charging or carry a spare for long-distance events and cycling holidays.

The battery is sold separately with the standard derailleur-only package.

Cassette range

Smallest compatible cassette: 10-28T
Largest compatible cassette: 10-36T
Maximum sprocket size: 36 teeth
Number of cassette sprockets: 12
Compatible configurations: 1x12 and 2x12

Common cassette applications

10-28T

This is the closest-ratio option for road racing, time trials and flatter terrain. Small jumps between gears make it easier to maintain a precise cadence, but the climbing range is limited compared with wider cassettes.

10-30T

A versatile race and fast group-ride cassette that adds a slightly easier climbing gear without greatly increasing the gaps between ratios.

10-33T

A strong all-round option for rolling terrain, gran fondos and riders wanting a more useful climbing gear while maintaining relatively close ratios through much of the cassette.

10-36T

The widest compatible option provides the most climbing assistance. It suits steep Australian roads, alpine events, endurance riding and cyclists who prefer a higher cadence on long ascents.

Drivetrain fitting requirements

Before installation, confirm that:

The bicycle has a compatible replaceable derailleur hanger.
The hanger is straight and securely attached.
The cassette is a compatible SRAM 12-speed road model between 10-28T and 10-36T.
The wheel has the correct freehub body for the chosen cassette.
The drivetrain uses a compatible SRAM Road Flattop chain.
The chain has been sized for the exact cassette and chainring combination.
The derailleur setup gap is adjusted to SRAM’s specification.
The high and low limit positions are correct.
The derailleur has adequate clearance throughout the cassette.
The frame and wheel are compatible with the planned drivetrain configuration.

Freehub compatibility

Most compatible SRAM road cassettes with a 10-tooth smallest sprocket require an XDR freehub body. A Shimano HG freehub is generally not suitable for these SRAM 10-tooth road cassettes without changing the freehub body or wheel configuration.

1x and 2x use

In a 2x drivetrain, the derailleur must manage changes in chain position caused by both the cassette and front chainrings. In a 1x system, it manages only the rear cassette but relies more heavily on the chainring tooth profile and Orbit damping for chain retention.

The same E1 derailleur can support either arrangement when the entire drivetrain remains within SRAM’s approved capacity and compatibility requirements.

Frame use

This is a conventional hanger-mounted road derailleur, not a hangerless Full Mount or UDH Transmission derailleur. It must not be installed directly onto a frame as though it were a SRAM mountain bike Transmission or 13-speed RED XPLR unit.

The SRAM RED AXS E1 Rear Derailleur is best suited to competitive road cyclists, triathletes, gran fondo riders and performance-focused AXS owners who want premium wireless shifting without being locked into one cassette size or drivetrain layout.

Bikerumor published a long-term SRAM RED AXS E1 review on 27 January 2025 after approximately eight months of riding. The publication considered the groupset refined, enjoyable to use and more adaptable because of its continued compatibility with SRAM’s established 12-speed AXS ecosystem. Although the redesigned brake controls were viewed as the most dramatic upgrade, the lighter rear derailleur and expanded 10-36T cassette support improved the complete system’s versatility.

Bikeboard published its long-term assessment on 7 January 2025, highlighting improved shifting performance, lower system weight, wider gearing and dependable wireless functionality. Its test placed the derailleur within a broader RED AXS update that improved the practical usability of SRAM’s flagship road drivetrain rather than focusing only on component weight.

Rider and community sentiment

Positive owner feedback regularly mentions smooth wireless operation, quieter running and dependable shift consistency. Riders replacing previous-generation SRAM AXS components have reported that the E1 derailleur feels refined and produces less drivetrain noise when correctly paired with a clean Flattop chain and compatible cassette.

Users also value the ability to run a 10-36T cassette without changing to another rear derailleur. This gives riders the option of installing closer ratios for racing and wider gears for climbing events while retaining the same derailleur and controls.

Routine cleaning

Clean the derailleur with mild bicycle cleaner, water and a soft brush.
Remove compacted dirt from the pulley wheels and cage.
Avoid spraying high-pressure water directly at the pivots, motor housing or battery contacts.
Dry the component after wet rides.
Keep excessive chain lubricant away from the pulley bearings.
Do not use harsh solvents around the seals or electronic housing.

Chain and cassette maintenance

Clean and lubricate the Flattop chain regularly.
Select chain lubricant according to dry, wet or mixed riding conditions.
Remove excess lubricant to reduce dust accumulation.
Check chain wear with an appropriate compatible gauge.
Replace a worn chain before it accelerates cassette and pulley wear.
Inspect the cassette teeth for hooking or damage.
Confirm the chain remains correctly sized if cassette or chainring sizes change.

Pulley-wheel care

Inspect the pulley teeth for unusual wear.
Check for excessive lateral movement.
Remove wound grass, fibres or debris from behind the pulley wheels.
Follow SRAM’s pulley orientation instructions during replacement.
Do not interchange the upper and lower pulleys unless the service documentation specifically permits it.
Have worn ceramic pulley bearings replaced by a qualified bicycle mechanic.

Battery care

Charge the battery with an approved SRAM AXS charger.
Check battery status before long rides and events.
Carry a charged spare on remote or multi-day rides.
Keep battery contacts clean and dry.
Use the protective cover when the battery is removed.
Avoid storing the battery completely discharged.
Replace a cracked, swollen or damaged battery.
Check that the battery latch closes securely before riding.

Electronic maintenance

Pair the derailleur with the SRAM AXS app.
Install firmware updates when recommended.
Recheck control assignments after replacing AXS components.
Use electronic micro-adjustment only after checking hanger alignment.
Investigate repeated shift errors rather than continuing to compensate electronically.

Crash and hanger inspection

A bent derailleur hanger is one of the most common causes of poor shifting. After a crash, wheel impact or transport incident, inspect:
