Electronic Groupset Service

Pedal Passion, Brisbane's Premier Destination for Custom Built Bikes, Electronic Groupset Diagnostics & Maintenance

Bike EDG Service

Modern electronic groupsets offer exceptional precision and performance, but when something isn’t working as it should, proper diagnostics are essential.
Our Electronic Groupset Diagnostic Service provides a full system assessment using the right software and tools to identify communication faults, firmware issues, battery problems or wiring damage.

Step-by-Step Component Check

We ensure every component from shifters to derailleurs to junction boxes is functioning exactly as intended.

Shifting Adjustments

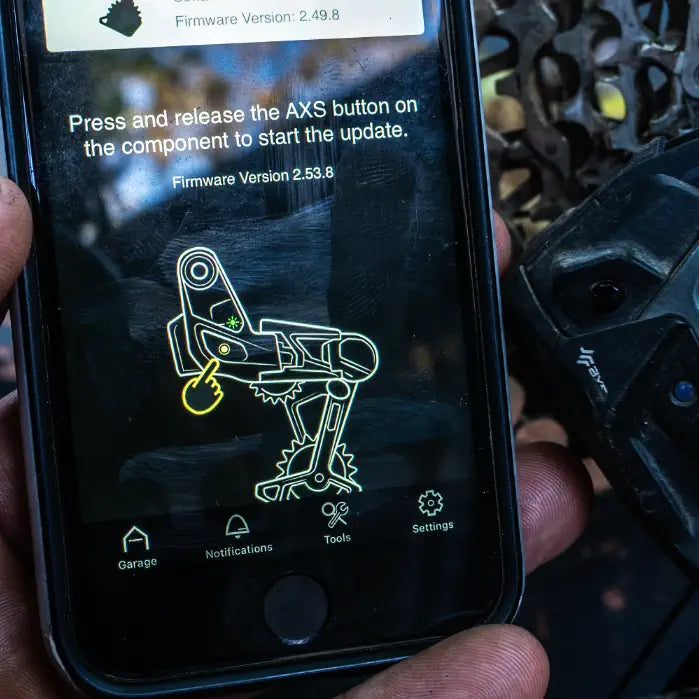

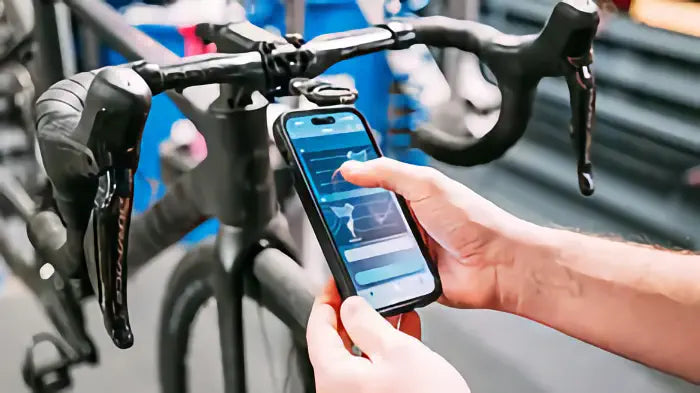

Once the diagnostic process is complete, we carry out the necessary adjustments, firmware updates to restore smooth, reliable shifting.

Maintaining Peak Performance

Whether you’re experiencing inconsistent performance, battery drain, error codes, or unexplained behaviour, our service ensures your electronic drivetrain operates at peak efficiency on every ride.
Riders Ask
DI2 Emergency Riding Tips

If Di2 Completely Fails:

  • Note which gear you're stuck in
  • Ride in gear appropriate for terrain
  • Can manually move chain if desperate (not recommended)
  • Get to bike shop or safe location

Partial Failure (e.g., front derailleur fails):

  • Rear shifting usually still works
  • Ride in one chainring if possible
  • Cross-chain carefully if needed to access gear range
  • Plan route to avoid terrain requiring failed component

For most Di2 issues, start with the basics: battery, connections, and system reset. Many problems are simple and easily resolved. If basic troubleshooting doesn't work, Pedal Passion diagnostic service is generally more cost-effective than replacing components without proper diagnosis.
How do I troubleshoot my Shimano Di2 system when it's not shifting properly?

Shimano Di2 electronic shifting systems are generally reliable, but when issues arise, troubleshooting can seem daunting compared to mechanical systems. However, most Di2 problems follow predictable patterns and can be resolved with systematic diagnosis. Understanding the common issues and troubleshooting procedures helps you get back on the road quickly, otherwise come see us at Pedal Passion.

Common Di2 Shifting Problems:

  • No Response/Dead System:
  • Nothing happens when shifters are pressed
  • Junction box shows no lights or error codes
  • Complete system unresponsiveness

Slow or Hesitant Shifting:

  • Delayed response to shift commands
  • Shifting feels sluggish compared to normal
  • Inconsistent shift times

Incomplete Shifting:

  • Chain doesn't move to selected gear
  • Shift starts but doesn't complete
  • Chain drops or falls between gears

Intermittent Issues:

  • Shifting works sometimes but not others
  • Erratic behaviour that's hard to predict
  • Problems that come and go
