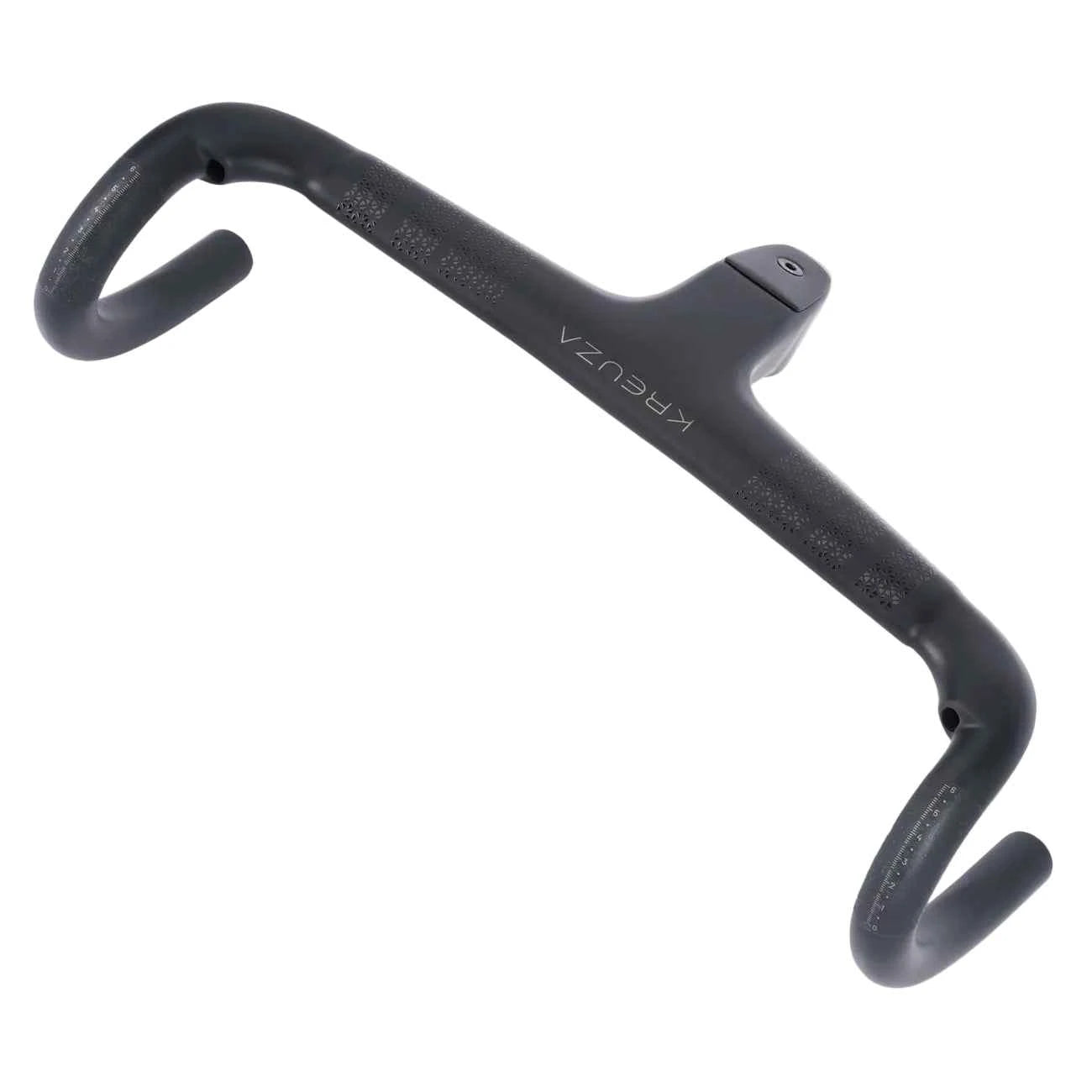

A black road bicycle handlebar with a flat profile and subtle white branding text, displayed on a light gray background.

KREUZA Apex One-Piece Carbon Handlebar

36 / 80
$499.99 AUD
Skip to product information
A black road bicycle handlebar with a flat profile and subtle white branding text, displayed on a light gray background.
  • A black road bicycle handlebar with a flat profile and subtle white branding text, displayed on a light gray background.
  • Kreuza a distinctive design on a white background

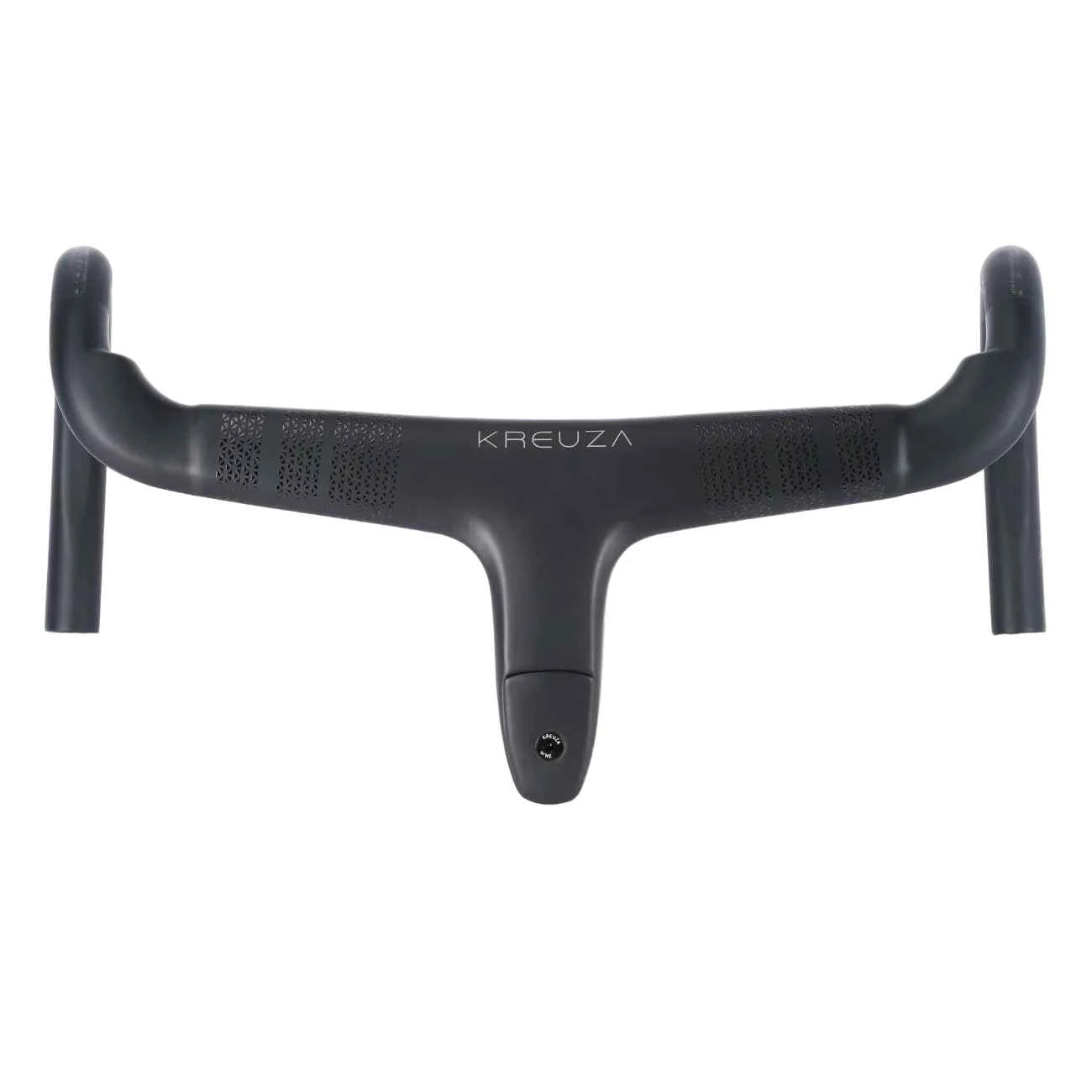

  • A black drop handlebar with the brand name 'KREUZA' printed in white on the center, shown against a light gray background.
  • KREUZA Apex One-Piece Carbon Handlebar
  • A black road bicycle handlebar with a flat profile and subtle white branding text, displayed on a light gray background.
  • Kreuza a distinctive design on a white background
  • A black drop handlebar with the brand name 'KREUZA' printed in white on the center, shown against a light gray background.
  • KREUZA Apex One-Piece Carbon Handlebar
KREUZA Apex One-Piece Carbon Handlebar

KREUZA Apex One-Piece Carbon Handlebar

$499.99 AUD
Taxes included. Shipping calculated at checkout.

The KREUZA Apex One-Piece Handlebar is a lightweight integrated carbon cockpit designed to improve aerodynamics, front-end stiffness, rider comfort and cockpit aesthetics, making it a high-value upgrade for performance road bikes, custom builds and fast Australian road riding.

KREUZA Apex Features

  • One-piece integrated carbon handlebar and stem design for a clean race-bike cockpit
  • Lightweight T800 carbon construction with a claimed 305g weight in a 380mm x 110mm painted configuration
  • Aero-profiled top section designed to reduce drag compared with traditional round bars
  • Multiple width and stem length combinations for precise bike fitting
  • Compatible with integrated headset adapter systems for a neater custom build finish

(more product details...)
SKU: ONE-PIECE-36-80
Barcode: 65736875
loading inventory data..

Earn 0 points on this purchase.

Learn more
Key Features & Technical Specifications

Technical Specifications

  • Product Name: KREUZA Apex One-Piece Handlebar
  • Product Type: Integrated carbon road bike handlebar and stem cockpit
  • Material: TORAYCA T800 carbon fibre
  • Finish: UD matte carbon
  • Construction: One-piece carbon integrated cockpit
  • Claimed Weight: Approximately 305g ±10g for 380mm x 110mm painted version, excluding accessories
  • Stem Angle: -6 degrees
  • Steerer Diameter: 1 1/8 inch, 28.6mm
  • Stack: 35.5mm
  • Reach: 80mm
  • Drop: 128mm
  • Forward Angle: 6 degrees
  • Drop Flare: 6.6 degrees
  • Hood-to-Hood Width Options: 360mm, 380mm, 400mm
  • Drop-to-Drop Width Options: 390mm, 410mm, 430mm
  • Stem Length Options: 80mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm
  • Available Fit Combinations: Multiple width and stem length combinations
  • Cable Routing: Designed for clean cable and brake hose routing on compatible frames
  • Computer Mount Compatibility: Compatible mount required depending on supplied accessory setup
  • Compatible Bike Type: Road bikes, aero road bikes, endurance road bikes and premium custom road bike builds
  • Recommended Use: Road racing, fast bunch rides, endurance riding, climbing, Gran Fondo events and custom performance builds
  • Rider Weight Limit: Not clearly specified by manufacturer
  • Included Accessories: May vary depending on supplier and frame adapter selection

Compatibility Notes

  • Designed for modern road bikes using a standard 1 1/8 inch steerer.
  • Best paired with the correct KREUZA Apex headset adapter for your frame.
  • Headset adapter fitment is frame-specific and should be checked before purchase.
  • Professional installation is strongly recommended, especially for internally routed hydraulic disc brake systems.
Notable Tech, Materials & Construction

T800 Carbon Fibre Construction

The KREUZA Apex uses T800 carbon fibre to provide a strong balance of low weight, stiffness and strength. This gives the cockpit a responsive front-end feel while helping reduce overall bike weight compared with many alloy or heavier integrated cockpit systems.

One-Piece Integrated Design

By combining the handlebar and stem into one carbon structure, the Apex reduces separate clamp interfaces and creates a cleaner, more direct cockpit. This can improve front-end stiffness, steering precision and visual integration.

Aero-Profiled Top Section

The bar uses an aerodynamic top profile with a slim airfoil-style shape. This is designed to reduce drag around the cockpit area, which is especially useful during fast bunch rides, solo efforts, criteriums and road racing.

CFD-Optimised Shape

The Apex has been positioned as an aero-focused cockpit shaped using computational fluid dynamics analysis. The design is claimed to save watts compared with a traditional round handlebar and separate stem setup, making it appealing for riders chasing marginal gains.

Ergonomic Road Fit

The 80mm reach and 128mm drop create a modern performance road position without being excessively aggressive. The flared drops provide extra control when descending, sprinting or cornering at speed.

Internal Routing Compatibility

The integrated design supports clean cockpit routing when used with compatible frames and correct headset adapters. This is ideal for modern Shimano Di2, SRAM AXS and hydraulic road disc brake builds.

Wide Fit Range

With narrow hood widths and longer drop widths, the Apex suits modern road fit trends where riders often prefer a narrower upper position for aerodynamics while retaining stability in the drops.
Size, Fit, Geometry & Measurements

Handlebar Width Options

360mm Hood Width / 390mm Drop Width

  • Best for smaller riders
  • Suits aerodynamic road positions
  • Popular for riders wanting a narrow, fast cockpit

380mm Hood Width / 410mm Drop Width

  • Versatile performance fit
  • Good option for many road riders
  • Strong balance of comfort, control and aerodynamics

400mm Hood Width / 430mm Drop Width

  • Best for broader riders
  • Offers more stability and leverage
  • Good for endurance riders and powerful sprinters

Stem Length Options

  • 80mm
  • 90mm
  • 100mm
  • 110mm
  • 120mm
  • 130mm
  • 140mm

Geometry

  • Reach: 80mm
  • Drop: 128mm
  • Stack: 35.5mm
  • Stem Angle: -6 degrees
  • Forward Angle: 6 degrees
  • Drop Flare: 6.6 degrees
  • Steerer Diameter: 28.6mm

Fit Recommendation

A professional bike fit is strongly recommended before choosing an integrated cockpit because stem length and handlebar width cannot be adjusted separately after purchase. Riders should confirm shoulder width, reach requirements, frame stack and reach, spacer height and preferred hand position before selecting a size.
Who it is best suited for and where it is best suited

The KREUZA Apex One-Piece Handlebar is best suited to riders looking for a cleaner, lighter and more aerodynamic front end on a modern road bike.

Best Suited For

  • Road racers
  • Competitive club cyclists
  • Fast bunch ride riders
  • Aero road bike owners
  • Riders building a custom carbon road bike
Industry Feedback, Rider Reviews and our own opinion

Major independent long-form reviews of the KREUZA Apex One-Piece Handlebar are still limited, which is common for newer cockpit components and specialist custom-build products. However, technical product coverage from cycling retailers and component-focused product listings has been positive around the bar’s low claimed weight, T800 carbon construction, aero shaping, integrated stem design and wide range of size combinations.

Why We Love It at Pedal Passion

We love the KREUZA Apex because it gives a custom road bike the finished look and performance feel riders expect from a premium build. It is lightweight, clean, aerodynamic and modern without being overly complicated when fitted correctly.
Product Care & Warranty Info

Product Care

  • Install using a calibrated torque wrench.
  • Follow all manufacturer torque specifications.
  • Use carbon assembly paste where recommended.
  • Confirm headset adapter compatibility before installation.
  • Re-check headset preload after the first few rides.
  • Inspect the bar after crashes, drops or heavy impacts.
  • Avoid clamping the carbon bar directly in a workstand.
  • Keep internal hoses and wires free from sharp bends or compression.
  • Clean with mild bike-safe cleaner and water.
  • Avoid harsh solvents, degreasers or abrasive cleaning pads.
  • Periodically inspect bolt areas, steerer interface and control mounting zones.

Warranty Information

  • Warranty coverage is subject to KREUZA manufacturer or retailer terms and conditions.
  • Warranty generally applies to defects in materials and workmanship.
  • Crash damage, incorrect installation, over-torquing, incompatible adapters, modification and normal wear are generally not covered.
  • Professional installation is strongly recommended for safe fitment and warranty protection.
  • Integrated cockpit safety depends on correct steerer setup, spacer configuration, brake hose routing and torque settings.
