Shimano Dura-Ace FC-R9200 Crankset – 12-Speed

$599.99 AUD

Taxes included. Shipping calculated at checkout.

The Shimano Dura-Ace FC-R9200 crankset is a premium 2x12-speed road crankset engineered for efficient power transfer, low rotating weight, crisp front shifting and elite race performance, making it a high-value upgrade for serious riders tackling Brisbane climbs, fast bunch rides and Australian road cycling conditions.

FC-R9200 Features

Flagship Shimano Dura-Ace 12-speed road crankset for premium race-bike builds
Hollowtech II crank arm construction balances stiffness, strength and low weight
Hollowglide chainrings improve power transfer and front shifting precision
Available in 46/36T, 50/34T, 52/36T and 54/40T gearing options
Compatible with Shimano HG 12-speed road chains and Dura-Ace R9200 drivetrains

(more details...)

Crank Arm Length (mm) 160 165 170 172.5 175

Chainring Combination 50/34T 52/36T 54/40T

Technical Specifications

Product Name: Shimano Dura-Ace FC-R9200 Crankset
Model: FC-R9200
Series: Shimano Dura-Ace R9200
Drivetrain Type: 2x12-speed road
Rear Speeds: 12-speed
Compatible Chain: Shimano HG 12-speed
Crank Arm Technology: Hollowtech II
Chainring Technology: Hollowglide
Chain Line: 44.5mm
PCD / BCD: 110mm
Spider / Gear Arms: 4-arm asymmetric design
Q-Factor: 148mm
Chainring Combinations: 46/36T, 50/34T, 52/36T, 54/40T
Average Weight:46/36T: approximately 693g50/34T: approximately 685g52/36T: approximately 692g54/40T: approximately 714g
Crank Fixing Screw: Included
Colour: Shimano Dura-Ace series finish
Bottom Bracket Compatibility: Shimano Hollowtech II 24mm spindle bottom bracket systems
Compatible Bike Type: Road bikes, aero road bikes, endurance road bikes and race bikes
Recommended Use: Road racing, fast bunch rides, climbing, endurance cycling, Gran Fondo events and premium custom road bike builds
Power Meter: Not included; for integrated power meter option see Shimano FC-R9200-P

Compatibility Notes

Designed for Shimano 12-speed road drivetrains.
Best matched with Shimano Dura-Ace R9200 components.
Also compatible with suitable Shimano Ultegra R8100 and 105 R7100 12-speed road drivetrains.
Requires compatible Shimano Hollowtech II bottom bracket.
For best shifting performance, use with a Shimano 12-speed chain, Shimano 12-speed front derailleur and compatible Shimano 12-speed cassette.

Hollowtech II Crank Arm Design

Shimano Hollowtech II construction uses hollow forged crank arms to reduce weight while maintaining high stiffness. This helps transfer rider effort efficiently into the drivetrain, improving acceleration, climbing response and sprinting feel.

Integrated 24mm Spindle System

The Hollowtech II design integrates the bottom bracket axle with the right crank arm. This improves stiffness, reduces unnecessary weight and provides excellent bearing support through Shimano’s proven outboard bottom bracket system.

Hollowglide Chainring Technology

The outer chainring uses Shimano Hollowglide construction, which creates a hollow, high-rigidity chainring structure. This improves front shifting under load and helps maintain efficient power transfer during hard accelerations.

Asymmetric 4-Arm Spider

The 4-arm design is shaped around real-world pedalling forces, placing material where it is needed most for stiffness while removing unnecessary weight.

12-Speed Optimised Chainring Profiles

The chainrings are designed specifically for Shimano 12-speed road drivetrains, improving chain pickup, shift timing and front derailleur performance.

Available Chainring Options

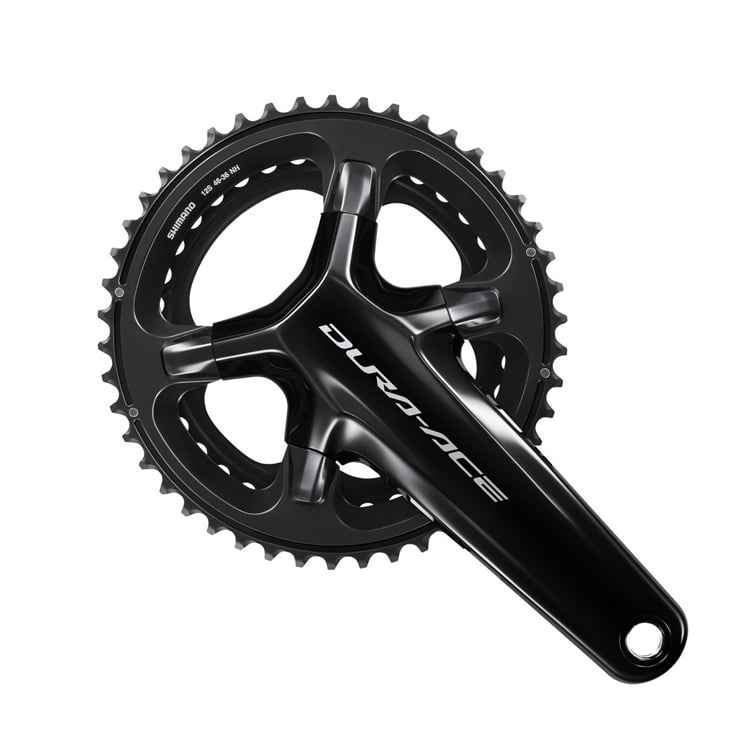

46/36T

Best for junior racing, cyclocross-style gearing or riders wanting tighter front gear ratios.

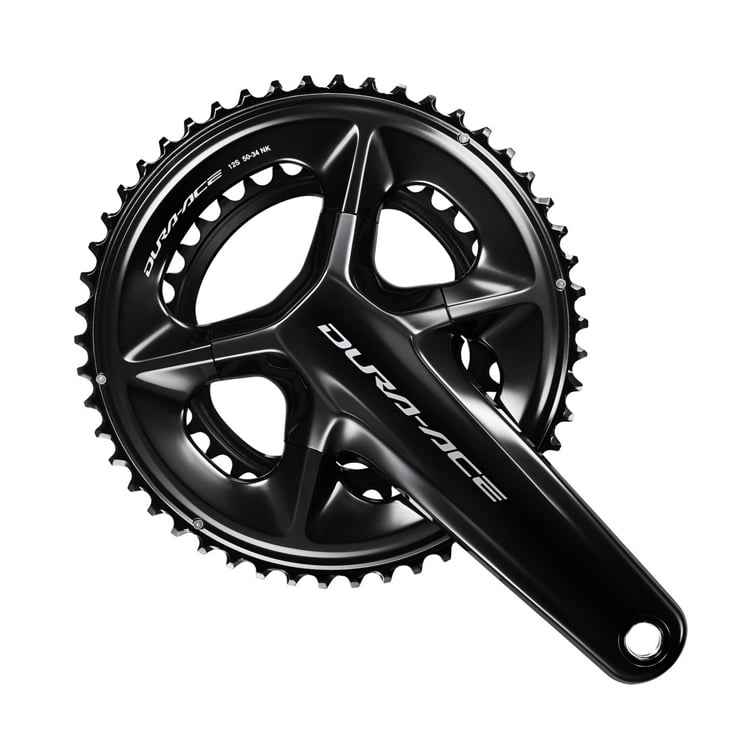

50/34T

Best all-round option for climbing, endurance riding and mixed terrain.
Ideal for many Brisbane and Queensland riders who regularly ride hills.

52/36T

Excellent semi-compact option for fast road riding, racing and riders wanting more top-end speed while keeping practical climbing gears.

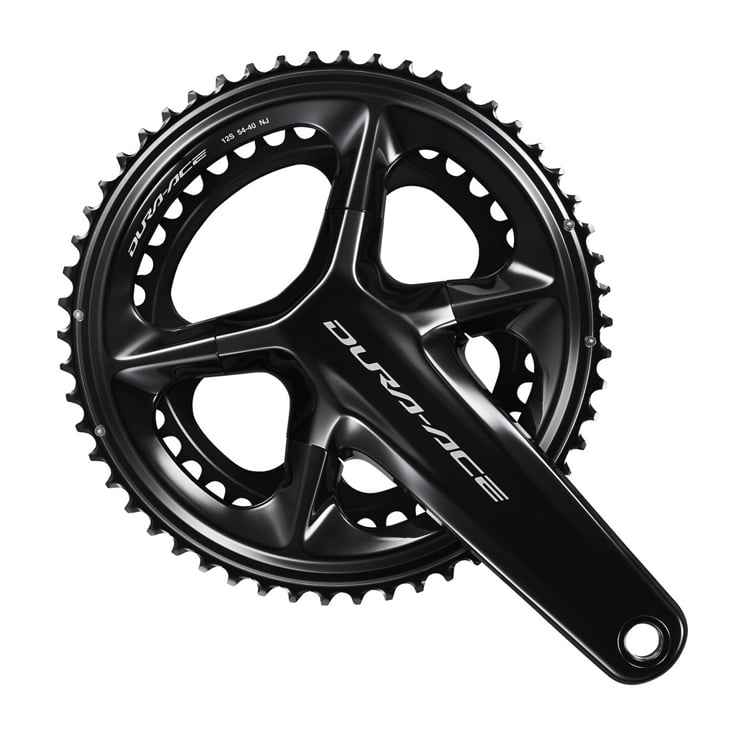

54/40T

Race-focused option for strong riders, criteriums, high-speed bunch rides and flatter race courses.

Fit Notes

Q-Factor: 148mm
Chain Line: 44.5mm
BCD: 110mm
Bottom Bracket Standard: Shimano Hollowtech II 24mm spindle

Fit Recommendation

Crank length and gearing should be selected based on rider height, bike fit, terrain, cadence preference and riding goals.

Best Suited For

Road racers
Competitive club riders
Performance road cyclists
Shimano Dura-Ace and Ultegra 12-speed riders
Riders upgrading from alloy or lower-tier cranksets
Climbers and endurance cyclists
Riders building a premium custom road bike
Cyclists wanting sharper front shifting and improved drivetrain feel

BikeRadar, August 2021, praised the Dura-Ace R9200 groupset for its smooth and precise shifting performance, with particular attention given to Shimano’s improved 12-speed drivetrain integration.

Cycling Weekly, August 2021, highlighted the Dura-Ace R9200 groupset as a major update focused on faster shifting, improved drivetrain efficiency and modern road racing performance.

Hands On Bike, November 2022 and September 2023, compared the FC-R9200 crankset against previous Dura-Ace and Ultegra models, noting Shimano’s updated construction, premium finish and consistent 12-speed drivetrain compatibility.

The overall professional feedback positions the FC-R9200 as a highly refined crankset that prioritises stiffness, drivetrain efficiency and front shifting quality rather than chasing the absolute lowest possible weight.

Rider Feedback & Community Sentiment

Rider feedback is generally very positive, especially from cyclists already using Shimano 12-speed Di2 drivetrains.

Common positive comments include:

Excellent front shifting quality
Very stiff pedalling platform
Premium Dura-Ace finish
Smooth drivetrain feel
Reliable Shimano compatibility
Strong power transfer during sprints and climbing
Good chainring options for different riding styles
Clean appearance on high-end road bikes

Many riders appreciate that the FC-R9200 keeps Shimano’s familiar Hollowtech II bottom bracket standard, making installation and servicing straightforward compared with some proprietary crank systems.

Why We Love It at Pedal Passion

We love the Shimano Dura-Ace FC-R9200 because it delivers exactly what serious road cyclists expect from a premium crankset: stiffness, smooth front shifting, low weight and long-term Shimano reliability.
