Bottom Bracket Service

Every bottom bracket (BB) servicing aimed to deliver three key outcomes: Precision, Efficiency, and Longevity. Because the BB plays a major role in how smoothly your power transfers to the bike, keeping it in top condition means sharper responsiveness, no annoying creaks, and no wasted watts

With more than a dozen BB standards in modern bicycles, each one requires a different servicing approach. Our extensive expertise across all BB types enables us to provide the most precise and appropriate care for every system

Need advice before booking?

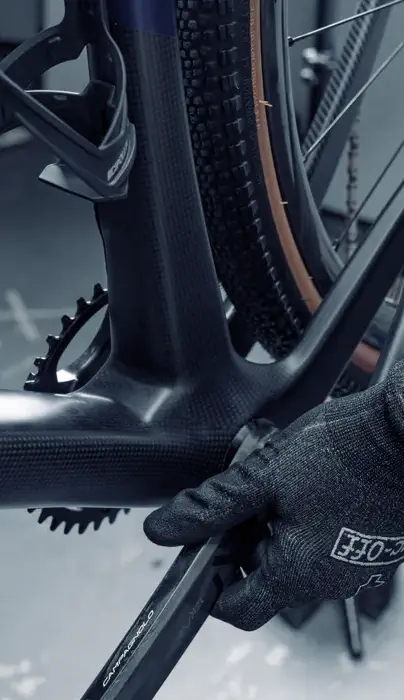

Standard Procedure

The following outlines our standard procedure for every BB service:

Deep cleaning & drying
Bearing inspection
Crank spindle assessment
Bearing’s seal inspection
Cup inspection (where applicable)
Preload and chainline optimisation
Selection of the ideal grease to maximise bearing performance*
Bottom Bracket Shell Assessment

*Grease application will be carried out in accordance with the product manual to ensure the correct type and precise amount of grease are applied for optimal performance and longevity. Please consult us during service planning for more options.

Performance and Durability

BB performance and durability rely not only on the bearings themselves but also on surrounding factors such as frame alignment and shell tolerances. That’s why our BB service goes beyond simply inspecting the bearings. Using precision tolerance‑measuring instruments, we assess the frame to determine whether the BB interface meets optimal specifications for maximum performance.

If additional work is required, we’ll notify you and recommend our Frame Prep service to properly correct the BB shell—whether it needs facing, chasing or reaming. In some cases, frames with poor BB shell alignment may benefit from specific bottom bracket brands to improve alignment and reduce pedalling resistance. Reach out to us and we will walk you through the process of choosing the right BB for your beloved bike.

Component Sourcing

This is where experience and judgement matter. Before a single spoke is touched, we evaluate the goal, riding style, terrain, and expectations. Only then do we select the right components and map out the build strategy that will best serve that purpose.

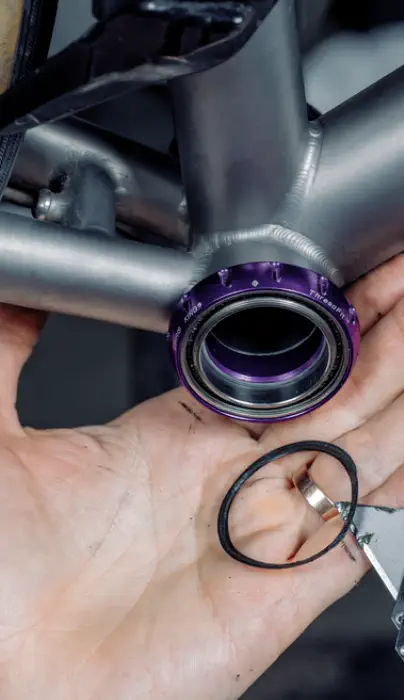

Bearing & Cup Removal and Installation

Bearing/Cup removal

Our advanced BB tools allow us to remove virtually any bearing or cup—regardless of standard or brand—without the use of a hammer. This method preserves frame integrity and maintains precise tolerances, so you never have to worry about damage during the removal process.

Bearing/Cup Installation

Bearing installation is the most critical step in maximising bearing lifespan, which is why we carry it out with absolute precision. Choosing the correct bearing is only one part of ensuring long‑term BB durability. Before installation, all contaminants and corrosion must be completely removed from the BB shell and cups, and every internal surface must be fully dry to prevent premature metal degradation such as galvanic corrosion. This level of preparation can be time‑consuming especially when working with older aluminium or titanium BB shells.

FAQ’s

What Clients Ask Most

Coastal riding presents some of the most challenging conditions for bottom bracket maintenance, with the combination of salt air, high humidity, and often sandy conditions creating a perfect storm for component degradation. Riders in Australian coastal cities—Sydney, Melbourne, Brisbane, Perth, Adelaide, and the Gold Coast—face accelerated wear and corrosion that demands more frequent attention than inland riders.

The harsh reality of coastal riding is that salt particles are pervasive and relentless. Even on dry, sunny days, microscopic salt particles from ocean spray settle on your bike. When combined with the high humidity typical of coastal regions, these particles create a corrosive electrolyte solution that attacks metal surfaces. The bottom bracket, being low on the bike and close to road spray, is particularly vulnerable.

For coastal riders, professional bottom bracket service every 3-4 months is recommended for regular riders, or every 1,500-2,000 kilometres. This is significantly more frequent than the 6-12 month or 3,000-5,000km intervals typical for inland riders. High-mileage coastal riders, or those who ride daily in challenging conditions, might need service even more frequently—every 2-3 months or 1,000-1,500km.

Several factors influence the optimal service interval for coastal riders:

Proximity to Ocean
Riding Frequency
Weather Patterns
Washing Habits

Signs that your bottom bracket needs immediate attention include:

Creaking or clicking sounds that correlate with pedalling
Roughness or grinding when spinning cranks
Visible corrosion or rust on bottom bracket components
Play or movement in the crank arms
Difficulty pedalling or unusual resistance

The service process for coastal bottom brackets is more comprehensive than for inland bikes. In addition to standard cleaning and regreasing, coastal service should include:

Thorough cleaning to remove all salt deposits
Inspection for corrosion damage on all components
Replacement of any corroded parts rather than attempting to salvage
Application of marine-grade grease with superior corrosion resistance
Possible application of anti-corrosion treatments to threads and interfaces
Consideration of upgraded components with better corrosion resistance

Bottom bracket type significantly affects maintenance requirements and replacement intervals:

Threaded bottom brackets (BSA, Italian, etc.) are generally more durable in coastal conditions because the threads provide a better seal against contaminants. However, the threads themselves can corrode, making future removal difficult. Regular service and application of anti-seize to threads is crucial.

Press-fit bottom brackets (BB86, BB92, PF30, etc.) are more vulnerable in coastal conditions because the press-fit interface doesn't seal as effectively. Salt and moisture can work between the bottom bracket cup and frame, causing corrosion of both. These require more frequent service and often more frequent replacement.

T47 bottom brackets offer a good compromise for coastal riders, combining the sealing benefits of threaded systems with the modern frame compatibility of press-fit. If you're building a bike for coastal riding, T47 is worth considering.

The cost of a bottom bracket service pales compared to the cost of neglected maintenance—corroded frames, damaged crank spindles, or complete bearing failures that can cost hundreds or even thousands to repair.

For coastal riders, establishing a maintenance schedule is essential. Mark service dates on your calendar and track mileage between services. Many coastal riders find it helpful to set recurring reminders every 3 months, ensuring service doesn't get overlooked in busy riding schedules.

The bottom bracket is the heart of your bike's drivetrain, and in coastal conditions, it's under constant assault from salt and corrosion. Regular, frequent service is non-negotiable for protecting your investment and maintaining optimal performance. The inconvenience and cost of frequent service is far less than the cost and frustration of premature component failure.

Bottom bracket preload and chainline represent two of the most misunderstood yet critical aspects of drivetrain setup. When these are optimised, shifting improves, efficiency increases, and component longevity extends. When neglected, the opposite occurs—poor shifting, increased wear, and reduced performance. Understanding how to properly set preload and optimise chainline for different crank systems is essential for serious cyclists.

Preload refers to the tension applied to the crank spindle through the bottom bracket bearings. Proper preload eliminates axial play (side-to-side movement of the crank) while minimising bearing drag. Too little preload allows play, which causes creaking, poor shifting, and accelerated bearing wear. Too much preload creates excessive bearing drag, reducing efficiency and potentially causing premature bearing failure.

Chainline refers to the alignment of the chainrings relative to the cassette. Optimal chainline places the chainring(s) directly in line with the corresponding cassette cog(s), minimising chain angle and improving shifting and efficiency. Poor chainline forces the chain to run at an angle, increasing wear, reducing efficiency, and causing shifting problems.

Different crank systems have different requirements for preload and chainline:

Shimano Hollowtech II Cranks:

Use the plastic preload cap on the non-drive side to set preload
Tighten until slight resistance is felt, then back off slightly
The left crank pinch bolts actually secure the crank, not the preload cap
Chainline is typically fixed by the spindle length and bottom bracket shell width
Standard road chainline is 43.5mm, mountain bike is 47.5-50mm

SRAM DUB Cranks:

Similar preload adjustment to Shimano but with different cap design
DUB spindles are narrower, requiring specific DUB bottom brackets
Chainline varies by crank type—road, mountain, and 1x specific cranks have different chainlines
SRAM provides specific chainline measurements for each crank model

Campagnolo Ultra-Torque Cranks:

Unique system with Hirth joint (splined connection) between crank halves
Preload is set by the central bolt that joins the crank halves
Critical to tighten to proper torque specification—too loose allows play, too tight can damage the Hirth joint
Chainline is typically fixed but can be adjusted with different bottom bracket spindle lengths

FSA MegaExo/BB386EVO Cranks:

External bearing system similar to Shimano
Preload cap on non-drive side sets initial tension
Chainline can be adjusted by using different bottom bracket cups with varying offsets
Particularly relevant for bikes with non-standard bottom bracket shell widths

For modern 1x drivetrains, chainline optimisation is particularly critical. With only one chainring, the chainline must position the chainring ideally relative to the entire cassette range. Most manufacturers provide specific chainline recommendations for 1x systems—typically 47-52mm depending on frame design and intended use.

Australian riding conditions influence chainline considerations. Riders who spend most time in the largest cassette cogs (climbers, those in mountainous regions) might benefit from slightly inward chainline optimisation. Riders who spend more time in smaller cogs (flatlanders, criterium racers) might prefer outward optimization. However, deviating too far from manufacturer recommendations can cause more problems than it solves.

Electronic shifting systems (Di2, AXS, EPS) are particularly sensitive to chainline issues. While these systems can compensate for minor chainline variations through trim functions, optimal chainline still provides the best performance. In fact, electronic systems might mask chainline issues longer than mechanical systems, making regular verification even more important.

For most riders, following manufacturer recommendations for preload and chainline provides the best results. Deviations should only be made for specific reasons (frame compatibility issues, unusual riding conditions, or specific performance goals) and should be done with understanding of the trade-offs involved.
