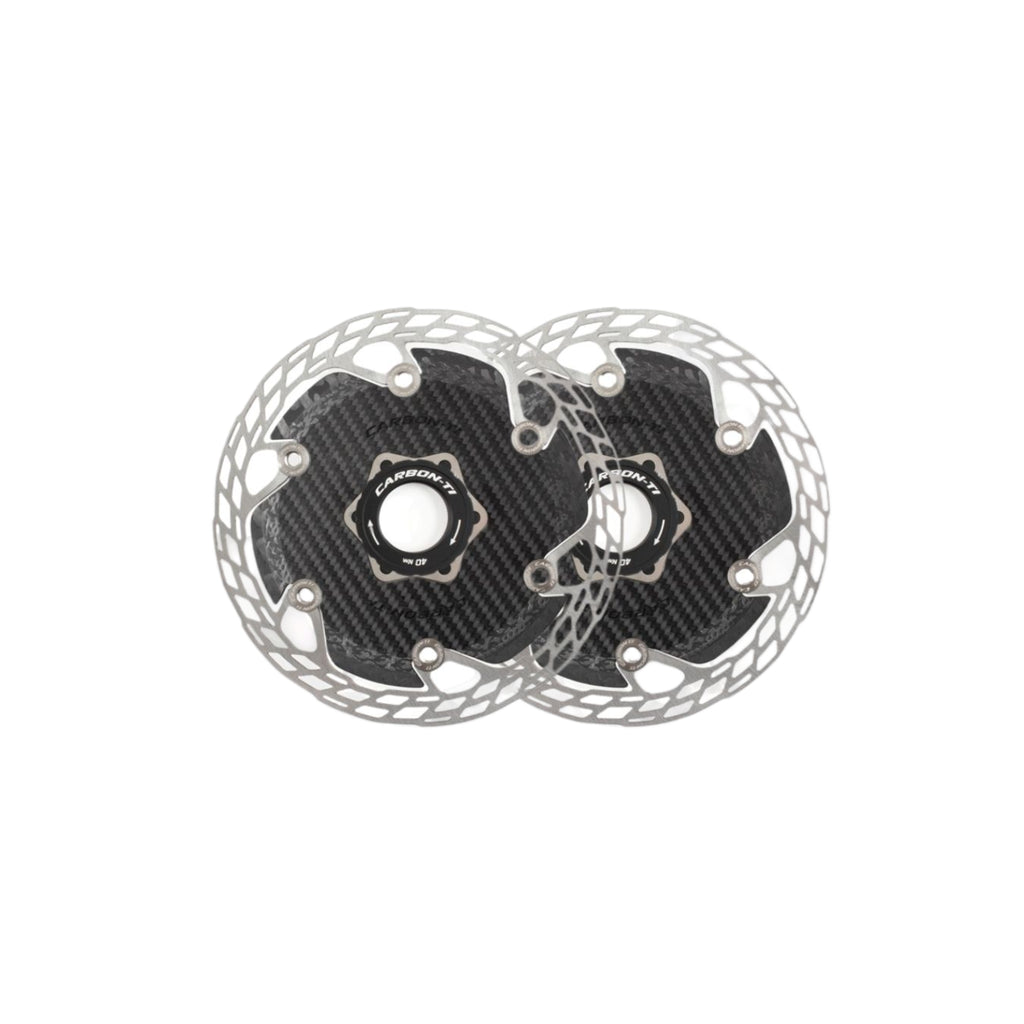

Carbon-Ti X-Rotor Aero Centre Lock Rotor Set 160/160mm

Name: Carbon-Ti X-Rotor Aero Centre Lock Rotor Set 160/160mm
Brand: Carbon-Ti
Price: 899.99 AUD
Availability: InStock

$899.99 AUD

Taxes included. Shipping calculated at checkout.

The Carbon-Ti X-Rotor Aero Centre Lock 160/160mm Rotor Set is a WorldTour-inspired aerodynamic braking upgrade that combines wind tunnel-developed efficiency, premium carbon fibre construction, powerful braking performance and exceptional Italian craftsmanship for road cyclists, triathletes and performance enthusiasts seeking every possible speed advantage.

Key Carbon-Ti X-Rotor Aero Centre Lock Features

Dual 160mm rotor configuration for maximum braking control and confidence
Aerodynamic design developed for high-speed road racing and triathlon applications
Structural carbon fibre carrier reduces weight while improving efficiency
Grade 5 titanium hardware delivers outstanding strength-to-weight performance
Handcrafted in Italy using premium materials and precision CNC machining

(more product details...)

loading inventory data..

Ride Now, Pay Later? Yes it's Possible!

We want You to fuel your cycling passion now, not later, so with the help of our partners, we offer flexible payments terms including 4 interest-free installments (Afterpay or Paypal) or over 6, 12 or even up to 24 month repayments (Afterpay, Shop Instalments or ZIP).
Eligibility, T&Cs and minimum order value conditions may apply.

Earn 0 points on this purchase.

Learn more

More Product Details:

The Carbon-Ti X-Rotor Aero Centre Lock 160/160mm Rotor Set has been developed for cyclists looking to combine elite-level braking with aerodynamic optimisation. Created with input from professional racing environments, it is designed to complement modern aero road bikes, endurance race bikes and triathlon machines where performance and efficiency matter most.

Specifications

Product Name: Carbon-Ti X-Rotor Aero Centre Lock Rotor Set 160/160mm
Rotor Size: 160mm Front / 160mm Rear
Mount Type: Centre Lock
Rotor Design: Aerodynamic Semi-Floating Rotor
Braking Surface: Stainless Steel
Carrier Material: Carbon Fibre
Adapter Material: CNC Machined AL7075 Aluminium
Hardware Material: Grade 5 Titanium Rivets and Washers
Edge Design: Rounded CNC-Machined Profile
Lockrings Included: Yes
Rotor Thickness: Optimised performance braking profile
Front Rotor Weight: Approximately 115g
Rear Rotor Weight: Approximately 115g
Total Weight: Approximately 230g
Compatibility:Centre Lock hubs12mm thru-axle systems15mm thru-axle systems20mm thru-axle systems
Intended Use:Road cyclingEndurance racingTriathlonTime trial competitionHigh-performance training
Country of Manufacture: Italy

Aerodynamic Rotor Technology

The Carbon-Ti X-Rotor Aero Centre Lock Rotor Set was specifically designed to reduce aerodynamic drag generated by the wheel and braking system. Its unique structural shape has been refined through aerodynamic development to minimise resistance at higher speeds while maintaining braking performance.

Carbon Fibre Structural Core

The carbon fibre inner carrier is derived from Carbon-Ti's lightweight rotor technology and provides:

Reduced rotational mass
Increased responsiveness
Improved acceleration
Enhanced climbing efficiency
Premium strength-to-weight performance

High-Performance Steel Braking Surface

The stainless steel braking track provides:

Strong and predictable braking power
Consistent performance during long descents
Excellent heat management
Reliable wet-weather braking
Extended service life

Grade 5 Titanium Hardware

Premium titanium rivets and fastening components contribute to:

Lower overall weight
Exceptional durability
High corrosion resistance
Improved long-term reliability

UCI-Compliant CNC Edge Design

The rounded rotor profile improves safety and complies with modern race regulations while maintaining structural integrity and premium aesthetics.

Italian Design and Manufacturing

The Carbon-Ti X-Rotor Aero Centre Lock Rotor Set is manufactured entirely in Italy using advanced production methods, premium raw materials and strict quality-control procedures that have earned Carbon-Ti a reputation among the world's leading performance component brands.

Rotor Dimensions

Front Rotor Diameter: 160mm
Rear Rotor Diameter: 160mm
Mounting Standard: Centre Lock

Weights

Front Rotor: Approximately 115g
Rear Rotor: Approximately 115g
Combined Rotor Weight: Approximately 230g

Hub Compatibility

Compatible with most leading Centre Lock wheelsets including:

Shimano
DT Swiss
ENVE
Zipp
Reserve
CADEX
Bontrager
Most aftermarket Centre Lock wheel systems

Fitment Notes

Centre Lock lockrings included
Suitable for 12mm, 15mm and 20mm thru-axles
Designed for modern disc brake road and performance bikes
Not compatible with Campagnolo AFS systems
Not compatible with Fulcrum AFS systems

The Carbon-Ti X-Rotor Aero Centre Lock 160/160mm Rotor Set is best suited to:

Road racers
Triathletes
Time trial specialists
Gran Fondo riders
Performance enthusiasts
Riders building premium lightweight race bike

Product Care

Clean using isopropyl alcohol or approved disc brake cleaners
Avoid contamination from lubricants and grease
Inspect rotor surfaces for wear during regular servicing
Verify lockring torque periodically
Replace brake pads before excessive wear occurs
Follow correct bedding-in procedures for optimal performance

Maintenance Recommendations

Regular inspections are recommended following wet-weather riding, extended descents, gravel exposure or coastal riding conditions. Professional bicycle servicing will help maximise braking performance and component longevity.

Warranty Information

Carbon-Ti products are generally covered by a manufacturer's warranty against defects in materials and workmanship. The warranty does not typically cover accidental damage, crash damage, incorrect installation, misuse, modifications or normal wear associated with braking components.

Feedback from road cyclists and triathletes is overwhelmingly positive, with recurring praise including:

Beautiful premium finish
Exceptional build quality
High-performance appearance
Excellent braking modulation
Stable braking during fast descents
Lightweight construction
Noticeably premium engineering

Many owners consider the Carbon-Ti X-Rotor Aero Centre Lock Rotor Set a dream-build component that elevates both the appearance and performance of a high-end bicycle.

Carbon-Ti X-Rotor Aero Centre Lock Rotor Set vs Shimano Dura-Ace RT-CL900
