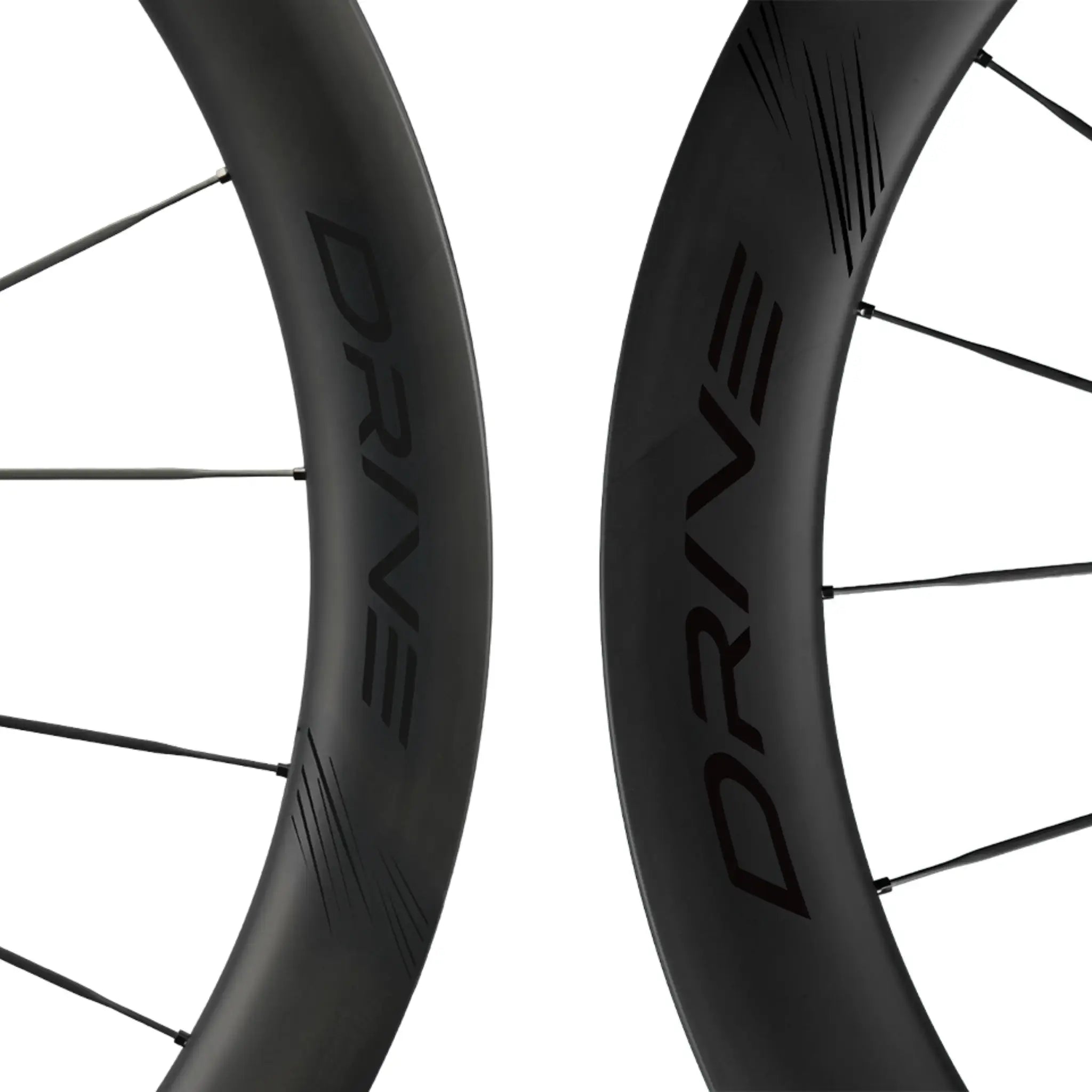

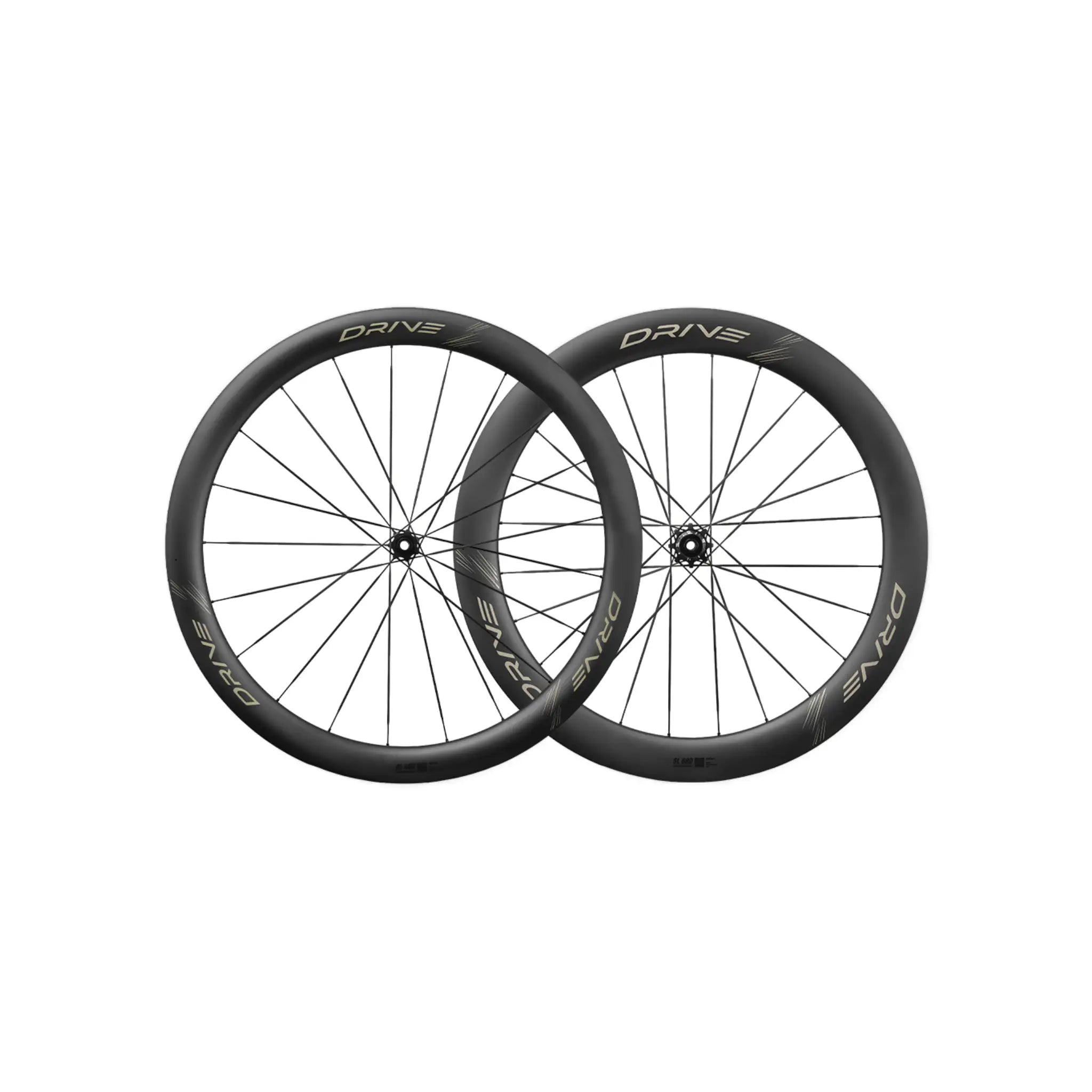

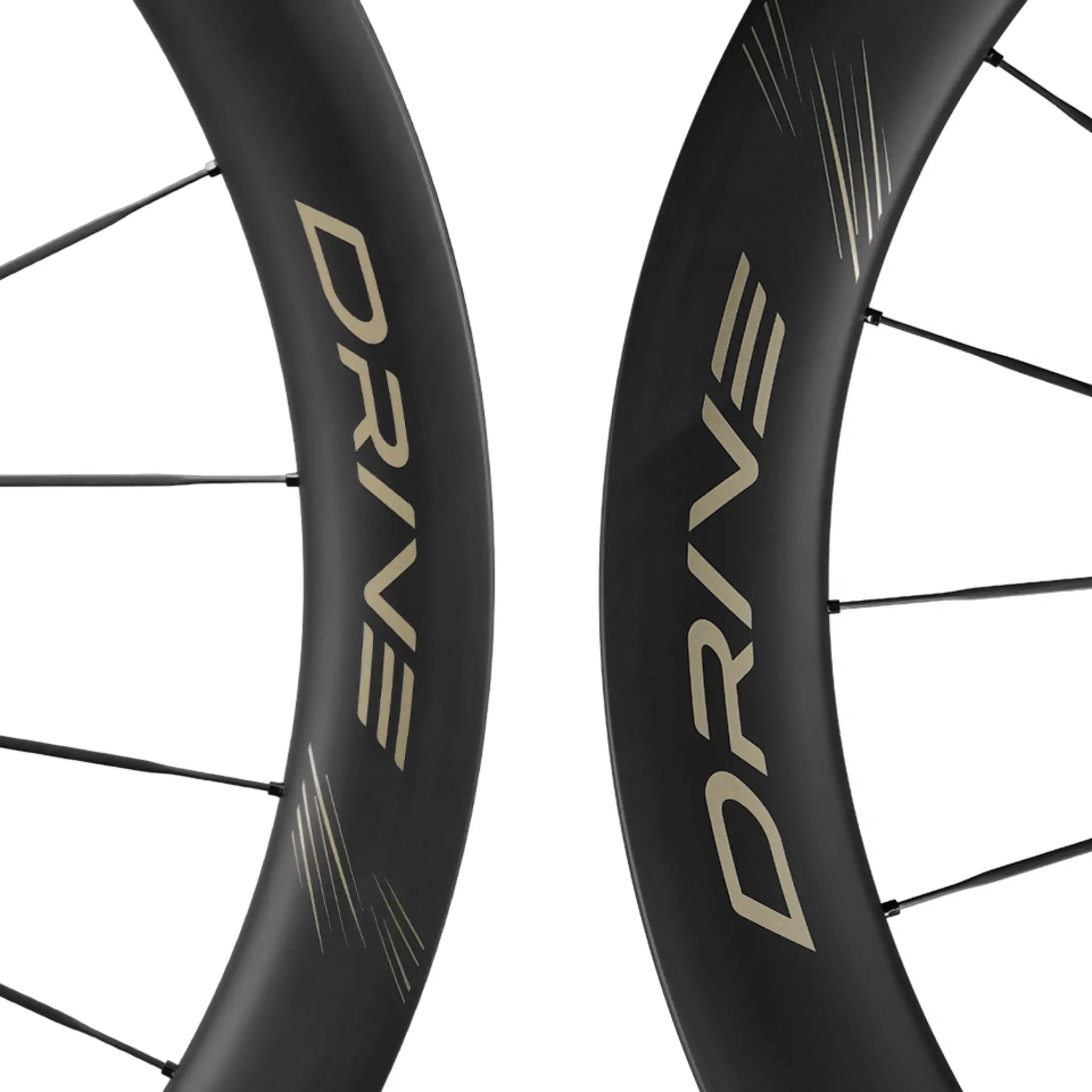

Elitewheels Drive SL CS Mixed Depth Wheelset

$1,899.00 AUD

Taxes included. Shipping calculated at checkout.

The Elitewheels Drive SL CS Mixed Depth Wheelset is a premium carbon spoke road wheel upgrade built for riders who want the speed of deeper aero rims with the steering confidence of a shallower front wheel, making it an excellent performance choice for Brisbane bunch rides, racing, endurance events and fast Australian road conditions.

Drive SL CS Features

Mixed-depth setup lets riders balance aerodynamic speed with front-end stability
Lightweight carbon spoke construction for sharp acceleration and direct power transfer
Wide 25mm internal rim profile optimised for modern 29–32C road tyres
Hooked tubeless-ready rim design for confident tyre compatibility
Titanium 60T ratchet freehub with fast 6-degree engagement

Pedal Passion is an authorised Elitewheels dealer, providing local service, support, and warranty for complete peace of mind.

(more product details...)

SKU: ELITEWHEELS-ELITEWHEELS-DRIVE-SL-CS-SHIMANOHG-BLACK
Barcode:

loading inventory data..

Earn 0 points on this purchase.

Learn more

Technical Specifications

Product Name: Elitewheels Drive SL CS Mixed Depth Wheelset
Wheel Size: 700C
Wheel Type: Carbon spoke road disc brake wheelset
Intended Use: Road cycling, road racing, fast bunch rides, criteriums, endurance rides and performance training
Rim Series: Drive SL
Rim Material: Carbon fibre
Rim Finish: UD semi-matte carbon
Rim Depth Options: Custom front and rear rim depth selection, commonly 48D front / 58D rear or similar mixed-depth configurations
Rim Inner Width: 25mm
Rim Outer Width:Front: 36mmRear: 34mm
Rim Type: Hooked clincher / tubeless-ready
Tyre Compatibility: Clincher and tubeless
Recommended Tyre Width: 700 x 29–32C
Compatible Tyre Width: 700 x 29–58C, subject to frame clearance
Brake Type: Disc brake
Rotor Interface: Centrelock as standard
Hub: Elitewheels Drive SL hub system
Freehub Type: One-piece titanium 60T ratchet
Engagement: 6 degrees
Freehub Compatibility: Shimano HG, SRAM XDR and Shimano MSR options, depending on selected configuration
Bearings: TPI steel bearings
Front Hub Spacing: 12x100mm thru-axle
Rear Hub Spacing: 12x142mm thru-axle
Spokes: 3.2mm SL aero bladed carbon spokes
Spoke Count: 21 front / 24 rear
Front Spoke Pattern: 3-cross / radial, 2:1 layout
Rear Spoke Pattern: 1-cross / 3-cross, 1:2 layout
Nipples: Alloy Secure Lock nipples
Claimed Weight: Approximately 1310g ±30g, excluding tubeless valves and rim tape; final weight varies by rim-depth combination
Rider Weight Limit: 120kg / 270lb total system weight
Included Accessories: Installed rim tape, installed tubeless valves and 4 spare spokes
Compatible Bike Type: Road bikes, aero road bikes, endurance road bikes and performance disc brake bikes

Compatibility Notes

Designed for modern 12mm thru-axle disc brake road bikes.
Not designed for quick-release road frames.
Thru-axles are usually frame-specific and may not be included.
Shimano MSR freehub systems are not interchangeable with Shimano HG / SRAM XDR hub systems.
Professional installation is recommended for cassette fitment, rotor setup, tubeless tyres and spoke inspection.

Mixed-Depth Aero Design

The mixed-depth concept is the main advantage of this wheelset. A shallower front rim improves steering stability in crosswinds, while a deeper rear rim helps reduce drag and maintain speed.

This setup is especially useful for riders who want aero gains without the nervous steering feel that can come from running very deep rims front and rear.

Wide 25mm Internal Rim Width

The 25mm internal rim width is designed around modern wider road tyres. It gives 29–32C tyres better support, improving cornering stability, comfort and rolling efficiency.

Benefits include:

Better tyre sidewall support
Reduced tyre squirm when cornering
Improved grip on rough roads
More comfort at lower tyre pressures
Better fit with modern aero road frames and wide carbon rims
Front and Rear Specific Rim Widths

The front and rear rims use different external widths for performance tuning.

The wider 36mm front profile is designed to improve crosswind stability and steering precision. The narrower 34mm rear profile is shaped to reduce drag behind the rider, where airflow is already more turbulent.

Carbon Spoke Construction

The 3.2mm SL aero bladed carbon spokes are designed to reduce weight while increasing stiffness and response. Compared with traditional steel spokes, carbon spokes give the wheelset a sharper, more direct feel under power.

This is noticeable when:

Sprinting out of corners
Climbing out of the saddle
Accelerating in a bunch
Holding high speed on rolling roads
Titanium 60T Ratchet Freehub

The one-piece titanium 60T ratchet system provides fast 6-degree engagement. Titanium offers strong corrosion resistance and durability, while the fine engagement improves pickup when accelerating after coasting.

Tension-Balanced Hub Design

Elitewheels focuses on reducing spoke tension imbalance between drive and non-drive sides. More even spoke tension helps improve wheel stability, lateral stiffness and long-term reliability.

Performance Validation

The Drive SL platform is designed around laboratory durability testing, stiffness testing and aerodynamic validation. It is intended for serious riders who want a real performance upgrade, not just a cosmetic carbon wheel change.

Wheel Measurements

Wheel Size: 700C
Front Rim Depth: Selectable, commonly 48mm or 58mm depending on configuration
Rear Rim Depth: Selectable, commonly 48mm or 58mm depending on configuration
Internal Rim Width: 25mm
External Rim Width Front: 36mm
External Rim Width Rear: 34mm
Front Hub Spacing: 12x100mm
Rear Hub Spacing: 12x142mm
Brake Mount: Centrelock disc
Recommended Tyres: 29–32C
Compatible Tyres: 29–58C, depending on frame clearance
Rider Weight Limit: 120kg

Tyre Fit Recommendations

29–30mm Tyres

Best for fast road riding and racing
Strong aerodynamic match with the wide rim profile
Ideal for riders prioritising speed and efficiency

31–32mm Tyres

Excellent for Brisbane and Queensland roads
More comfort and grip over coarse chip seal
Strong option for endurance rides and fast training

33mm and Wider Tyres

Possible where frame clearance allows
Better suited to endurance, all-road or mixed-surface use
Not the primary use case for this road-focused aero wheelset

The Elitewheels Drive SL CS Mixed Depth Wheelset is ideal for riders who want a high-performance aero wheelset that remains stable, light and comfortable in real-world conditions.

Best Suited For

Road racers
Fast bunch ride cyclists
Criterium riders
Gran Fondo riders
Endurance road cyclists
Riders upgrading from alloy or entry-level carbon wheels

Cyclists Hub’s April 2026 Elitewheels comparison also positioned the newer Drive II and Drive-related models as strong-value carbon wheel options with modern specifications, competitive weight figures and broad depth choices.

The Drive SL CS Mixed Depth model builds on that same performance direction with a wider 25mm internal rim, carbon spokes, titanium ratchet hub and rider-selectable rim depths.

Rider Feedback & Community Sentiment

Rider feedback around the Drive SL and wider Drive carbon spoke wheel range is generally positive, especially from cyclists upgrading from alloy wheels or older narrow carbon rims.

Common positive rider comments include:

Very quick acceleration
Stiff and direct power transfer
Smooth hub engagement
Stable handling with wider tyres
Strong comfort with 30mm or 32mm tubeless tyres
Premium semi-matte carbon finish
Excellent value compared with bigger-name carbon wheel brands
Mixed-depth setup feels more manageable than full deep-section wheels

Some riders may prefer steel spokes for easier roadside or workshop replacement, but performance-focused cyclists often appreciate the sharper ride feel of carbon spokes.

Why We Love It at Pedal Passion

The mixed-depth setup gives riders aero performance where it matters while keeping the front end calm and predictable in real-world wind.

Product Care

Check tyre pressure before every ride.
Use compatible tubeless tyres and quality sealant if running tubeless.
Do not exceed tyre or rim pressure limits.
Refresh tubeless sealant every few months, especially in hot Queensland conditions.
Inspect carbon rims after pothole strikes, crashes or hard impacts.
Keep disc rotors clean and free from oil, grease and sealant.
Avoid pressure washing directly at hub bearings and seals.
Check spoke tension and wheel trueness during regular servicing.
Inspect carbon spokes for impact damage, cracks or unusual marks.
Clean and inspect the freehub periodically, especially after wet or dusty rides.
Service the freehub more frequently if riding in extreme weather or high-mileage training.
Use a torque wrench when fitting Centrelock rotors and cassette components.
Consider local wind conditions when selecting front and rear rim depths.

Warranty Information

Warranty coverage is subject to Elitewheels manufacturer terms and conditions.
Carbon rims are generally covered against manufacturing defects for the stated warranty period.
Carbon spokes are generally covered for manufacturing defects, not external impact damage.
Normal wear, crash damage, impact damage, incorrect installation, over-inflation, poor tubeless setup, bearing contamination and misuse are generally not covered.
Professional installation is recommended for cassette fitting, rotor installation, tubeless setup and spoke inspection.
Regular wheel servicing helps maintain hub smoothness, spoke tension and long-term performance.

Product SKU

Shimano HG / Black: ELITEWHEELS-ELITEWHEELS-DRIVE-SL-CS-SHIMANOHG-BLACK
Shimano HG / Fusion Gold: ELITEWHEELS-ELITEWHEELS-DRIVE-SL-CS-SHIMANOHG-BLACK
Sram XDR / Black: ELITEWHEELS-ELITEWHEELS-DRIVE-SL-CS-SHIMANOHG-BLACK
Sram XDR / Fusion Gold: ELITEWHEELS-ELITEWHEELS-DRIVE-SL-CS-SHIMANOHG-BLACK
Shimano MSR / Black: ELITEWHEELS-ELITEWHEELS-DRIVE-SL-CS-SHIMANOHG-BLACK
Shimano MSR / Fusion Gold: ELITEWHEELS-ELITEWHEELS-DRIVE-SL-CS-SHIMANOHG-BLACK

Barcode (GTIN/EAN)

Shimano HG / Black:
Shimano HG / Fusion Gold:
Sram XDR / Black:
Sram XDR / Fusion Gold:
Shimano MSR / Black:
Shimano MSR / Fusion Gold:
