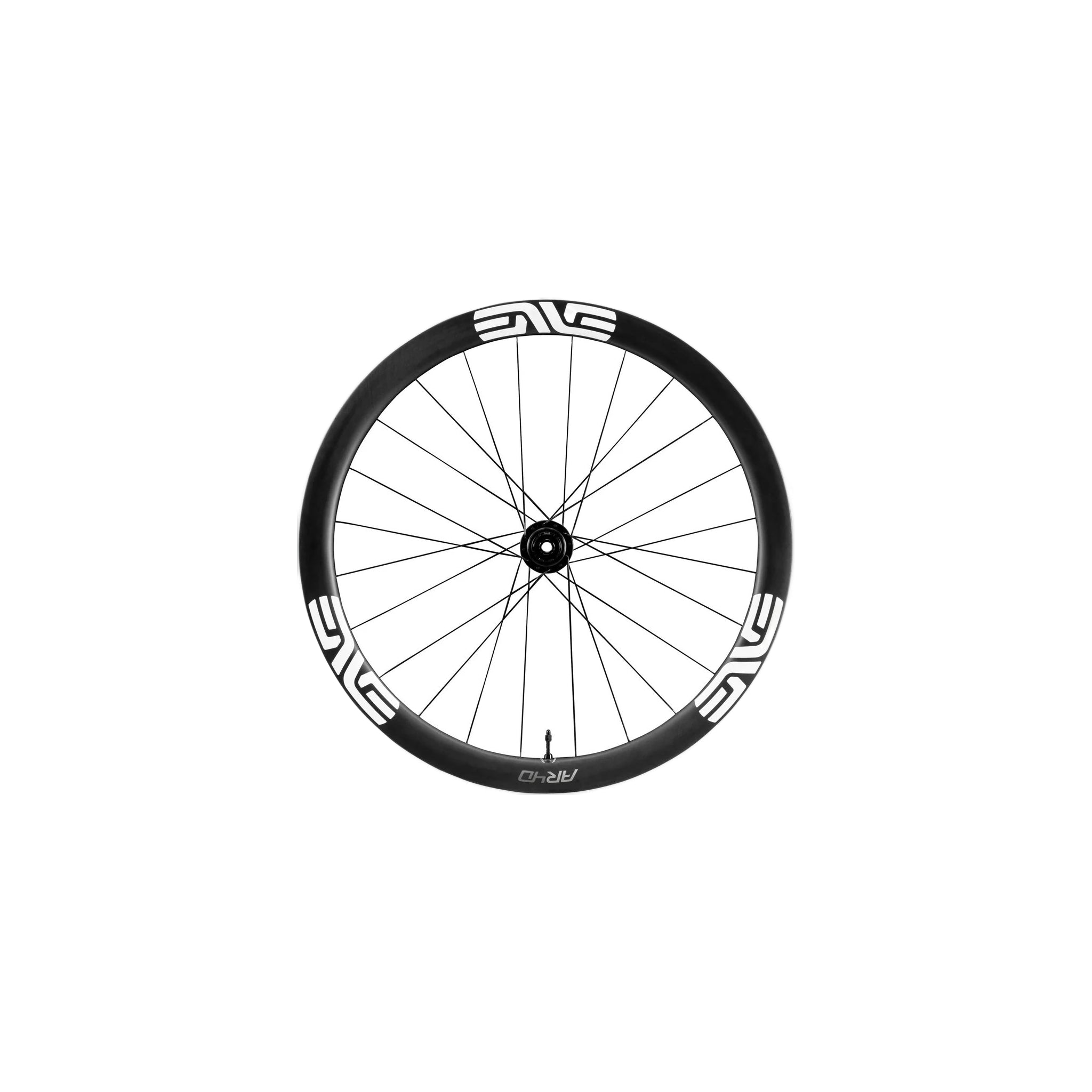

ENVE AR40 Rear Carbon Disc Wheel

ENVE AR40 Rear Carbon Disc Wheel

$1,489.99 AUD $1,626.90 AUD
Taxes included. Shipping calculated at checkout.

The ENVE AR40 Rear Carbon Disc Wheel is a fast, strong and highly versatile all-road carbon rear wheel designed to deliver efficient power transfer, tubeless comfort, smooth rolling speed and dependable durability for Brisbane road rides, Queensland climbs and Australian mixed-surface adventures.

Key Features

  • 40mm carbon rim depth balances aerodynamic speed with everyday stability
  • 25mm internal width supports modern wider road, all-road and light gravel tyres
  • ENVE INNERDRIVE rear hub system provides smooth engagement and reliable power transfer
  • Hookless tubeless rim design supports lower pressures, comfort and reduced pinch-flat risk
  • Built with Sapim CX-Ray spokes and brass nipples for strength, serviceability and long-term durability

(more product details...)
loading inventory data..

Ride Now, Pay Later? Yes it's Possible!

We want You to fuel your cycling passion now, not later, so with the help of our partners, we offer flexible payments terms including 4 interest-free installments (Afterpay or Paypal) or over 6, 12 or even up to 24 month repayments (Afterpay, Shop Instalments or ZIP).
Eligibility, T&Cs and minimum order value conditions may apply.

Earn 0 points on this purchase.

Learn more
More Product Details:
Key Features & Technical Specifications

Technical Specifications

  • Product Name: ENVE AR40 Rear Carbon Disc Wheel, INNERDRIVE
  • Brand: ENVE
  • Wheel Position: Rear wheel
  • Wheel Size: 700C
  • Rim Material: Carbon fibre
  • Rim Depth: 40mm
  • Internal Rim Width: 25mm
  • Rim Type: Hookless tubeless-ready carbon clincher
  • Tyre System: Tubeless only, using ENVE-approved or hookless-compatible tyres
  • Aero-Optimised Tyre Width: Approximately 29mm to 30mm
  • Recommended Tyre Range: Modern road, all-road and light gravel tyres within ENVE compatibility guidance
  • Brake Compatibility: Disc brake only
  • Rotor Mount: Center Lock disc
  • Rear Axle: 12 x 142mm thru axle
  • Hub System: ENVE Foundation INNERDRIVE rear hub
  • Freehub Options: Shimano HG, SRAM XDR and Campagnolo options may vary by stock and configuration
  • Spokes: Sapim CX-Ray
  • Nipples: Brass
  • Use Category: Road, endurance road, all-road, fast commuting, light gravel and mixed-surface riding
  • Best Bike Type: Disc brake road bikes, endurance road bikes, all-road bikes, gravel-light builds and premium custom road bikes
  • Main Upgrade Purpose: Improved rolling speed, better power transfer, tubeless comfort, modern tyre support and premium rear-wheel performance

Compatibility Notes

  • Designed for bikes using a 12 x 142mm rear thru axle.
  • Requires a Center Lock disc brake rotor.
  • Freehub body must match your cassette: Shimano HG, SRAM XDR or Campagnolo where available.
  • Designed for tubeless setup with hookless-compatible tyres.
  • Not suitable for rim brake bikes.
  • Always check frame clearance, cassette compatibility and tyre approval before installation.
Notable Tech, Materials & Construction

40mm Carbon Rim Profile

The 40mm rim depth gives the AR40 rear wheel a strong balance of aerodynamic performance and real-world control. It is deep enough to feel fast on flats and rolling roads, but not so deep that it becomes overly demanding in crosswinds or rough conditions.

25mm Internal Rim Width

The wide 25mm internal rim supports modern wider tyres more effectively than older narrow rims. This helps improve tyre shape, cornering grip, comfort and rolling efficiency, especially with 28mm to 35mm road and all-road tyres.

Hookless Tubeless Construction

The AR40 uses a hookless tubeless rim design. When paired with approved tubeless tyres and correct pressure, this setup improves comfort, grip and puncture resistance while reducing pinch-flat risk. It is a strong match for rough Australian chip seal and mixed-quality roads.

ENVE Molded Spoke and Valve Holes

ENVE’s molded spoke-hole process is a major strength feature. Instead of drilling through carbon after moulding, the spoke and valve holes are formed during production, helping preserve carbon fibre continuity around high-stress areas.

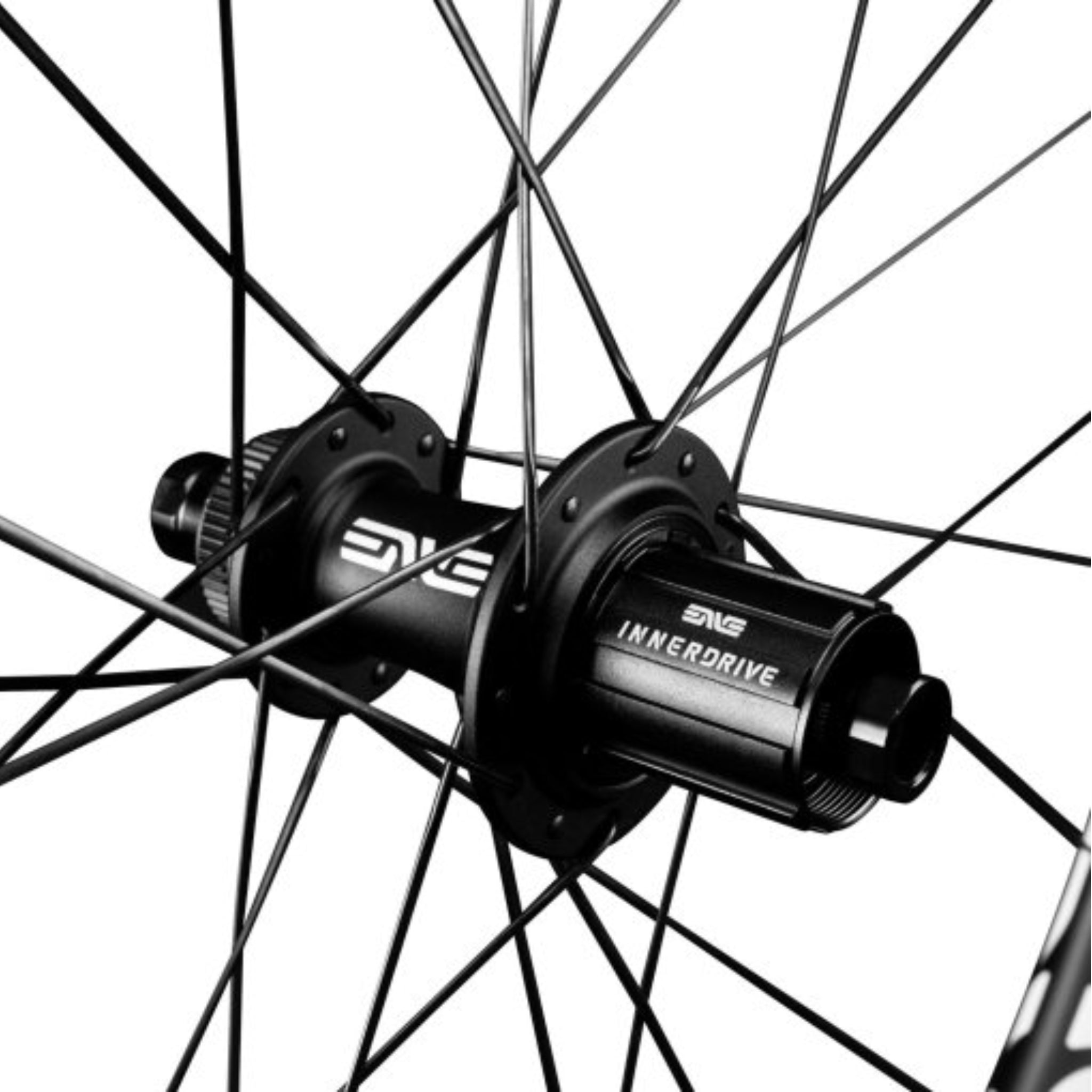

INNERDRIVE Rear Hub System

The ENVE Foundation INNERDRIVE rear hub is designed for efficient engagement, smooth rolling and reliable performance. A quality rear hub matters because it directly affects power transfer, drivetrain feel and long-term service confidence.

Sapim CX-Ray Spokes

Sapim CX-Ray spokes are widely respected for combining low weight, aerodynamic shaping and excellent fatigue resistance. They give the AR40 rear wheel a premium build quality suited to road training, fast riding and all-road use.

Brass Nipples

Brass nipples add durability and serviceability, especially in humid, wet or high-mileage conditions. For Brisbane and Queensland riders, this is a practical advantage over more delicate lightweight nipple systems.

Gravel-Standard Durability

Although the AR40 is fast enough for serious road riding, it is also designed with rough-road and all-road confidence in mind. That makes it suitable for riders who want one rear wheel for road speed, broken surfaces and occasional light gravel.
Size, Fit, Geometry & Measurements

Wheel Fitment

  • Wheel Size: 700C
  • Wheel Position: Rear
  • Rear Axle Standard: 12 x 142mm thru axle
  • Rim Depth: 40mm
  • Internal Width: 25mm
  • Brake Mount: Center Lock disc
  • Tyre System: Hookless tubeless
  • Freehub: Must match cassette system

Tyre Setup Guide

  • 28mm tyres: Fast road option where approved
  • 29mm to 30mm tyres: Best aerodynamic match for road speed
  • 30mm to 32mm tyres: Excellent everyday choice for Brisbane roads
  • 35mm tyres: Suitable for all-road and light gravel where frame clearance allows
  • Hookless-compatible tyres only: Follow current tyre and pressure compatibility guidance

Fit Checklist Before Purchase

Before ordering, confirm:

  • Your frame uses a 12 x 142mm rear thru axle.
  • Your brake system uses Center Lock rotors.
  • Your cassette matches the selected freehub body.
  • Your selected tyre is approved for hookless tubeless rims.
  • Your frame has enough clearance for your chosen tyre size.
  • Your drivetrain is correctly adjusted after wheel installation.
  • Your brake caliper is aligned after fitting the rear wheel.
Who it is best suited for and where it is best suited

The ENVE AR40 Rear Carbon Disc Wheel is best suited to riders who want a premium rear wheel that can handle fast road riding, long endurance days, light gravel and rougher Australian road surfaces.
Product Care & Warranty Info

Product Care

  • Use only ENVE-approved or hookless-compatible tubeless tyres.
  • Follow current tyre pressure guidance for hookless rims.
  • Check tyre pressure before every ride.
  • Refresh tubeless sealant regularly.
  • Inspect the rim after pothole impacts, rock strikes or crashes.
  • Keep brake rotors clean and away from chain lube or degreaser.
  • Check Center Lock rotor torque during servicing.
  • Keep cassette and freehub clean and properly serviced.
  • Avoid pressure washing hub bearings.
  • Have spoke tension and wheel true checked during regular bike servicing.

Warranty Information

  • Warranty coverage is subject to ENVE and retailer terms and conditions.
  • ENVE wheels are commonly supported by warranty coverage for manufacturing defects and may include additional incident protection programs for eligible original owners, depending on registration and regional terms.
  • Normal wear, incorrect tyre use, overpressure, crash damage, impact damage, poor installation, incompatible tyres, drivetrain damage, pressure washing damage and misuse are generally not covered under standard warranty.
  • Professional tubeless setup is recommended for correct tyre seating, sealant use, cassette installation, rotor installation and pressure guidance.
  • Riders should follow current ENVE hookless tyre compatibility and inflation recommendations for safe use.
Industry & Rider Feedback. A few Comparison Options

ENVE product information, current listing positions the AR40 as part of the Foundation collection, designed around a 40mm rim depth, 25mm internal width, hookless tubeless construction and real-world aerodynamics for modern wider road tyres.

BikeTiresDirect technical product coverage, current listing highlights the AR40 platform as an all-road carbon disc wheel using ENVE molded spoke-hole construction, INNERDRIVE hubs, Sapim CX-Ray spokes, brass nipples and gravel-standard durability testing.

Competitive Cyclist product commentary, current listing describes the AR40 as a strong choice for riders wanting a wheel platform that blends road speed, wider tyre support and mixed-surface confidence.

Rider Feedback & Community Sentiment

Rider sentiment around ENVE AR40 and Foundation-series wheels is generally positive, especially from riders who want a premium wheel that feels fast without being fragile or overly race-specific.

Common positive rider comments include:

  • Rear wheel feels efficient under power
  • 40mm depth gives useful speed without feeling harsh
  • Wide internal rim improves tyre shape and comfort
  • Tubeless setup works well for rough roads
  • ENVE build quality feels premium
  • INNERDRIVE hub engagement feels smooth and dependable
  • Strong match for endurance road and all-road bikes
  • Good choice for riders wanting one versatile carbon wheel platform

Some riders note that ENVE hookless rims require careful tyre selection. Using approved tyres, correct sealant and correct pressure is essential for safety and performance.

ENVE Foundation 45 Rear Wheel

  • Slightly deeper rim profile
  • More road-focused feel
  • Strong option for riders wanting a faster road setup
  • Less all-road oriented than the AR40

Zipp 303 Firecrest Rear Wheel

  • Popular all-road and gravel-capable carbon rear wheel
  • Wide hookless tubeless platform
  • Excellent comfort and rough-road reputation
  • Strong alternative for riders prioritising low-pressure tuning

DT Swiss ERC / ARC Rear Wheels

  • ERC suits endurance road and comfort-focused riding
  • ARC suits aero road performance
  • Excellent hub reputation
  • Strong alternatives depending on ride priority

Roval Rapide / Terra Rear Wheels

  • Rapide is more aero-road focused
  • Terra is more gravel and all-road focused
  • Strong complete-bike ecosystem with Specialized
  • Less ENVE-specific carbon and hub technology

Where the ENVE AR40 Rear Wheel Stands Out

  • Excellent balance of speed, comfort and durability
  • 25mm internal width works well with modern wider tyres
  • INNERDRIVE hub gives dependable rear-wheel performance
  • Molded spoke-hole construction supports long-term rim strength
  • Brass nipples improve service life in real-world conditions
  • Strong match for road, endurance and all-road bikes
