INCOLOR SR/SR+ Carbon Road Frameset

$4,599.00 AUD

Taxes included. Shipping calculated at checkout.

A lightweight aero carbon disc road platform built for riders who want race-bike speed, modern tyre clearance, high stiffness and premium integration at strong value for Australian road racing, fast bunch rides, climbing and custom road bike builds.

INCOLOR SR/SR+ Features

Wind-tunnel and CFD optimised aero road frameset designed for fast road racing and high-speed training
Lightweight carbon construction with SR and SR+ frame options for different stiffness-to-weight priorities
Compact aero profile with narrow 40mm head tube and offset steerer design for reduced frontal area
T47A threaded bottom bracket, UDH hanger and clearance for up to 38C tyres for modern compatibility
Integrated cockpit, aero seatpost and clean internal routing for a premium custom road bike build

(more product details...)

Model

Colourway/Livery

Size

SKU:
Barcode: 12903851

loading inventory data..

Earn 0 points on this purchase.

Learn more

Frame Style: Aero road / lightweight race road

Available Variants:

INCOLOR SR
INCOLOR SR+

Frame Material:

INCOLOR SR: M60 + T800 carbon construction
INCOLOR SR+: 80T pitch-based carbon + T1100 carbon construction

Claimed Frame Weight:

INCOLOR SR: approximately 785g, size 54, unpainted without accessories
INCOLOR SR+: approximately 720g, size 54, unpainted without accessories

Claimed Pedalling Stiffness:

INCOLOR SR: up to approximately 175 N/mm
INCOLOR SR+: up to approximately 181 N/mm

Aerodynamic Claims:

Wind-tunnel optimised
Claimed 3W faster than a Specialized Tarmac SL8 at 45km/h
Claimed frontal area approximately 626.64cm²
Claimed 3.2% smaller frontal area than a Cervélo S5 and 1.7% smaller than a Tarmac SL8, based on INCOLOR published comparisons

Head Tube / Steerer:

Narrow 40mm head tube profile
Offset steerer tube layout
28.6mm steerer tube

Bottom Bracket:

T47A asymmetric threaded bottom bracket

Tyre Clearance:

Up to 38C slick tyres
Up to 36C off-road-style tyres, depending on actual tyre and rim combination

Rear Derailleur Hanger:

UDH compatible

Brake Type:

Flat mount disc brake

Drivetrain Compatibility:

Electronic road groupsets
Mechanical road groupsets where routing and build configuration allow
Shimano Di2
SRAM AXS / eTap
Campagnolo electronic or mechanical setups where compatible

2x Chainring Compatibility:

Shimano: approximately 48/35T through 54/40T
SRAM: approximately 46/33T through 50/37T

Cockpit:

INCOLOR AEROWAV integrated handlebar option
Fully integrated front-end routing

Seatpost:

Aero seatpost design
Integrated frame-to-seatpost visual profile

Included / Common Frameset Package:

INCOLOR SR carbon frame
Carbon fork
Aero seatpost
Headset parts
Thru-axles
Seatpost hardware
Small parts package
Optional INCOLOR AEROWAV integrated handlebar depending on selected package or retailer configuration

Available Sizes:

45
48
51
54
56
58

Available Finishes / Colours:

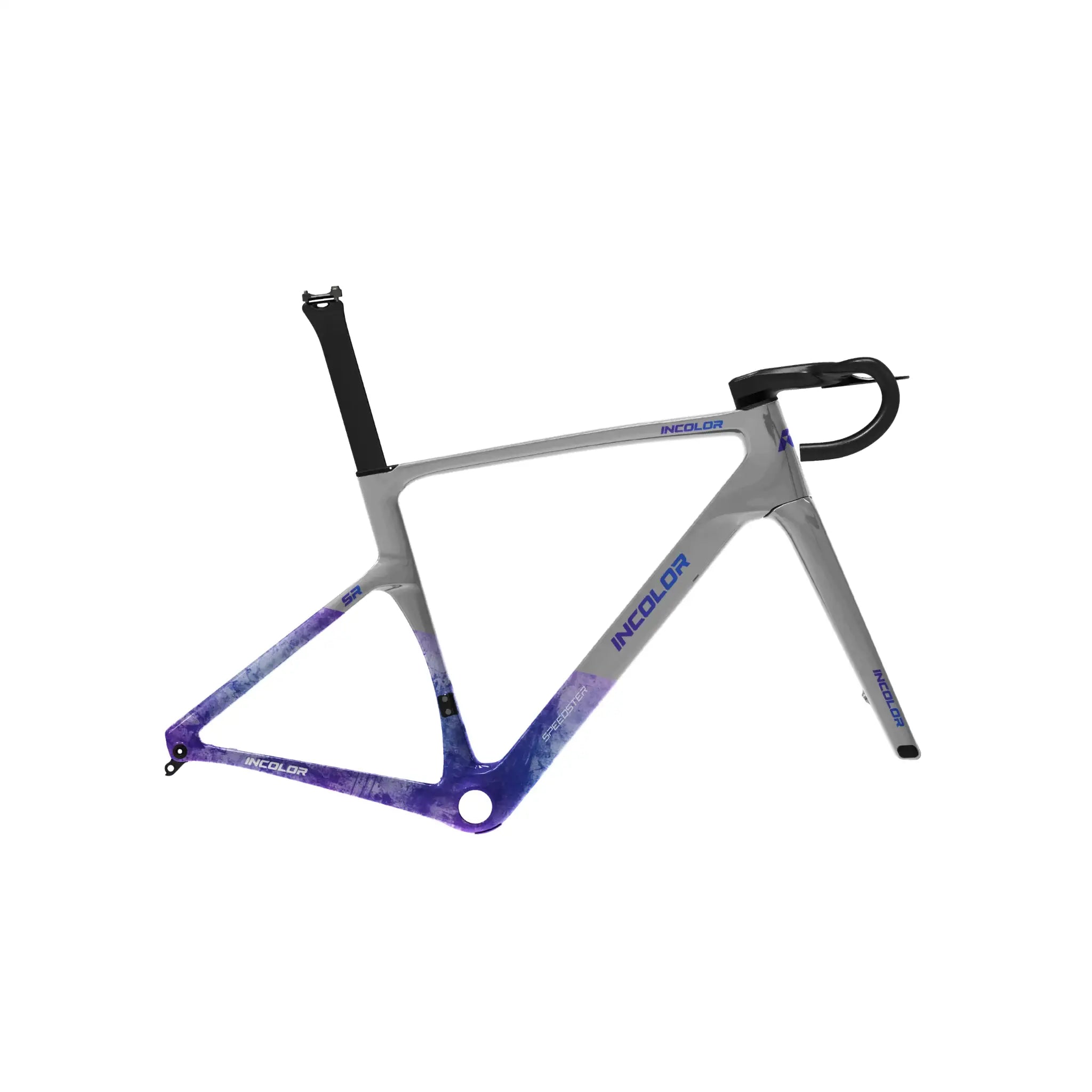

SR Aurora

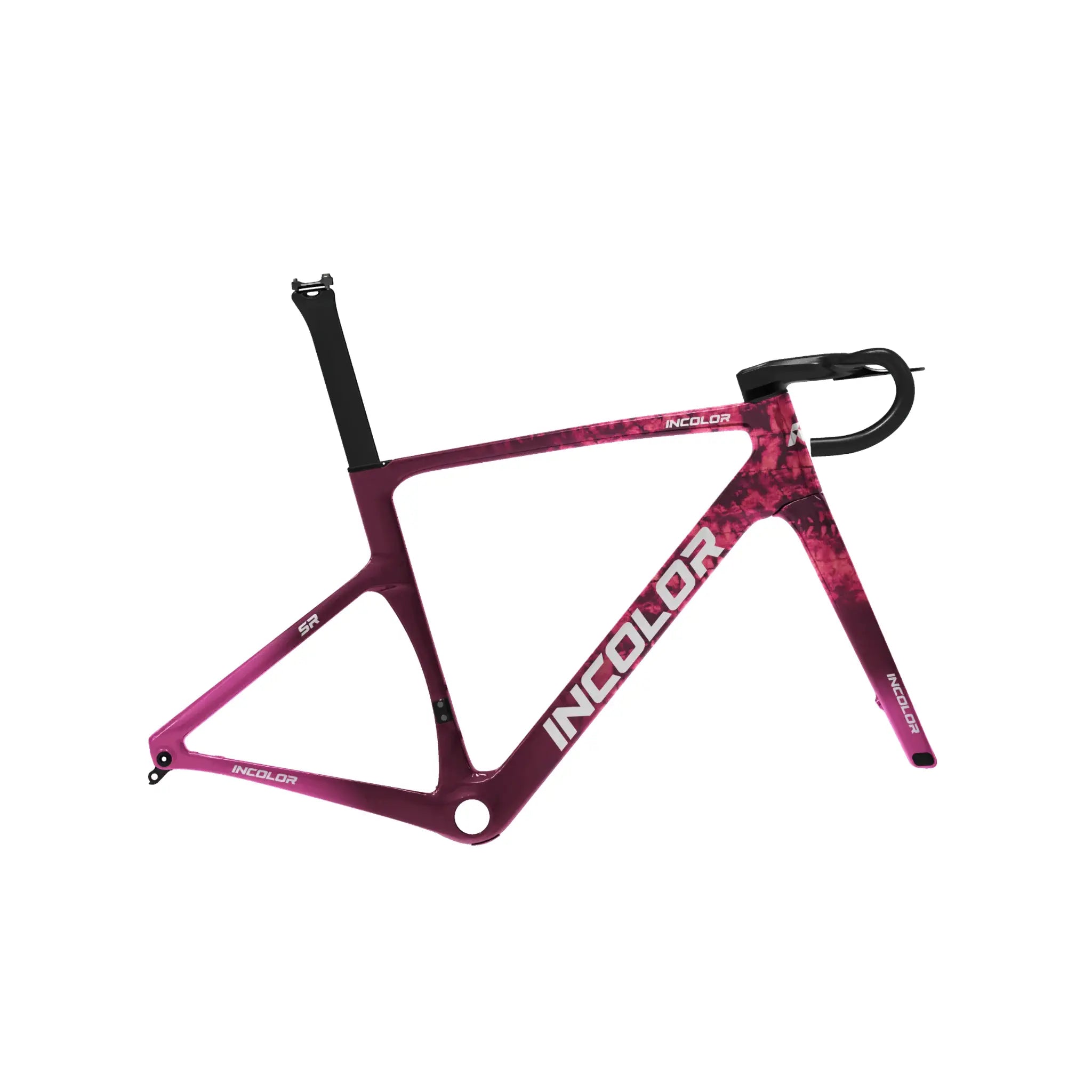

SR Pinklight

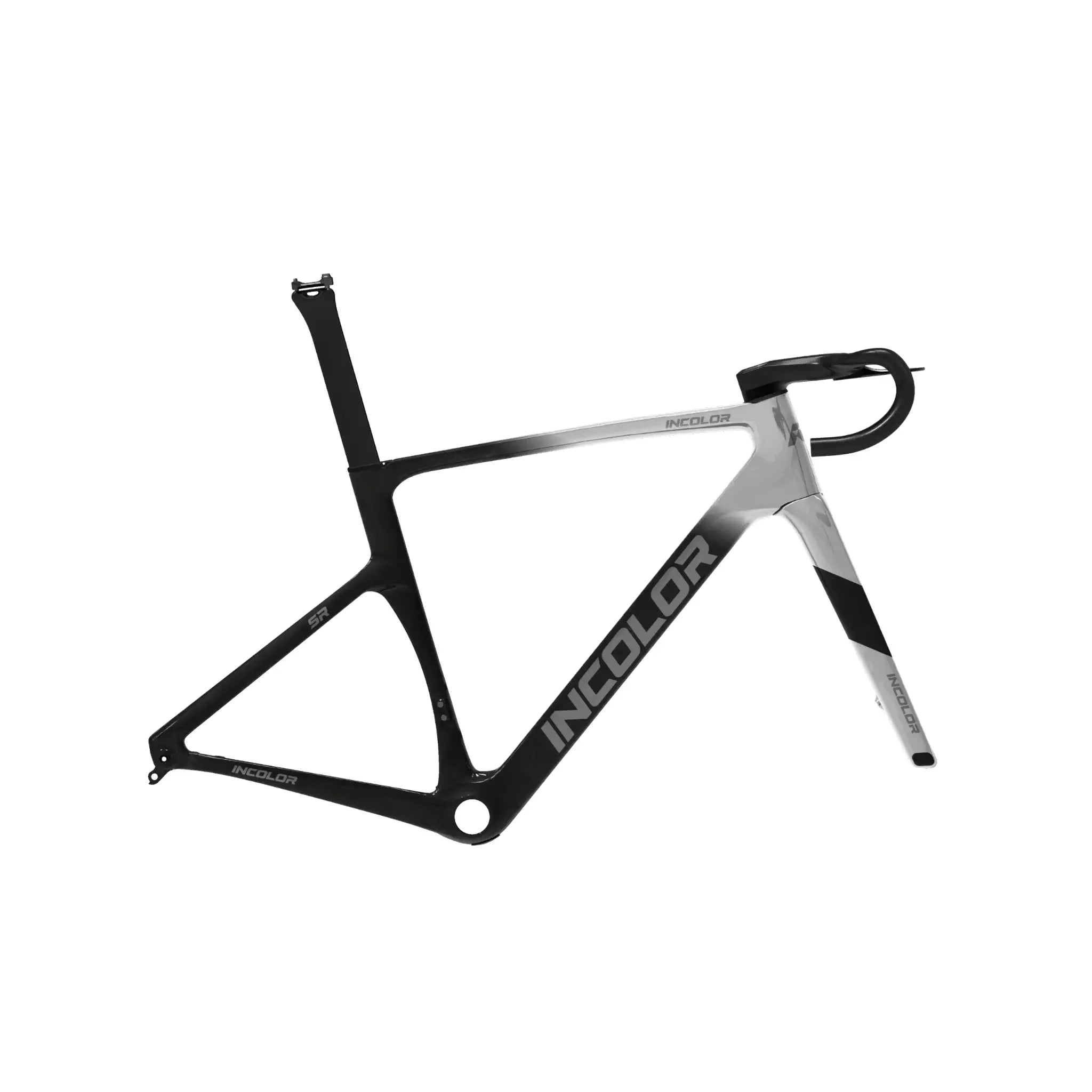

SR Quicksilver

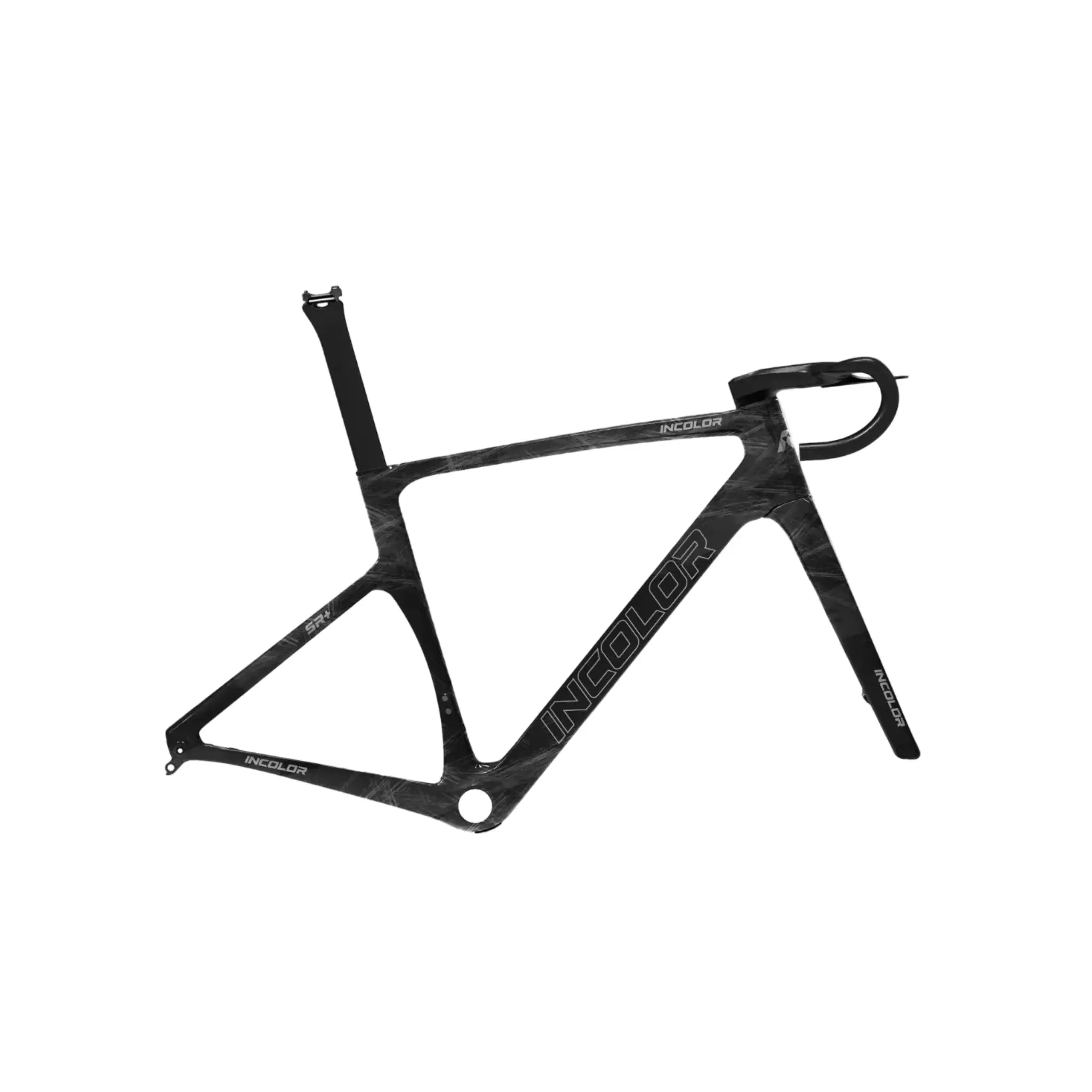

SR+ Silver

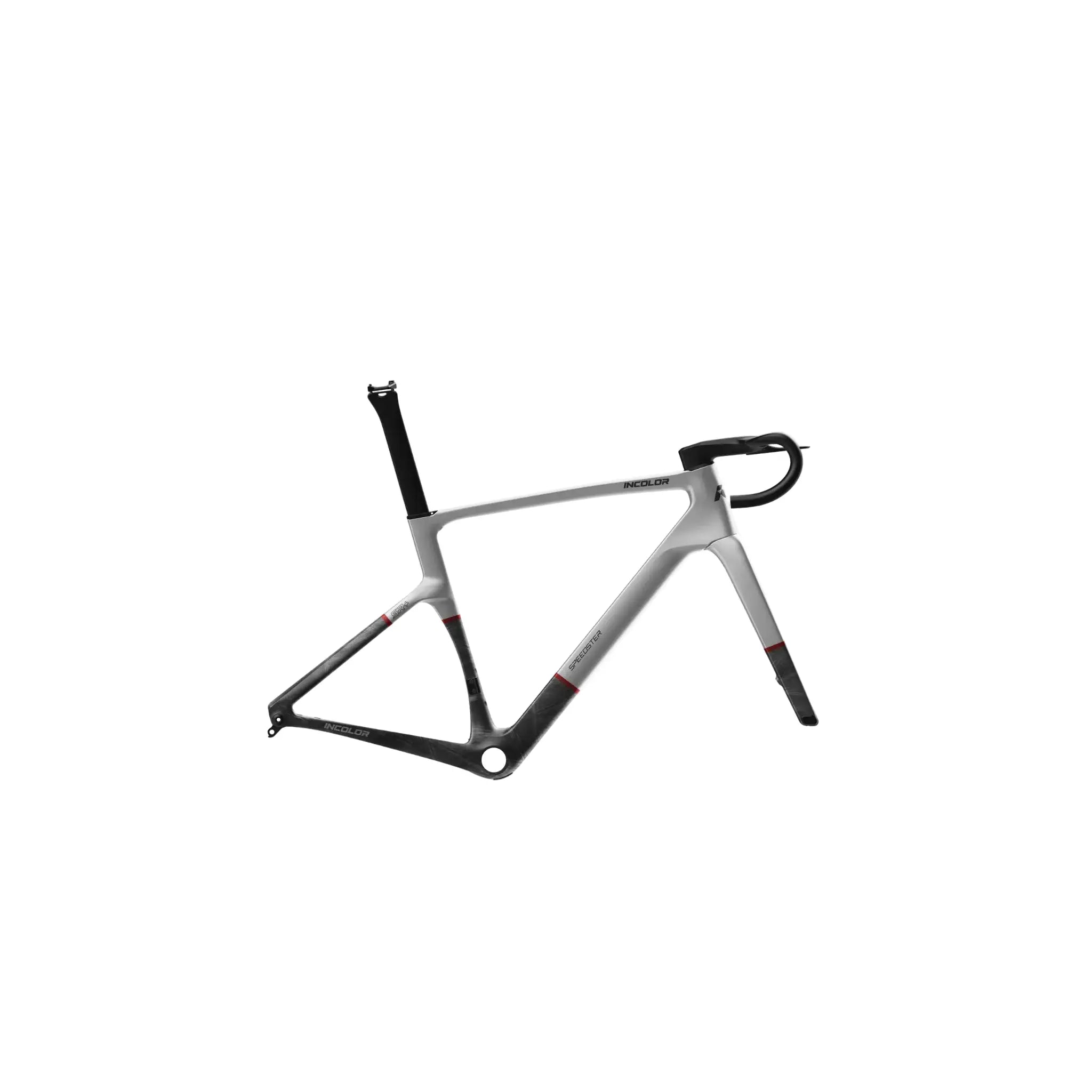

SR+ Silverstone

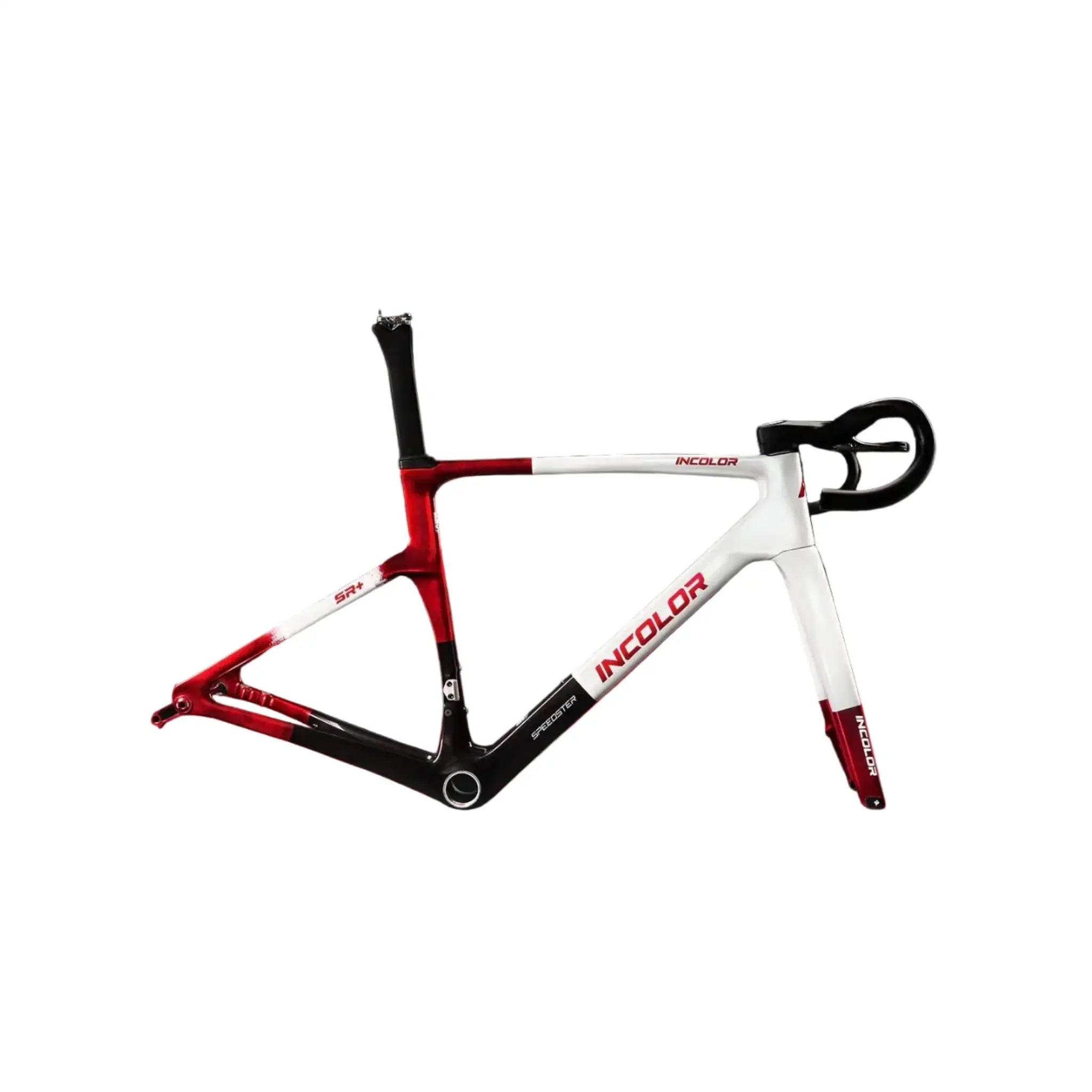

SR+ Redpark
Other custom options available - built to order

M60 + T800 Carbon on INCOLOR SR

The INCOLOR SR uses M60 and T800 carbon fibre to balance weight, stiffness, strength and ride quality. This makes it suitable for riders who want a performance road frame that feels quick under power but remains practical for real-world riding.

80T + T1100 Carbon on INCOLOR SR+

The INCOLOR SR+ steps up to higher-grade carbon materials aimed at reducing weight and increasing pedalling stiffness. This option is better suited to riders chasing a lighter and more premium custom race build.

Aero Road Frame Design

The INCOLOR SR Road Frameset is shaped around aerodynamic efficiency, with a compact frontal profile and integrated cockpit design. The frame is designed to reduce drag while still retaining everyday rideability, tyre clearance and stiffness.

Offset Steerer Tube System

The offset steerer design allows INCOLOR to use a narrow 40mm head tube while retaining a conventional 28.6mm steerer diameter. This supports a slim frontal profile without giving up steering stiffness and compatibility.

T47A Bottom Bracket

The T47A threaded bottom bracket gives the frame a modern, stiff and service-friendly bottom bracket platform. Compared with many press-fit systems, T47-style designs are often preferred by mechanics because they can reduce creak risk and simplify servicing.

UDH Compatibility

The UDH hanger system improves long-term serviceability and future drivetrain compatibility. It also makes derailleur hanger replacement easier, which is a practical advantage for riders travelling, racing or maintaining a premium bike long term.

Wider Tyre Clearance

Clearance for up to 38C slick tyres gives the INCOLOR SR Road Frameset modern versatility. Riders can build it with 28mm tyres for racing, 30mm to 32mm tyres for Australian chip seal, or larger slicks where comfort and rolling efficiency are priorities.

Integrated Cockpit and Internal Routing

The integrated cockpit and internal cable routing create a clean aero front end. This suits modern electronic groupsets and premium road builds where both performance and presentation matter.

Available Sizes:

45
48
51
54
56
58

Fit Profile:

The INCOLOR SR Road Frameset is designed as a race-focused aero road frame with a performance fit. It is suited to riders who want efficient positioning, sharp handling and a fast road-bike feel rather than a very relaxed endurance posture.

Frame Selection Guide:

Size 45: smaller riders or riders needing a compact race frame
Size 48: shorter riders or riders wanting lower stack and shorter reach
Size 51: small to medium riders
Size 54: medium riders and common race-bike fit reference size
Size 56: medium to taller riders
Size 58: taller riders or riders needing longer reach and higher stack

Fit Checklist Before Purchase:

Confirm frame size using stack and reach, not height alone.
Confirm preferred handlebar width and stem length.
Confirm cockpit availability if using the INCOLOR AEROWAV integrated handlebar.
Check saddle height and seatpost insertion requirements.
Confirm tyre clearance with your chosen wheel and tyre combination.
Confirm bottom bracket choice for your crankset.
Check brake rotor size and flat mount adapter requirements.
Confirm drivetrain choice and routing requirements.
Book a professional bike fit before cutting the steerer tube or finalising cockpit dimensions.

Pedal Passion Recommended Build Setup:

28mm tyres for racing and fast bunch rides
30mm tyres for mixed-quality roads and everyday performance
32mm tyres for rough chip seal and long endurance rides
Shimano Ultegra Di2, Shimano Dura-Ace Di2, SRAM Force AXS or SRAM Red AXS
160mm front rotor for confident braking on descents
140mm or 160mm rear rotor depending on rider weight and preference
Mid-depth carbon wheels for all-round speed and wind stability

The INCOLOR SR Road Frameset is best suited to riders who want an aero road bike that is light enough for climbing, stiff enough for racing and practical enough for Australian road conditions.

Dedicated long-form independent reviews of the INCOLOR SR Road Frameset are still limited because it is a newer performance frameset.

Rider sentiment around the INCOLOR SR Road Frameset is positive among riders interested in lightweight aero frames that offer better value than many legacy premium brands.

Common positive rider comments include:

Very impressive claimed weight for an aero road frameset
SR+ option is appealing for riders chasing a higher-end lightweight build
38C tyre clearance makes it more practical than older aero frames
T47A bottom bracket is a welcome service-friendly standard
UDH hanger adds modern drivetrain compatibility
Integrated cockpit gives the bike a clean premium look
Paint options stand out from mainstream road bikes

Product Care

Clean the frame with bike-safe cleaner and a soft cloth.
Avoid harsh solvents, abrasive polish and pressure washing around bearings or cable ports.
Use a calibrated torque wrench on all frame, cockpit, brake and seatpost hardware.
Use carbon assembly paste where specified.
Keep the T47A bottom bracket area clean and dry after wet rides.
Inspect the frame after crashes, chain drops, transport damage or heavy impacts.
Check headset preload and cockpit bolts regularly.
Check UDH hanger alignment after impacts or poor shifting.
Replace headset or bottom bracket bearings if they become rough or contaminated.
Have integrated routing and hydraulic brake hoses serviced by an experienced mechanic.

Warranty Information

Warranty coverage is subject to INCOLOR and retailer terms and conditions.
INCOLOR frames are commonly promoted with lifetime warranty coverage for material and manufacturing defects, depending on eligibility and purchase channel.
Crash damage, incorrect assembly, over-torquing, incompatible parts, poor maintenance, transport damage, modified components and normal wear are generally not covered.
Professional assembly is recommended for bottom bracket installation, cockpit setup, brake hose routing, drivetrain setup and frame protection.
A professional bike fit is recommended before cutting the steerer tube or finalising cockpit dimensions.
