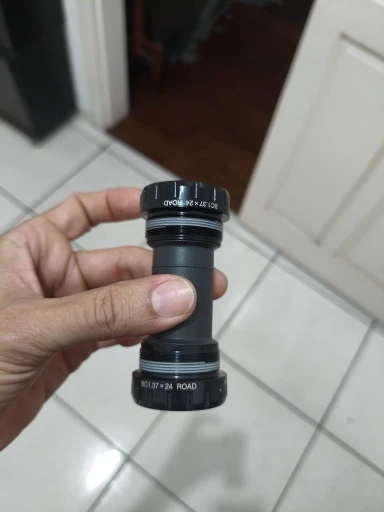

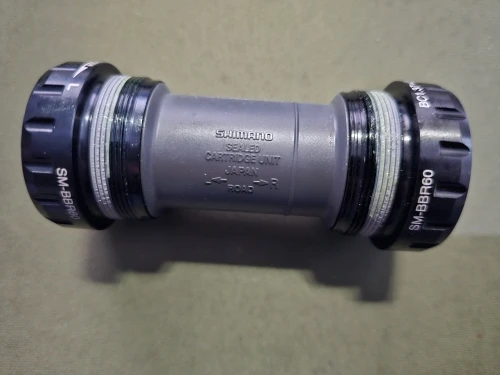

The Shimano SM-BBR60 Ultegra Bottom Bracket is a lightweight, smooth-spinning and highly reliable threaded bottom bracket for Shimano Hollowtech II road cranksets, making it an excellent value drivetrain service upgrade for Brisbane road riders, Queensland climbers and Australian cyclists wanting quiet, efficient pedalling.

SM-BBR60 Features

  • Genuine Shimano Ultegra-level threaded bottom bracket
  • Designed for Shimano Hollowtech II 24mm road cranksets
  • English BSA threaded fitment for 68mm road frames
  • Reliable Shimano bearings and improved sealing for longer service life
  • Great replacement for worn, rough or creaking bottom brackets

(more product details...)

SKU: SM-BBR60
Barcode: 689228109544
loading inventory data..

Earn 0 points on this purchase.

Learn more
Key Features & Technical Specifications

Technical Specifications

  • Product Name: Shimano SM-BBR60 Bottom Bracket
  • Series: Shimano Ultegra
  • Product Type: Threaded external bottom bracket
  • Bottom Bracket Standard: BSA / English threaded
  • Shell Width Compatibility: 68mm road shell
  • Additional Listed Width Compatibility: 70mm Italian version available separately depending on model
  • Crank Compatibility: Shimano Hollowtech II road cranksets
  • Spindle Compatibility: 24mm Shimano crank spindle
  • Installation Type: Threaded external cups
  • Bearing Type: Small ball bearing design

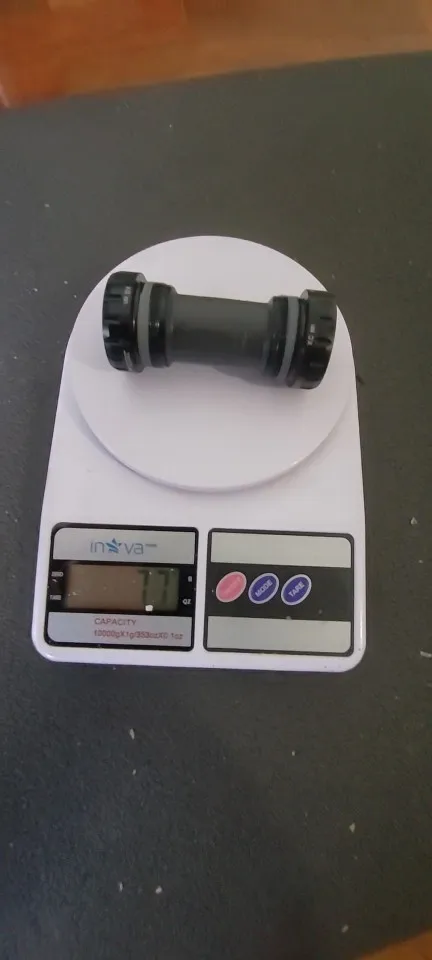

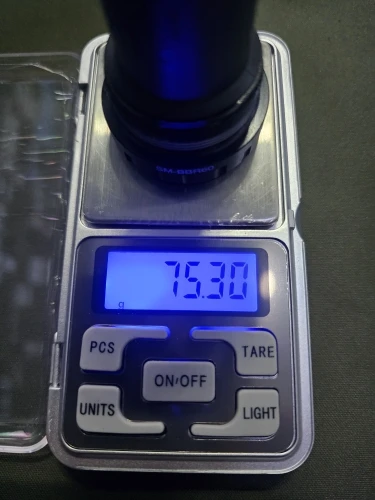

  • Average Weight: Approximately 77g
  • Colour: Black
  • Recommended Use: Road cycling, endurance riding, fast bunch rides, racing, commuting, indoor training and drivetrain servicing
  • Best Bike Type: Road bikes, endurance road bikes, aero road bikes, commuter road bikes and Shimano-equipped performance bikes
  • Main Upgrade Purpose: Bottom bracket replacement, smoother pedalling, creak reduction and drivetrain refresh
  • Shimano SKU: ISMBBR60B

Compatibility Notes

  • Designed for Shimano Hollowtech II 24mm road cranksets.
  • Commonly used with Shimano Ultegra, 105, Dura-Ace and Tiagra road cranksets where frame and crank compatibility match.
  • Not suitable for SRAM DUB 29mm, SRAM GXP, BB30, PF30 or 30mm spindle cranksets.
  • Requires the correct Shimano bottom bracket tool or adapter for installation.
  • Professional installation is recommended for correct torque, thread preparation and crank preload.
Notable Tech, Materials & Construction

Hollowtech II Compatibility

The SM-BBR60 is designed around Shimano Hollowtech II crank systems, which use a 24mm spindle and external bearing layout. This design supports efficient power transfer, reliable bearing support and straightforward servicing.

Threaded BSA Reliability

BSA threaded bottom brackets remain one of the most trusted standards in road cycling. They thread securely into the frame, are widely supported by bike shops and are generally easier to service than many press-fit systems.

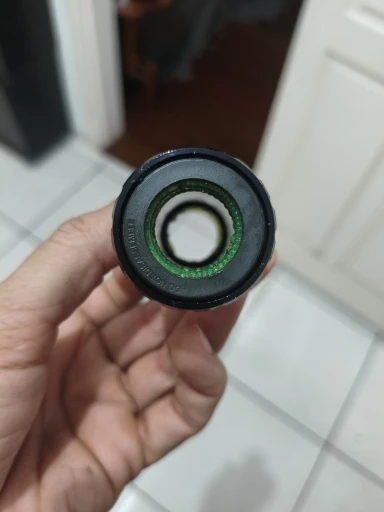

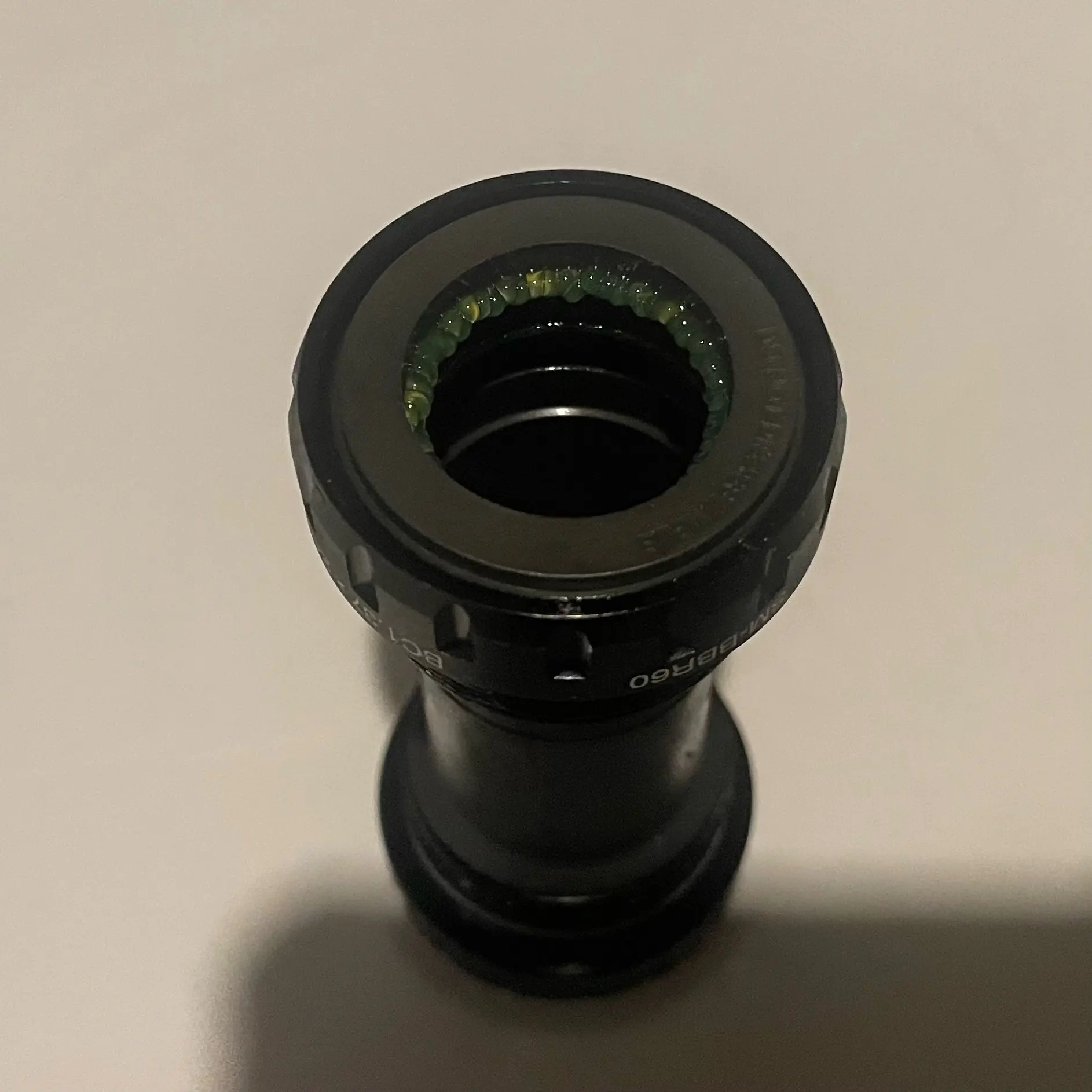

Ultegra-Level Bearings and Seals

Shimano designed the SM-BBR60 with reliable bearings and improved sealing to support long service life in real-world riding. Good sealing is especially important for bikes exposed to wet roads, sweat, dust and high weekly kilometres.

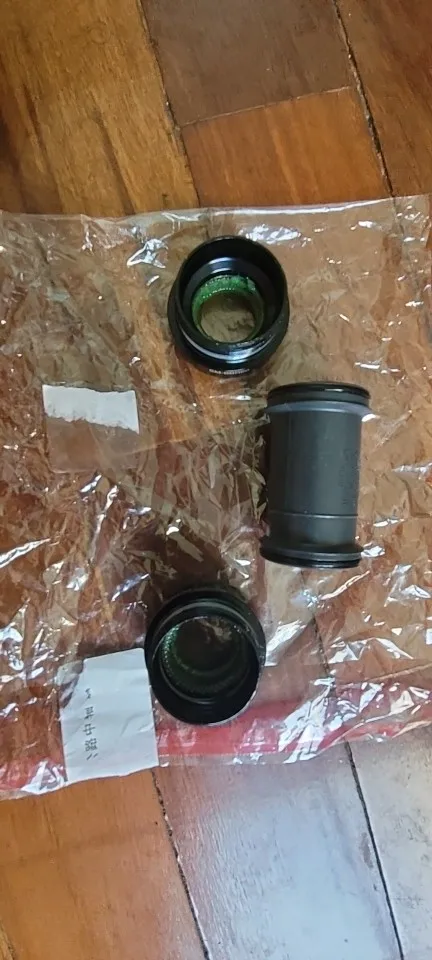

Smaller, Lighter Bearing Cup Design

Compared with older Shimano threaded bottom brackets, the SM-BBR60 uses a more compact cup profile. This helps reduce weight while maintaining smooth rotation and reliable drivetrain support.

Smooth Rotating Performance

A fresh bottom bracket can make a bike feel noticeably better through the pedals. If the old unit is rough, dry, contaminated or creaking, replacing it with an SM-BBR60 can restore a smoother and quieter ride.

Practical Shimano Service Part

This is not a flashy upgrade, but it is one of the most important service parts on a Shimano road bike. A good bottom bracket helps protect crank performance, drivetrain efficiency and rider confidence.
Size, Fit, Geometry & Measurements

Bottom Bracket Fitment

  • Frame Standard: BSA / English threaded
  • Road Shell Width: 68mm
  • Crank Spindle: Shimano 24mm Hollowtech II
  • Installation Style: External threaded cups
  • Bearing Style: Small ball bearing design
  • Approximate Weight: 77g

Fit Checklist Before Purchase

Before ordering, confirm:

  • Your frame uses a BSA English threaded bottom bracket shell
  • Your frame shell width is 68mm
  • Your crankset uses a Shimano Hollowtech II 24mm spindle
  • Your current crankset is road-compatible
  • Your frame threads are clean and undamaged
  • You have the correct installation tool or workshop support
  • Your crank preload and pinch bolts will be set correctly after installation

Fit Recommendation

If replacing a worn bottom bracket, inspect the crank spindle, chainrings, chain and cassette at the same time. A drivetrain service is the best time to diagnose creaks, rough bearings and power transfer issues.
Who it is best suited for and where it is best suited

The Shimano SM-BBR60 is best suited to riders who want a smooth, reliable and affordable replacement bottom bracket for a Shimano road bike.

Best Suited For

  • Shimano Ultegra riders replacing a worn bottom bracket
  • Shimano 105 and Dura-Ace road bike owners using Hollowtech II cranks
  • Road cyclists dealing with bottom bracket creaking or rough rotation
  • Commuters wanting dependable drivetrain reliability
Industry Feedback, Rider Reviews and our own opinion

Competitive Cyclist customer feedback, 2024–2025 highlights the SM-BBR60 as a smooth, durable and affordable Shimano bottom bracket, with riders praising its long service life, quiet performance and value as a replacement part.

Mantel customer reviews, current listing show strong long-term rider sentiment, with customers commonly praising the SM-BBR60 for low rolling resistance, durability and good value compared with more expensive alternatives.

Rider Feedback & Community Sentiment

Rider feedback around the Shimano SM-BBR60 is consistently positive, especially from cyclists looking for a straightforward replacement for a worn Shimano road bottom bracket.

Common positive rider comments include:

  • Smooth rotation after installation
  • Good value for a genuine Shimano part
  • Reliable durability for road and commuter use
  • Helps eliminate creaking when the old bottom bracket is the issue
  • Easy to service compared with many press-fit systems
  • Lightweight enough for performance road bikes
  • Strong match for Ultegra, 105 and Dura-Ace cranksets
  • Affordable drivetrain refresh during a road bike service

Some riders note that correct tool selection is important because the smaller cup diameter requires the right Shimano adapter or tool interface. Professional installation avoids damage and helps ensure long bearing life.
Product Care & Warranty Info

Product Care

  • Install using the correct Shimano bottom bracket tool or adapter.
  • Apply suitable grease or anti-seize to frame threads before installation.
  • Use a calibrated torque wrench where recommended.
  • Set Shimano crank preload correctly after installation.
  • Avoid pressure washing directly around bottom bracket seals.
  • Check for play, grinding or creaking during regular servicing.
  • Keep the bottom bracket area clean after wet or dusty rides.
  • Inspect for sweat corrosion on indoor trainer bikes.
  • Replace if bearings become rough, noisy or loose.
  • Have drivetrain noises diagnosed early before further wear occurs.

Warranty Information

  • Warranty coverage is subject to Shimano or retailer terms and conditions.
  • Warranty generally applies to manufacturing defects in materials or workmanship.
  • Normal bearing wear, contamination, incorrect installation, cross-threading, excessive preload, pressure washing damage, crash damage and misuse are generally not covered.
  • Bearing lifespan depends on installation quality, weather exposure, cleaning habits, crank preload and service frequency.
  • Professional installation is recommended for correct fitment, torque, bearing protection and warranty confidence.
