HYPERGLIDE+ Shifting Technology
HYPERGLIDE+ uses specially positioned shift ramps and shaped cassette teeth to guide the chain between sprockets. The system is designed to shift quickly in both directions while the rider continues applying power.
Traditional drivetrains can hesitate, clunk or require the rider to reduce pedal force during a shift. HYPERGLIDE+ manages chain engagement more progressively, making it easier to select a lower gear during a steep technical climb without completely backing off the pedals.
The system also improves outward shifting into a harder gear. This gives riders more confidence when accelerating out of corners, sprinting over trail features or changing gear across rolling terrain.

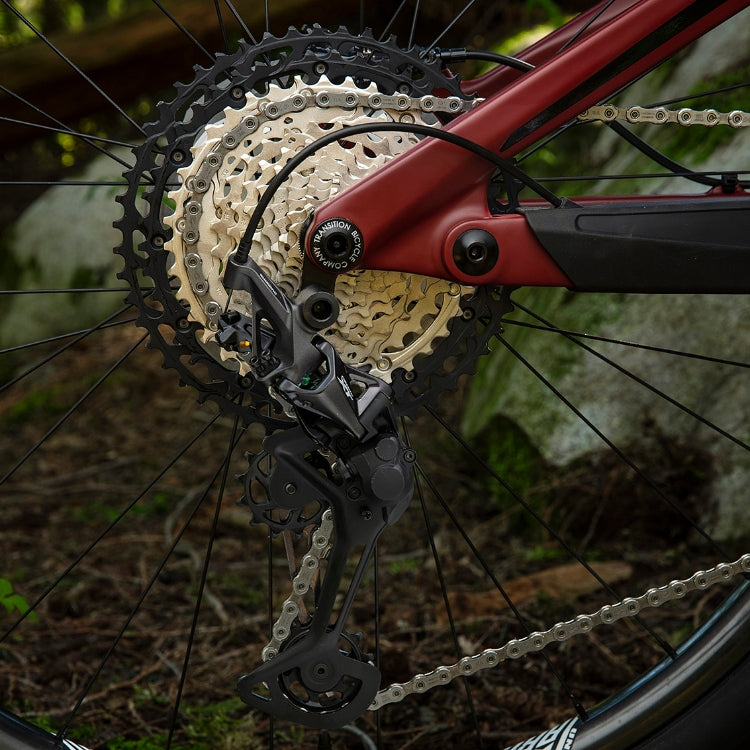

For the best result, the cassette should be paired with a compatible Shimano 12-speed HYPERGLIDE+ chain, shifter and rear derailleur. The chain’s shaped inner plates and extended contact surfaces form part of the complete shifting system.
MICRO SPLINE Freehub Interface
MICRO SPLINE was developed to accommodate a 10-tooth smallest sprocket while maintaining secure cassette engagement with the freehub body. The smaller high gear broadens the total drivetrain range without requiring an oversized chainring.
The interface uses multiple small splines to spread cassette loads across the freehub body. It also creates sufficient space for the 10-tooth sprocket and its lockring arrangement.

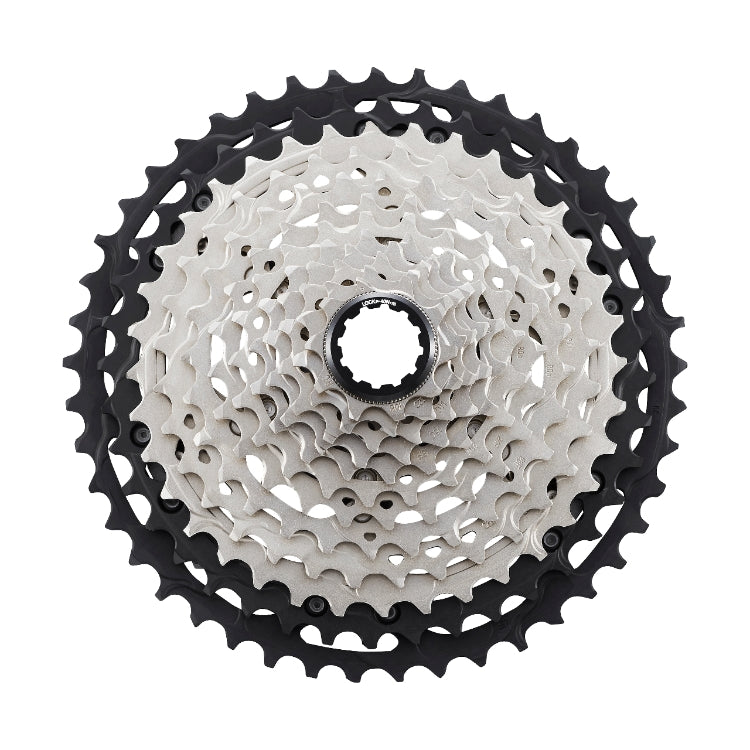

A conventional Shimano HG freehub cannot accept the Shimano Deore XT CS-M8100 12-Speed Cassette. Before purchase, riders should confirm that their rear hub has a MICRO SPLINE freehub. Many quality hubs can be converted using a manufacturer-specific replacement freehub body, but not every hub is upgradeable.

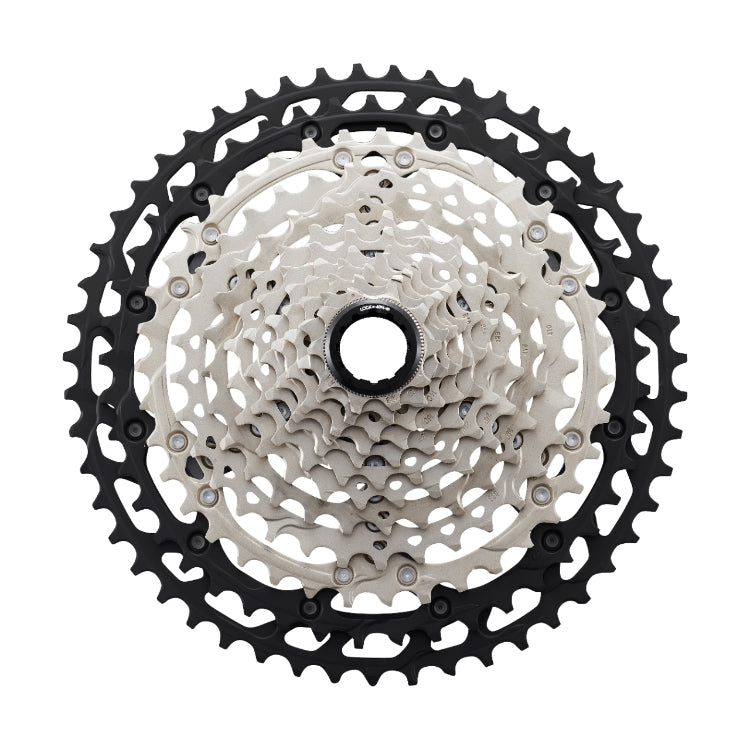

BEAM SPIDER Construction
The cassette’s larger sprockets are supported by a rigid aluminium carrier known as the BEAM SPIDER. This structure reduces unnecessary material while supporting the sprockets under pedalling load.
Greater cassette stiffness helps maintain precise spacing between the sprockets, which is particularly important on a closely spaced 12-speed drivetrain. A rigid carrier can also improve shifting consistency when climbing, accelerating or pedalling through rough trail sections.
The design lowers cassette inertia relative to a fully steel construction and helps deliver a more responsive feel when the rider changes speed.

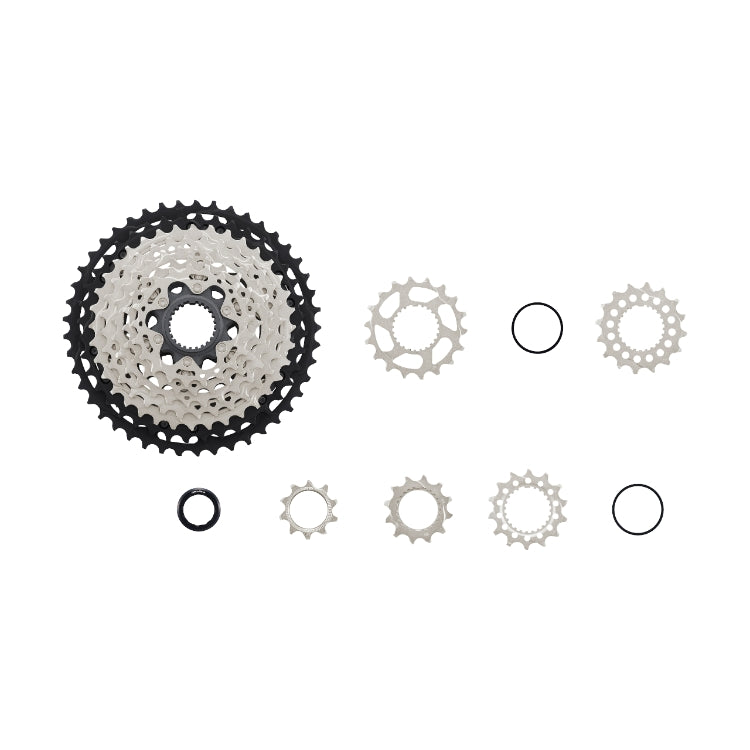

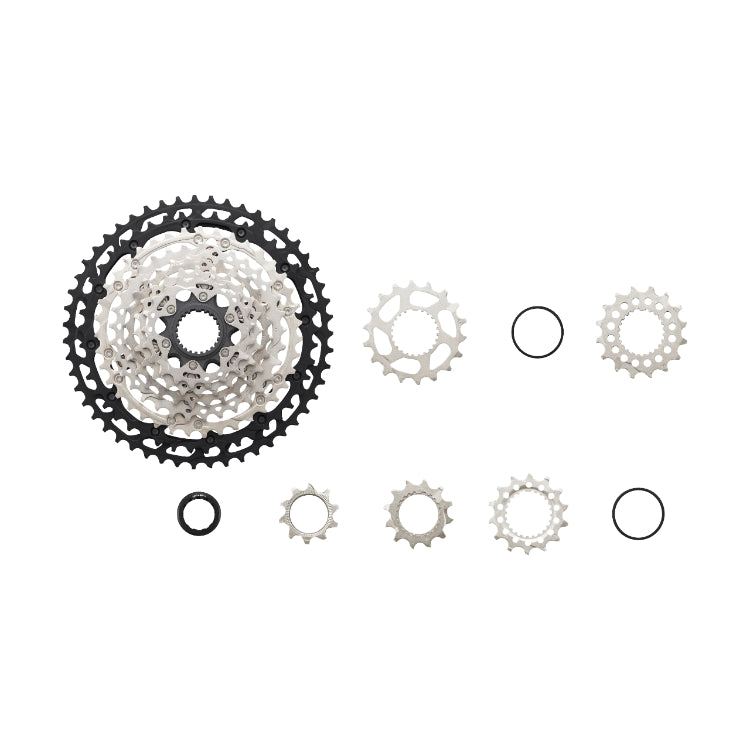

Steel and Aluminium Sprocket Construction
The ten smaller sprockets are steel because these gears experience frequent use and concentrated chain loads. Steel offers excellent wear resistance and is well suited to muddy, dusty and high-torque mountain bike riding.
The two largest sprockets are aluminium. These climbing gears are physically much larger, so changing them from steel to aluminium produces a meaningful weight saving. Aluminium sprockets generally wear faster than steel when exposed to a stretched or contaminated chain, making regular drivetrain maintenance particularly important.
