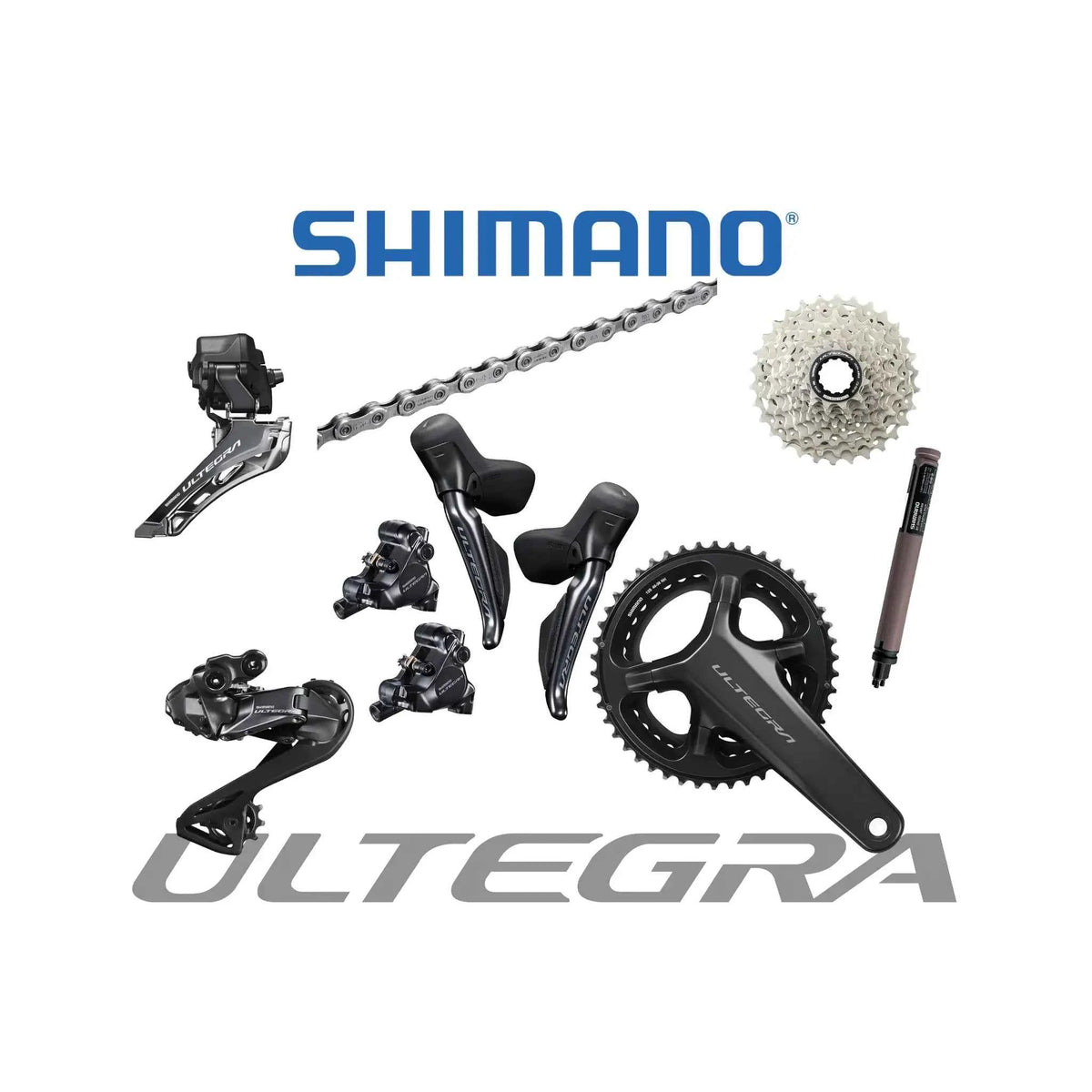

Shimano Ultegra R8100 Di2 12-Speed Groupset Builder

$494.97 AUD

Taxes included. Shipping calculated at checkout.

The Shimano Ultegra R8100 Groupset combines exceptionally fast 12-speed Di2 shifting, refined hydraulic disc braking and near-flagship performance at a more attainable price, making it a compelling upgrade for Australian road racing, endurance events, fast bunch rides and demanding climbs.

Key Shimano Ultegra R8100 Groupset Features

Semi-wireless 2x12-speed Di2 shifting delivers rapid, accurate gear changes with a clean, uncluttered cockpit.
Hyperglide+ cassette technology supports smooth upshifts and downshifts, including changes made under firm pedalling loads.
Servo Wave hydraulic braking provides powerful initial pad engagement, controlled modulation and dependable descending performance.
Customisable shift controls, synchronised shifting, firmware updates and system diagnostics are available through Shimano E-Tube Project Cyclist.
Available with versatile crank, cassette and optional dual-sided power meter configurations for training, racing and endurance cycling.

(more details...)

General groupset specifications

Series: Shimano Ultegra R8100
Drivetrain configuration: 2x12-speed
Shifting system: Shimano Di2 electronic
Control communication: Wireless from the shift levers
Derailleur power supply: Shared internal rechargeable battery
Brake type: Hydraulic disc
Brake mounting: Flat Mount
Brake fluid: Shimano mineral oil
Crank system: Hollowtech II
Crank axle diameter: 24mm
Cassette interface: Shimano road HG
Compatible chain: Shimano 12-speed HG
Crank lengths: 160mm, 165mm, 170mm, 172.5mm and 175mm
Standard chainrings: 50-34T or 52-36T
Additional crankset option: 46-36T
Cassette options: 11-30T or 11-34T
Common rotor sizes: 140mm and 160mm
App support: Shimano E-Tube Project Cyclist
Bike-computer communication: ANT private network and compatible Bluetooth functions
Primary colour: Black

Di2 electronic shifting

The Shimano Ultegra R8100 Groupset uses wireless communication between the shift controls and rear derailleur. The front and rear derailleurs receive power from a shared BT-DN300 battery through compact SD300 wires.

This semi-wireless layout removes electronic shift wiring from the handlebar area while retaining a high-capacity central battery. It is particularly beneficial for modern internally routed road frames and integrated handlebar systems.

The rear derailleur acts as the central control unit and incorporates:

Wireless shift receiver
Charging connection
System status indicator
Pairing and adjustment button
Bluetooth connectivity
Compatible ANT communication
Firmware management
Rear shifting micro-adjustment

Hyperglide+

Hyperglide+ uses shaped cassette teeth, carefully positioned shift ramps and a compatible 12-speed chain to support controlled movement between sprockets.

A major benefit is the ability to shift while maintaining more pedal pressure than would normally be advisable with a conventional road drivetrain. This is useful during accelerations, rolling climbs and situations where briefly reducing power could interrupt momentum. Shimano promotes Hyperglide+ as a premium technology for secure shifting both up and down the cassette. [bike.shimano.com]

Servo Wave braking

Servo Wave changes the relationship between lever movement and caliper-piston travel. The pads initially approach the rotor quickly, after which the system provides greater control as braking pressure increases.

Practical benefits include:

Rapid pad engagement
Strong braking with limited lever movement
Controlled modulation
Confident one-finger braking
Improved access to braking power from the hoods
Consistent control on long or technical descents

Wider brake-pad clearance

The Ultegra BR-R8170 brake calipers provide increased clearance between the pads and rotor compared with the preceding generation. This reduces the chance of intermittent scraping caused by rotor heat expansion, minor wheel-position differences or slight rotor movement.

Ice Technologies

Compatible Shimano Ice Technologies rotors use stainless steel braking surfaces surrounding an aluminium core. Aluminium conducts heat away from the braking track more rapidly than a conventional solid-steel rotor.

When paired with compatible finned brake pads, the system improves temperature control during repeated braking and long descents.

Hollowtech II

The Shimano Ultegra FC-R8100 Crankset combines hollow forged aluminium arms with an integrated 24mm steel axle. External bottom bracket bearings create a broad support stance for efficient power transfer and stable rotation.

The Shimano Ultegra R8100 Crankset is available in:

160mm
165mm
170mm
172.5mm
175mm

Shorter cranks can reduce hip and knee flexion at the top of the pedal stroke, increase pedal clearance and make it easier to maintain an aerodynamic position. They may benefit smaller riders, cyclists with restricted hip mobility and riders who prefer a higher cadence.

Longer cranks may suit riders whose existing bike fit and pedalling style favour additional leverage. Rider height alone should not determine crank length. Leg proportions, mobility, saddle position, cadence and riding position should also be considered.

Changing crank length may require a corresponding saddle-height adjustment and a broader professional bike-fit review.

Crankset measurements

Chainline: 44.5mm
Q-factor: 148mm
Axle diameter: 24mm
Pitch circle diameter: 110mm
Chainring arms: Four
Pedal thread: 9/16 inch
Threaded bottom bracket compatibility: 68mm BSA or 70mm Italian with the correct bottom bracket
Press-fit compatibility: Determined by the frame and selected 24mm bottom bracket

Control fit

Handlebar clamp diameter: 23.8mm to 24.2mm
Lever reach adjustment: Yes
Free-stroke adjustment: Yes
Additional programmable hood button: Yes
Satellite shifter compatibility: Yes
Control batteries: Two CR1632 batteries per lever
Common claimed control-battery life: Several years under normal use

Brake fit

Caliper type: Two-piston hydraulic
Mounting: Flat Mount
Fluid: Shimano mineral oil
Common front rotor: 160mm
Common rear rotor: 140mm or 160mm
Recommended hilly-terrain setup: 160mm front and rear where approved
Common lightweight race setup: 160mm front and 140mm rear

The Shimano Ultegra R8100 Groupset is best suited to serious Australian road cyclists who want professional-level electronic shifting and braking without paying the full premium attached to Dura-Ace. Its rapid Di2 operation is ideal for road racing, criteriums, fast bunch rides, triathlon training and long gran fondos, while the 50-34T crankset and 11-34T cassette provide sensible gearing for steep suburban roads.

Bikerumor published a long-term Shimano Ultegra R8100 review on 24 January 2024 after approximately two years of use. Reviewer Tyler Benedict reported that the groupset continued to provide flawless shifting, smooth operation and quiet running.

TOUR tested Shimano Ultegra R8100 in laboratory and real-world conditions in a review published on 17 March 2022. The publication regarded Ultegra as a technically advanced, durable and comparatively attainable alternative to Dura-Ace.
