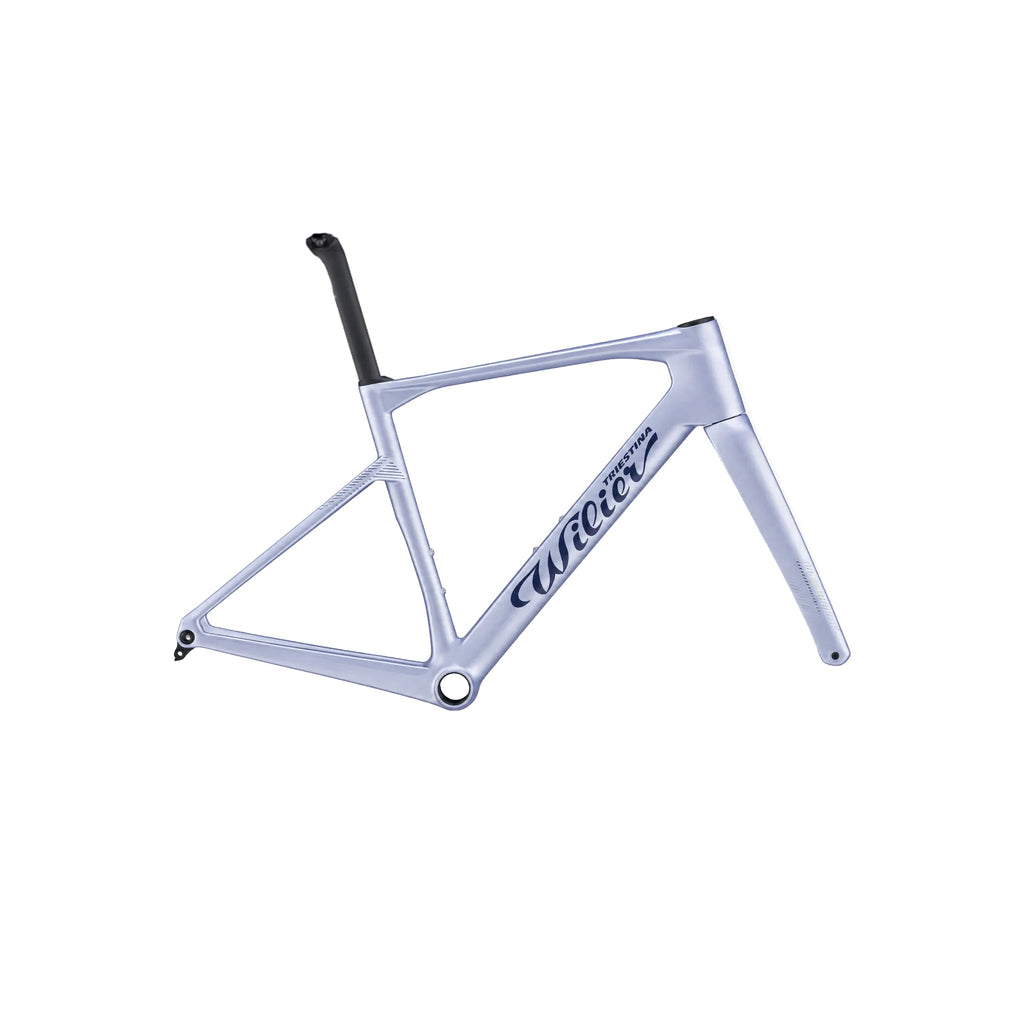

NH-MOD carbon frame
The Wilier Rapida uses an NH-MOD monocoque carbon frame and matching carbon fork. A monocoque structure allows Wilier to control tube shapes, material placement and junction reinforcement throughout the chassis, creating an appropriate balance of stiffness, durability and low weight.
The frame is designed to remain responsive under acceleration while offering a more accessible position than Wilier’s pure competition models. It is not simply an endurance frame with race-style graphics; its proportions and aerodynamic details give it a genuine performance-road character.
NACA-inspired aerodynamic shaping
The frame, fork and seatpost use NACA-inspired airfoil profiles to manage airflow around the bicycle. These broad, truncated shapes seek to improve aerodynamic efficiency without relying on extremely narrow tube sections that could compromise stiffness or practicality.
The aerodynamic benefit is most relevant during fast bunch rides, rolling road races, triathlon training and sustained riding on exposed Australian roads. Real-world performance remains affected by rider position, clothing, bottle placement and wheel and tyre selection.

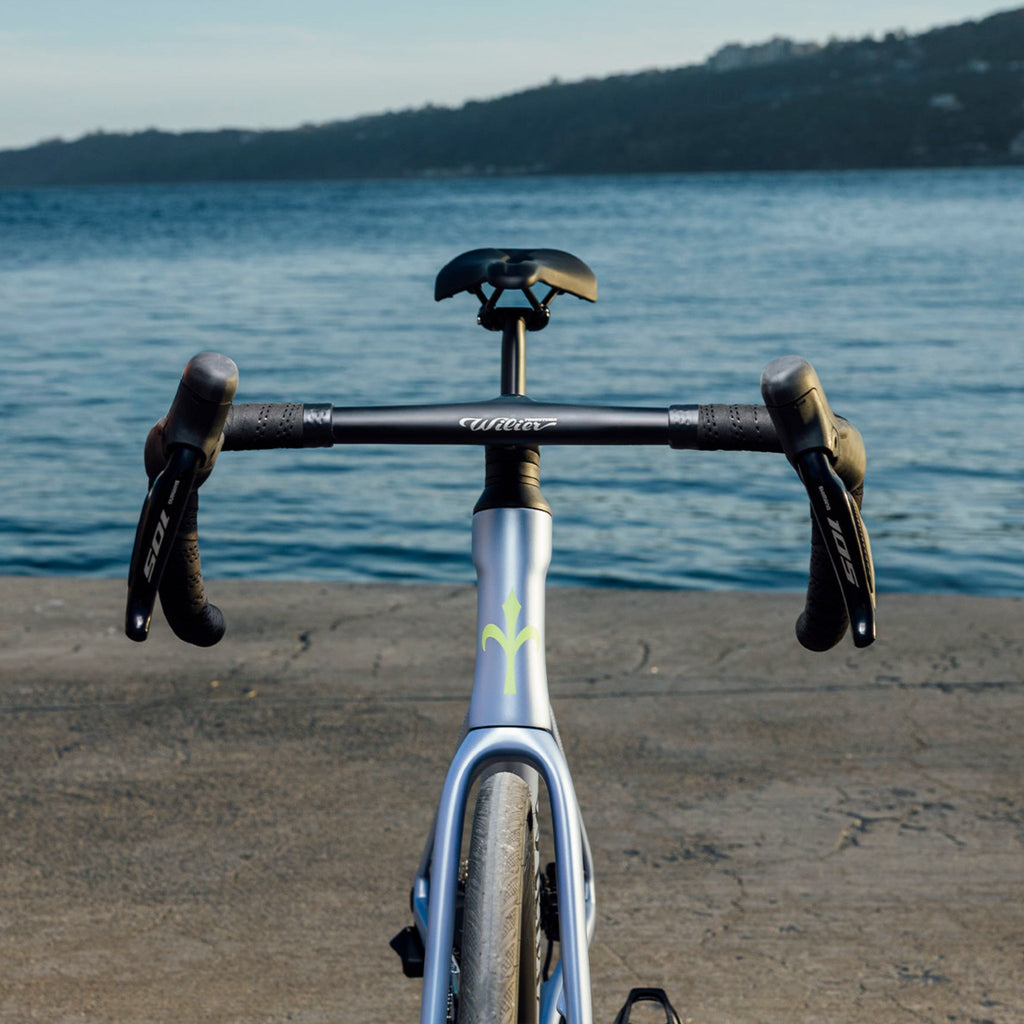

Fully integrated carbon cockpit
Brake hoses and electronic shift wiring are concealed through the monocoque carbon handlebar and frame. This gives the front of the bicycle a clean appearance while reducing exposed cabling in the airflow.
The integrated cockpit also produces a direct steering feel and completes the Rapida’s premium appearance. However, changing stem length, handlebar width or front-end height is more involved than it would be with a conventional separate bar and stem.
A professional bike fit is strongly recommended before cutting the steerer or making permanent changes to the integrated system.
Balanced race and endurance geometry
Wilier positions the Rapida between its dedicated racing and endurance platforms. The front end becomes progressively taller relative to reach as the frame sizes increase, maintaining a sporty but manageable position across the range.
This makes the bike appropriate for riders who want responsive road-bike handling without adopting an extreme professional racing position. It also leaves greater scope for longer rides, gran fondos and regular club training.
36mm tyre clearance
Clearance for tyres up to 36mm gives the Wilier Rapida more versatility than a traditional narrow-clearance race bike. Riders can use fast 28-30mm tyres for smooth-road performance, 30-32mm tyres for balanced everyday riding, or wider compatible tyres for rough bitumen and hard-packed unsealed roads.
Actual tyre width can vary significantly between brands and rim widths. A tyre labelled 36C may measure wider when installed, so adequate frame, fork and front derailleur clearance must be confirmed.
Universal Derailleur Hanger
The UDH rear dropout simplifies replacement and broadens compatibility with modern drivetrain developments. Replacement UDH parts are increasingly available through Australian bicycle shops, which can make crash repairs or travel preparation more straightforward than sourcing a model-specific hanger.
The removable front derailleur support enables both 1x and 2x drivetrain configurations. Although the Shimano 105 Di2 model is supplied as a 2x12-speed road bike, the adaptable frame platform supports future customisation.
Press Fit 86.5mm bottom bracket
The Press Fit 86.5mm shell provides a broad junction around the crank and down tube, supporting efficient power transfer. Correct preparation and installation are important to prevent noise or premature bearing wear.
A bicycle workshop should inspect the shell, fit the correct bearing system and use installation procedures suitable for the frame and crankset.

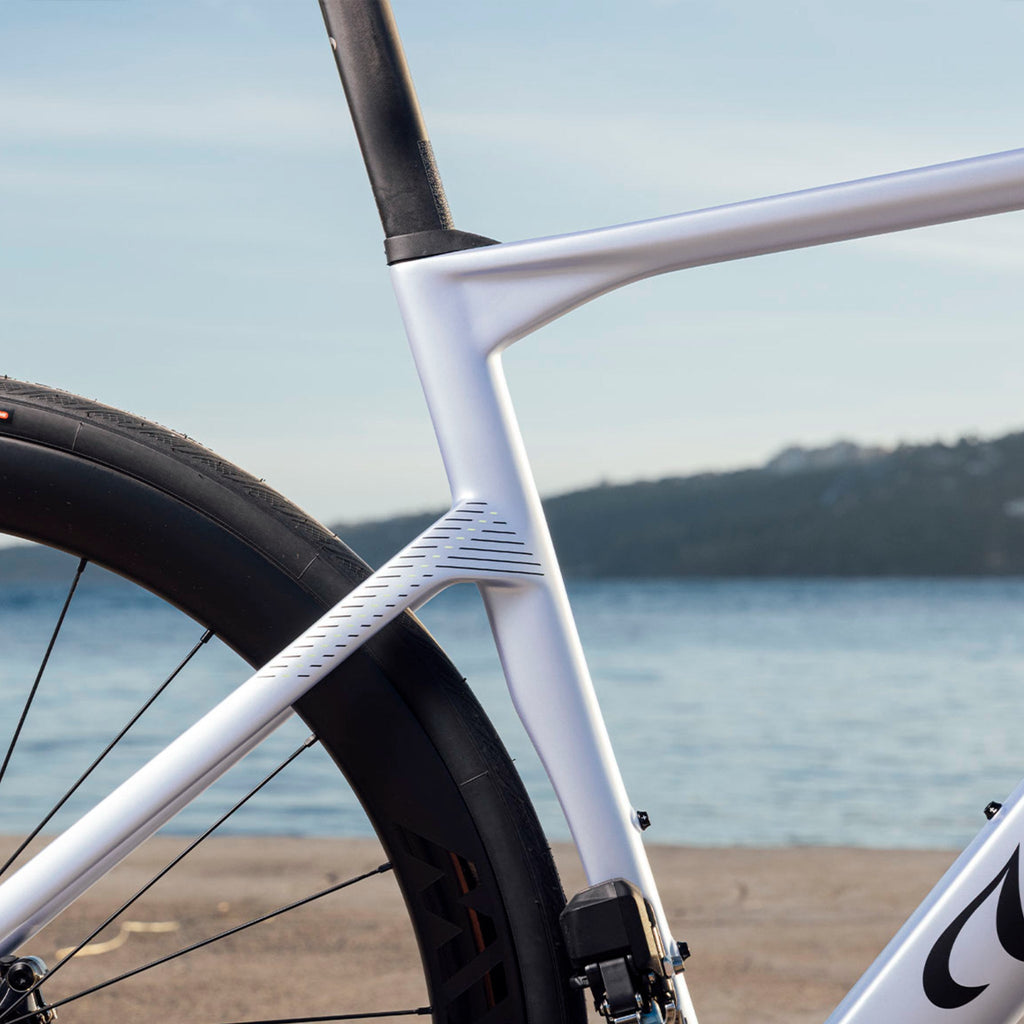

Carbon seatpost and concealed clamp
The custom carbon seatpost continues the frame’s aerodynamic profile and uses a concealed integrated clamp. This maintains the bike’s clean appearance while allowing conventional saddle-height adjustment.
