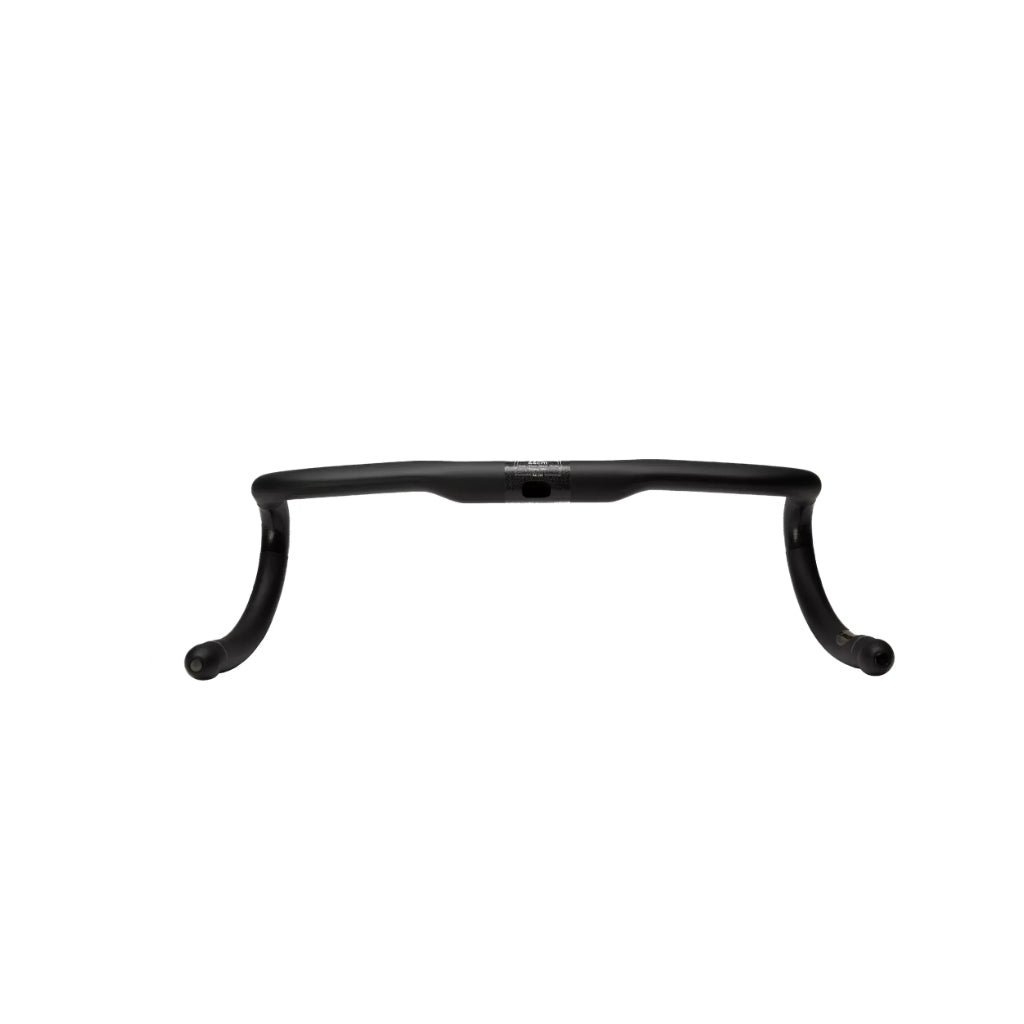

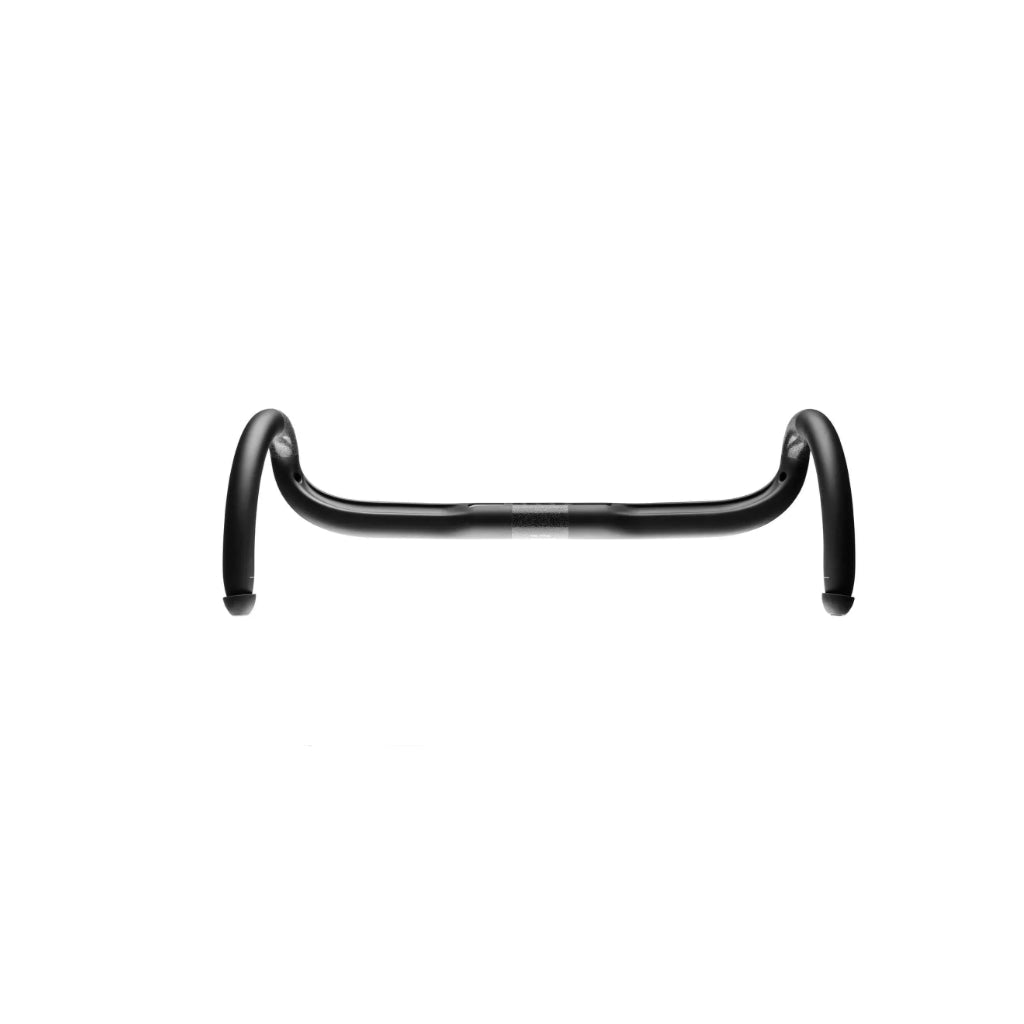

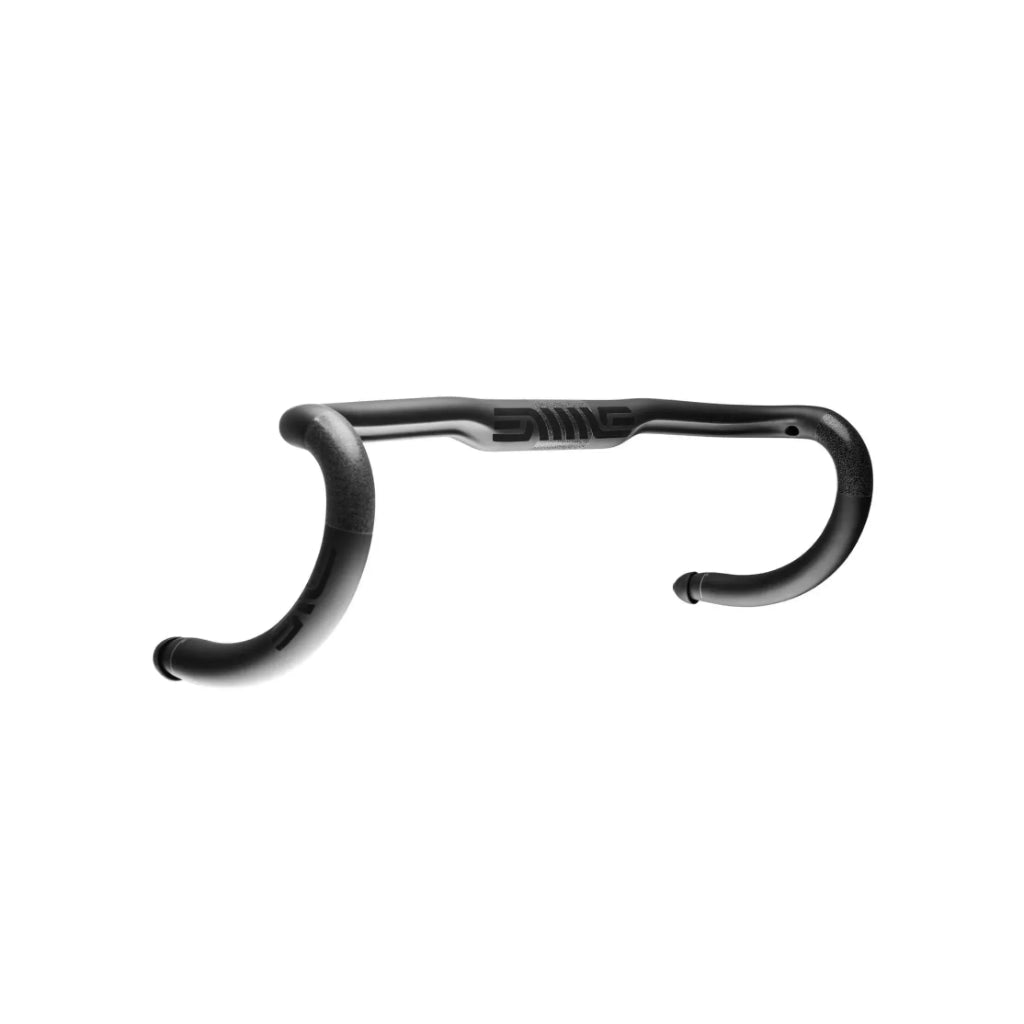

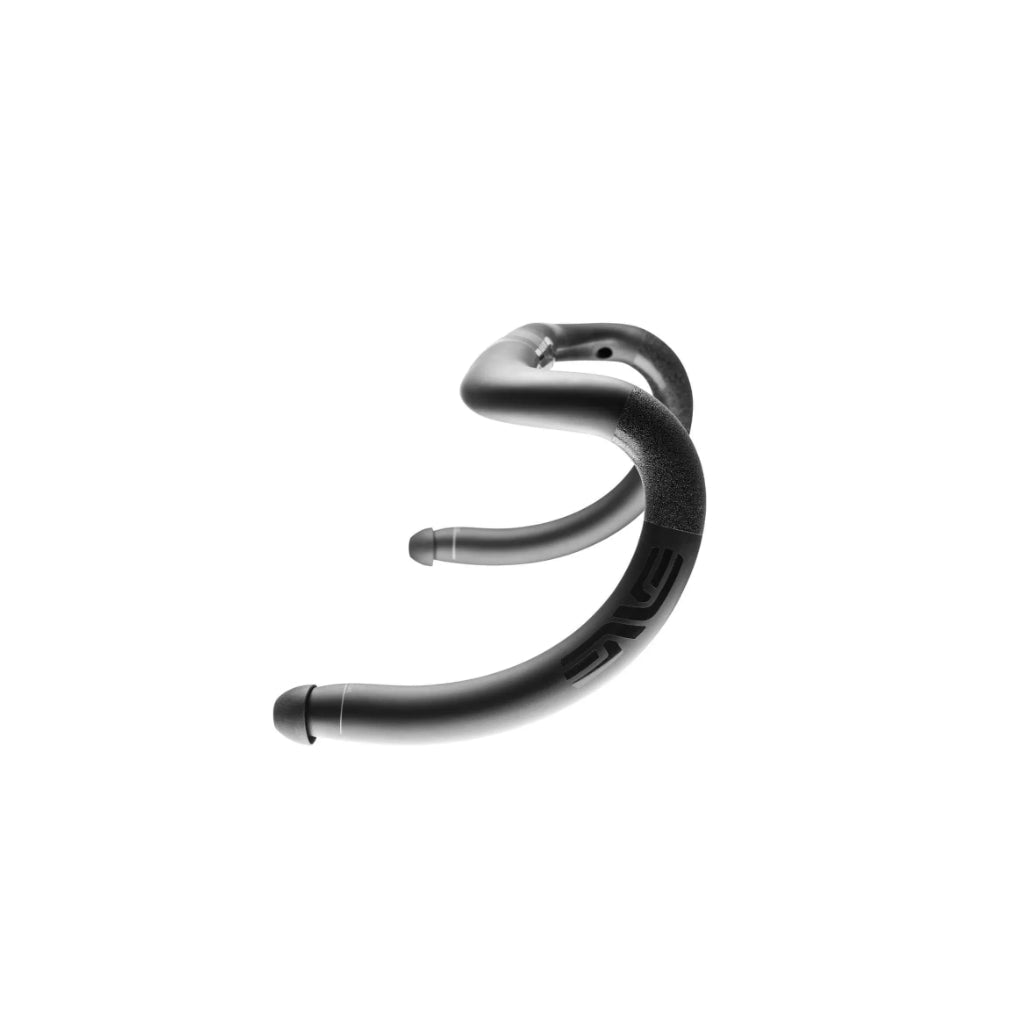

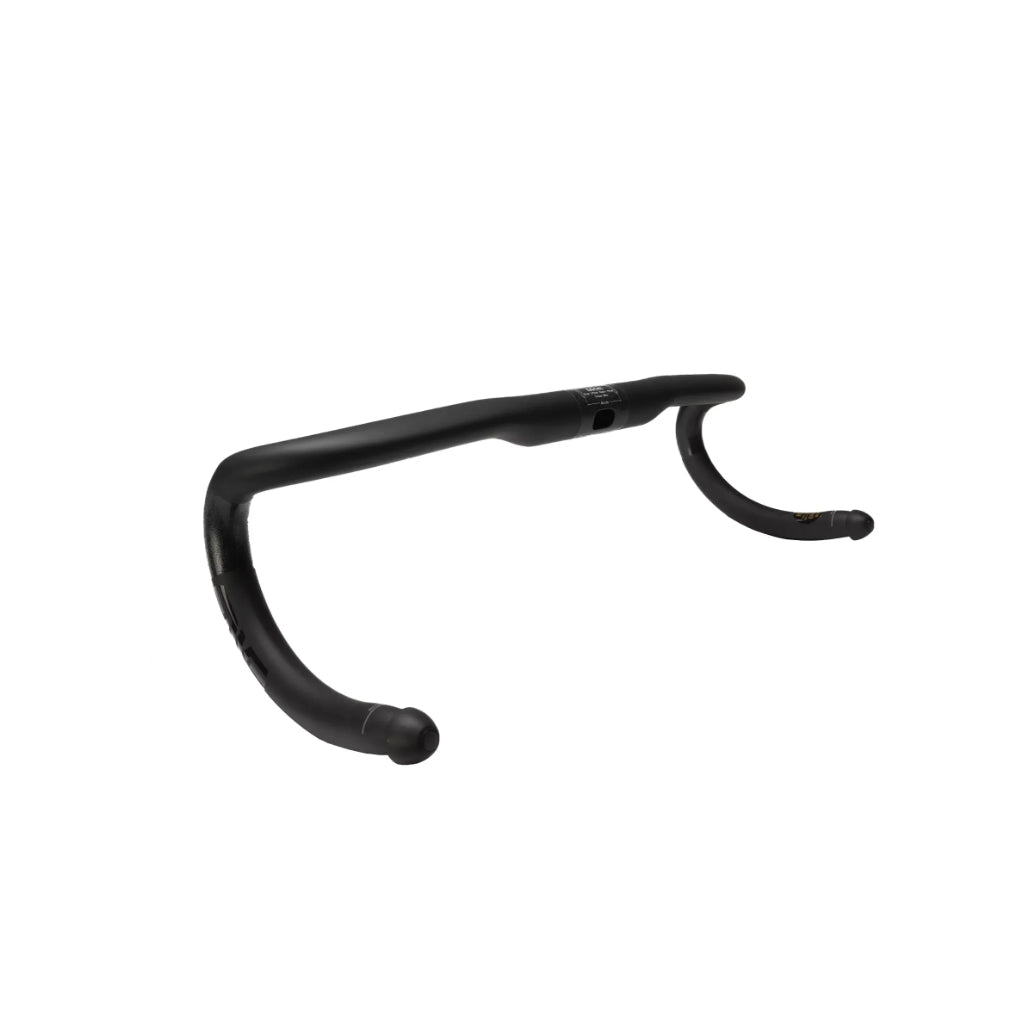

ENVE Compact Road IN-Route Carbon Handlebar

Name: ENVE Compact Road IN-Route Carbon Handlebar
Brand: ENVE
Price: 884.0 CAD
Availability: InStock

$884.00 CAD

The ENVE Compact Road IN-Route Carbon Handlebar is a lightweight premium road bike upgrade that combines accessible compact geometry, refined vibration damping and modern internal cable routing for greater comfort and control on Australian city streets, country roads and long-distance cycling routes.

ENVE Compact Road IN-Route Carbon Handlebar Features

Short 79 mm reach and shallow 127 mm drop make the hoods and lower riding position easier to access.
Lightweight carbon construction starts at a manufacturer-claimed 212 g.
ENVE IN-Route ports support clean internal brake hose and electronic shifting integration on compatible bikes.
Hood-to-drop shaping places the drops 20 mm wider than the hoods for additional descending and sprinting control.
Five sizes manufactured from 380 to 460 mm provide practical options for professional bike fitting and custom road bike builds (please check local/current stock and ETA)

(more product details...)

loading inventory data..

Ride Now, Pay Later? Yes it's Possible!

We want You to fuel your cycling passion now, not later, so with the help of our partners, we offer flexible payments terms including 4 interest-free installments (Afterpay or Paypal) or over 6, 12 or even up to 24 month repayments (Afterpay, Shop Instalments or ZIP).
Eligibility, T&Cs and minimum order value conditions may apply.

Earn 0 points on this purchase.

Learn more

More Product Details:

The ENVE Compact Road IN-Route Carbon Handlebar is a separate handlebar designed for use with a compatible 31.8 mm stem. Unlike a one-piece cockpit, it allows the rider to change the stem length and angle without replacing the handlebar, making it easier to refine bike fit over time.

Technical specifications

Intended use: Road cycling, endurance road, racing, general training and light all-road riding
Handlebar type: Compact road drop handlebar
Material: Carbon fibre
Clamp diameter: 31.8 mm
Brake and shift lever mounting diameter: Standard 23.8 mm road control area
Reach: 79 mm
Drop: 127 mm
Hood widths: 380, 400, 420, 440 and 460 mm (check local stock and ETA)
Corresponding drop widths: 400, 420, 440, 460 and 480 mm
Width measurement: Centre-to-centre
Hood-to-drop difference: Drops are 20 mm wider overall
Routing: ENVE IN-Route internal routing plus recessed cable-routing channels
Electronic drivetrain compatibility: Shimano Di2 compatible
Hydraulic brake hose compatibility: Yes, subject to the stem, headset, frame and routing configuration
Mechanical drivetrain compatibility: Routing feasibility depends on the complete bicycle and selected cockpit arrangement
Faceplate torque: 5.5 Nm maximum
Brake and shift control torque: 6 to 8 Nm, subject to the control manufacturer’s lower stated limit
Integrated bar-end plugs: Replaceable bar-end system
Colour: Black
Clip-on aerobar compatibility: Not specified by ENVE, so clip-on extensions should not be fitted unless ENVE confirms compatibility for the exact model and installation
Available in Australia through specialist road bike shops and authorised ENVE retailers

ENVE lists the Compact Road IN-Route Carbon Handlebar as compatible with most internally routed front ends, but full integration is not universal. The stem, headset cover, spacers, fork steerer and frame entry points must provide an approved route for the hoses or wires.

Carbon fibre construction

The ENVE Compact Road IN-Route Carbon Handlebar uses a performance-oriented carbon fibre construction developed to deliver a controlled balance of steering stiffness, low weight and vibration absorption. Its structural design is intended to keep the front of the bike responsive during sprinting and descending while reducing the fine vibration that reaches the rider’s hands on coarse road surfaces.

This balance is particularly useful on Australian chip-seal, where a very rigid cockpit can contribute to hand, wrist and upper-body fatigue during long rides. The handlebar will not replace appropriate tyre pressure, wider road tyres or a correct bike fit, but it can form an effective part of a more comfortable endurance road setup.

Compact bend

The 79 mm reach keeps the brake hoods relatively close to the tops, while the 127 mm drop reduces the vertical movement required to reach the lower position. This makes transitions between the hoods and drops quicker and can help riders maintain a stable, aerodynamic position for longer.

The continuous curve through the drops offers multiple hand positions rather than forcing the rider onto one sharply defined flat section. It also helps keep the brake levers accessible when riding lower on the handlebar.

IN-Route integration

Ports in the handlebar support ENVE’s IN-Route concept, allowing hydraulic hoses and compatible electronic wires to pass from the handlebar towards an integration-compatible stem and headset. When installed as part of a fully compatible system, this creates a cleaner cockpit with fewer exposed lines.

Internal routing can improve appearance and reduce cable clutter, but it also increases installation complexity. Replacing headset bearings, changing stems or travelling with the bike may require brake hose disconnection and a hydraulic brake bleed. Professional bicycle servicing is therefore recommended for a fully concealed installation.

Wider drops

Each version is approximately 20 mm wider at the drops than at the hoods. The difference is moderate compared with a dedicated gravel handlebar, preserving a familiar road position while providing slightly more leverage for sprinting, cornering and descending.

Replaceable bar-end system

ENVE’s built-in bar-end design creates a neat finish and simplifies the beginning and end of the bar-wrapping process. The end pieces are replaceable if damaged, avoiding the need to improvise with incompatible plugs. The integrated end-cap design was one of the practical details praised in professional testing of the Compact Road shape.

Manufactured sizes (check local stock and ETA)

380 mm at the hoods and 400 mm at the drops
400 mm at the hoods and 420 mm at the drops
420 mm at the hoods and 440 mm at the drops
440 mm at the hoods and 460 mm at the drops
460 mm at the hoods and 480 mm at the drops

All published widths are measured centre-to-centre.

The ENVE Compact Road IN-Route Carbon Handlebar is best suited to road cyclists who want a lighter and more comfortable cockpit without surrendering the fit flexibility of a separate stem.

ENVE’s current policy provides a limited lifetime warranty for frames, rims and components purchased by the original owner, subject to proof of purchase and the full warranty conditions. ENVE also lists separate crash-replacement support for components, with different replacement terms according to product age and eligibility.

Verified owner feedback published through ENVE consistently highlights the compact fit, high-quality finish and reduction in fine road vibration. A February 2026 owner using the handlebar on a gravel bike praised its comfort in multiple hand positions and its ability to reduce road and gravel buzz. Another owner reported in June 2024 that vibration absorption was a noticeable benefit and later paired the bar with an ENVE carbon stem to further refine cockpit comfort.

Zipp SL-70 Ergo Carbon Handlebar

The Zipp SL-70 Ergo uses a shorter 70 mm reach, 128 mm drop, 3-degree backsweep and flattened upper section. Its claimed weight is 205 g for a 420 mm size, making it approximately 15 g lighter than the equivalent ENVE.

Compared with the ENVE:

Pros: Shorter reach, lower claimed weight and pronounced backsweep may suit riders seeking a more upright or wrist-friendly position.
Cons: Available only in 400, 420 and 440 mm widths, providing fewer fit options than ENVE.
Best suited to: Endurance riders wanting very short reach and broad, backswept tops.

The Zipp conceals hoses underneath the handlebar rather than offering the same ENVE-specific cockpit integration approach.
