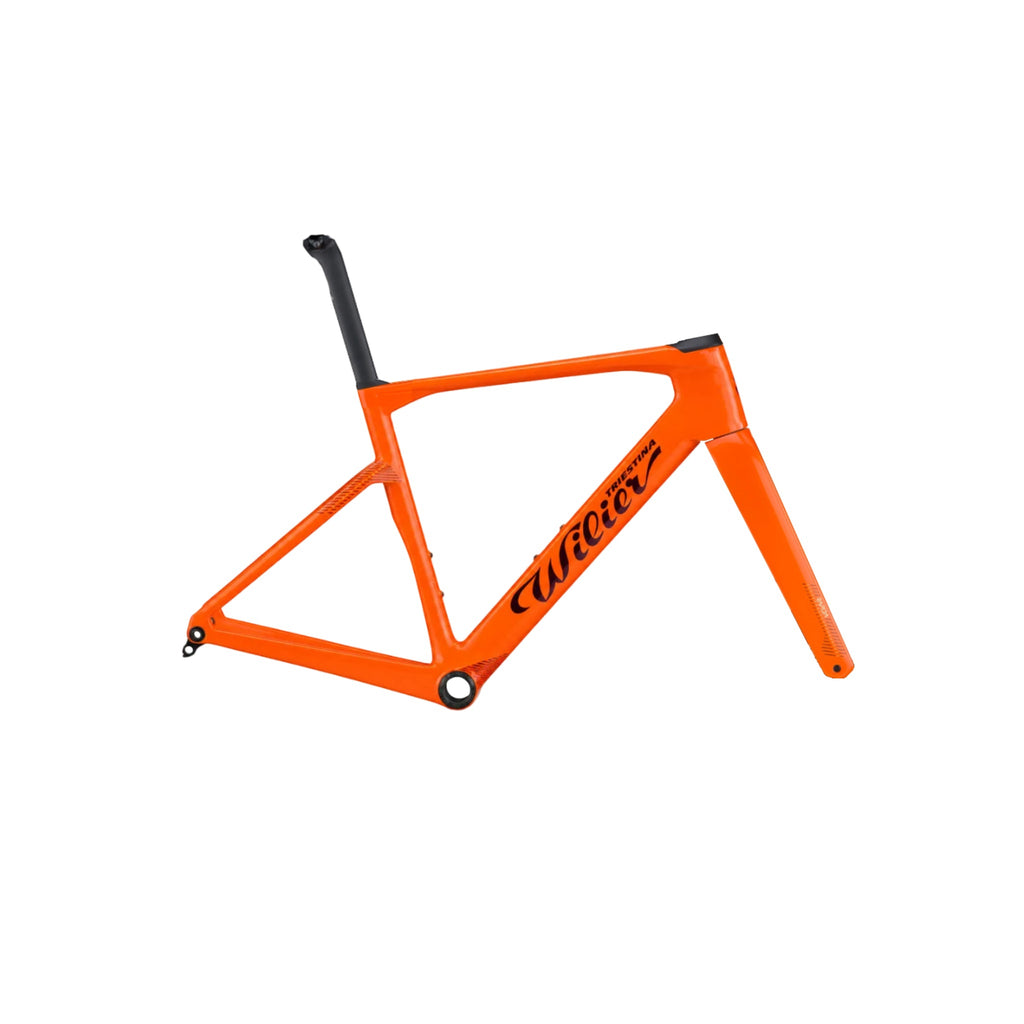

NH-MOD monocoque carbon frame
The Wilier Rapida uses an NH-MOD carbon frame and matching carbon fork produced with monocoque construction. This allows Wilier to control the carbon lay-up and reinforcement around high-load areas such as the head tube, bottom bracket and rear dropouts.
The frame is designed to feel responsive when accelerating or climbing out of the saddle while retaining a more accessible fit than Wilier’s pure competition models. It is not simply an endurance frame with race-style graphics. Its tube shapes, integrated cockpit and handling geometry give it a genuine performance-road identity.
NACA-inspired aerodynamic profiles
The frame, fork and seatpost use NACA-inspired profiles intended to manage airflow efficiently while maintaining the broad structural sections needed for stiffness and stability. These shapes give the Wilier Rapida much of its sculpted appearance and distinguish it from conventional round-tubed endurance bikes.
The aerodynamic value is most relevant during fast bunch rides, long solo efforts and rolling road races where speeds remain high. Rider position, clothing, wheels, tyres and bottle placement will still have a larger influence on total aerodynamic drag than the frame alone. [wilier.com], [bikerumor.com]
Integrated Wilier Z-Bar carbon cockpit
The one-piece Wilier Z-Bar combines the handlebar and stem into a monocoque carbon structure. Brake hoses and electronic wiring are routed internally, leaving the front of the bicycle free from exposed cables.
In addition to giving the bike a clean and premium appearance, the integrated design produces a direct steering connection. The trade-off is that changing handlebar width or effective stem length is more involved and expensive than replacing a conventional stem.
Riders should confirm the supplied cockpit dimensions and complete a professional bike fit before the steerer is cut or the final handlebar height is established.
Balanced race and endurance position
Wilier has placed the Rapida’s stack between its pure racing and endurance families. This allows the rider to maintain an efficient performance position without requiring the extreme flexibility associated with professional-level aero road bikes.
The result is a platform that remains lively during high-tempo riding but is better suited to long-distance Australian cycling events, recreational racing and consecutive training days. The increasing stack-to-reach ratio through the size range also helps preserve an appropriate fit for taller riders. [wilier.com], [cyclonline.com], [cyclonline.com]
Clearance for tyres up to 36mm
Maximum nominal tyre clearance of 36mm makes the Wilier Rapida more adaptable than a traditional narrow-clearance race bike. Riders can use relatively light 28-30mm tyres for smoother roads, 30-32mm tyres for everyday performance or larger-volume tyres for broken bitumen and firm unsealed routes.
Actual tyre width varies with rim width, pressure and casing design. A tyre marked 36C may measure wider once fitted, so clearance should be physically checked around the fork, chainstays, seatstays and front derailleur.
The clearance supports light all-road use, but the Wilier Rapida is not intended to replace a dedicated gravel bike on rocky trails, deep sand or heavily corrugated tracks.
Universal Derailleur Hanger
The Universal Derailleur Hanger improves replacement availability after a crash or drivetrain impact. UDH components are widely used across modern bicycles and can be easier to source from Australian bike shops than a model-specific hanger.
The removable front derailleur support permits both 1x and 2x drivetrain configurations. The supplied Shimano 105 Di2 drivetrain remains the most versatile road-oriented setup, but the adaptable frame standard creates more options for future custom builds. [wilier.com], [bikepartpicker.net]
Shimano 105 Di2 electronic shifting
Shimano 105 Di2 provides accurate shifting with minimal lever effort. The electronic front derailleur automatically manages trim, while the rear derailleur moves consistently across the 12-speed cassette without relying on mechanical shift-cable tension.
The 50/34T chainrings and 11-34T cassette produce a one-to-one lowest gear, making the bike more manageable on steep Australian climbs than a traditional race setup. The gearing still retains sufficient high-speed range for fast bunch rides and descending.
Hydraulic disc braking
Shimano 105 hydraulic brakes provide consistent power and useful modulation in dry or wet conditions. The 160mm front rotor offers greater leverage and heat capacity at the wheel that handles most braking force, while the 140mm rear rotor controls weight and provides appropriate rear-wheel braking.
Shimano mineral oil is widely supported by Australian bicycle workshops, which simplifies routine brake bleeding and replacement-parts sourcing.
Press Fit 86.5mm bottom bracket
The Press Fit 86.5mm shell creates a broad junction between the down tube, seat tube and chainstays. This gives the frame sufficient space for stiffness around the crank area without requiring an oversized threaded shell.
