NH-MOD Carbon Monocoque Construction

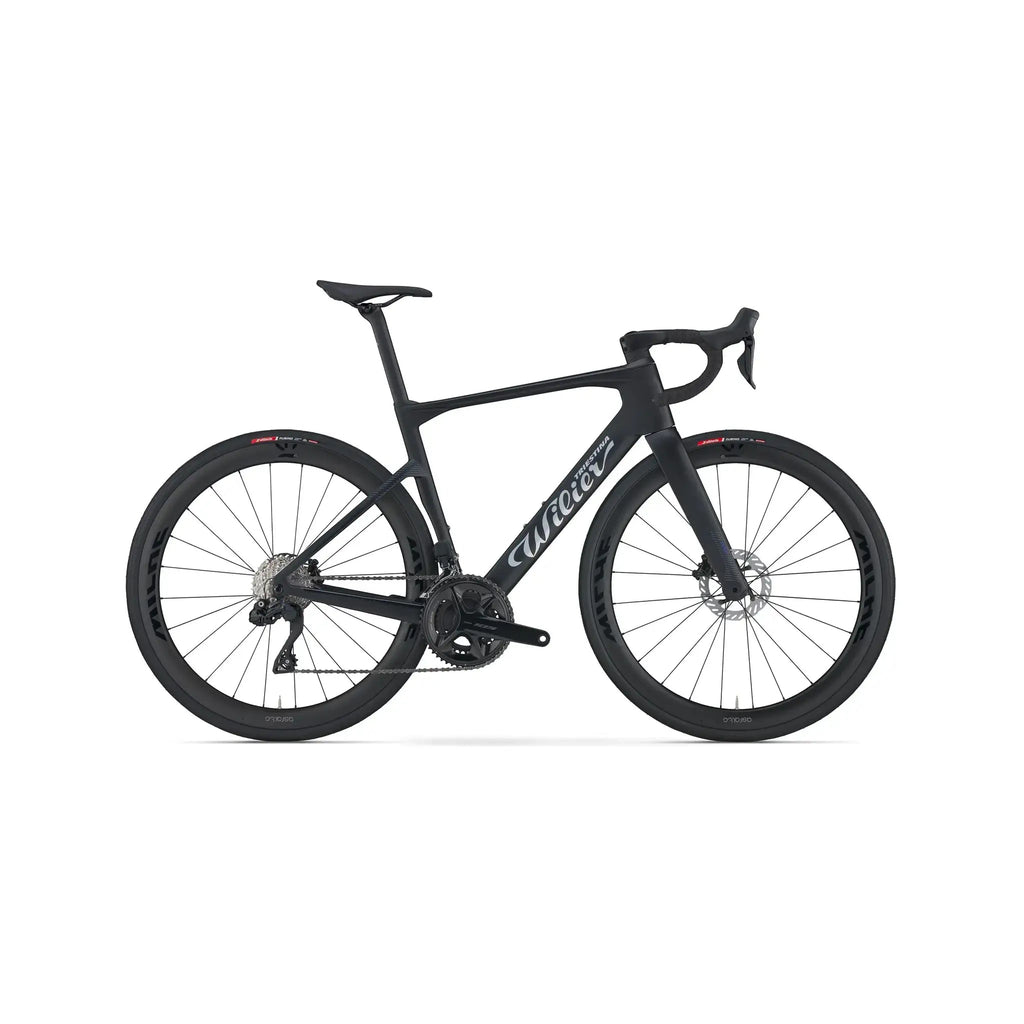

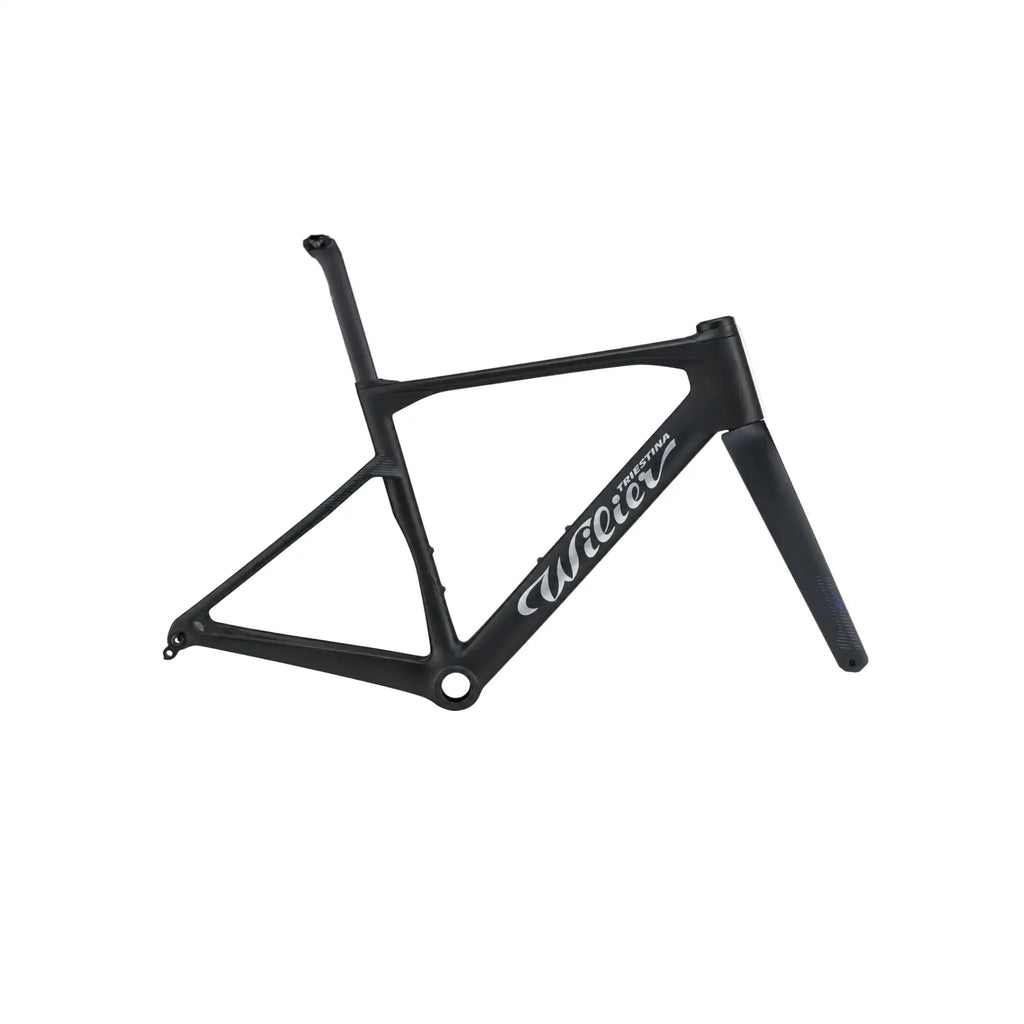

The Wilier Rapida uses an NH-MOD carbon monocoque frame with a matching carbon fork. This construction allows Wilier to vary the carbon lay-up around different areas of the chassis, reinforcing sections exposed to high pedalling, steering and braking loads while controlling weight elsewhere.

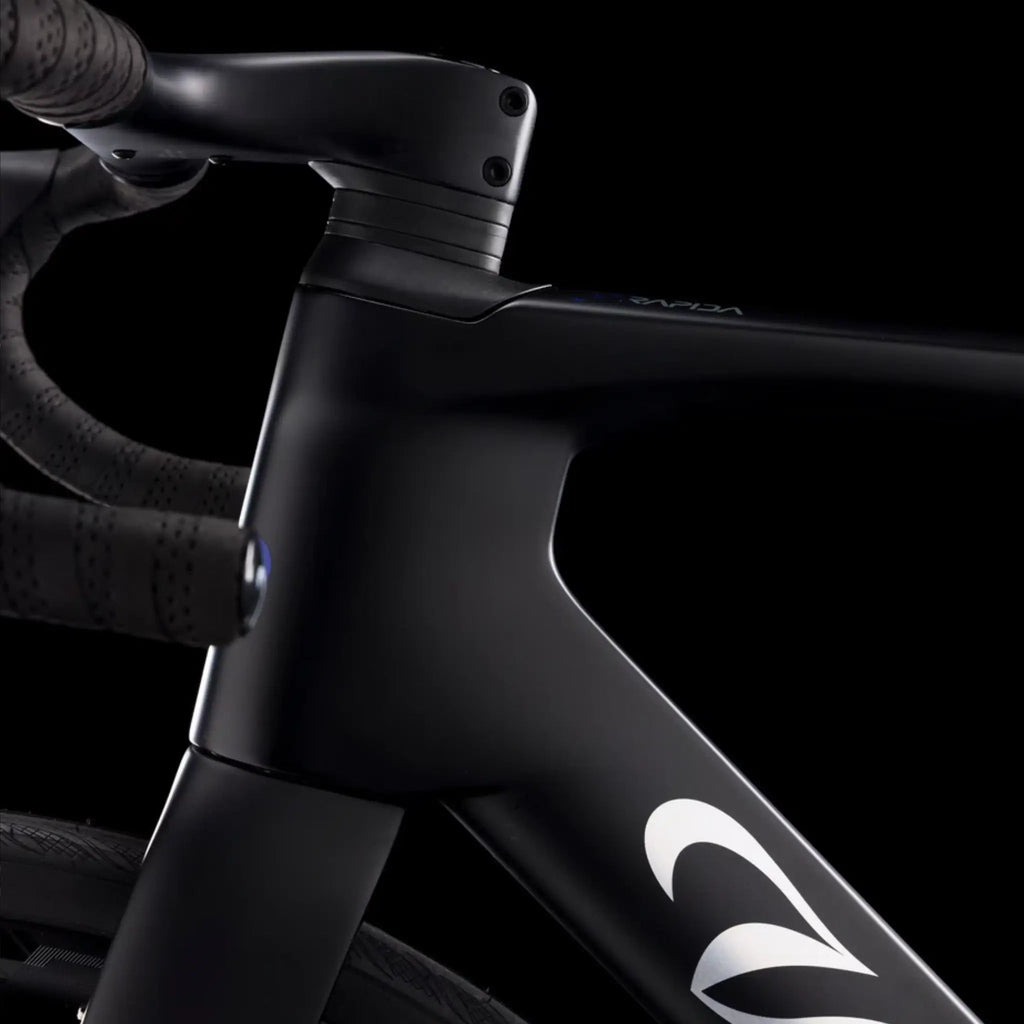

The head tube and bottom bracket areas are designed to provide a direct response when accelerating, climbing or cornering. At the same time, the overall frame concept is intended to offer a more manageable ride than Wilier’s most uncompromising competition models.
Aerodynamic Frame Profiles

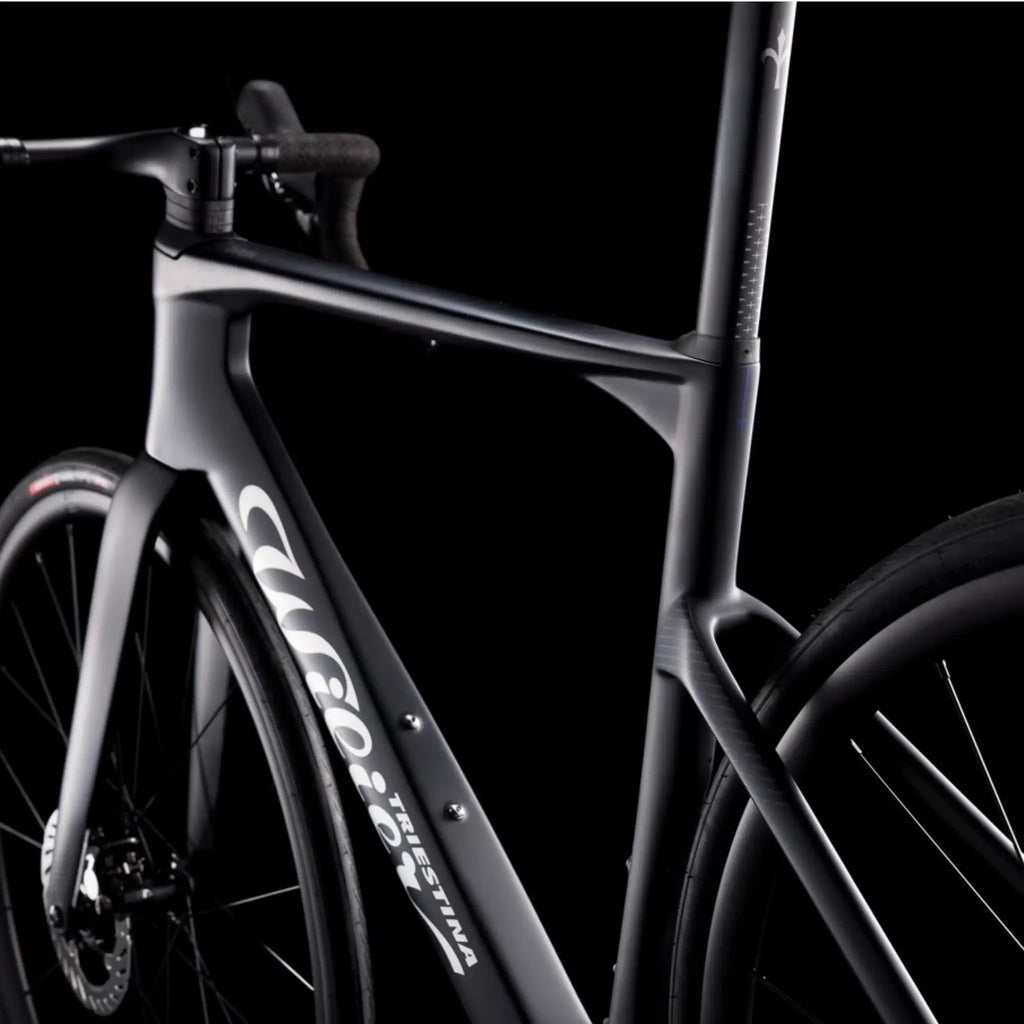

The frame, fork and proprietary carbon seatpost feature truncated aerodynamic profiles influenced by NACA airfoil principles. These shapes are designed to manage airflow while retaining sufficient tube width for structural stiffness and predictable handling.
The aerodynamic advantages are most relevant on fast bunch rides, rolling road races and sustained solo efforts. Rider position, clothing, wheels and tyres will continue to have a major influence on total aerodynamic performance.
Integrated Carbon Cockpit
The one-piece carbon cockpit combines the handlebar and stem while concealing the brake hoses and electronic wiring. This creates a clean front end with no exposed cables interfering with the bike’s streamlined appearance.
The rigid carbon construction also promotes direct steering response. However, changing the handlebar width or effective stem length is more involved than replacing separate components on a conventional cockpit.
A professional bike fit is recommended before the steerer is cut or a permanent cockpit position is established.
Balanced Performance Geometry
The Wilier Rapida combines the responsive character of a performance road bike with a less extreme front-end position than a dedicated aero racing platform. This makes it easier to maintain an efficient riding position during longer training sessions and endurance events.
The geometry is suitable for cyclists who want fast handling and an aerodynamic posture without placing excessive demands on neck, shoulder or lower-back flexibility.
Clearance for Tyres up to 36mm

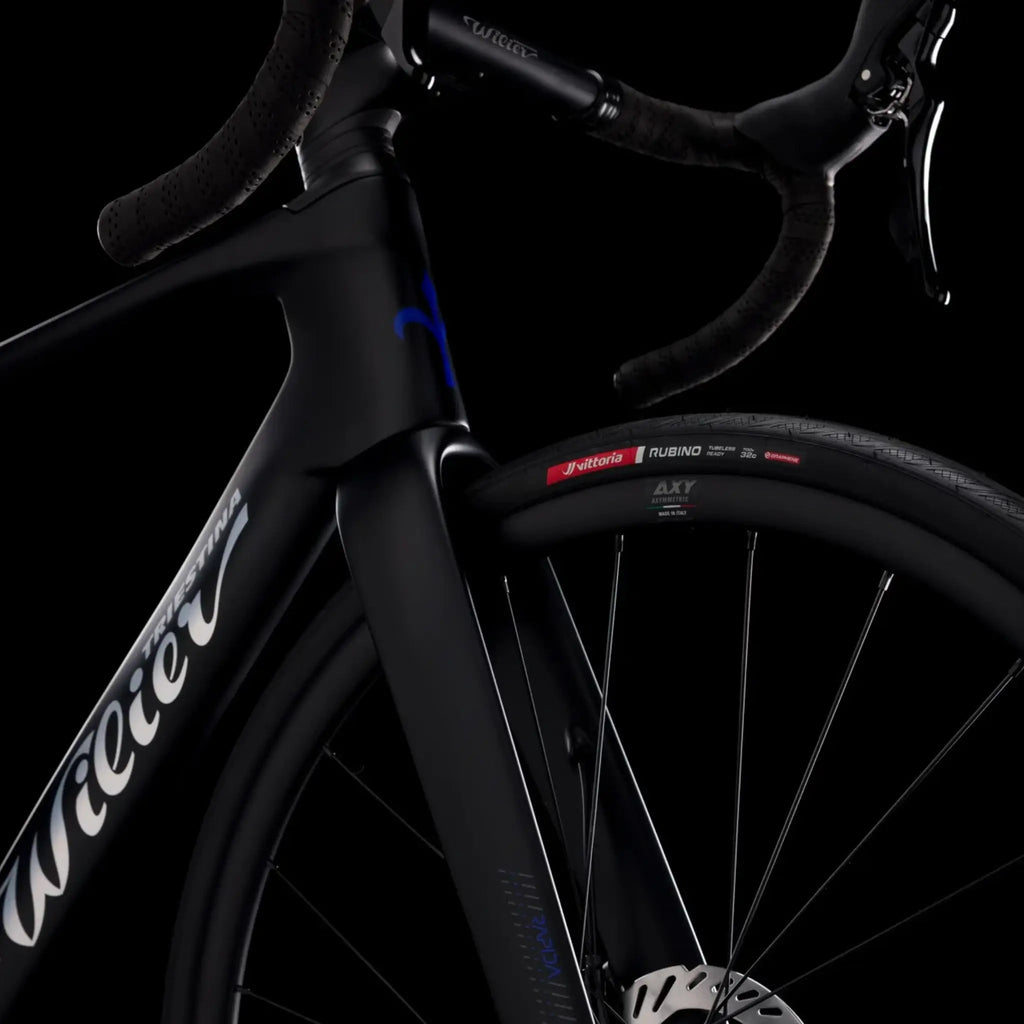

The ability to accommodate tyres up to a nominal 36mm gives the Wilier Rapida greater versatility than a conventional narrow-clearance race bike.
Riders can choose 28-30mm tyres for smooth-road speed, retain the standard 32mm tyres for balanced everyday performance or install wider compatible tyres for coarse bitumen and firm unsealed roads.
Actual tyre width depends on casing construction, rim width and inflation pressure. A tyre marked as 36C may measure wider after installation, so physical clearance must always be checked around the fork, chainstays, seatstays and front derailleur.
Universal Derailleur Hanger
The Universal Derailleur Hanger simplifies replacement after a drivetrain impact. UDH parts are increasingly common and are generally easier to source from Australian bicycle shops than a model-specific hanger.
The removable front derailleur support also permits 1x and 2x drivetrain configurations. The standard Shimano 105 Di2 2x12-speed system remains the most versatile choice for road riding, but the adaptable frame creates additional options for future customisation.
Shimano 105 Di2 Electronic Shifting
Shimano 105 Di2 delivers fast, accurate gear changes with minimal lever effort. The electronic front derailleur manages trim automatically, while the rear derailleur shifts consistently without relying on mechanical cable tension.
The compact 50/34T chainrings and 11-34T cassette provide a one-to-one lowest gear. This is particularly useful on steep Australian climbs while retaining enough high-speed range for racing, fast bunch rides and descending.
Hydraulic Disc Braking
Shimano 105 hydraulic disc brakes provide progressive power and dependable modulation in dry and wet conditions. The 160mm front rotor provides additional braking leverage and heat capacity, while the 140mm rear rotor balances control and weight.
Shimano mineral oil, replacement pads and compatible rotors are widely available through Australian bicycle shops, making the braking system practical to service over the long term.
Press Fit Bottom Bracket
The Press Fit 86.5mm shell creates a broad junction around the crank area, supporting efficient power transfer through the down tube, seat tube and chainstays.
Correct bearing installation remains important. Persistent creaking, rough bearing movement or lateral crank play should be inspected by a qualified bicycle mechanic rather than addressed by excessive tightening.
Lastlight Black Matt Finish
The Lastlight Black Matt finish gives the Wilier Rapida an understated and purposeful appearance. The dark frame creates a seamless visual relationship between the carbon cockpit, seatpost, wheels and drivetrain.
