Bikone BSA Road Ceramic Aero UAE for Shimano - Pedal Passion

Bikone BSA Road Ceramic Aero UAE for Shimano

Sale price  $599.00 AUD Regular price $658.90 AUD
Taxes included. Shipping calculated at checkout.

The Bikone BSA Road Ceramic Aero UAE for Shimano is a premium lightweight threaded bottom bracket upgrade designed to deliver smoother crank rotation, lower drivetrain friction and refined performance for Shimano-equipped road bikes, race bikes and custom builds in Australian conditions.

Bikone BSA Aero UAE Features

  • Designed for BSA threaded road frames using Shimano 24mm cranksets
  • Ceramic bearings for a smoother, lower-friction drivetrain feel
  • Lightweight Aero cup design for performance-focused road bike builds
  • UAE Edition finish for a premium race-inspired appearance
  • Excellent upgrade for Shimano Dura-Ace, Ultegra and 105 road drivetrains
Pedal Passion is an authorised Bikone dealer, providing local service, support, and warranty for complete peace of mind.

Please note: For Backorder/pre-order product options, allow extra 10-14 days. Reach out to us to check stock levels and availability.

SKU: RACE-INSPIRED
Barcode: 14255275
loading inventory data..

Earn 0 points on this purchase.

Learn more
Key Features & Technical Specifications

Technical Specifications

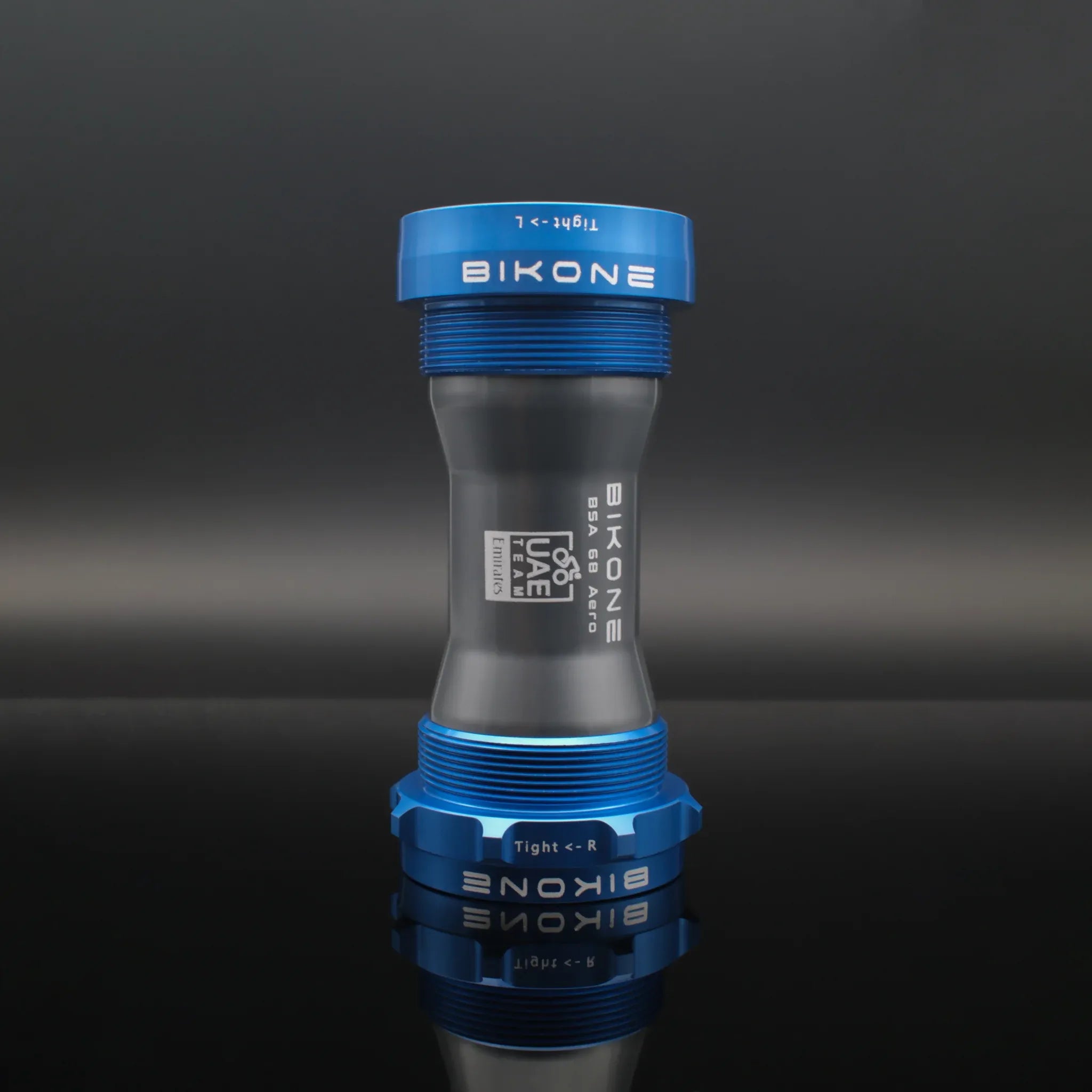

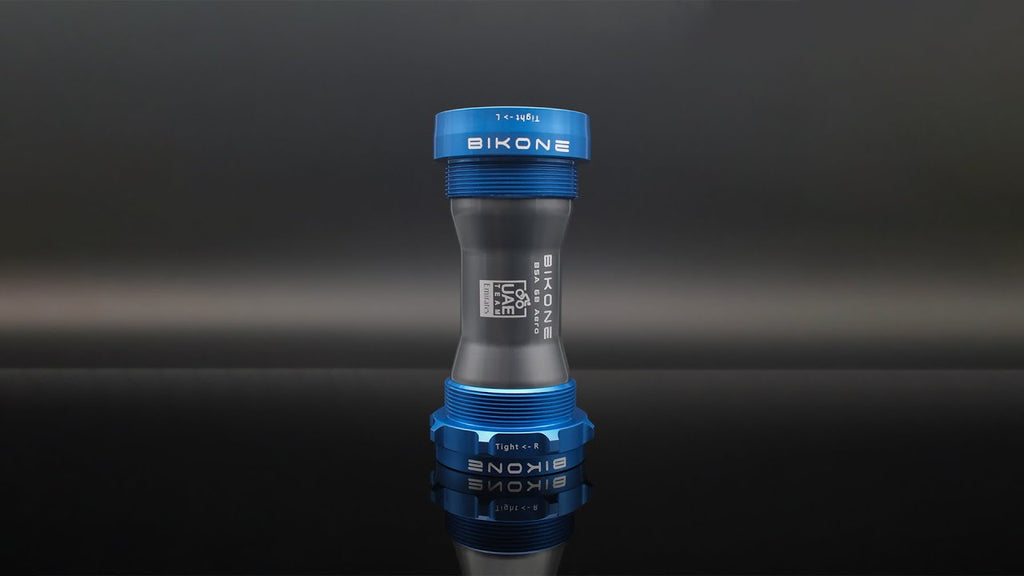

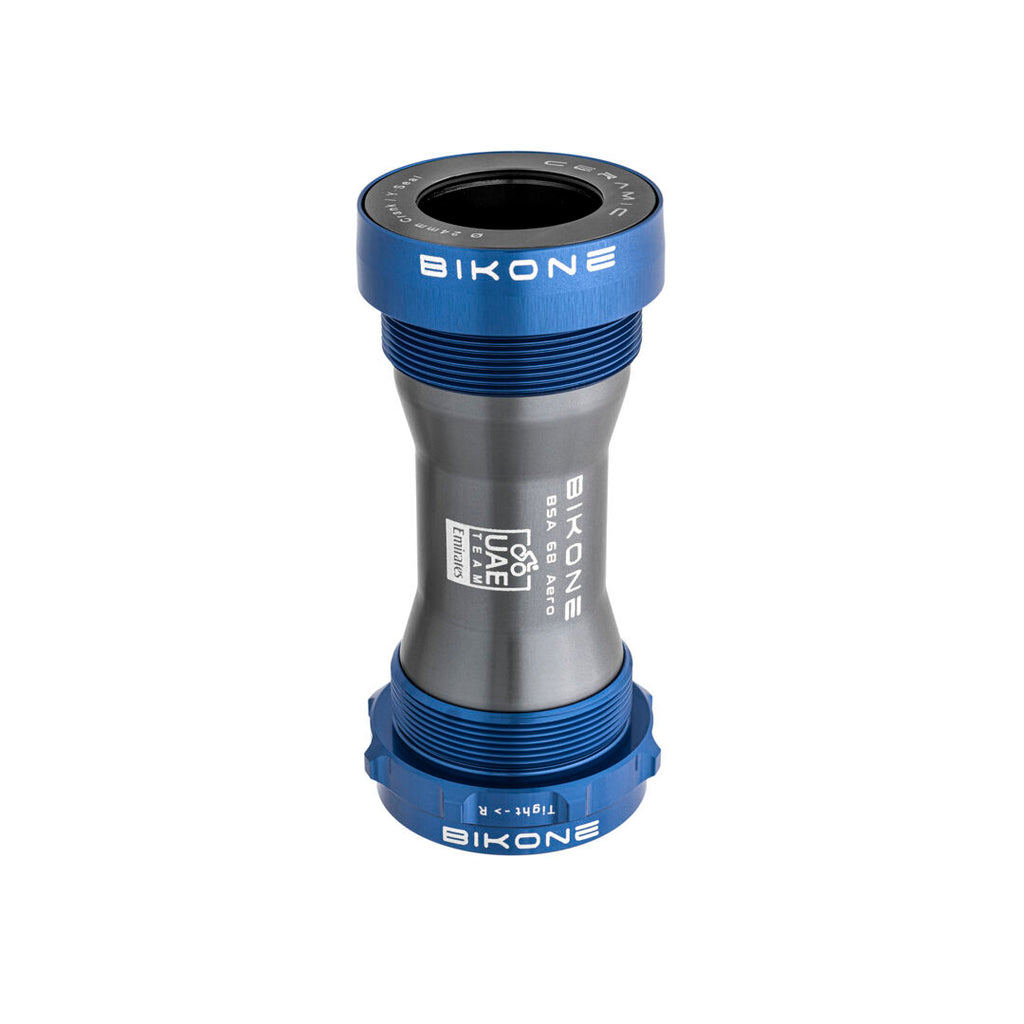

  • Product Name: Bikone BSA Road Ceramic Aero UAE for Shimano
  • Product Type: Threaded ceramic bottom bracket
  • Frame Standard: BSA / English threaded
  • Common Road Shell Width: 68mm
  • Crank Compatibility: Shimano 24mm spindle cranksets
  • Compatible Crank Style: Shimano Hollowtech II-style road crank systems
  • Bearing Type: Ceramic bearing system
  • Cup Style: Lightweight Aero external cup design
  • Cup Material: Precision-machined aluminium
  • Finish: UAE Edition anodised finish
  • Installation Type: Threaded external bottom bracket cups
  • Recommended Use: Road racing, criteriums, endurance road riding, fast bunch rides, triathlon-style road bikes and premium Shimano custom builds
  • Compatible Bike Type: BSA threaded road bikes, aero road bikes, endurance bikes, climbing bikes and performance custom framesets
  • Main Upgrade Purpose: Smoother pedalling, reduced drivetrain friction, quieter operation and premium bottom bracket replacement

Compatibility Notes

  • Designed for Shimano 24mm crank spindles only.
  • Not suitable for SRAM DUB 29mm or BB30 30mm cranks unless using a different model.
  • Best suited to BSA threaded road frames with a 68mm shell.
  • Correct installation torque, thread preparation and crank preload are essential for best performance.
  • Professional installation is recommended.
Notable Tech, Materials & Construction

Ceramic Bearing Performance

The ceramic bearing system is designed to reduce rotational friction and create a smoother crank feel compared with many standard steel-bearing bottom brackets. This is especially appealing for riders chasing small but noticeable drivetrain efficiency gains.

Aero Cup Design

The Aero version uses a refined external cup profile designed for performance road bikes where low weight, clean appearance and drivetrain efficiency matter. It suits modern high-end road builds where every component is selected for both function and finish.

BSA Threaded Reliability

BSA remains one of the most trusted bottom bracket standards because it is easy to service, widely supported and less prone to creaking than many press-fit systems when installed correctly.

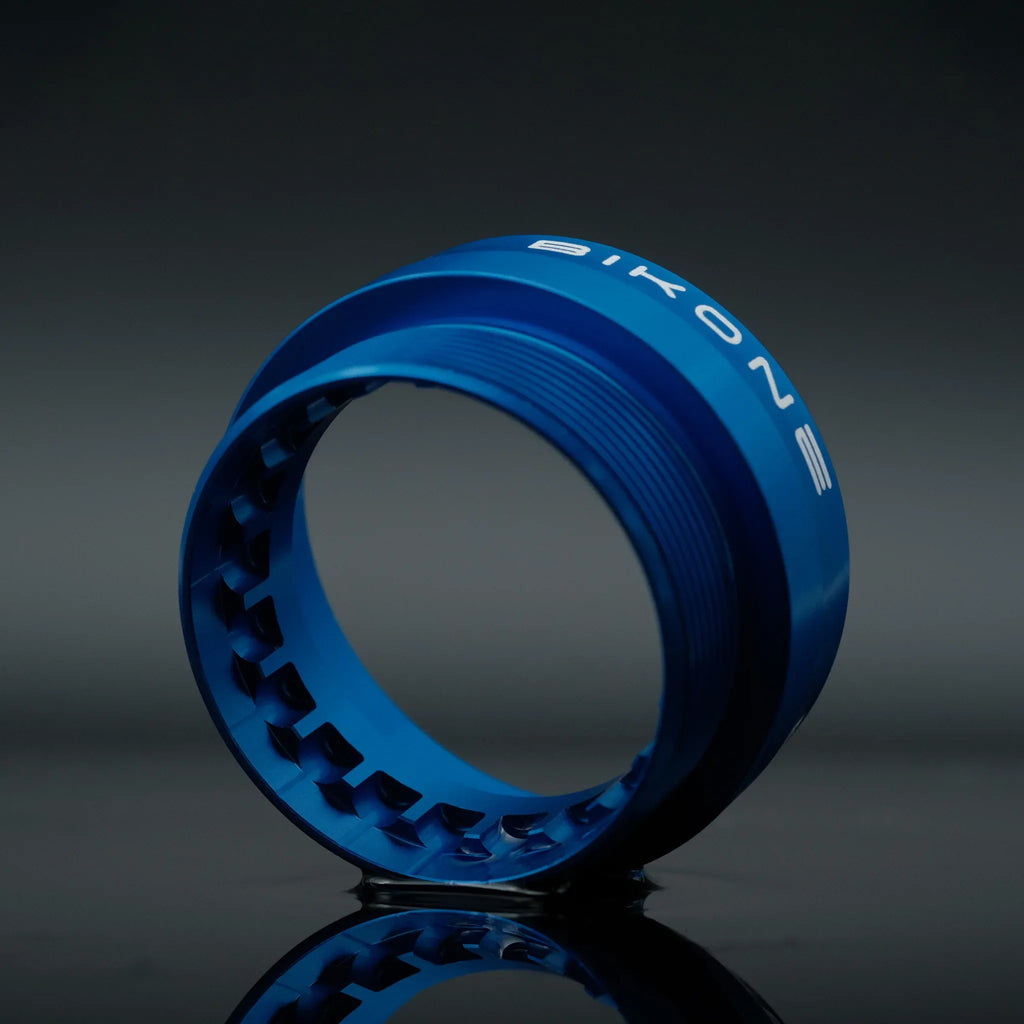

Precision-Machined Aluminium Cups

The aluminium cups provide a stable bearing seat and accurate threaded interface. Strong cup construction helps maintain alignment under pedalling loads, especially when climbing, sprinting or riding at high cadence.

UAE Edition Finish

The UAE Edition styling gives the bottom bracket a premium race-inspired look. It is a small detail, but on a high-end Shimano Di2 or custom road build, it adds a polished finishing touch.

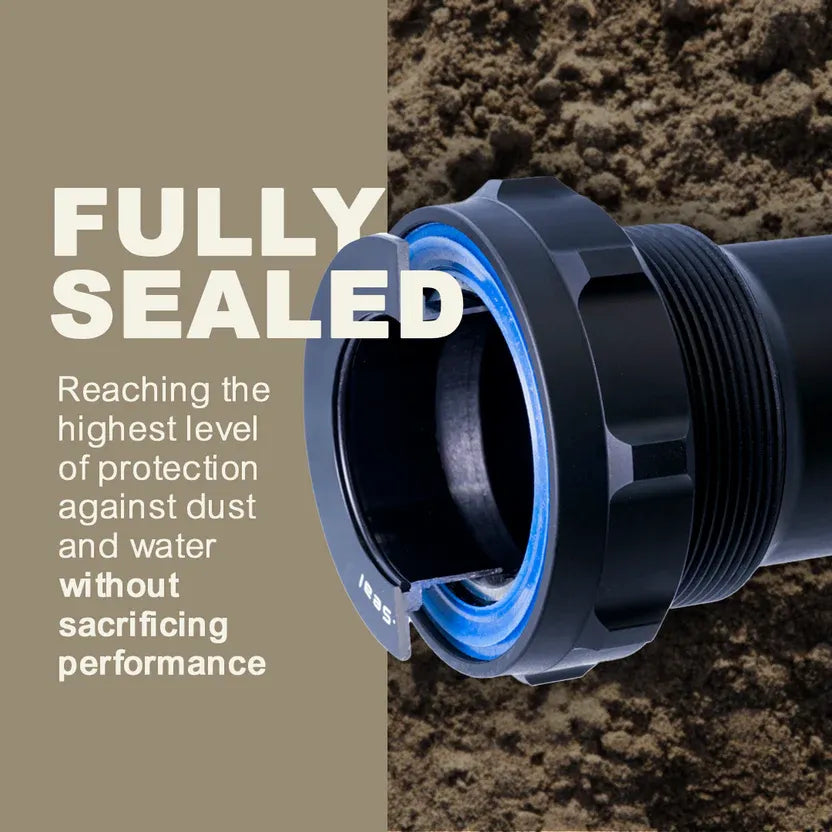

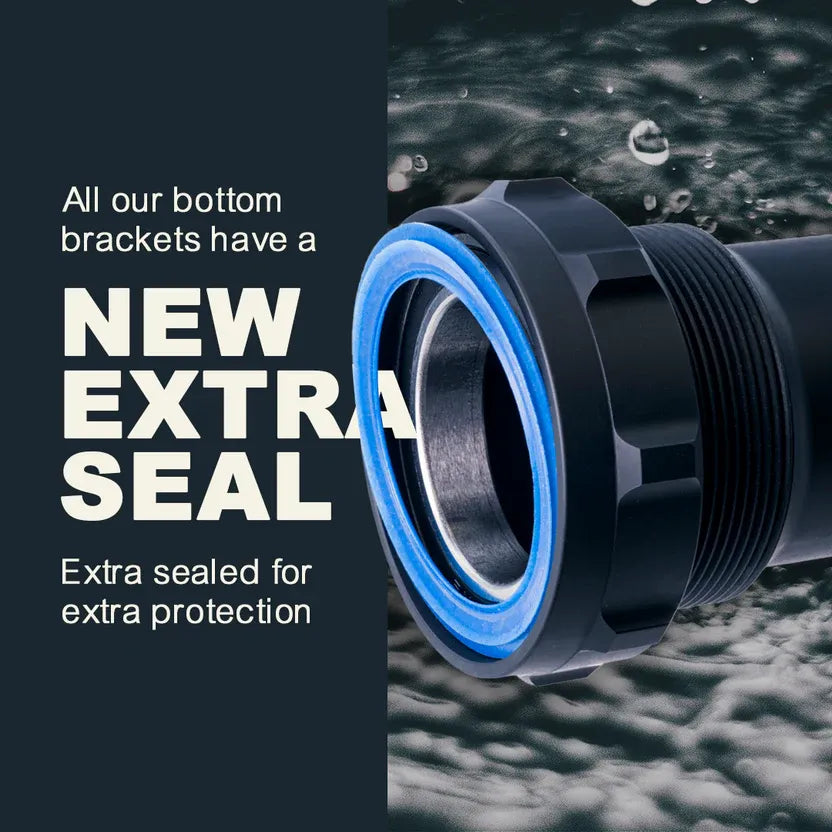

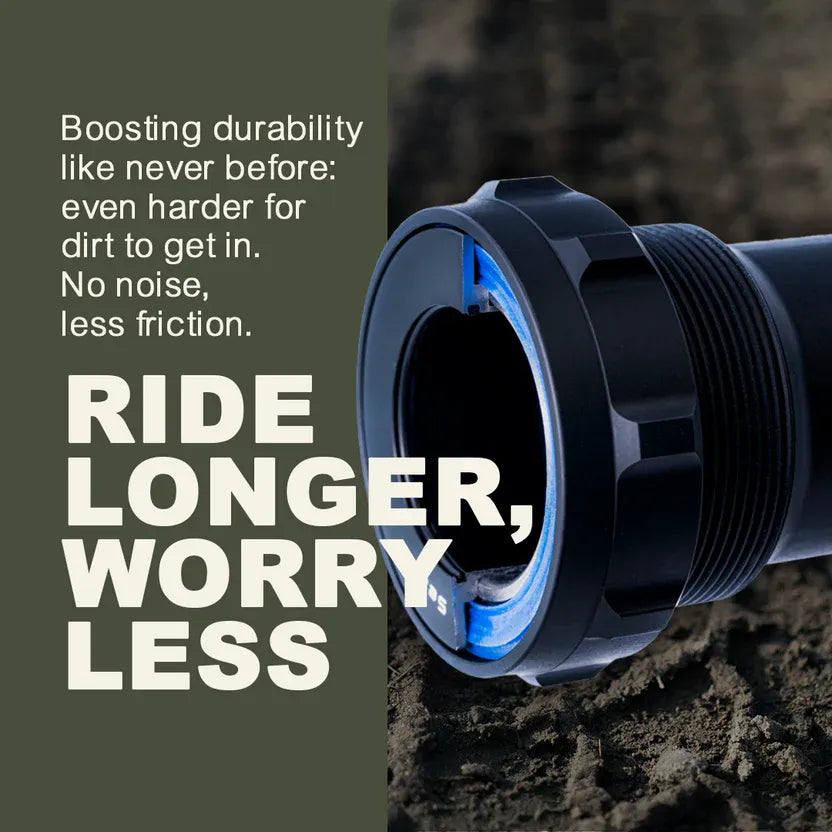

Sealed Bearing Protection

The sealed bearing construction helps protect against road spray, sweat, dust and grime. This is valuable in Brisbane and Queensland conditions where bikes regularly face humidity, summer storms, hot weather and rough chip-seal roads.

Size, Fit, Geometry & Measurements

Bottom Bracket Fitment

  • Frame Standard: BSA threaded
  • Typical Road Shell Width: 68mm
  • Crank Spindle: Shimano 24mm
  • Installation Style: External threaded cups
  • Bearing Type: Ceramic
  • Best Match: Shimano road cranksets including 105, Ultegra, Dura-Ace and compatible 24mm Shimano-style cranks

Fit Checklist Before Purchase

Before ordering, confirm:

  • Your frame uses a BSA threaded bottom bracket shell
  • Your bottom bracket shell width is 68mm
  • Your crankset uses a Shimano 24mm spindle
  • The frame threads are clean and undamaged
  • Correct spacers or dust covers are available if required

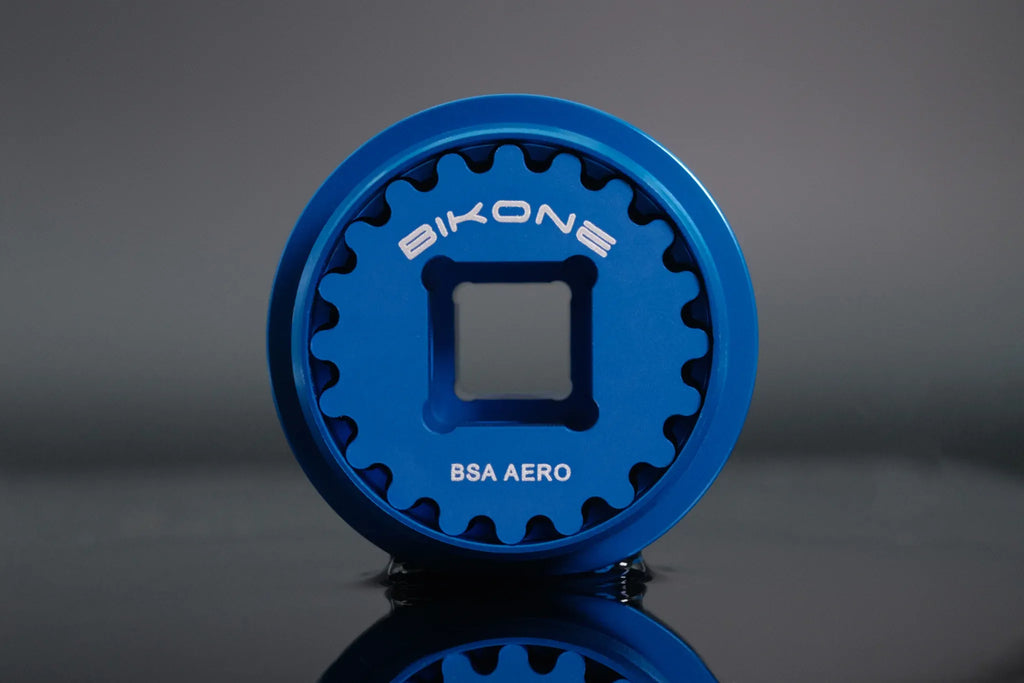

  • The correct installation tool is available

Fit Recommendation

Installation should be completed using the correct external bottom bracket tool, suitable grease or anti-seize on the threads and a calibrated torque wrench. Correct crank preload is critical; too much preload can damage bearings, while too little can create play or noise.

Who it is best suited for and where it is best suited

The Bikone BSA Road Ceramic Aero UAE for Shimano is best suited to riders who want a smoother, lighter and more refined bottom bracket for a Shimano-equipped road bike.

Best Suited For

  • Road racers
  • Criterium riders
  • Fast bunch ride cyclists
  • Endurance road riders
Industry Feedback, Rider Reviews and our own opinion

The main technical takeaway is that a quality ceramic BSA bottom bracket can improve drivetrain smoothness, reduce bearing drag and provide a more refined pedalling feel compared with worn or basic OEM units.

Rider Feedback & Community Sentiment

Rider feedback around high-quality ceramic Shimano-compatible BSA bottom brackets is generally positive.

Common positive rider comments include:

  • Smoother crank rotation
  • Quieter drivetrain under load
  • Premium appearance on high-end builds
  • Better feel compared with worn stock bottom brackets
  • Good match for Shimano Ultegra and Dura-Ace drivetrains
  • Threaded BSA installation feels secure and serviceable
  • Ceramic bearings feel refined on race and endurance bikes
  • Sealed construction suits wet and dusty riding conditions

As with all ceramic bottom brackets, riders get the best results when installation is precise, the frame threads are clean and the bearings are protected from pressure washing and contamination.

Why We Love It at Pedal Passion

We love the Bikone BSA Road Ceramic Aero UAE for Shimano because it adds refinement to one of the most important parts of the bike: the drivetrain interface.

Product Care & Warranty Info

Product Care

  • Install using the correct bottom bracket tool and calibrated torque wrench.
  • Apply suitable grease or anti-seize to BSA frame threads before installation.
  • Confirm Shimano 24mm crank compatibility before fitting.
  • Set crank preload correctly after installation.
  • Avoid pressure washing directly around the bottom bracket seals.
  • Check for play, roughness or creaking during regular bike servicing.
  • Keep the bottom bracket area clean after wet or dusty rides.
  • Inspect seals if riding frequently in rain or dusty conditions.
  • Replace or service bearings if rotation becomes rough or contaminated.
  • Have drivetrain noises diagnosed early before they cause further wear.

Warranty Information

  • Warranty coverage is subject to Bikone or retailer terms and conditions.
  • Warranty generally applies to manufacturing defects in materials and workmanship.
  • Normal bearing wear, contamination, incorrect installation, cross-threading, excessive preload, pressure washing damage, crash damage and misuse are generally not covered.
  • Professional installation is recommended for performance, safety and warranty protection.
  • Bearing lifespan depends on installation quality, weather exposure, cleaning habits, lubrication and service frequency.
